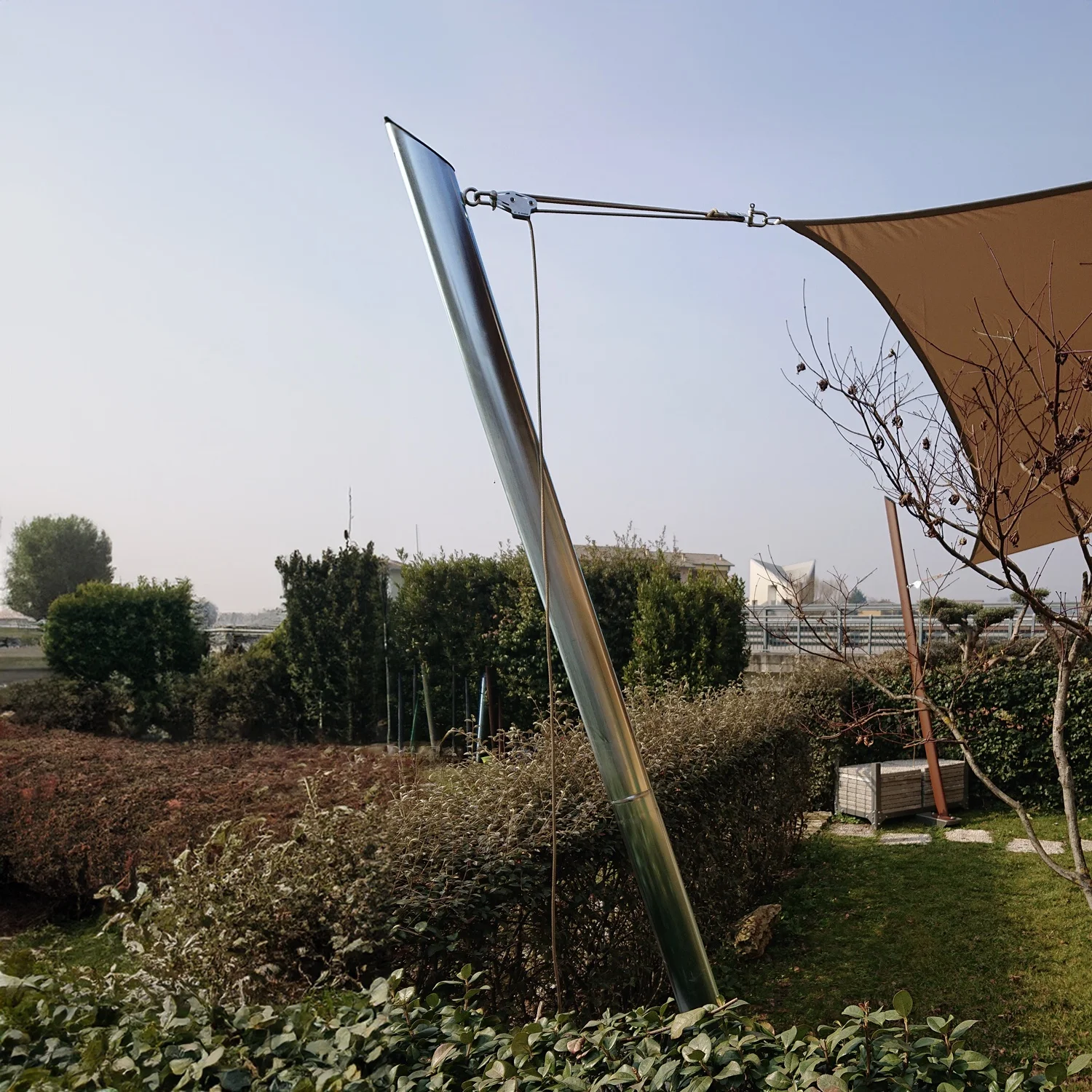

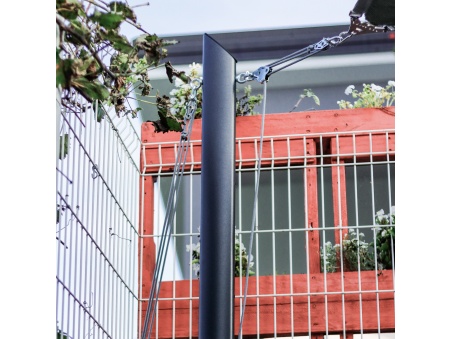

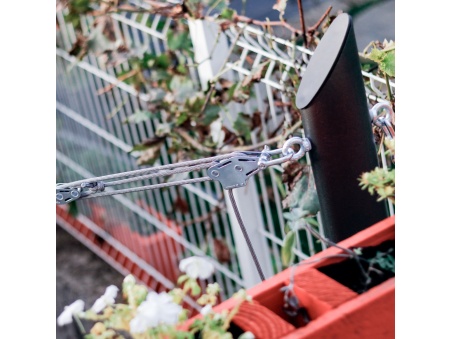

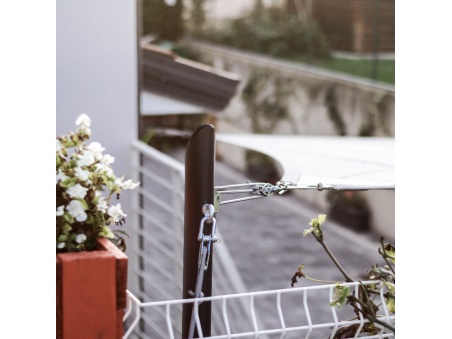

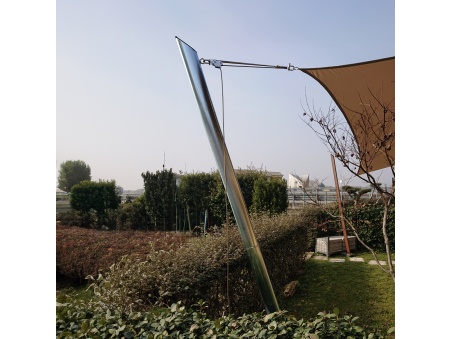

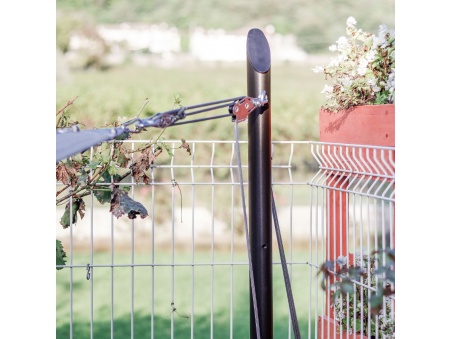

Ulisse Sail pole with 6 anchor points

Ulisse, the shade sail pole that combines strength, design and functionality. Made with elliptical steel design, offers unparalleled bending resistance compared with round poles.
It is a practical and safe solution that finds application for all Maanta sails.
Thanks to the 6 anchor points, Ulisse allows a good shadow cone adjustment.

  • Elliptical steel 101 x 50,8 x 2 mm. Total height 275 cm (135 cm + 140 cm)
  • Incomparable strength, design and bending resistance with respect to any round tube

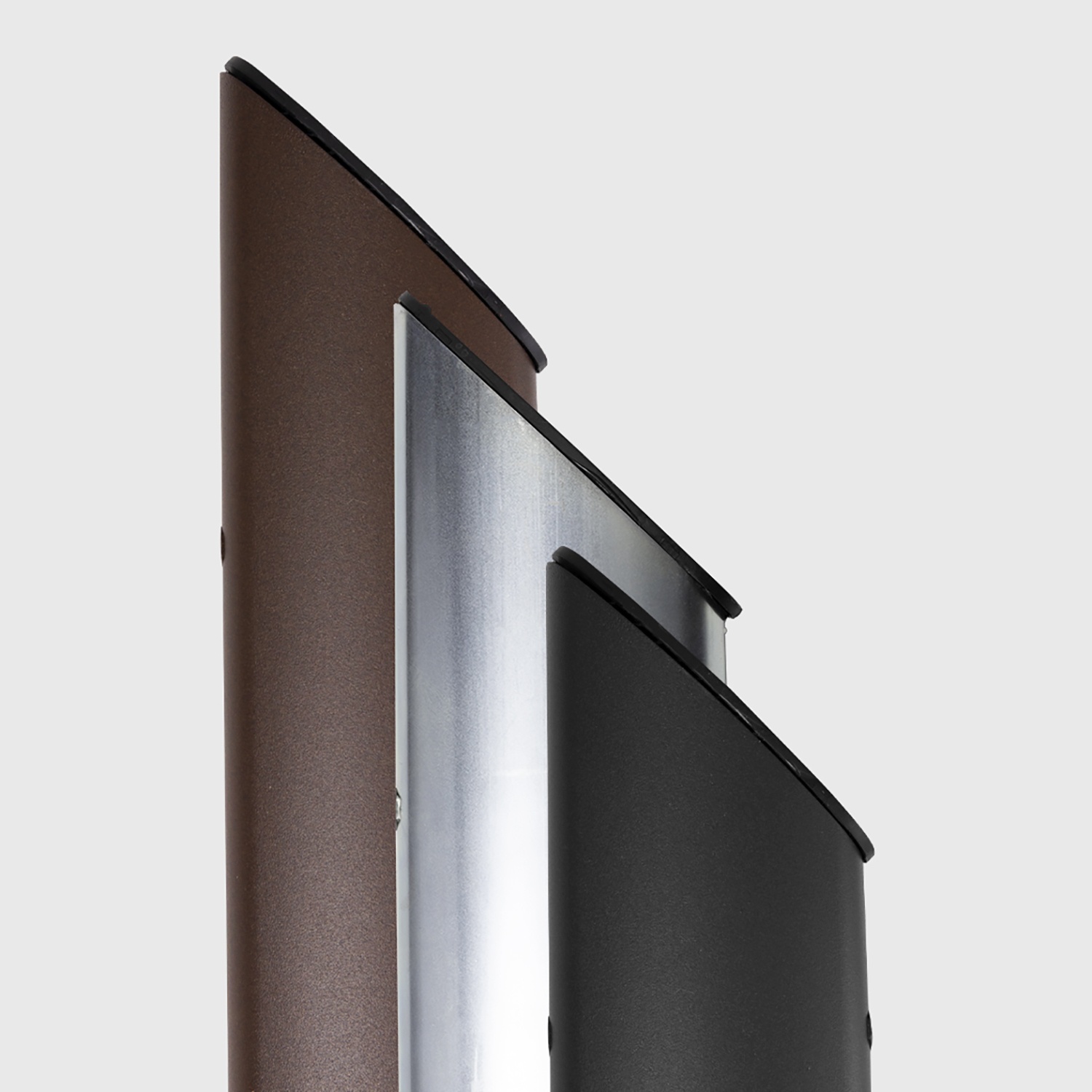

  • Protective galvanization and anthracite or dark corten rust resistant industrial paintwork
  • Variable and independent height for one or more sails (up to 6). Perfect shade adjustment and dynamic protection from the sun
  • Includes accessories for £90
    • Sturdy ground base 10 mm thick steel (or wall mountings)

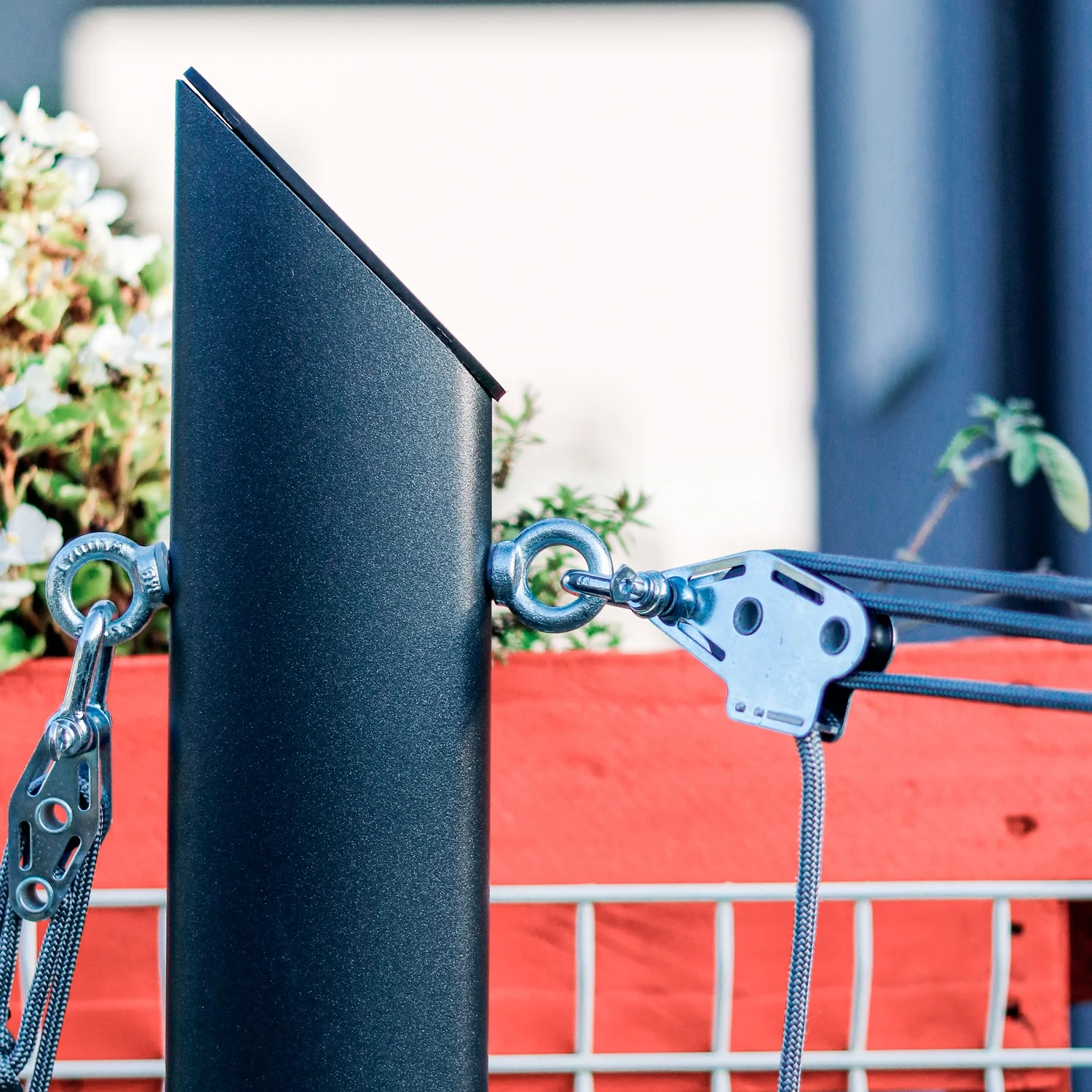

    • Kit Muscle x3 Pole with rope (silver in galvanized e anthracite, beige in dark corten) and galvanized steel pulleys and shackles
    • Hardware and crews required for assembly (threaded rods for ground/wall anchoring not included)

The hardware and crews required for assembly are included, but in order to anchor it we recommend the use of our M12 x 13 cm threaded rods and of the chemical anchoring M-Plus (not included).

Remember: for sails larger than 20 m², we recommend the use of the upwind tie rod.
Turn your outdoor space into an oasis of comfort and style with Ulisse.

Colour: Galvanized Steel Ulisse
  • Galvanized Steel Ulisse
  • Anthracite Ulisse
  • Dark Corten Ulisse
Pole Inclination: Pole with 75° base
  • Pole with 75° base
  • Pole with 88° base (90° under tension)
  • Pole + 2 wall mountings
€249.00
truck
truck
Order now and receive it
with UPS Carbon Neutral

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

Accessories

Alu Simple - Pole for shade sails with variable height

Alu Simple

Pole for shade sails with variable height
359.1 €
Kit Muscle x3 Pole - Kit Muscle x3 additional for poles

Kit Muscle x3 Pole

Kit Muscle x3 additional for poles
29.95 €
Solaria Waterproof - Our best radial cut shade sail

Solaria Waterproof

Our best radial cut shade sail
515 €
Solaria +Plus Waterproof - The evolution of our best radial cut shade sail

Solaria +Plus Waterproof

The evolution of our best radial cut shade sail
898.95 €

Description

The Ulysses shade pole is a specific product for garden sails.
This particular type of shade requires particularly taut fabrics to cope perfectly with the wind and optimize rainwater drainage.
It is also necessary to give a height difference of at least one corner of the sail to allow drainage of the liquid element and/or cut off the air.

It is from these needs that we have created the Ulysses pole, which is considerably stiffer than the 110 diameter stainless steel poles.

The bending strength is incomparable to a 60 diameter pole offered by many competitors.

The 2mm thickness and elliptical shape make it a design pole but at the same time incomparable tensile strength.

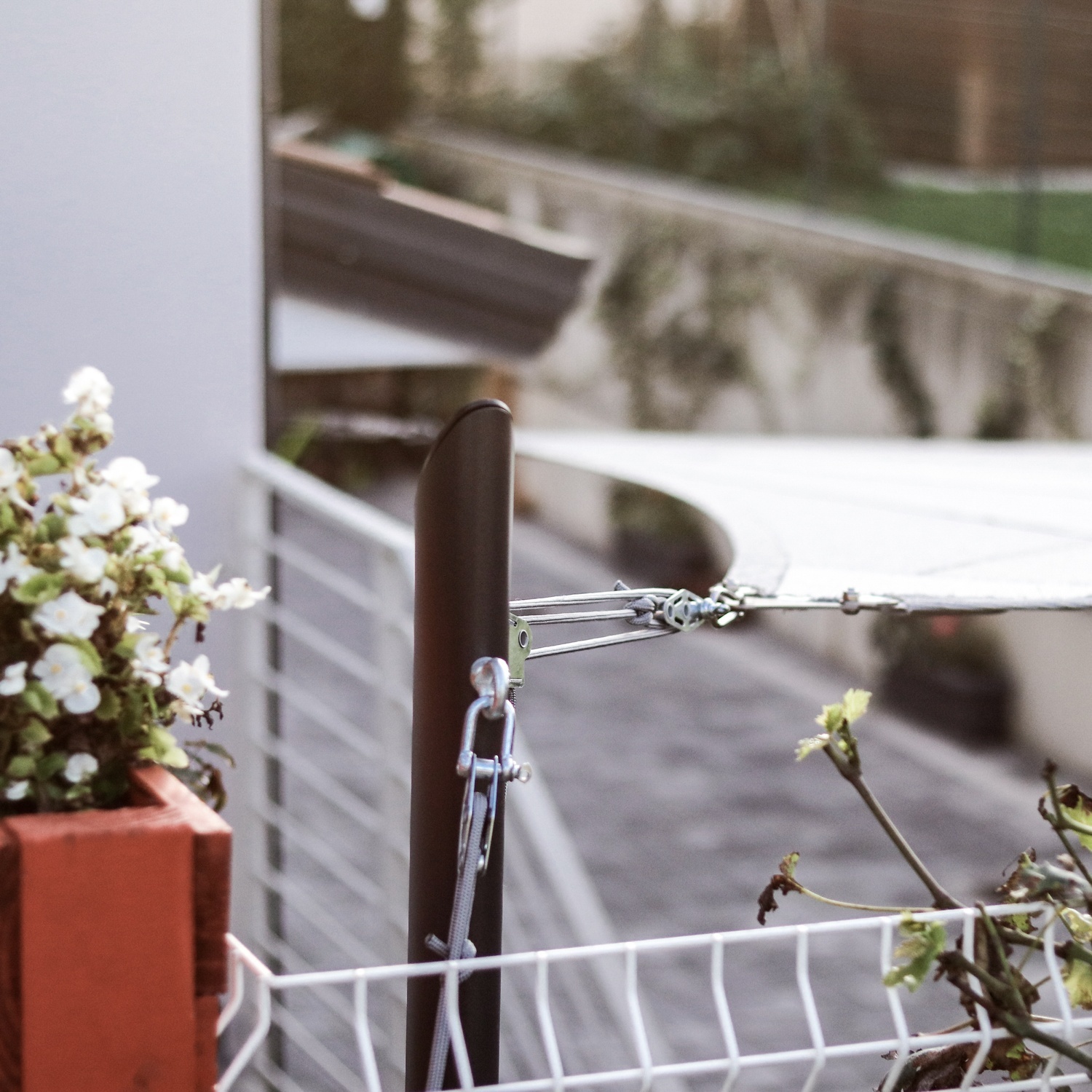

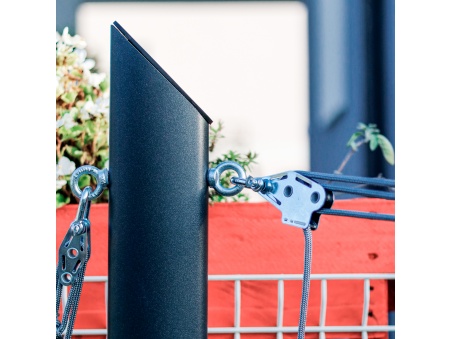

With the new anchoring system, we will have a lot of leeway: since the closer the top is to its anchor, the stronger it will be, the new Muscle X3 anchoring system will allow both maximum tension and maximum freedom.

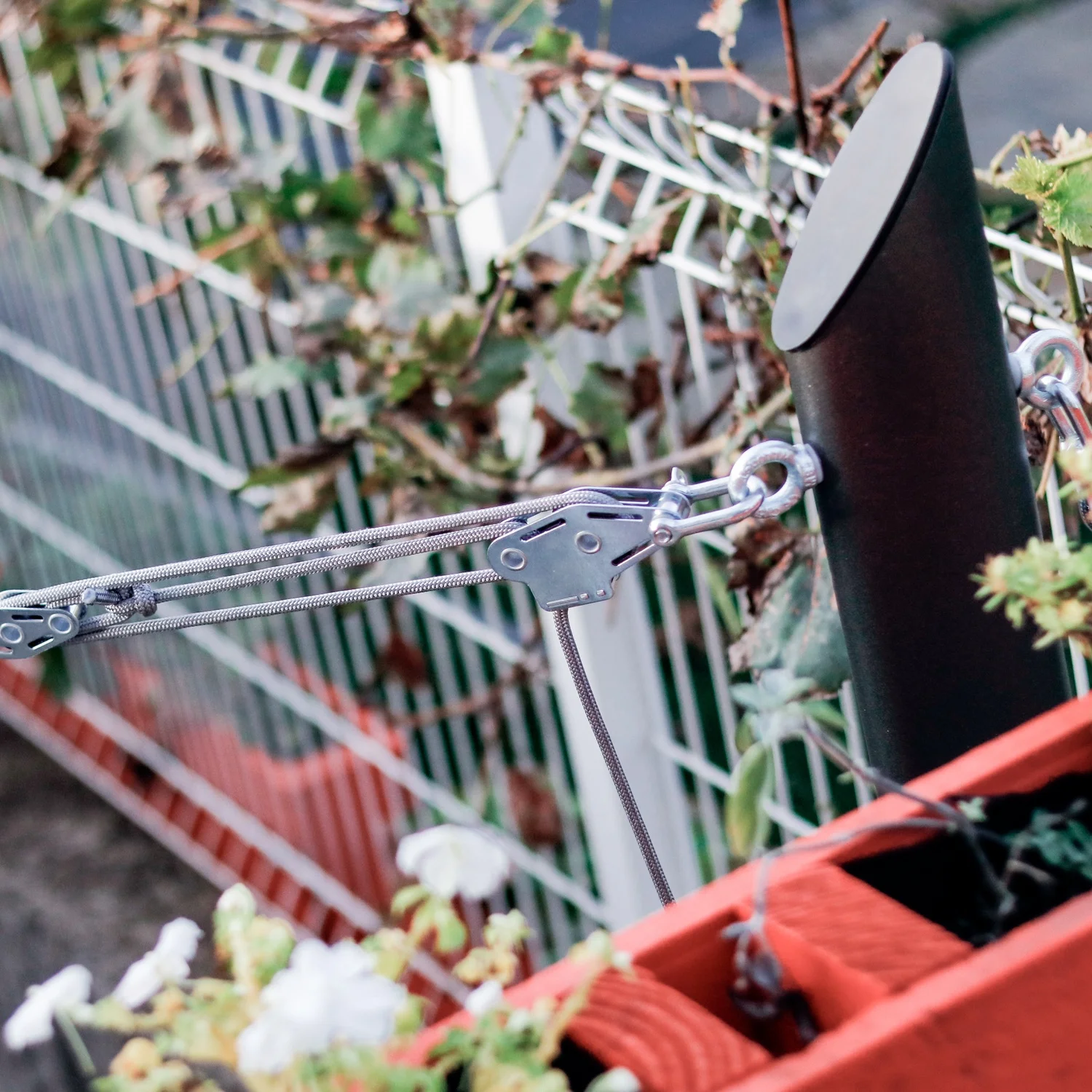

It is no longer necessary to carefully calculate the dimensions of the kit, as the rope and pulleys will adapt wonderfully to changing needs and allow us to provide great tension to the end, thanks to the multiplication of the force by the pulleys.
With only 15 kilos applied to the corner of the sail, we get 45 kilos!!!

The galvanizing process makes our colors persistent and durable, while the 4 different height options make the canopy malleable, helping you create shade where you need it (just raise or lower the flap), offering dynamic protection and aiding perfect rainwater drainage.

Up to 4 different sails (or 2 front sails and a rear brace to aid anchoring) can be anchored to the same pole using the hooks already provided!

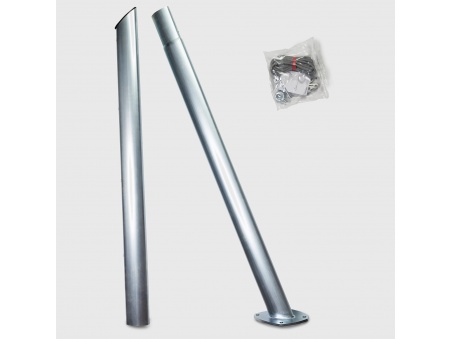

The affordable price is also achieved thanks to a well thought out packaging of less than 160 cm.
The joint is designed to further reinforce the pole itself.
The pole restraint is achieved using a special mold that works to the tenth of a millimeter.
It will then be easy to assemble/disassemble the pole if necessary, mainly due to its design features and compact dimensions.

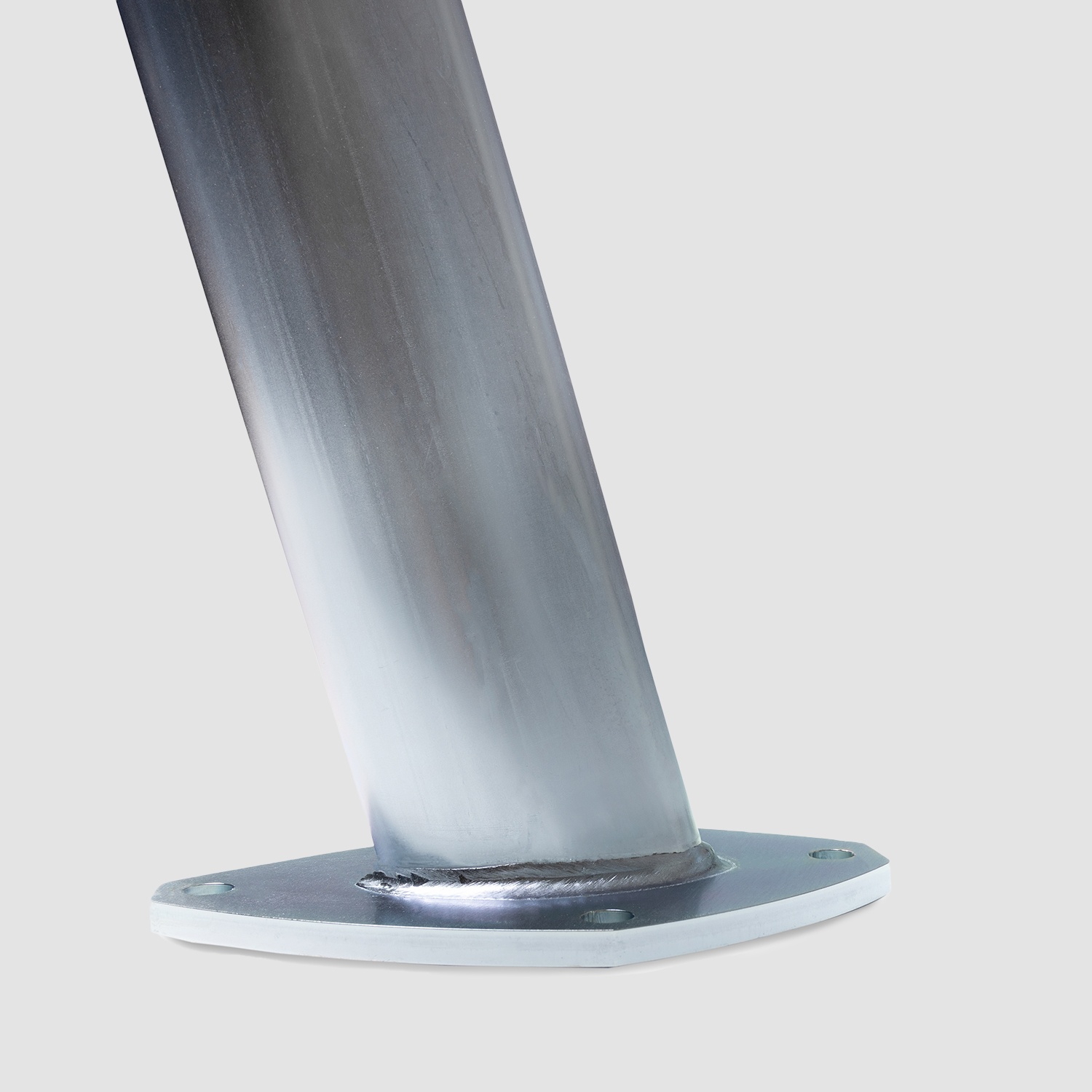

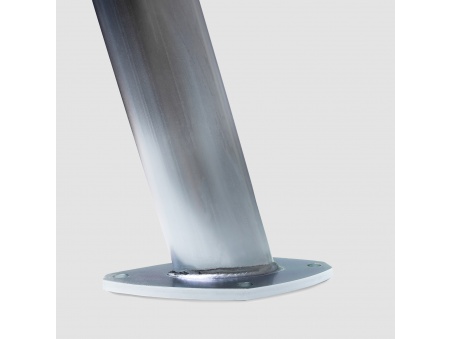

The pole kit includes a very sturdy plate a 1 cm thick base, able to withstand inclement weather.
Available in 75° - 90° and wall collar versions it is a specific and design shade sail pole with an unbeatable price/performance ratio.

See our channel YouTube!


You will find installation guides and much more: click here

Available versions

Available versions

Ulisse - the 3 versions of the Ulisse Kit

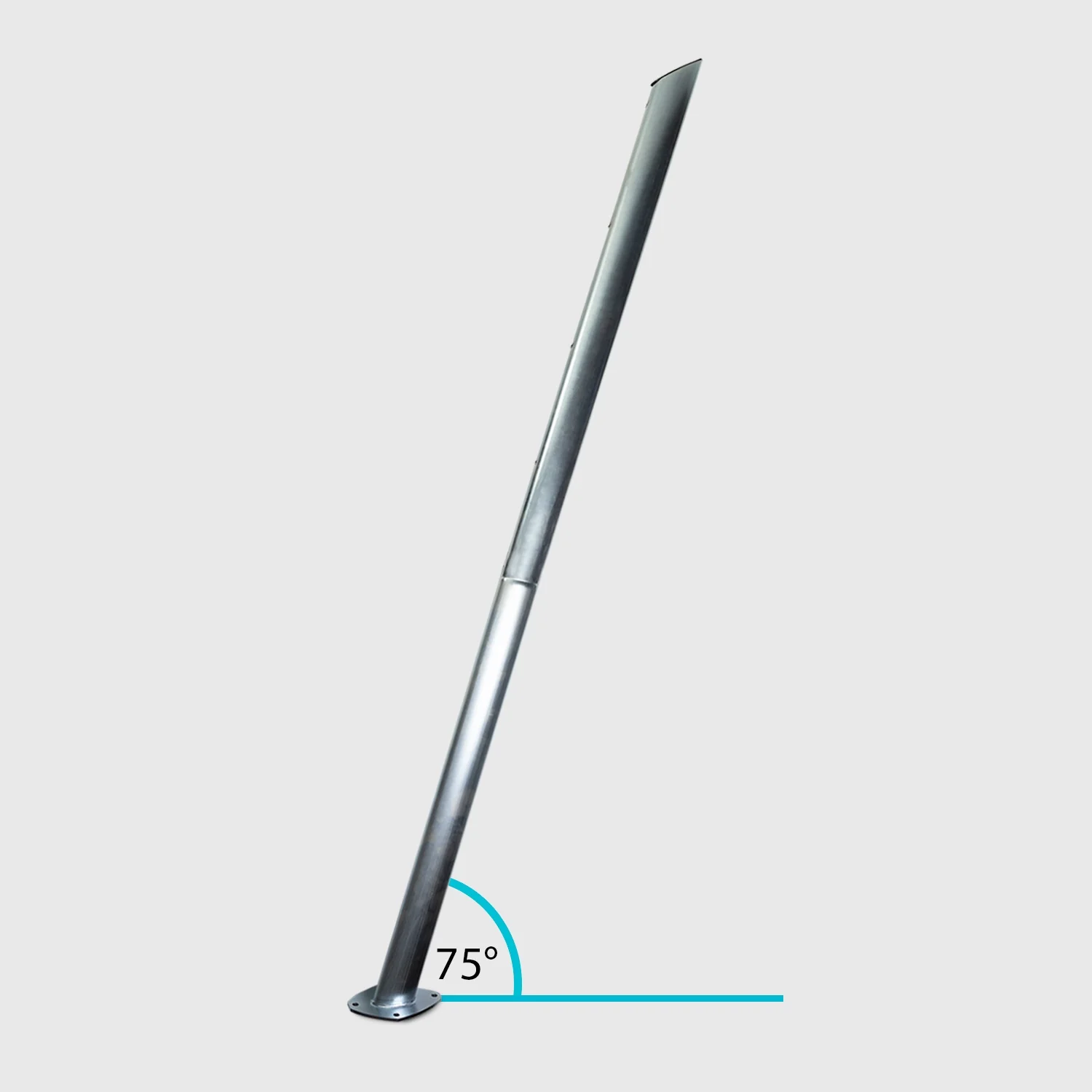

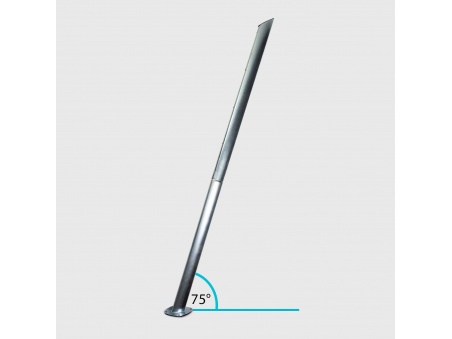

The pole is available with 75° or 90° base plate.
Or with 90° wall collars, for the vertical fixing on walls.

Installation of the base plate

The base can be fixed on a concrete floor using threaded rods (available here).

Advantages

Advantages

palo per tenda a vela con agganci multipli

Functionality

Multi-sail setup, multiple fixing points. 4 Front and 2 rear fixing points that can also be used for accessories such as tie rods.

4 gradi di impermeabilità

palo alluminio per vela ombreggiante

Design

The slender but sinuous profile goes perfectly with shade sails

5 gradi di facilità di installazione

robustezza palo per vele da sole

Robustness

The incredible flexural strength makes it ideal for keeping shade sails perfectly taut, essential for ensuring resistance to wind and water runoff.

5 gradi di facilità di installazione

valo per tenda a vela veloce da installare

Installation

Just follow the guides, and the pole will be very simple to install. It is already equipped with ground bases or collar, and special tensioners to anchor the sail.

5 gradi di facilità di installazione

Features and Dimensions

Features and Dimensions

Thanks to the various fixing points it will be possible to lower or raise the sails dynamically, effectively protecting from the sun.

Both the galvanized and painted versions are resistant to rust and salt. The design and thickness make it virtually free of bending.

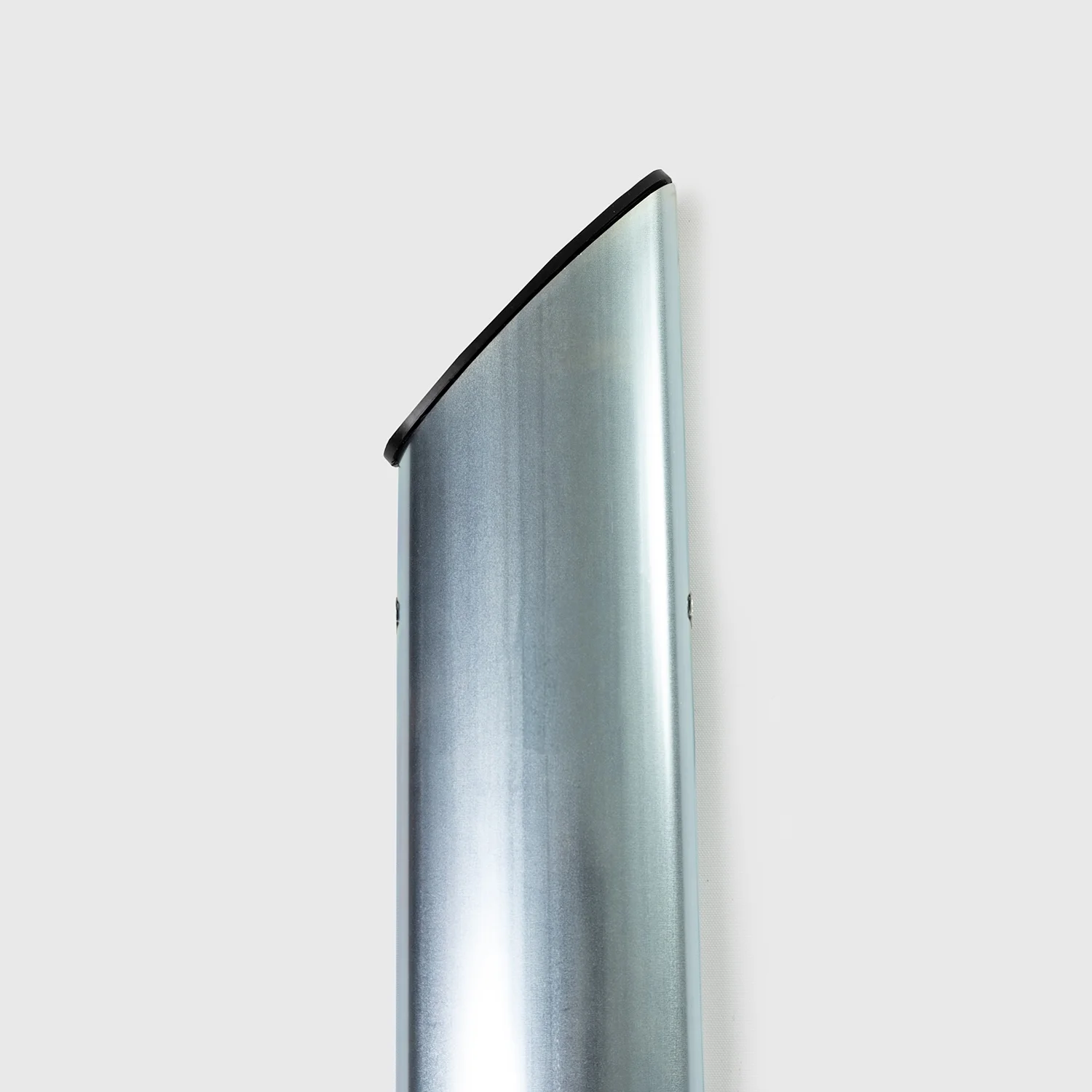

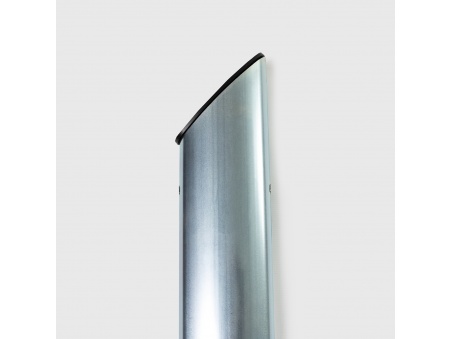

The elliptical tube has been carefully selected: the profile has a very sinuous design that goes perfectly with the lines of the sails. In addition to this it shows great resistance to bending, both thanks to its thickness and to its shape.

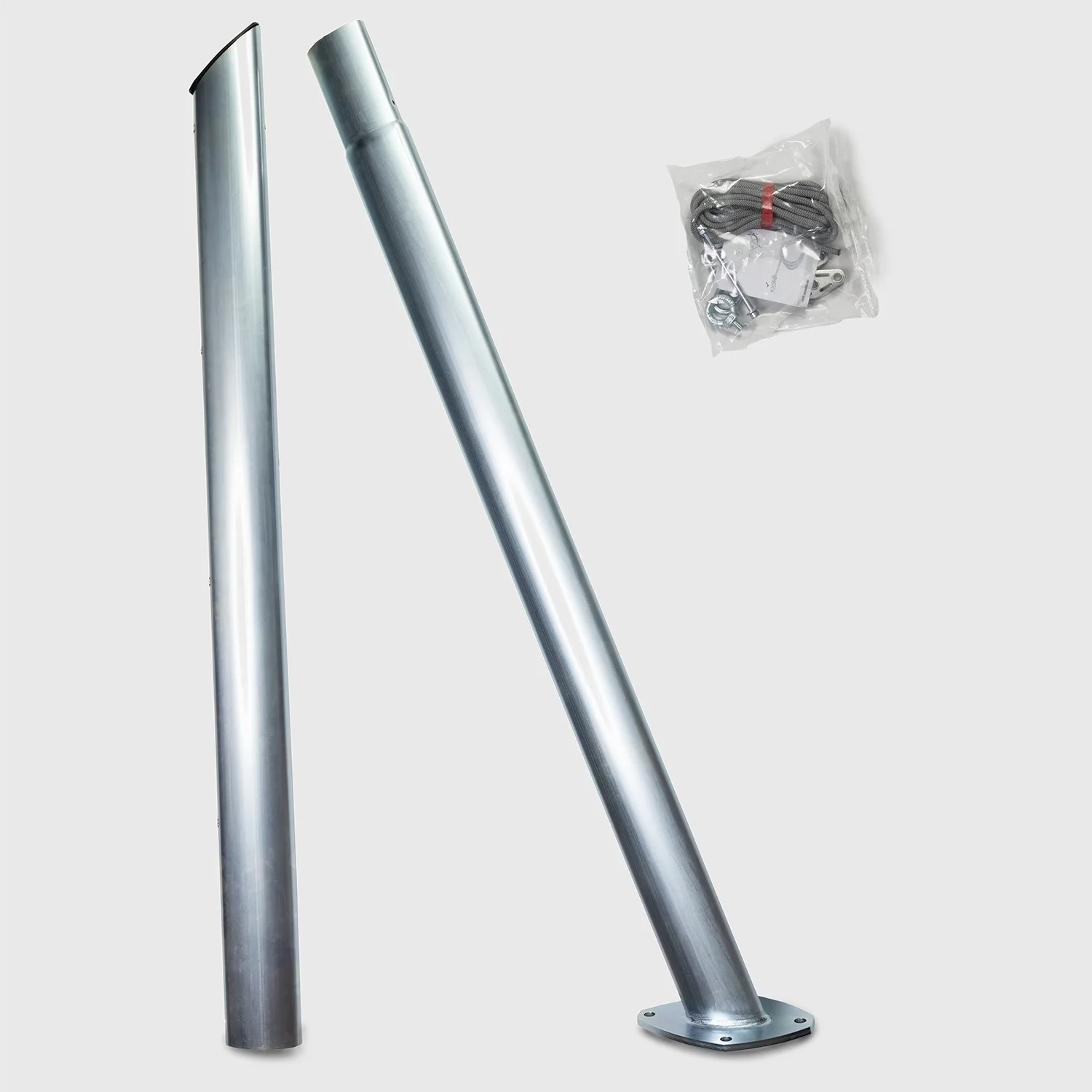

The kit is offered full-optional and already includes the appropriate accessories to attach the sail but also the ground base or the wall collars.

Strenghts

Strengths Ulisse

VARIABLE HEIGHT

Only thanks to this functionality will we be able to have a dynamic shading, a unique design and a installation able to drain the water and cut the wind.

altezza_variabile_Ulisse

DYNAMIC SHADING

The ability to adjust the heights of the individual sail corners allows us to obtain shadow exactly below the structure. We can vary the heights in a few seconds, thus varying the shading.

cono_ombra_Ulisse

MULTI-SAIL FRONT/REAR

There are 6 fixing points, 4 front and 2 rear. Up to 6 sails (or accessories such as tie rods) can therefore be hooked at the same time.

multivela_anteriore_posteriore_Ulisse

MULTI-SAIL SETUPS(UP TO 6 SAILS)

Thanks to the 6 anchoring points on one single pole we can perform multiple installations to cover important spaces using a single pole.

setup_complessi_Ulisse

STABILITY UNDER TENSION

The elliptical profile combined with the thickness and diameter make this pole really rigid. This resistance to bending is extraordinary in order not to lose tension on the sails and not to make him "water bellies".

stabilita_sottotensione_Ulisse

RESISTANCE

The pole is subjected to high-quality protective galvanising. The anthracite version is industrially powder-coated.

resistenza_Ulisse

FULL-OPTIONAL

Includes a sturdy 10 mm thick steel floor base (or wall brackets), variable height, Muscle hitch and cable stay kit.

full_optional

Instructions

Assembly instructions in PDF format with technical data, content and step-by-step instructions for assembling Ulisse with base 90° plate.

Click here to download

Assembly instructions in PDF format with technical data, content and step-by-step instructions for assemblingUlisse with base 75° plate.

Click here to download

Assembly instructions in PDF format with technical data, content and step-by-step instructions for assembling Ulisse with wall collars.

Click here to download

Guides & Info

GUIDES & INFO

Create Your Project with Our Guides!

Waterproof or breathable?
How to choose the fabric ►►►

Dimensions of the sails:
How to measure spaces and dimensions ►►►

Step by step installation guide
Assembly and maintenance guide ►►►

TENSIONED SAILS

Correct tensioning is one of the most important factors during assembly

The advantages of a well-taut sail are:

  • better wind resistance (does not tear and does not wear fixings)
  • no pockets of water are created (waterproof sails)
  • greater longevity of the sail and fixings

Reviews

Reviews

logo vele maanta
BETTER ASSISTANCE
Better assistance than Amazon, very kind and helpful. Exceptional quality and design for both poles and curtains.

The first wind test showed the clear superiority between the purchased 4x5m sail and that of another brand that we previously mounted. The shade sail lets the wind pass without getting upset.
Mounted here on Etna, it has also faced its first volcanic ash rain without any damage.

Massimo Grieco


Review left on Google MyBusiness see others

logo vele maanta
ROBUST AND QUALITY
Excellent products, I bought both poles and sails.

The posts are of excellent quality, sturdy and aesthetically beautiful, the purchase cost in my opinion is fully justified by the quality of the product ...
The sellers found them friendly and very helpful. Advisors to everyone to buy their products.

Davide Corsaro


Review left on Google MyBusiness, see others

logo vele maanta
EXCELLENT CONSISTENCY

I have carried out several orders related to anchor poles and sails and I have always had a great time. The anchoring poles are of excellent workmanship and of great quality ditto for sailing awnings. I have always placed telephone orders, finding competent and kind operators every time.

Paolo Brignoli


Review left on Google MyBusiness, see others

POLE COMPARISON TABLE

EZ Mast EZ Mast Stainless Steel Ulisse Alu Simple
Materials available Galvanized steel
Paint coated Galvanized Steel
Stainless steel 304 Galvanized steel
Paint coated Galvanized Steel
Paint coated aluminum
Available inclinations 80° 80° 75°
90°
Wall mounting
75°
90°
Wall mounting
Height 262 cm 262 cm 275 cm 290 cm
Shape/Diameter Round (70 mm profile) Round (70 mm profile) Elliptical (101 x 50.8 mm profile) Maanta Design (122 x 70 mm profile)
Anchor points 5 5 4 front + 2 rear Infinite, via front and rear track
Saltiness resistance (Galvanized Steel) (Stainless Steel 304)
Available colors Galvanized, Anthracite, Dark Corten Stainless Steel Galvanized, Anthracite, Dark Corten Silver, Anthracite, Dark Corten
Base plate Included 8 mm thick Included 8 mm thick Included 10 mm thick Included 10 mm thick
Accessories included EZ Muscle x3 pole
EZ Rear bracing system
EZ Hardware
EZ Muscle x3 pole
EZ Rear bracing system
EZ Hardware
Muscle x3 pole
Hardware
Muscle x3 pole
Hardware
Recommended for sails up to 25 m² up to 25 m² up to 35 m² up to 45 m²
Recommended application Gardens, patios, premises, dehors Gardens, patios, premises, dehors Gardens, patios, premises, dehors All locations, locations with saltiness
Customized availability No No No Yes with minimum order
Warranty years*** 2 2 2 2
Tab EZ Mast Tab EZ Mast Stainless Steel Tab Ulisse Tab Alu Simple

*** warranty is recognized for products installed as per our guides and only on manufacturing defects

FAQ

The Ulisse pole is specially designed to anchor more than one sail. In fact, it is equipped with 6 different attachment points that allow multi-sail anchoring and total customization of the shaded area.

Yes, the Ulisse pole withstands adverse weather conditions. It is made of galvanized or paint coated steel and guarantees protection from rust.

Simply unscrew the eyebolt and place it at the desired position. This feature allows total shading customization according to the specific needs based on the time of day, the season, and weather conditions.

Ulisse can be used with all Maanta sails not exceeding 25 m². In which case, we recommend opting for Alu Simple, our aluminum pole with front and back tracks.

We strongly advise against this operation, but should you wish to proceed we cannot guarantee success given the tenth-of-a-millimeter accuracy of the digital cut with which it is made.

No. Ulisse poles are provided with a steel ground base to be installed on a cemented base at least 15 cm thick, or on a 60 x 60 x 60 cm concrete plinth.
Installation guide here.
