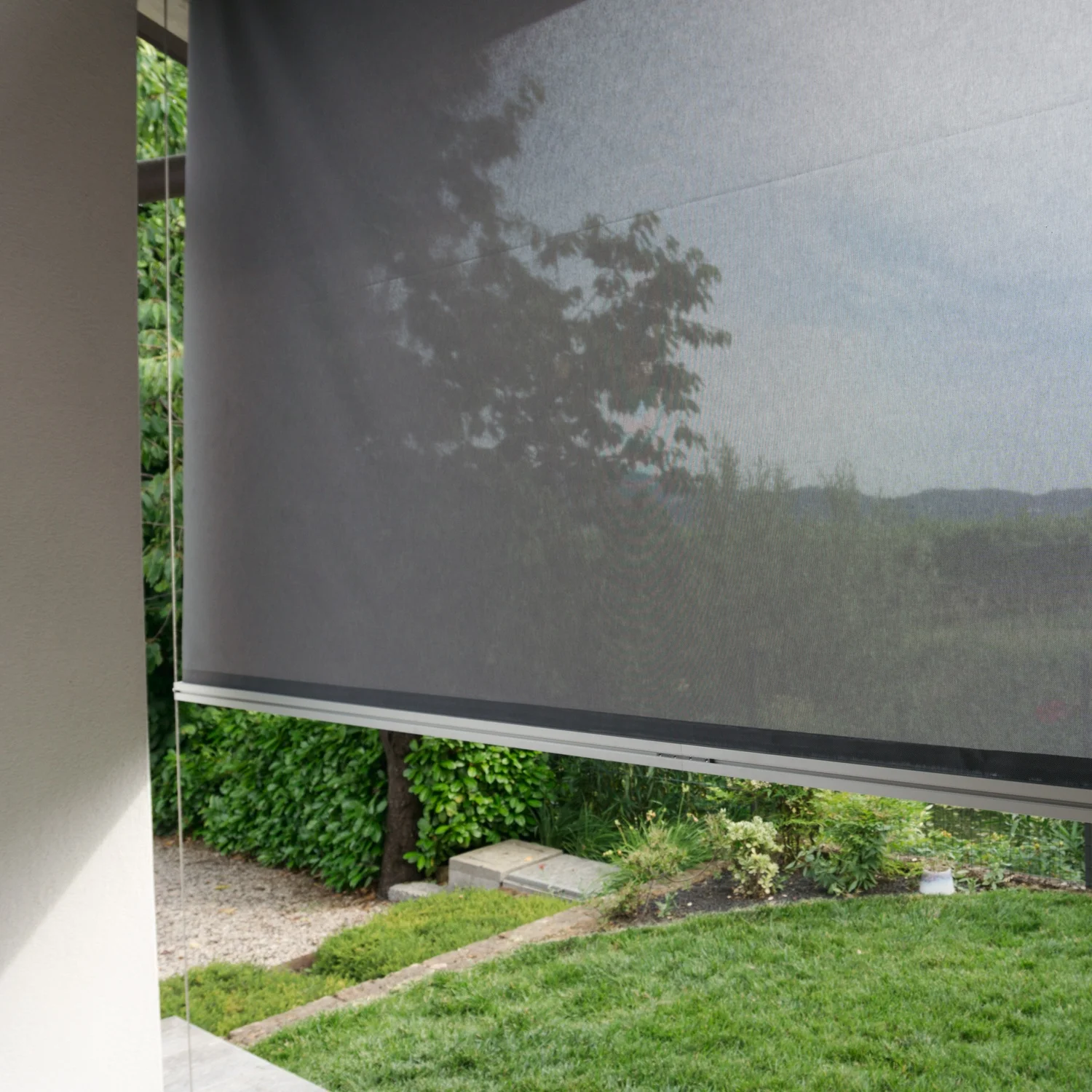

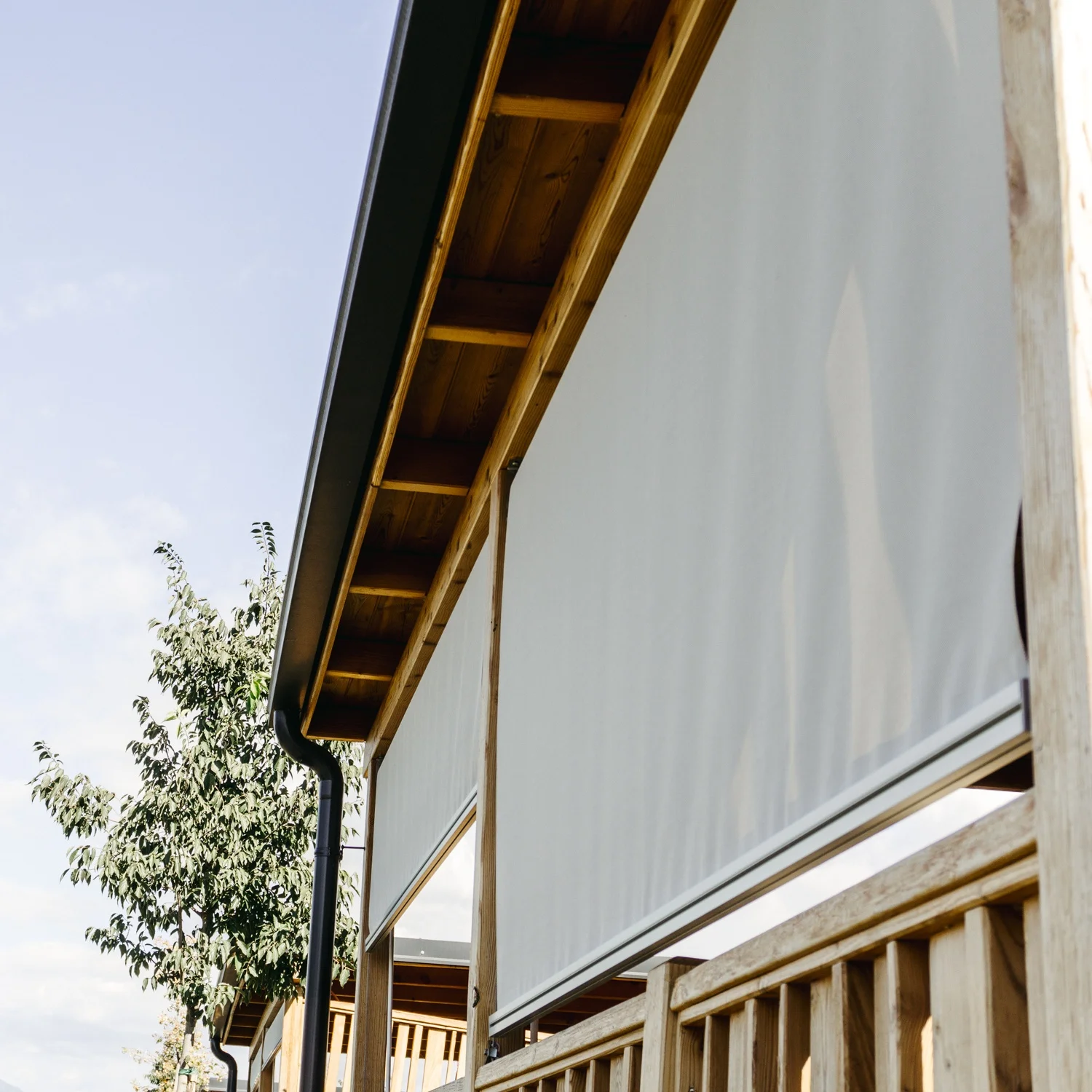

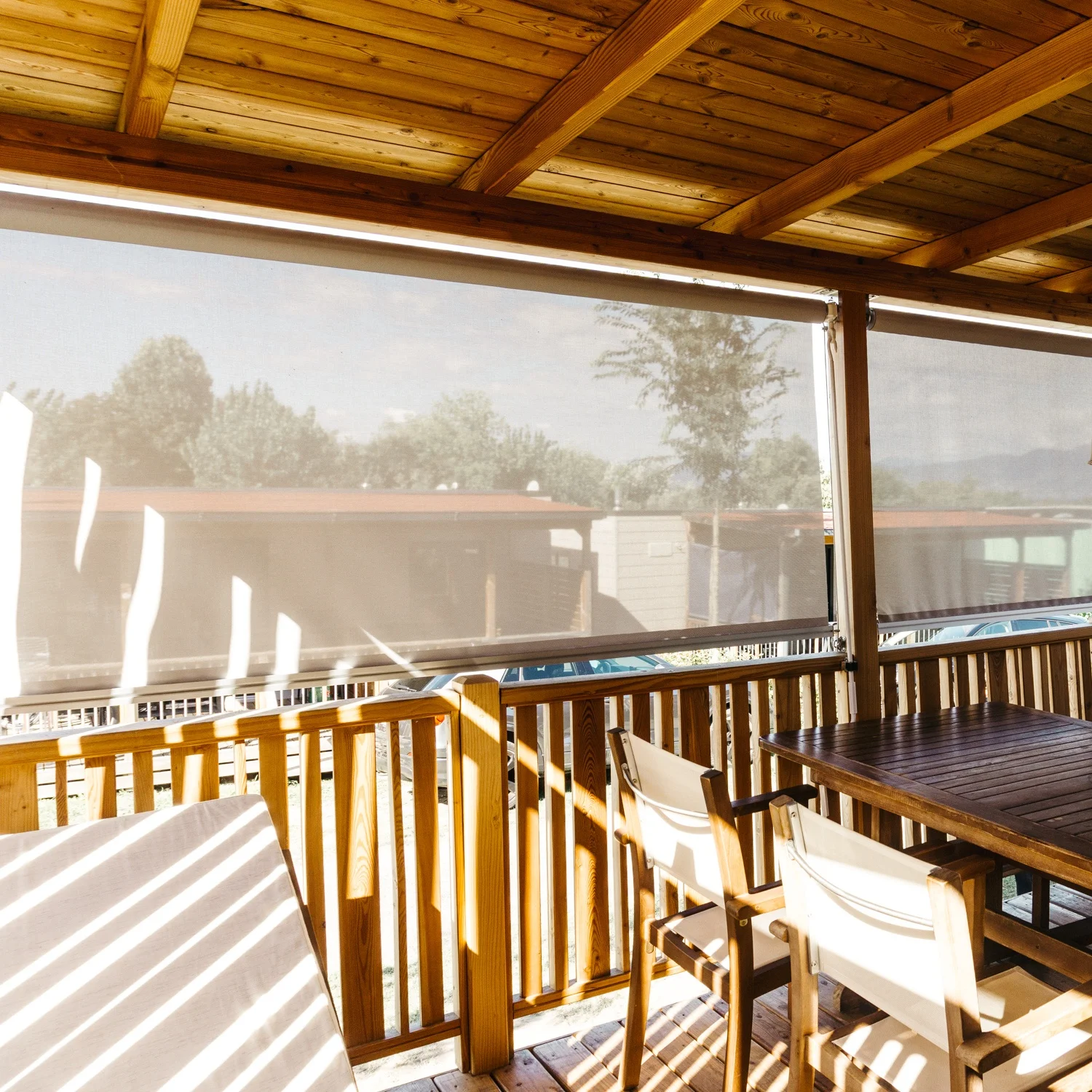

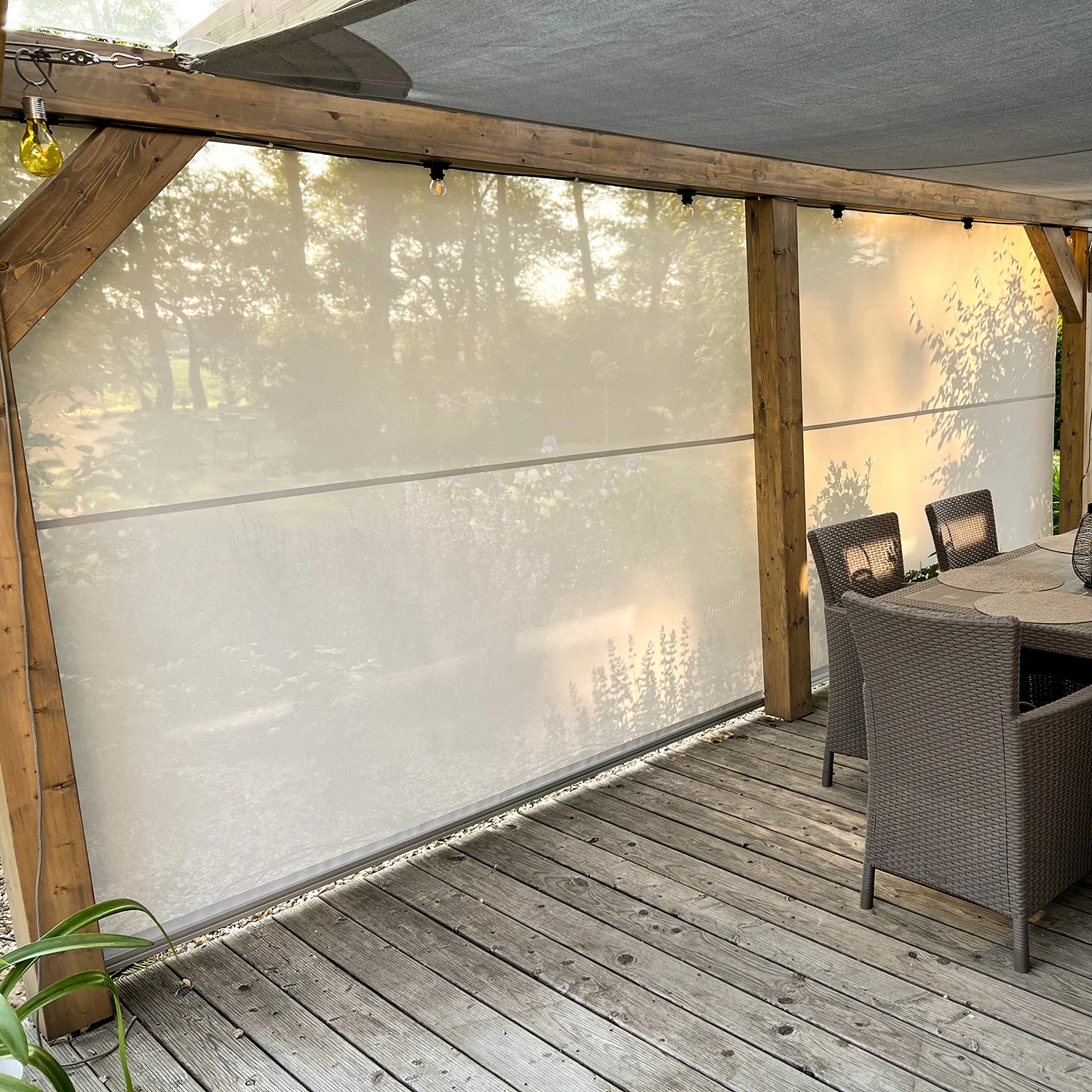

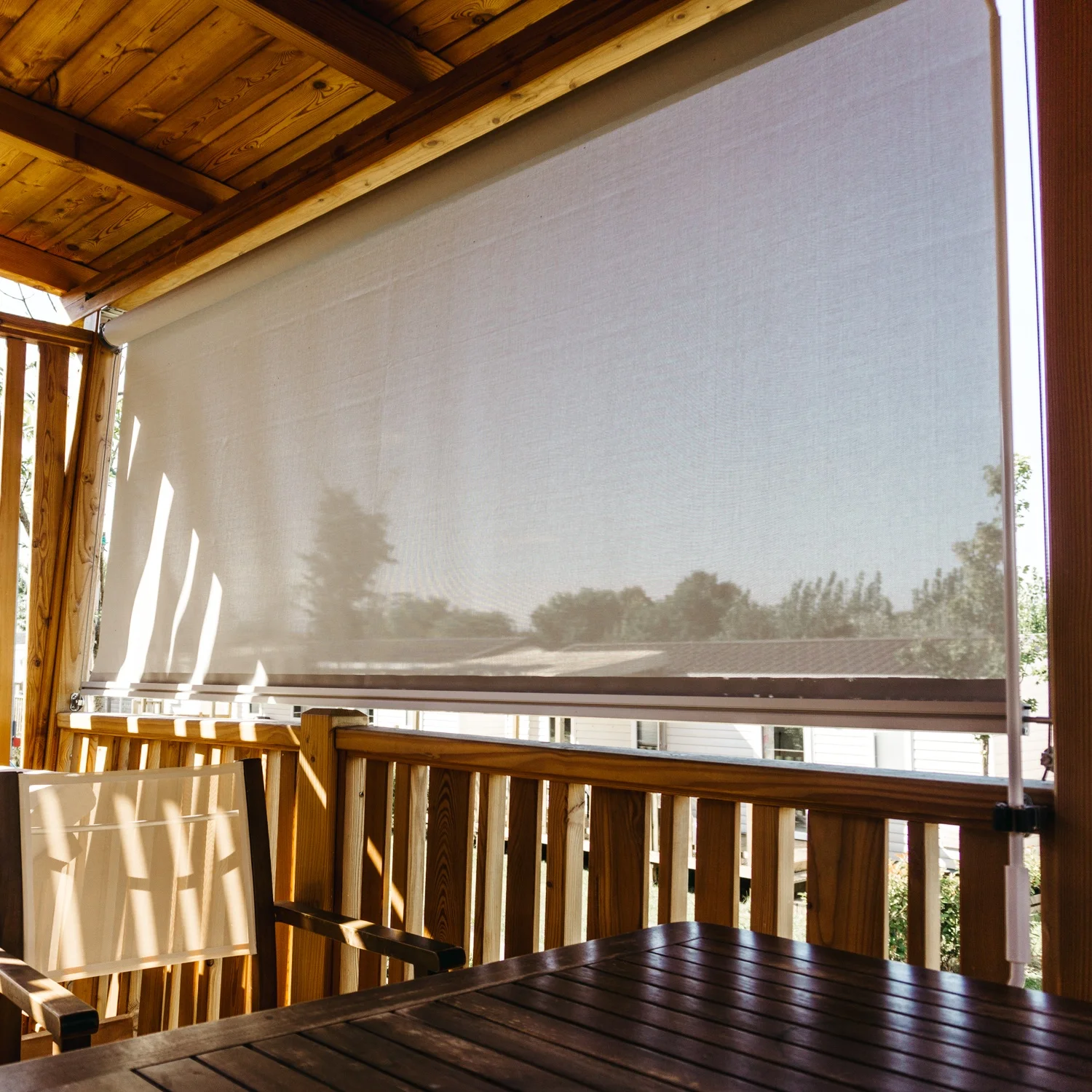

Reef Roll -- Standard Sizes Roller Shade with Stainless Steel Wire Guides

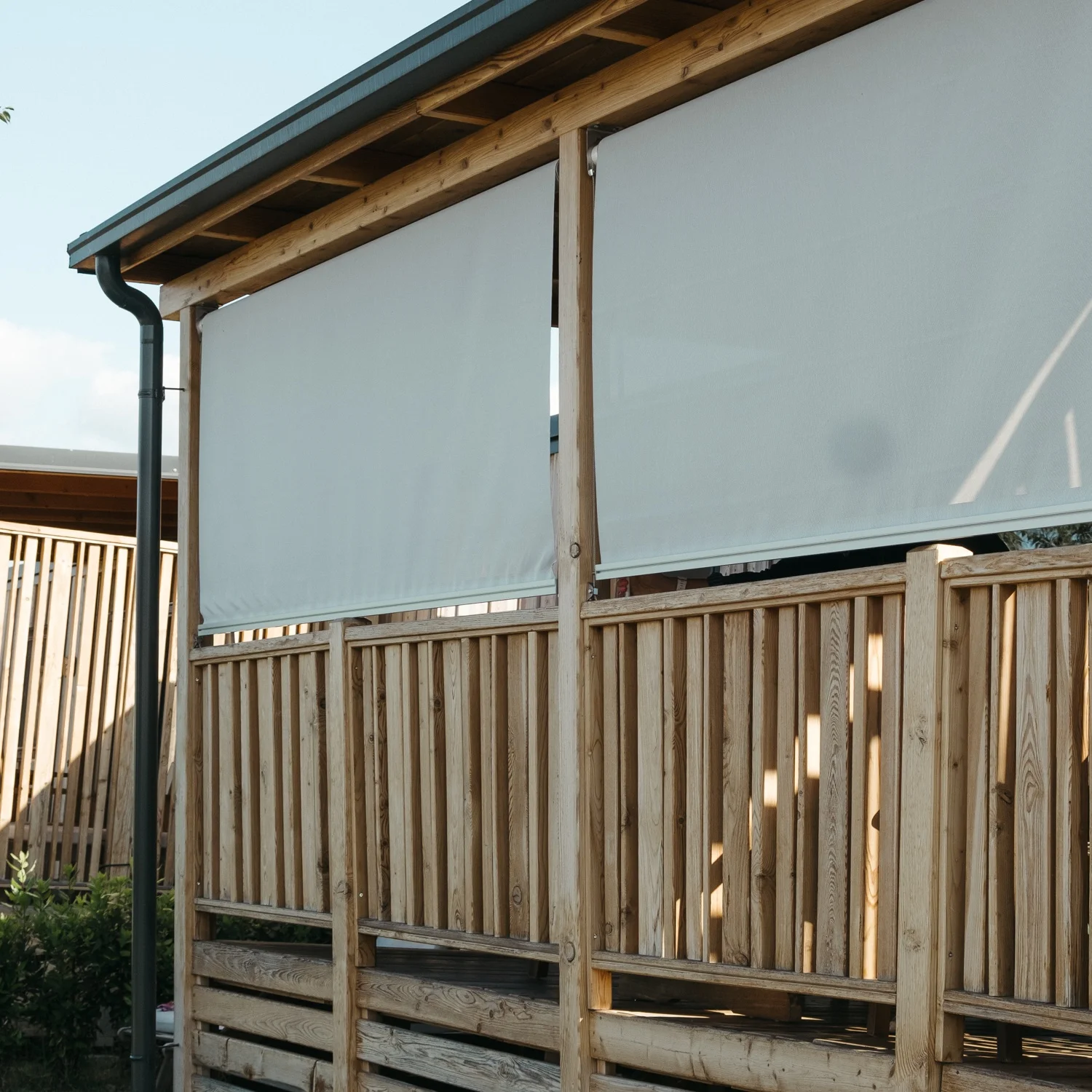

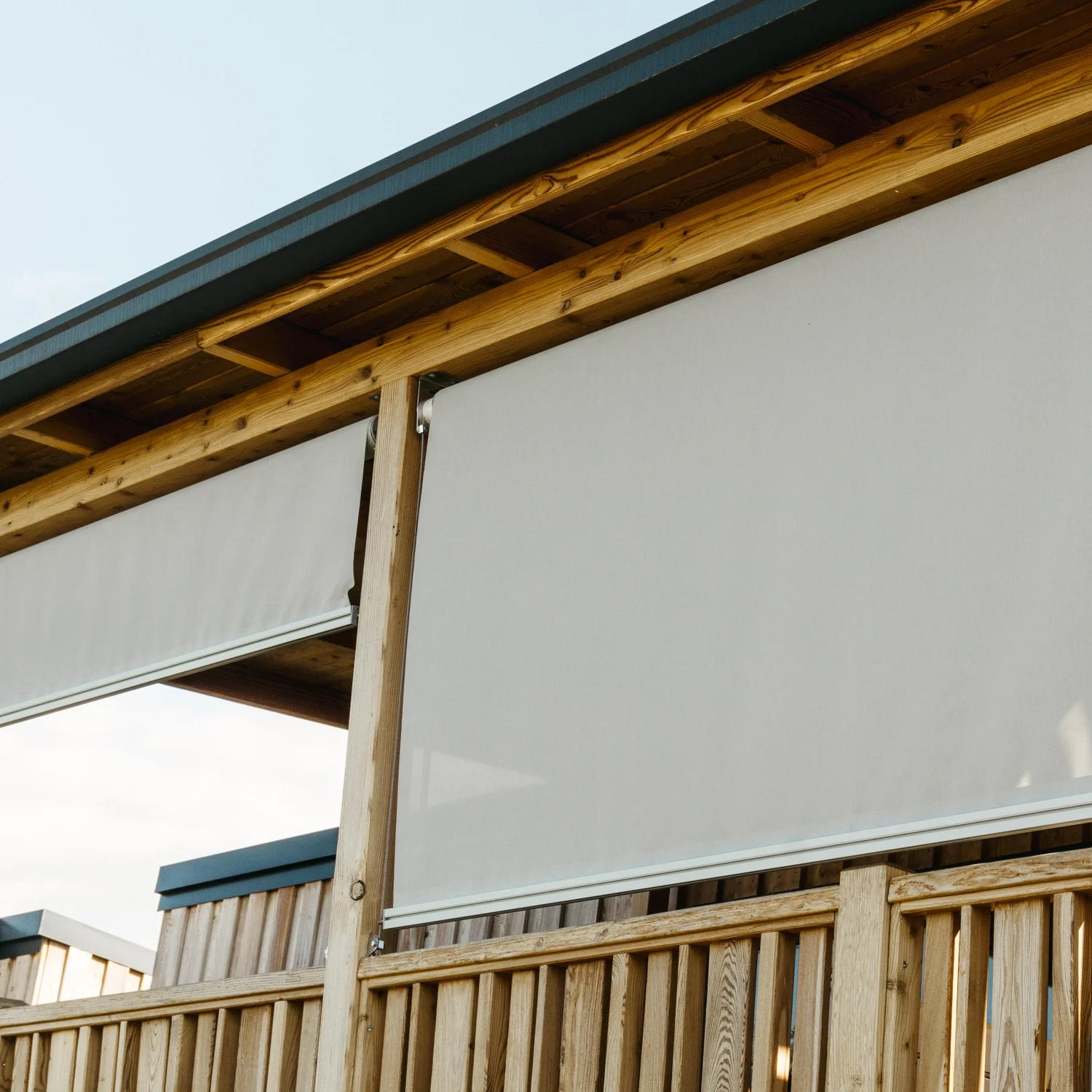

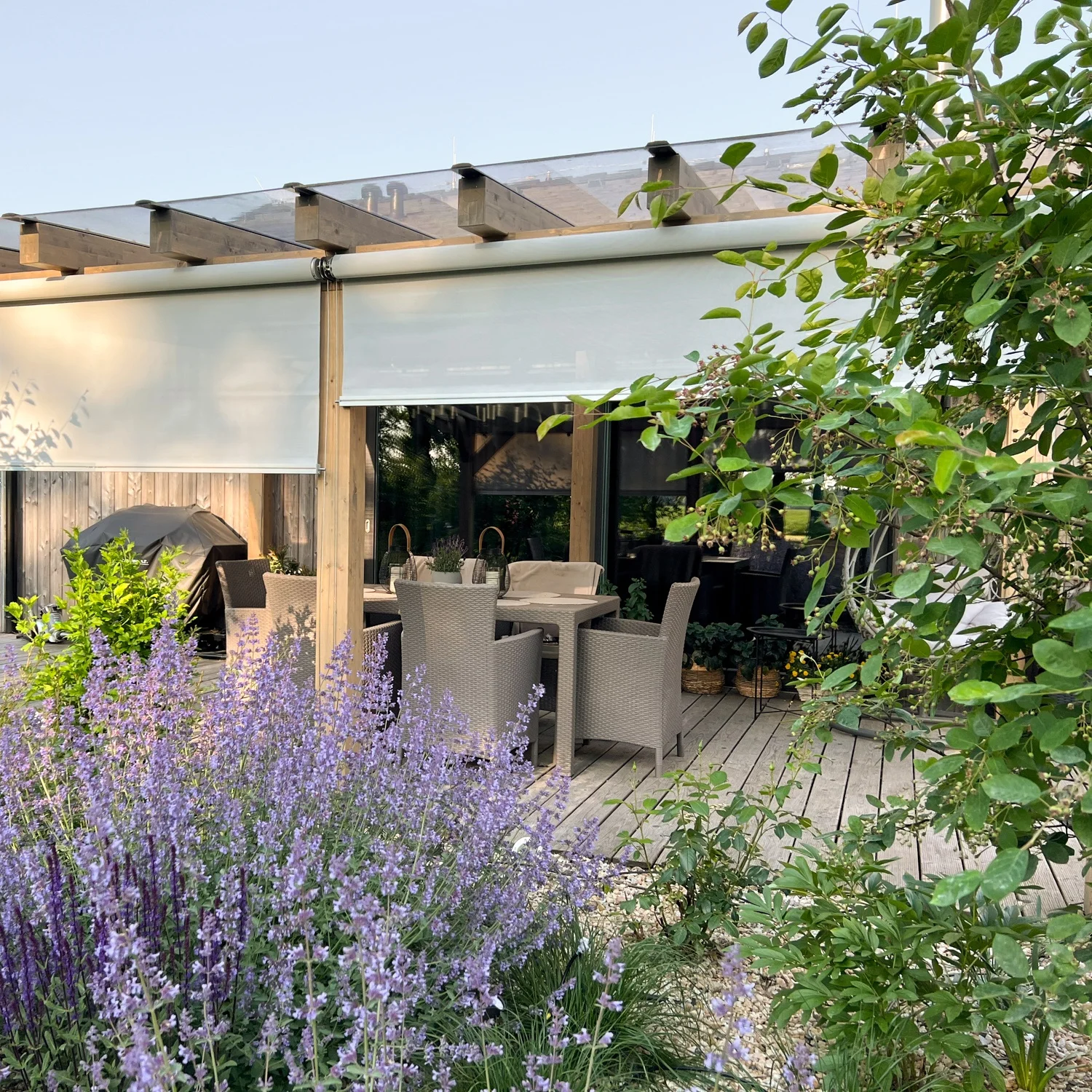

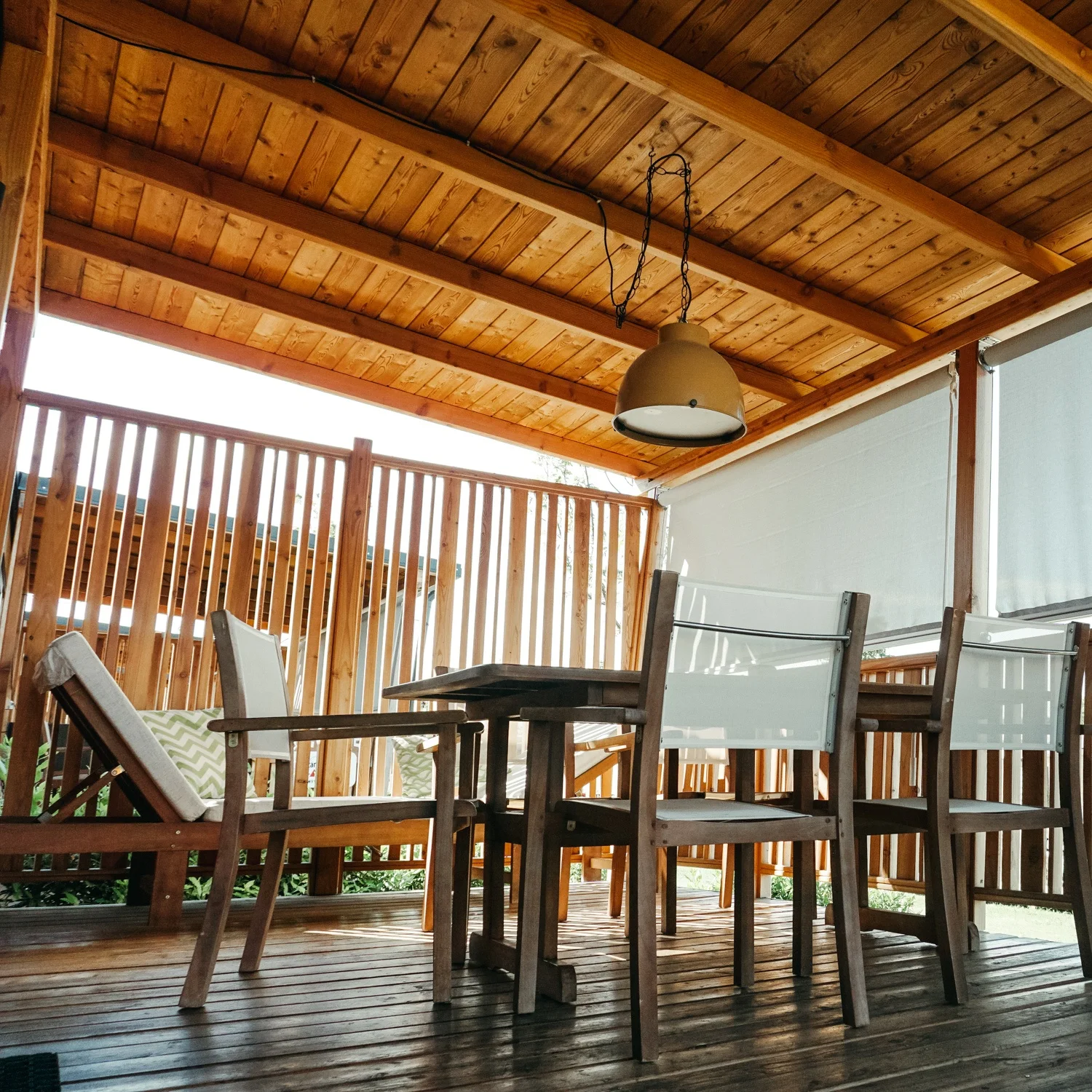

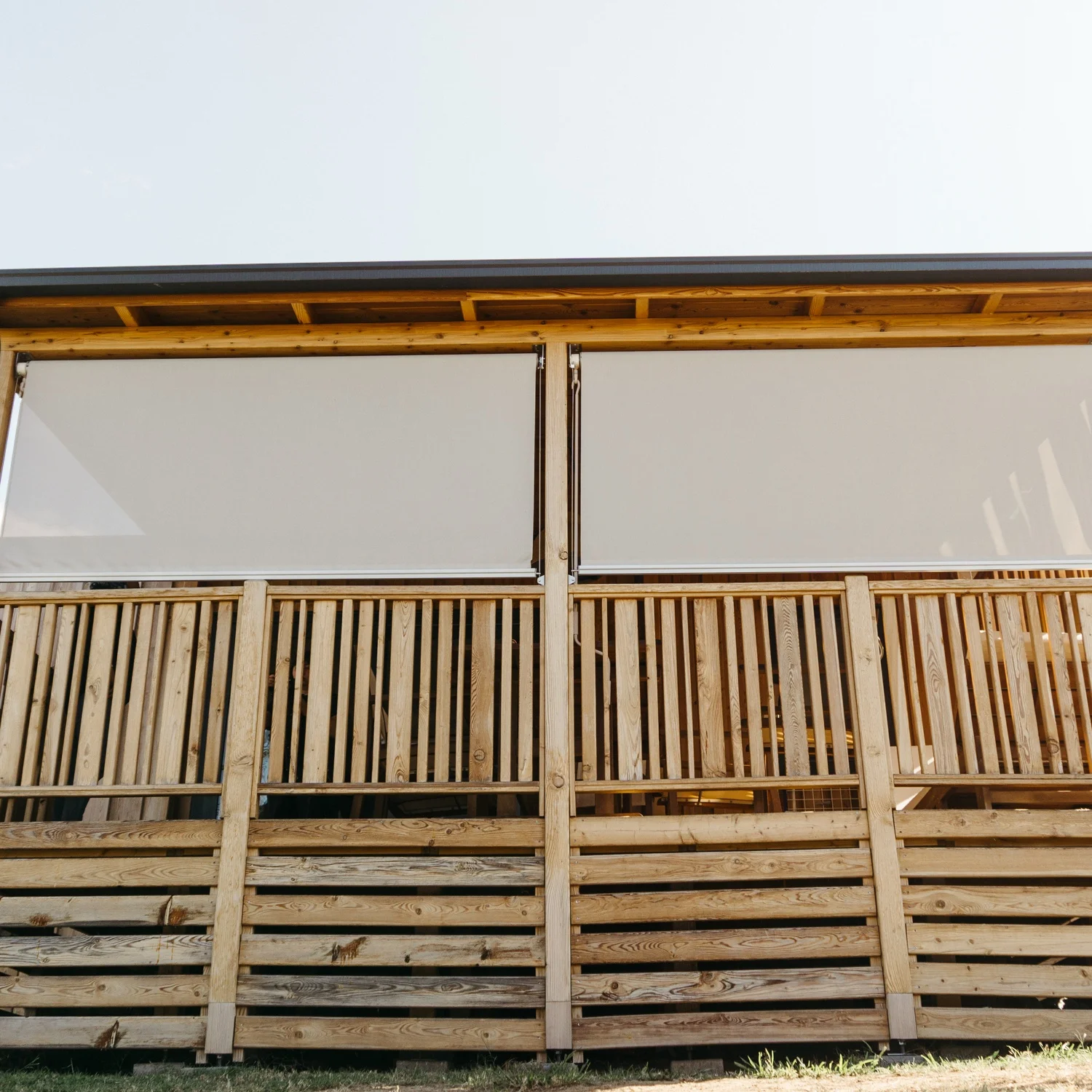

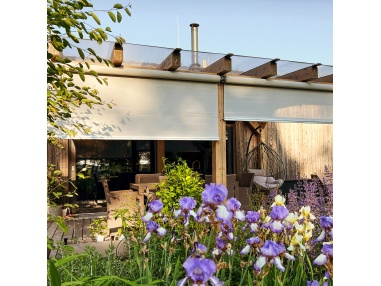

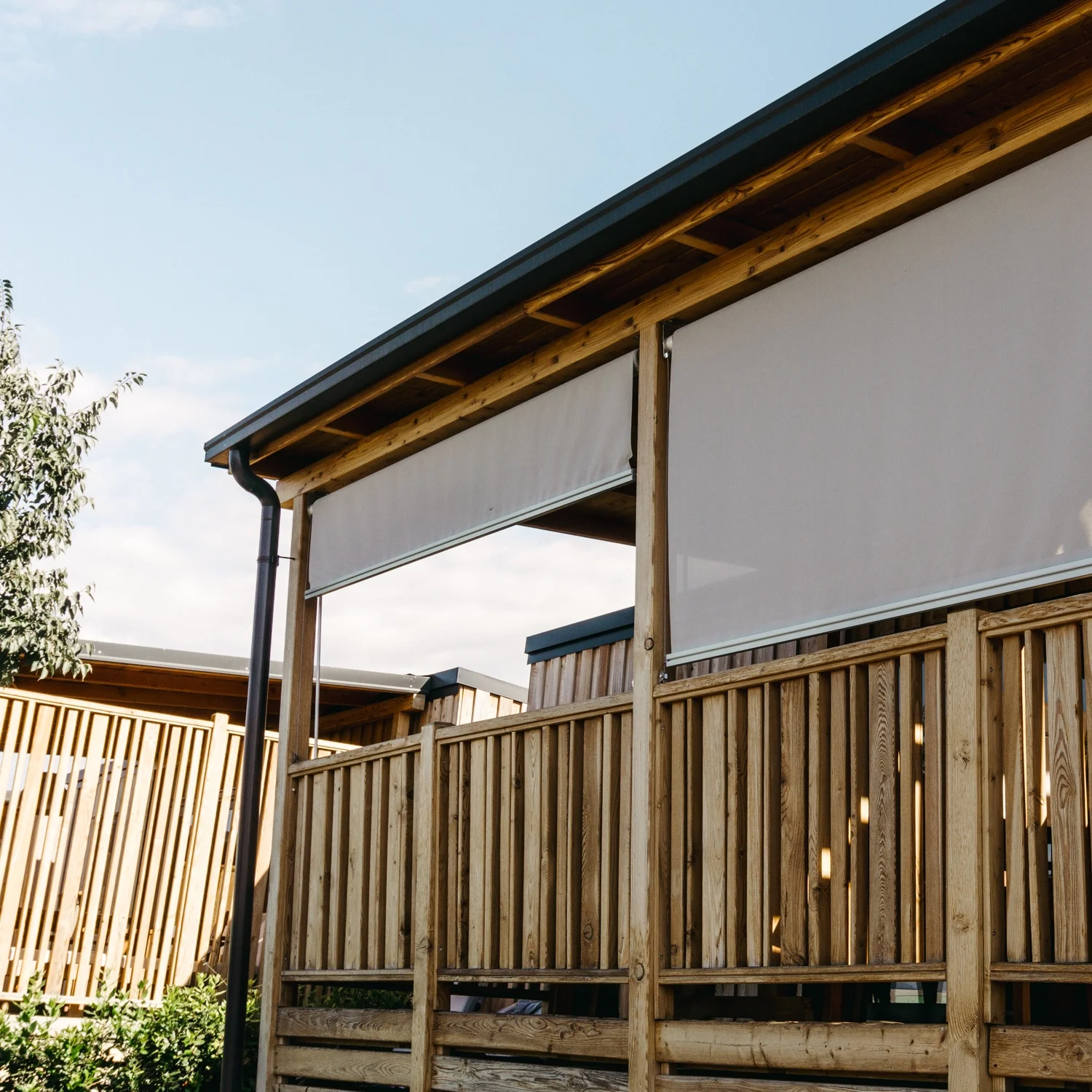

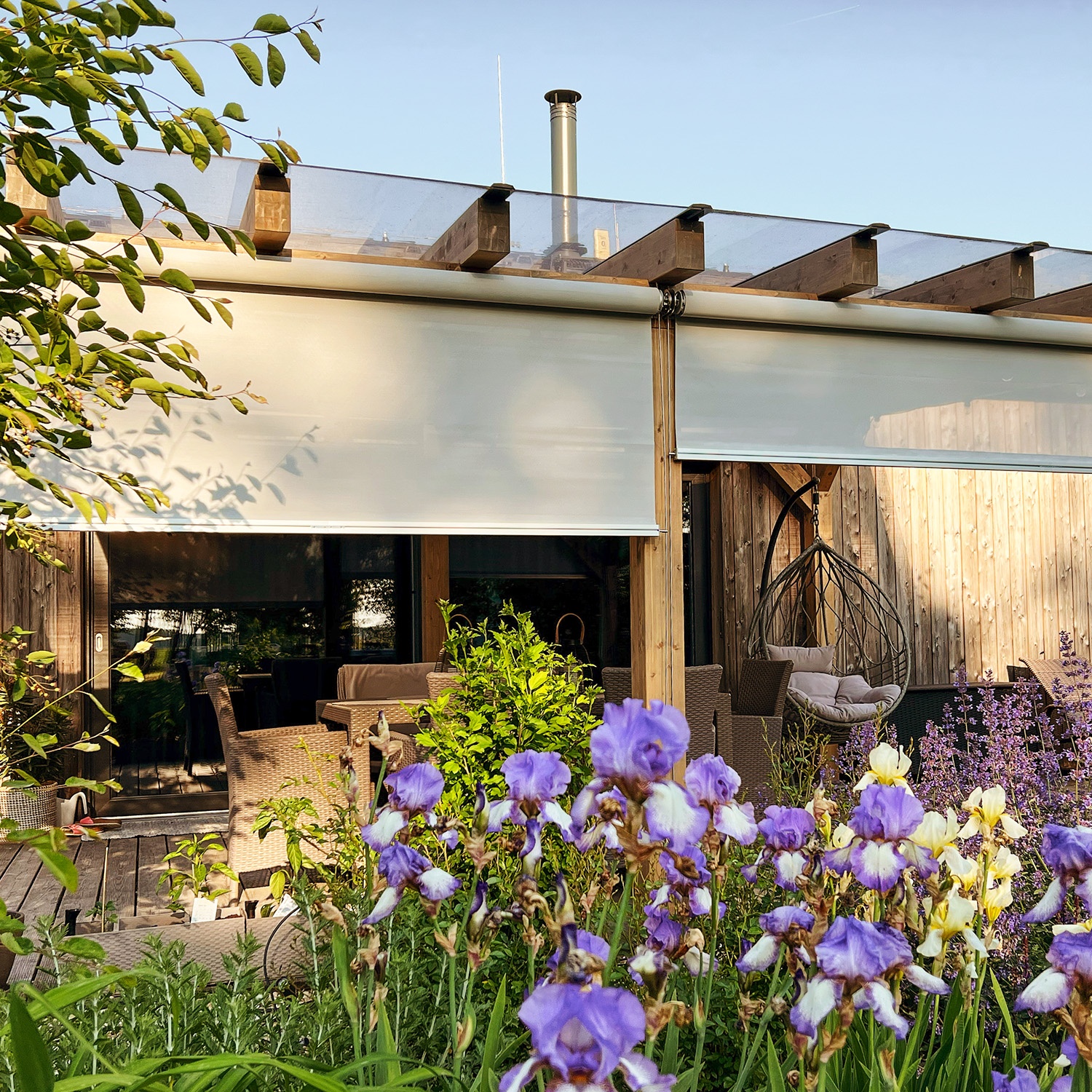

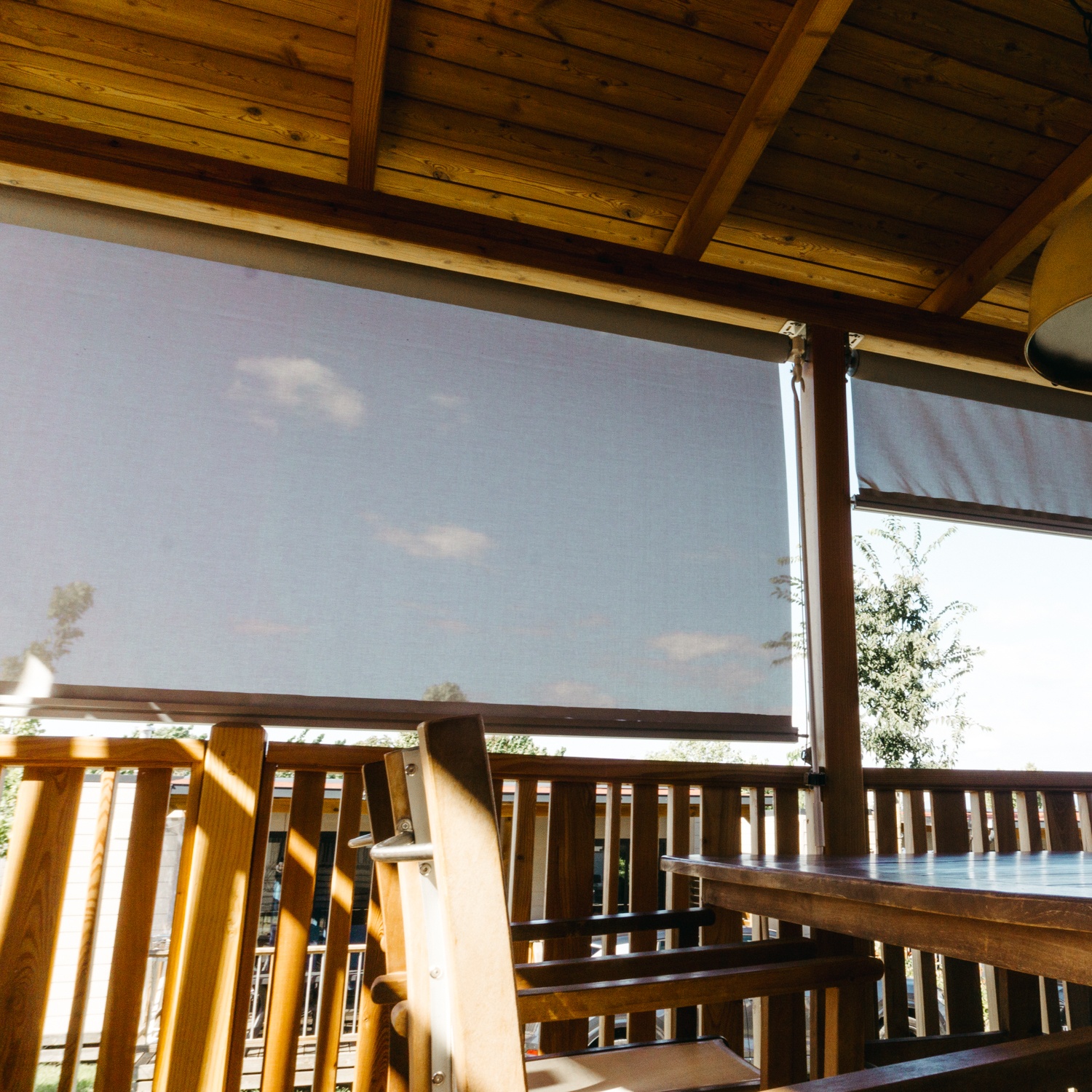

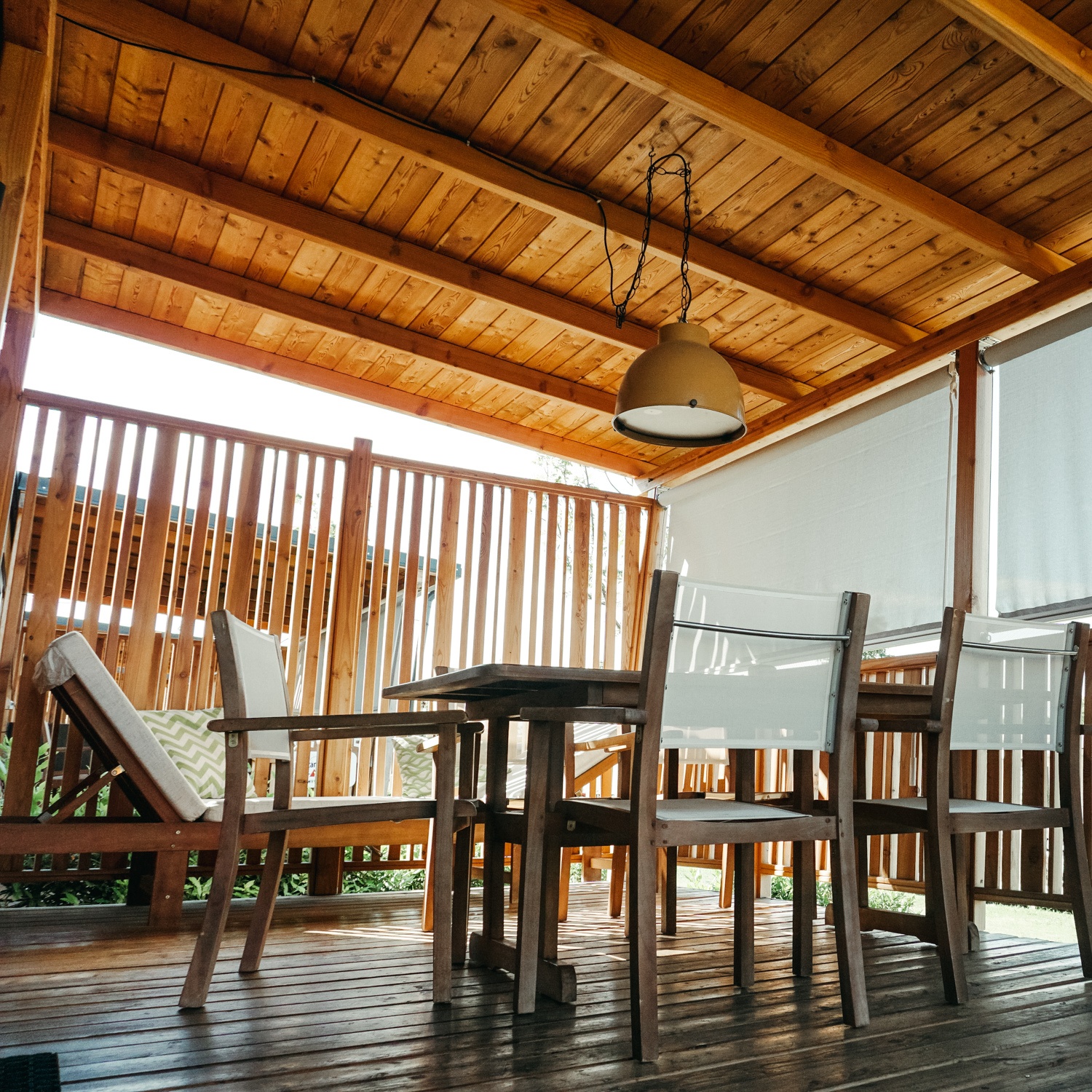

Reef Roll is an outdoor roller shade with steel wire guides. It reduces the interior temperature up to 15°C. It is a practical, fast solution that can be applied to porches, pergolas, shop windows, terraces and balconies .

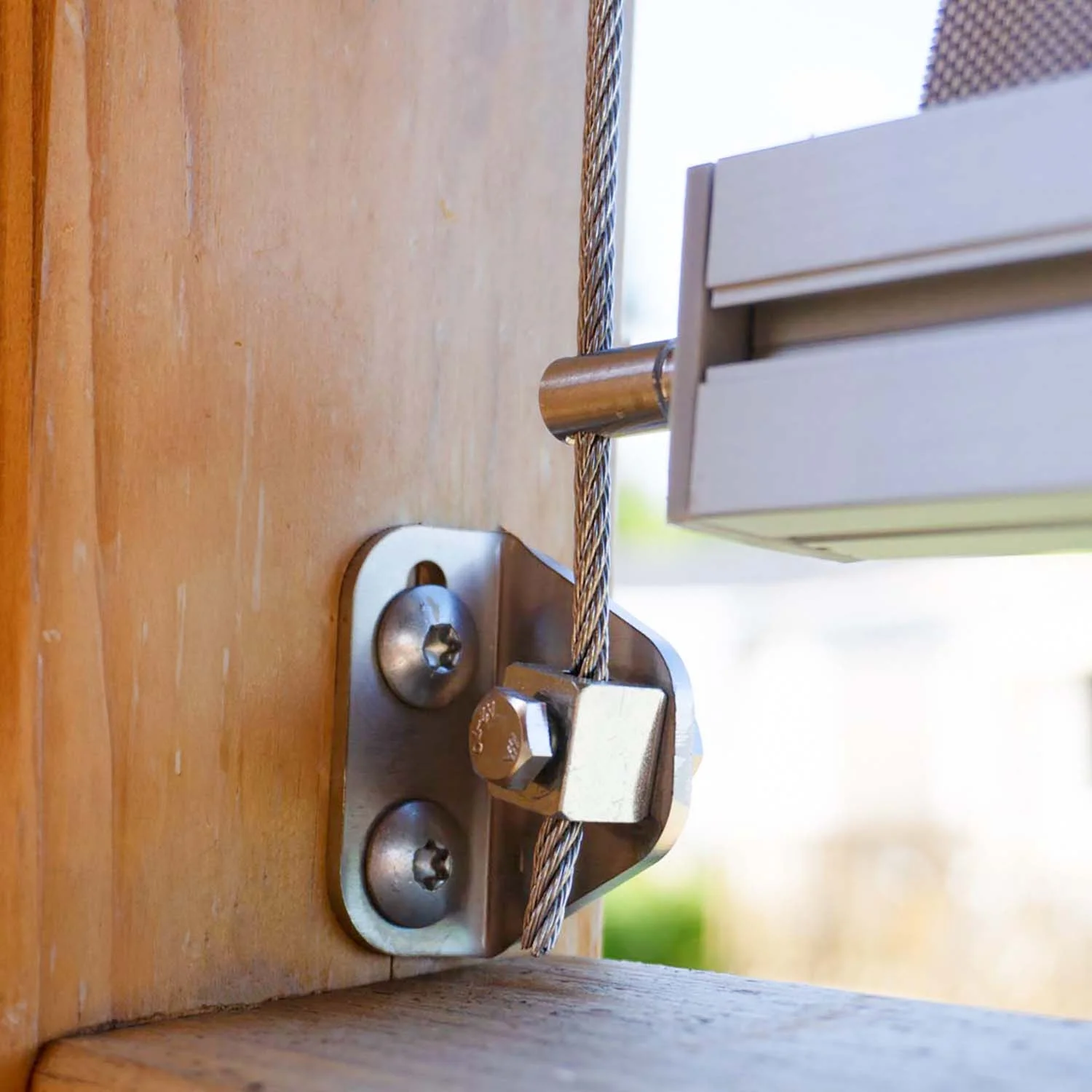

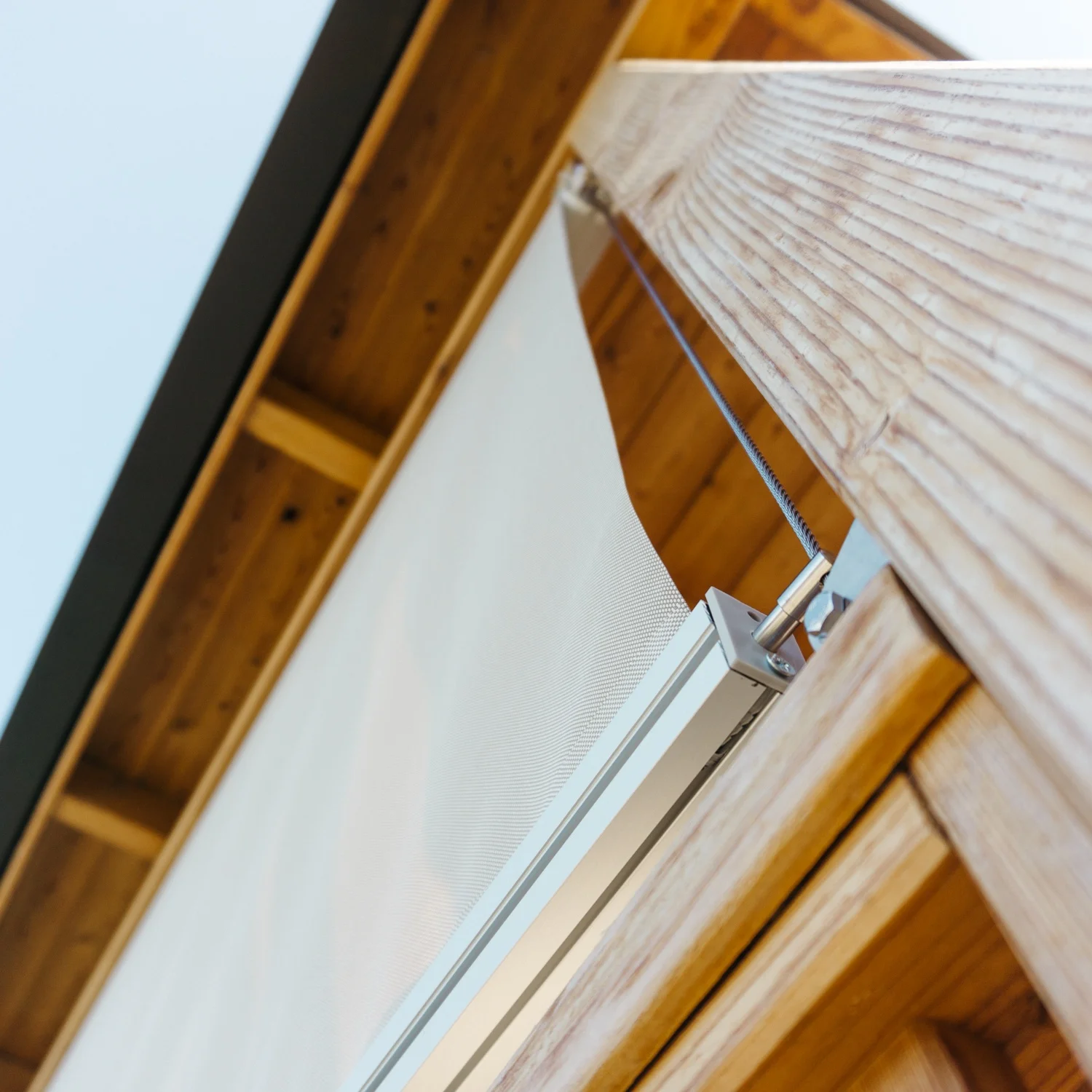

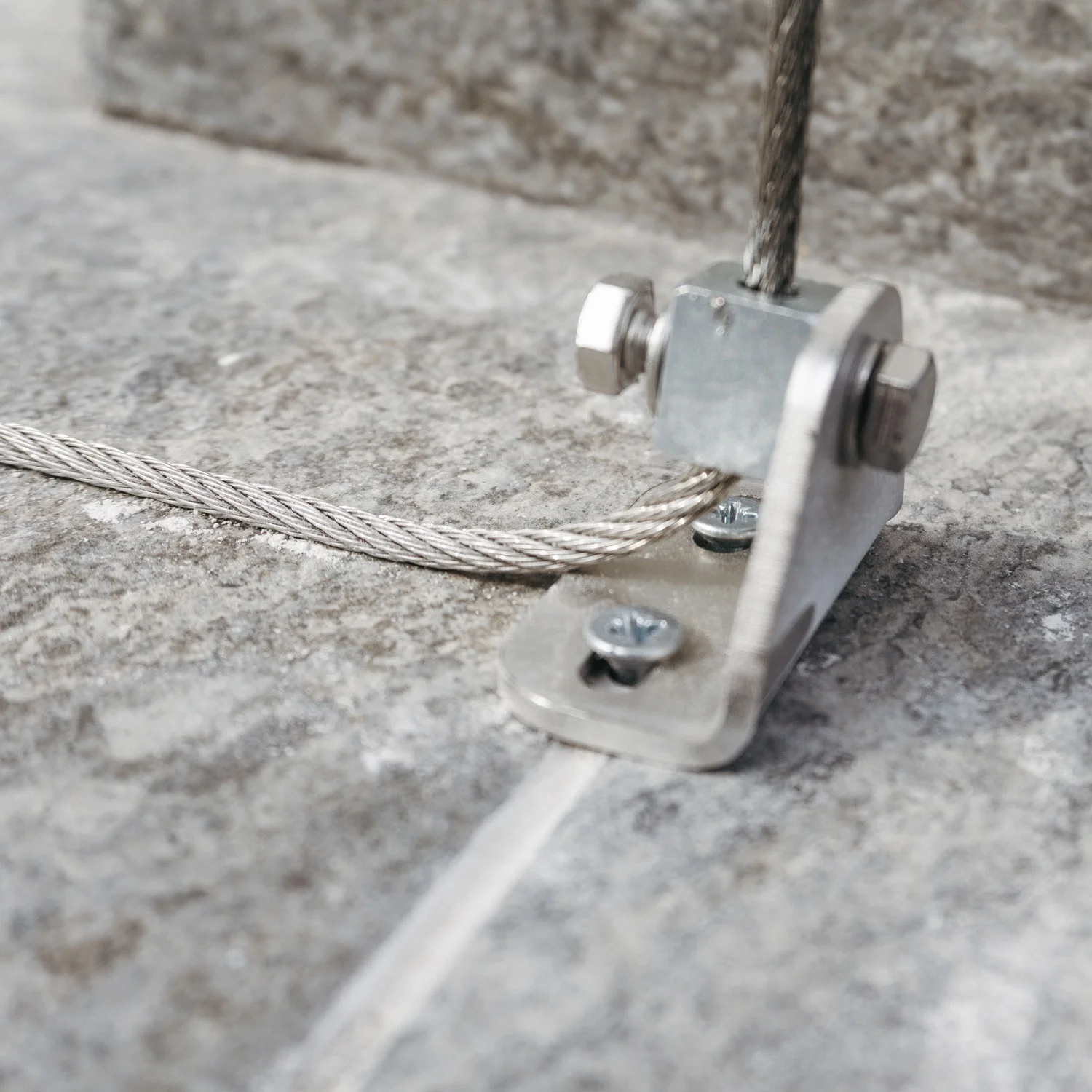

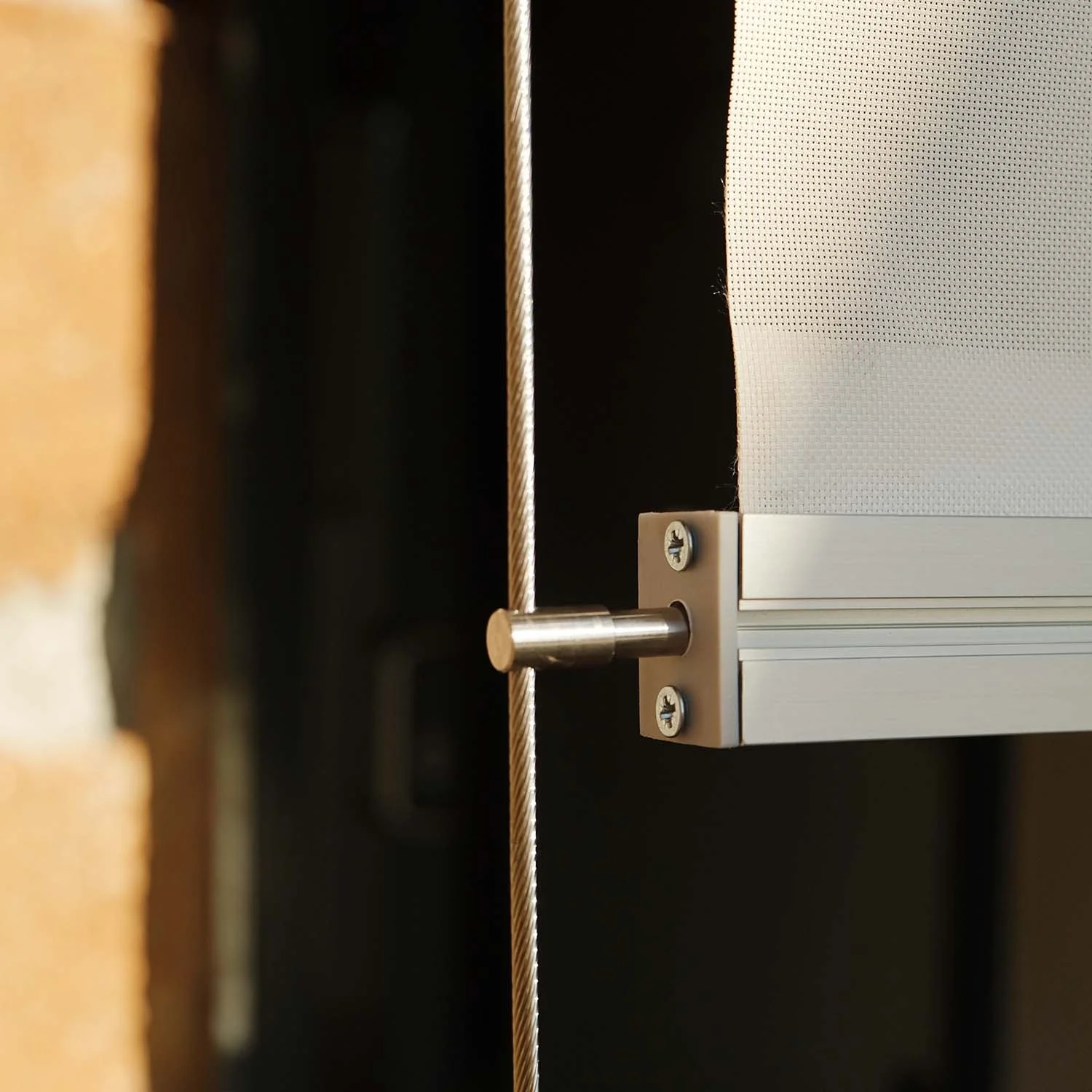

- Cable guide in stainless steel.

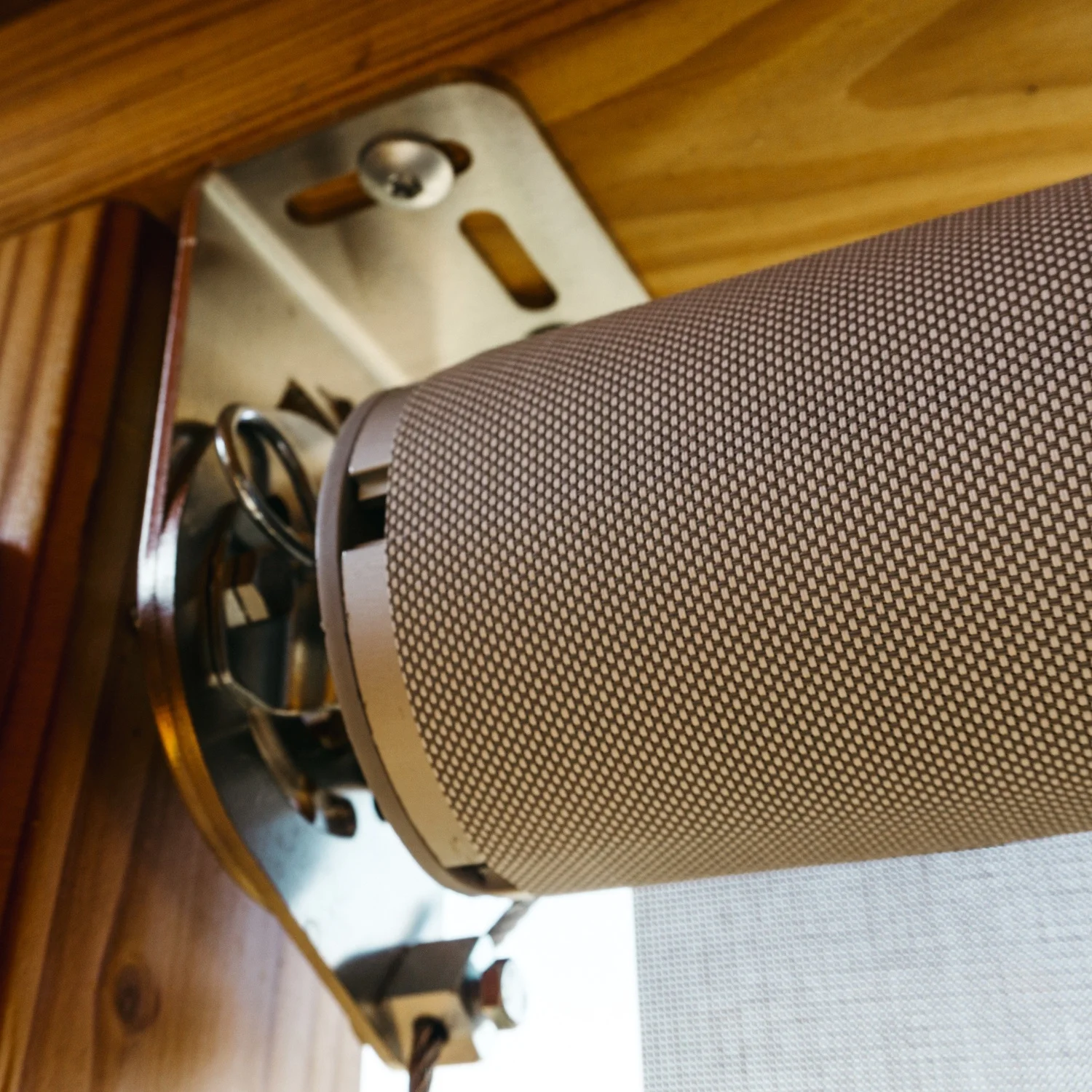

- Roller with large dimensions and stainless steel fixing brackets .
- EasySwitch technology : transform your roller shade into a transparent clear PVC shade for the winter.
- Motorizable 12 volts ( discover the motorization kits )
- Ready for Home Automation with Google, Alexa and IFTTT
It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.
Note: 'Width of the roller shade' refers to the total distance from plate to plate.
The fabric is 11 cm narrower than the overall width of the structure.
YOU CAN TRUST
Free design service
Delivery 24 / 48 hours
After-Sales Service >
Accessories
Description
*Average cycle on a outdoor shade with dimensions 200x300cm.
Data sheet
Model | Reef Roll Standard |
Available sizes | 47 standard sizes, up to 350 x 350cm Custom sizes up to 400 x 350 cm |
Overall weight | Variable according to the size chosen and the fabric |
FABRICS | |
Presence of stitching | The cloths of the outdoor roller shades according to the size may not be a single piece. Any seams or welds of the fabric take place horizontally
|

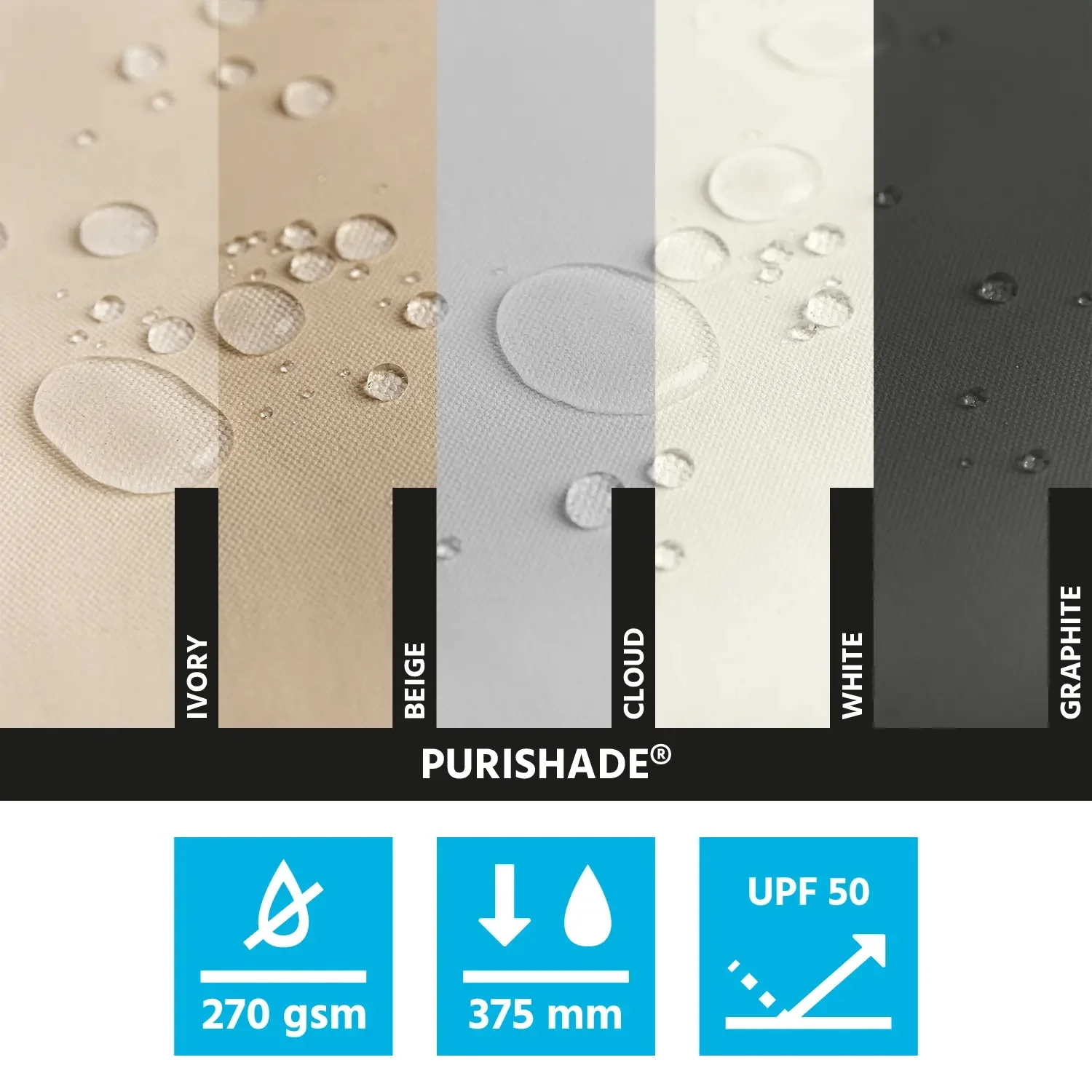

Fabric types | Purishade®:Waterproof Polypropylene
(Olefin)

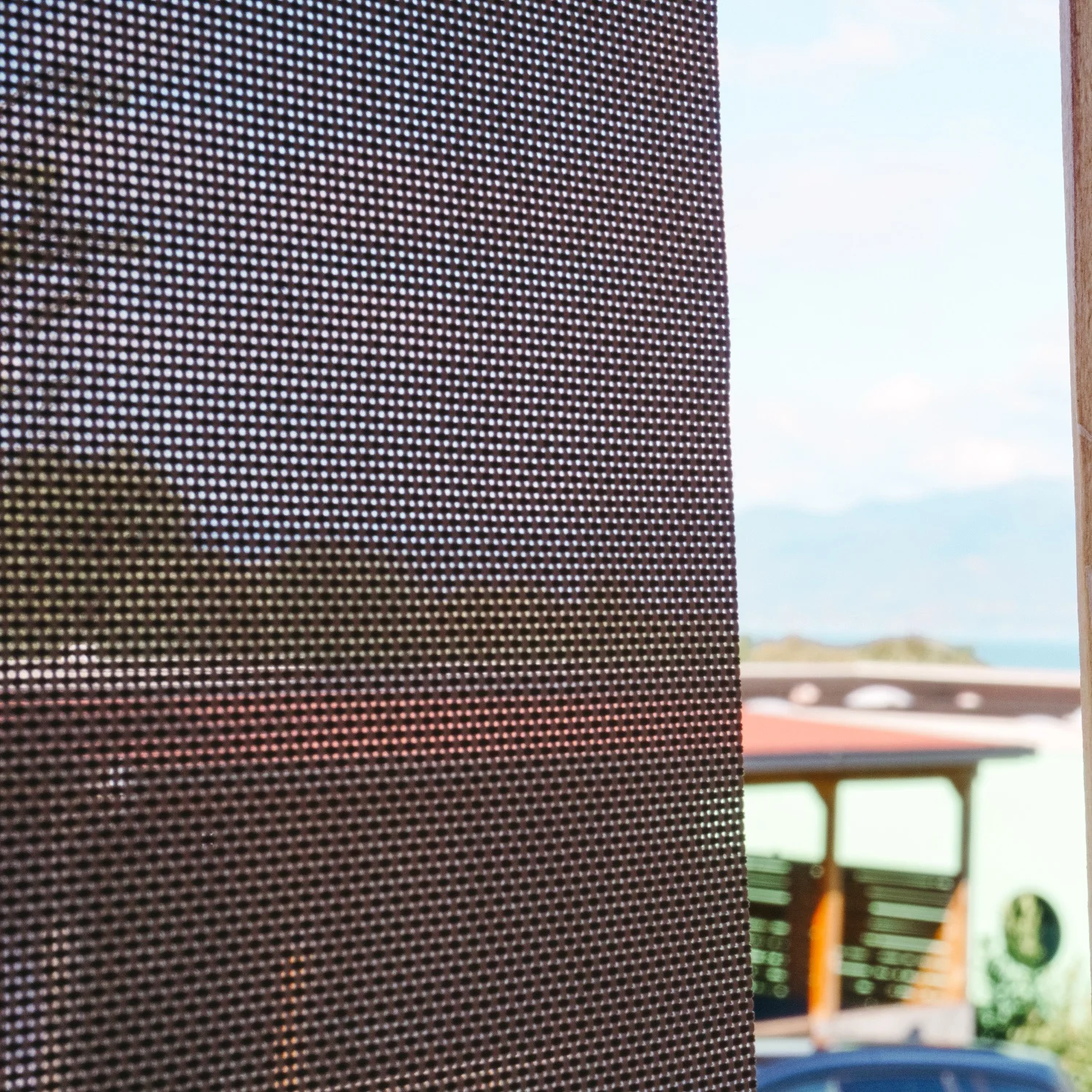

Braidd5®:Breathable Microperforated
Polyester and PVC
|
Fabric weight | Purishade®: 270 g/m² Braidd5®: 410 g/m² |
Waterproofing | Purishade®: Yes Braidd5®: No |
Seams sealed | Purishade®: Yes Braidd5®: No |
Tear resistance / hail resistance | Purishade®: Yes Braidd5®: No |
Maximum area | 400 x 350 cm |
STRUCTURE | |
Winding roller and terminal | Material: Aluminum Color: Silver |
Winder support plates | Material: 316 stainless steel Color: Stainless steel |
Side cables and crank | Included, stainless steel Maneuvering crank with a length of 150 cm |
MOTORIZATION | |
Motorisable | Yes, optional on drop-down blinds with a width > 80cm Maanta and Nice compatible motors |
PACKAGING | |
Box sizes | Minimum 2 boxes, maximum size 156 x 25 x 17 cm |
Package contents and giveaways
Instructions & Info
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Componentsof complex assemblyAre supplied pre-assembled.
Inside the package are supplied thepaper instructions.
FAQ
How to measure vertical roller blinds?
All measurements refer to the complete awning with roller and fixing plates.
The fabric/PVC film is slightly narrower.

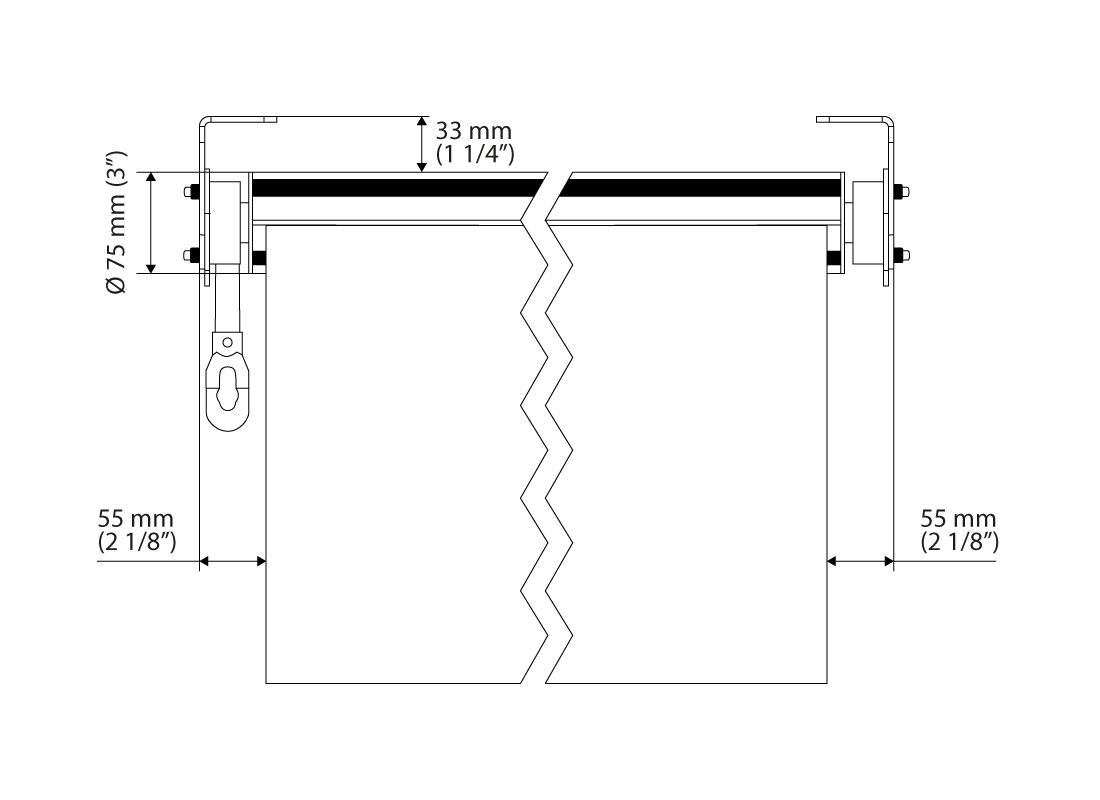

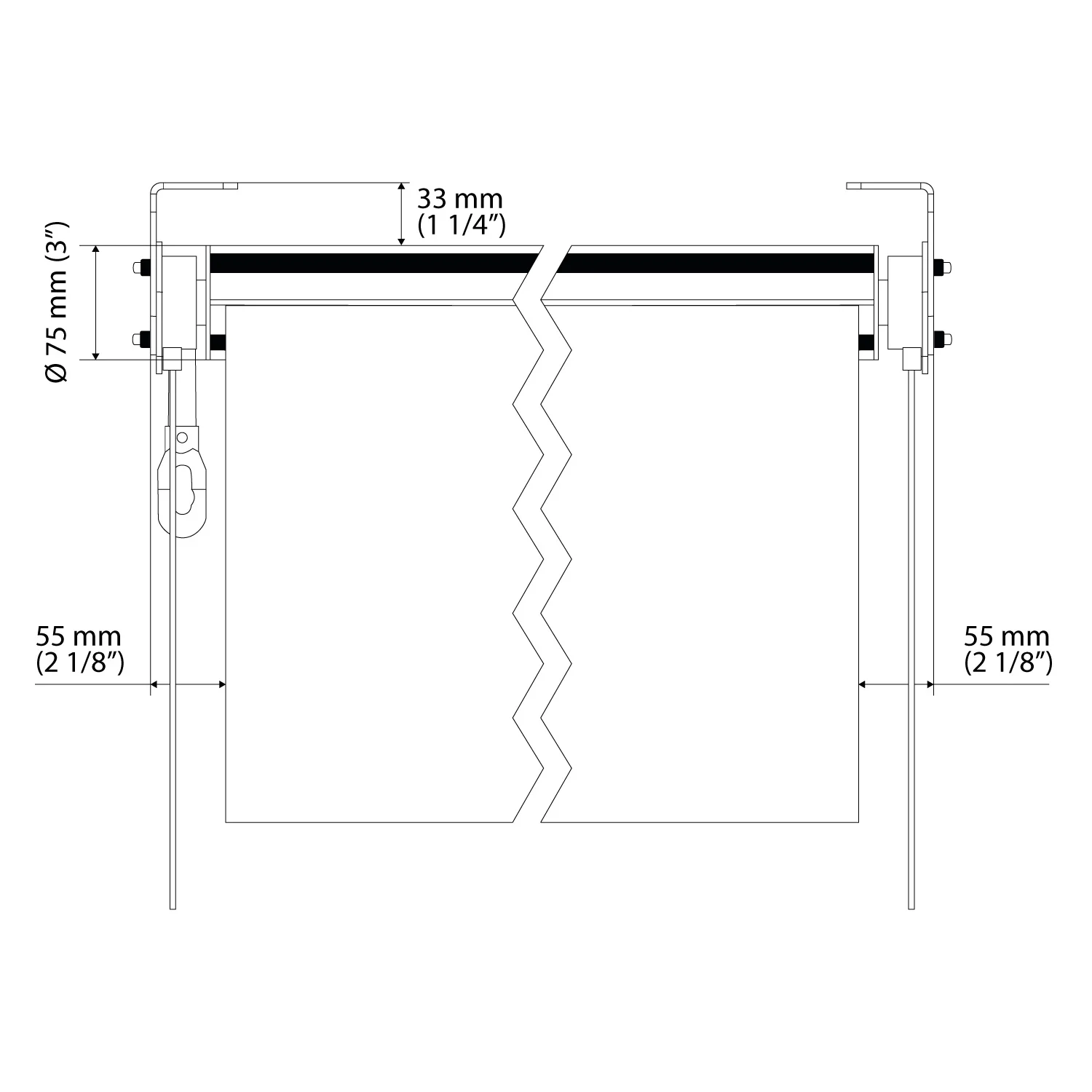

Here are the distances from the outside of the plate to the fabric for the various products (the distances are symmetrical on each side).
Easy Clear and Easy Roll without guide wires:
The fabric is overall 92mm (46+46mm) narrower than the complete structure.
Reef Roll with guide wires:
The canvas is 98mm (49+49mm) narrower overall than the complete structure.

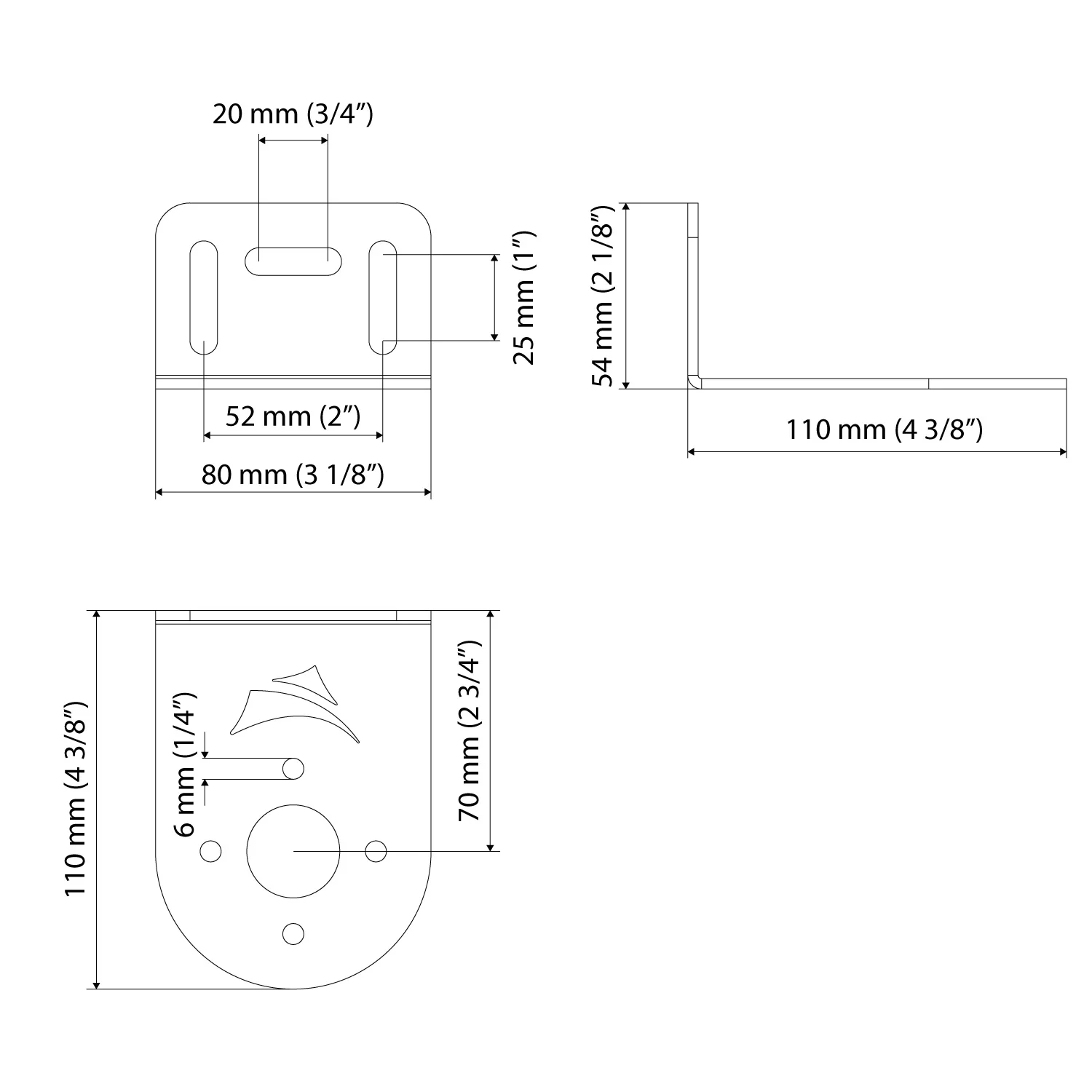

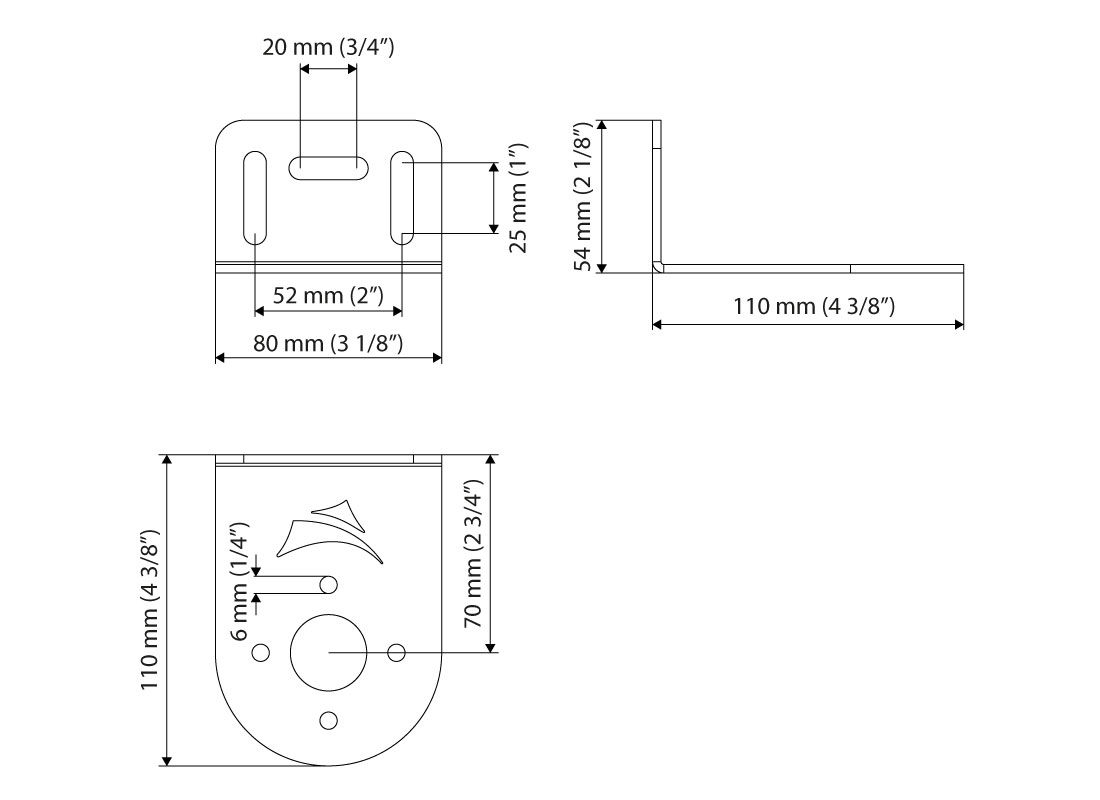

The dimensions of the fixing plates are identical for all Maanta vertical blind models.
