Easy Clear Clear Vinyl PVC Roller Blind

Easy Clear is a clear vinyl outdoor shade made with 610 g/m² PVC .

This material is elegant and soft to the touch but at the same time extremely robust and suitable for sheltering from harsh winters. Ideal for taking advantage of the porch, terrace, balcony or to close off one side of the pergola.

  • "Clear" transparent PVC vinyl film: 610 g/m²
  • Reinforcement profile included*
  • Aluminium roll and 304 stainless steel fixing plates
  • Excellent mechanical qualities and tear resistance
  • Made in Italy

It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.

*Roller shades with a width of under 146cm or a height of under 110cm are supplied without a tear-off profile.

N.B. "Roller shades width" indicates the overall distance from plate to plate

Note: 'Width of the roller shade' refers to the total distance from plate to plate.
The fabric is 11 cm narrower than the overall width of the structure.

come-misurare Size chart
Material: Clear® with Hooks
  • Clear® with Hooks
  • Clear® with Wire Guides
truck
Order now and receive it
with UPS Carbon Neutral

Choose your accessories and get a 5% discount on the total price!

Motor kit Nice with solar panel - Complete motorization kit Made in Italy

Motor kit Nice with solar panel

Complete motorization kit Made in Italy
269 €
Motor + Solar Panel + Remote Control - Complete motorization kit for Maanta roller shades

Motor + Solar Panel + Remote Control

Complete motorization kit for Maanta roller shades
399 €
Motor for roller shades - 12V motor with built-in rechargeable battery

Motor for roller shades

12V motor with built-in rechargeable battery
269 €
Motor + 12v charger + remote control - Complete motorization kit for Maanta roller shades

Motor + 12v charger + remote control

Complete motorization kit for Maanta roller shades
249 €
Wifi Bridge - Automate roller shades with Google, Alexa and IFTTT

Wifi Bridge

Automate roller shades with Google, Alexa and IFTTT
133.65 €
Anemometer

Anemometer

109.65 €

Description

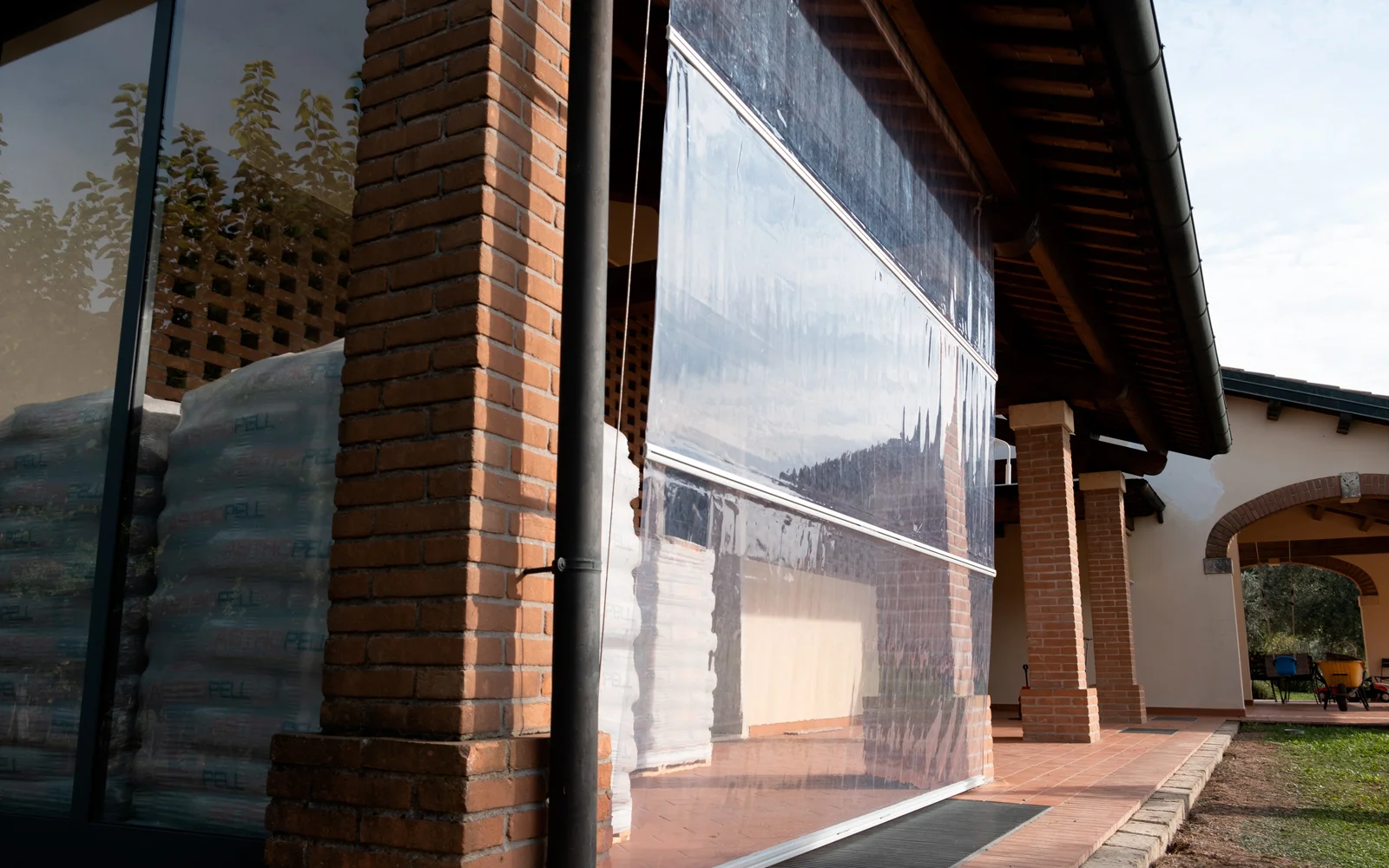

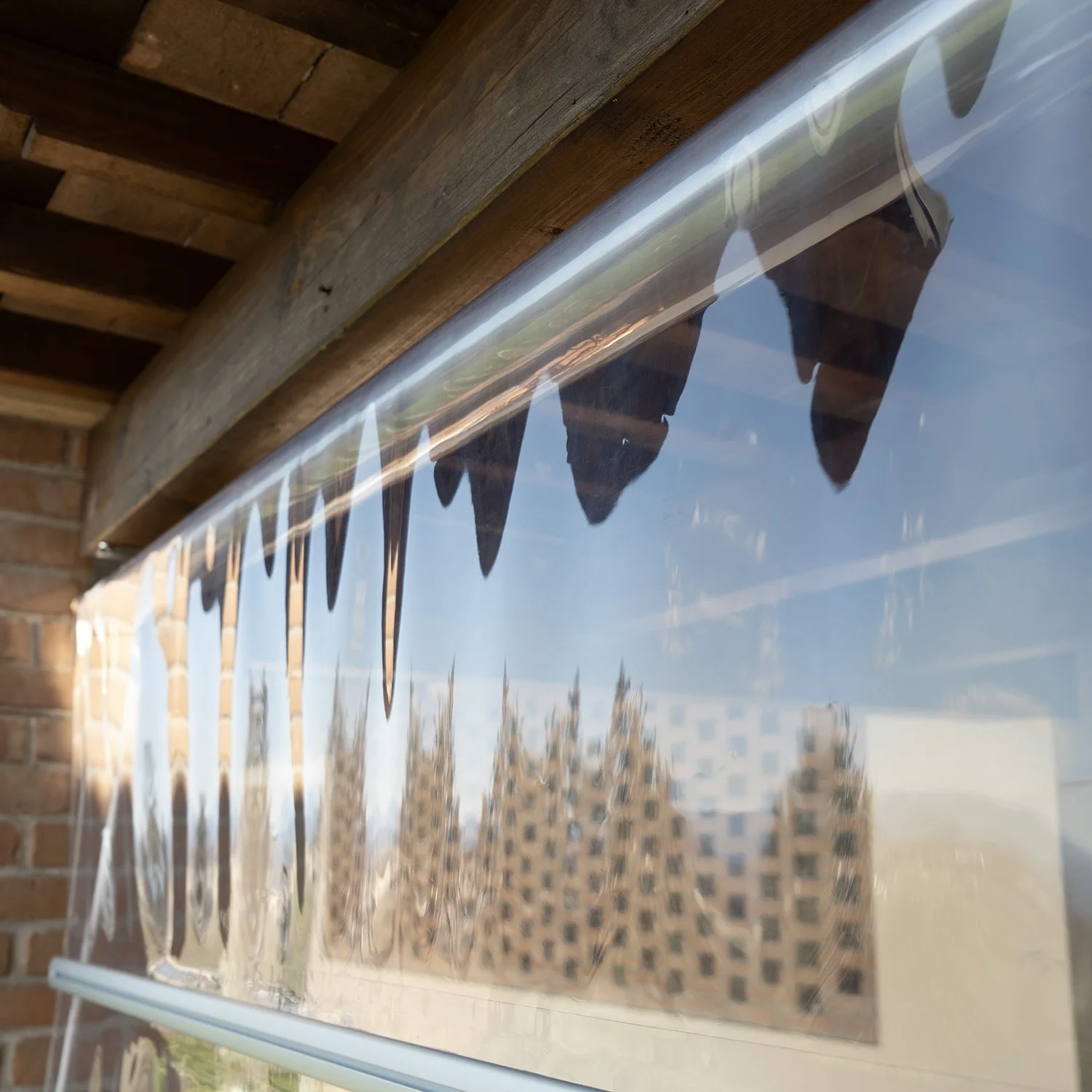

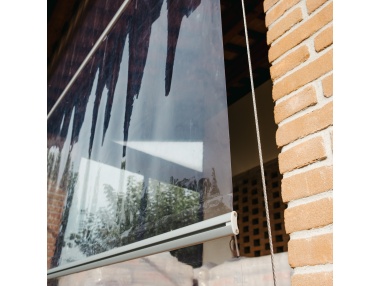

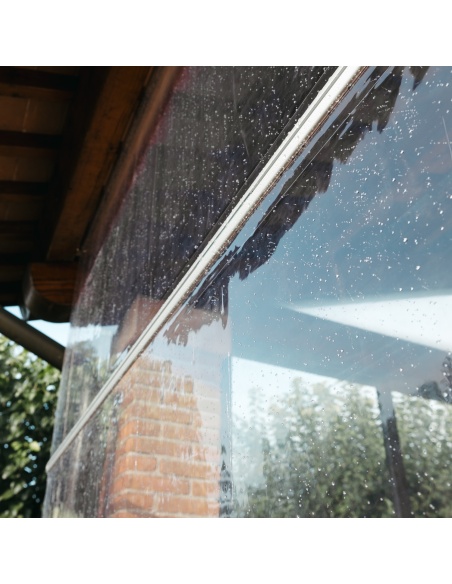

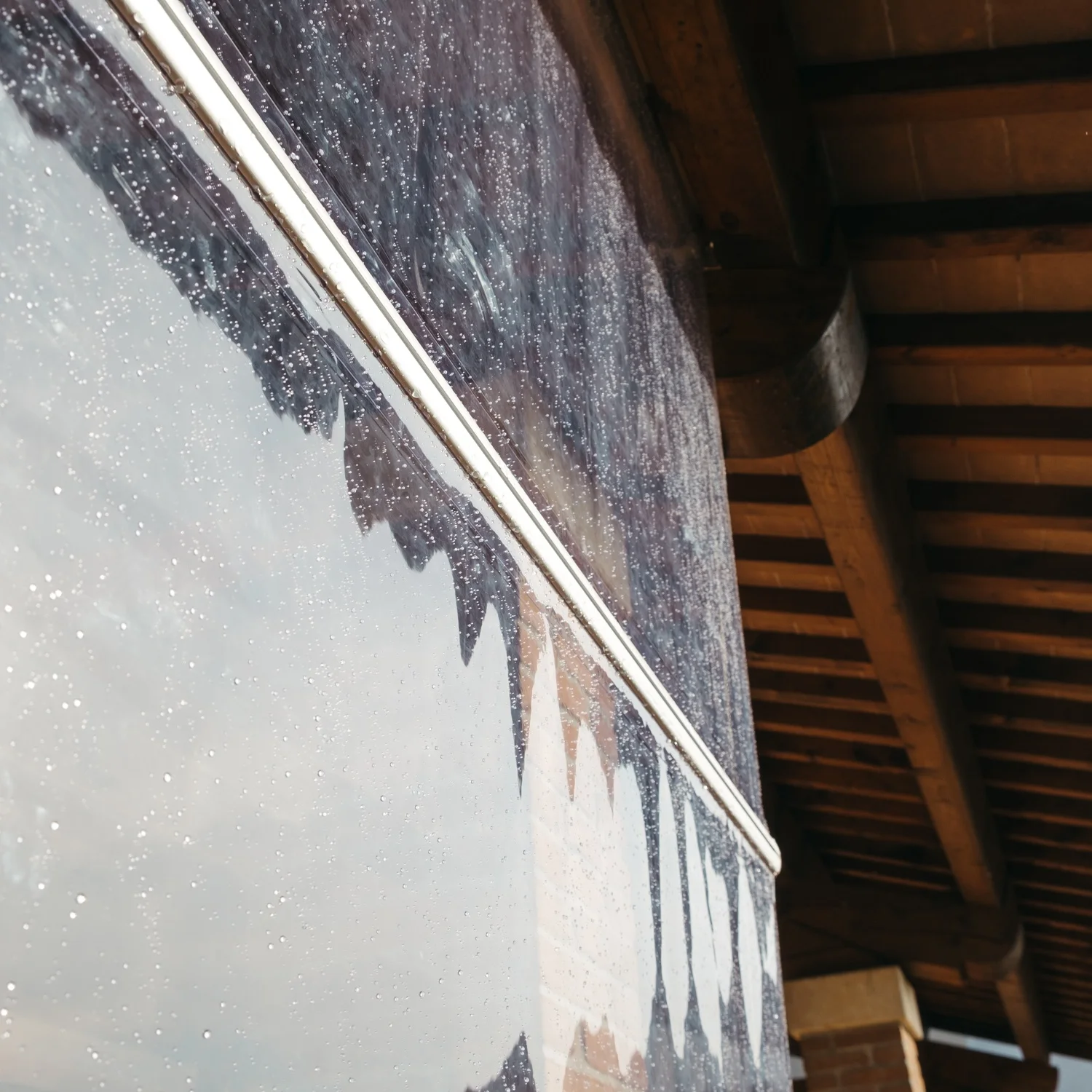

EASY CLEAR: vinyl roller shade made with Clear Pvc.
Easy Clear is Maanta's clear vinyl roller blind, which combines sturdiness and quality with an unbeatable price. Ideal for those looking for a practical and safe solution to immediately insulate outdoor spaces such as: pergolas, porches, balconies, terraces and dehors, protecting them from rain, humidity and dirt.
In this way you can give new life to your outdoor space, even in the winter months.

The Easy Clear clear outdoor shade entirely produced in Italy and is custom made to adapt perfectly to your needs! Just enter the measurements of the spaces to be protected and our configurator will provide you with an immediate and free estimate.

Installation is easy and requires no special knowledge. In no time you will have built your coverage. Just follow our online guides, video tutorials or rely on our customer care service.
EASYSWITCH COMPATIBLE
Convert the Clear PVC shade into an outdoor roller shade with shading fabric in seconds and use it even in summer!
EasySwitch is the system that allows our roller shade to interchange the fabric in just a few minutes. You won't have to waste days disassembling the roller and replacing the whole system, just remove the transparent sheet with one simple move.

If you need the EasySwitch replacement fabric, you can custom order it here.
Remember, you can also order it at a later date.
CLEAR VINYL-PVC
We use 610 g/m² PVC Clear fabric: an extremely robust material, but at the same time elegant and soft to the touch.
"Clear" has excellent mechanical properties, acts as a thermal insulator, ensures protection from wind, water and humidity. But that's not all: through the EasySwitch® system it will be possible to replace the transparent PVC sheet with a shading sheet in a few minutes.
This system is the only one that allows you to replace the fabric in less than 3 minutes and without removing the roller!

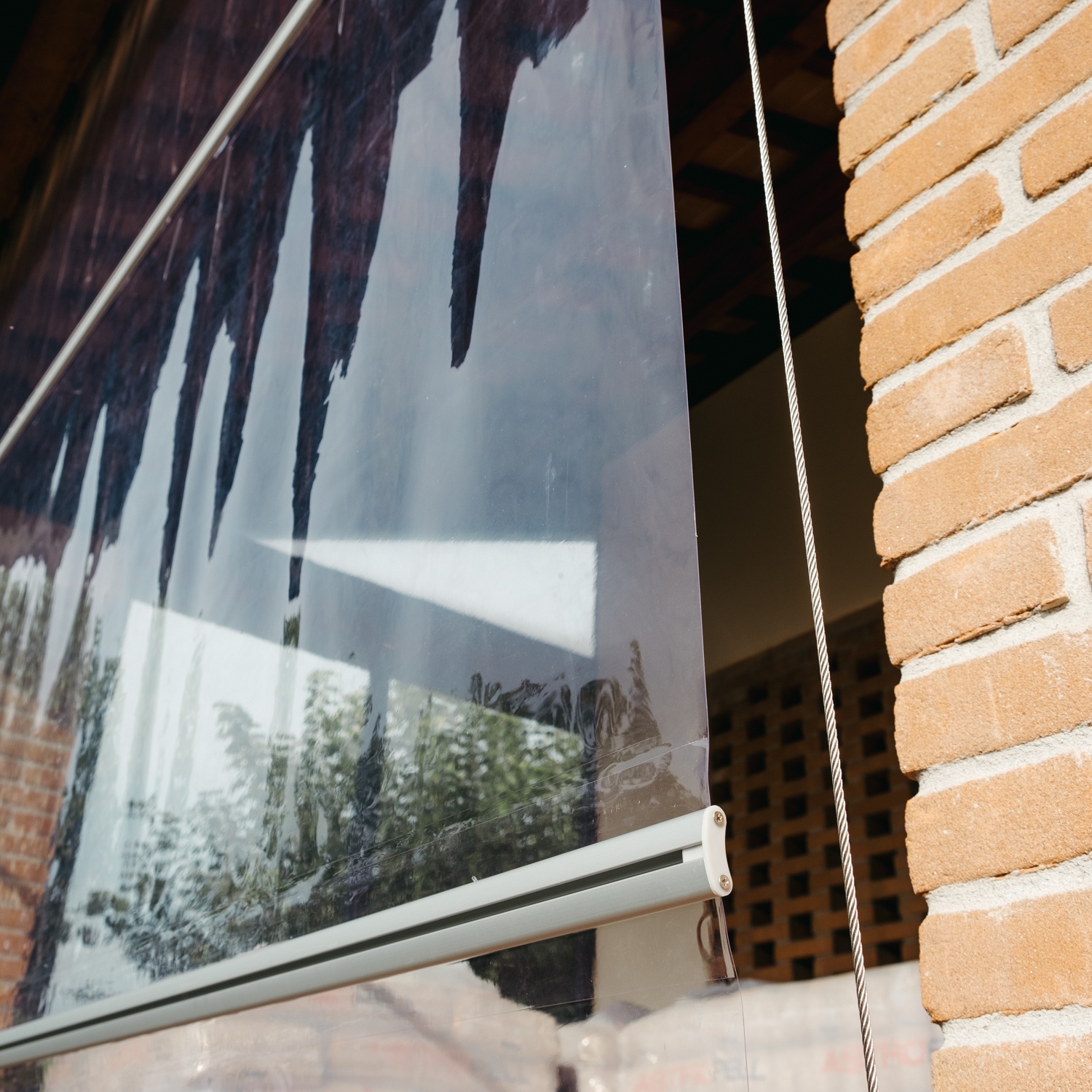

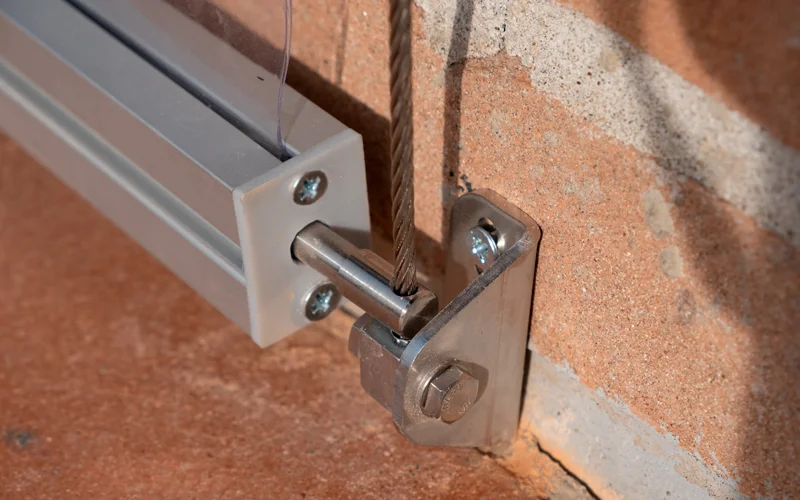

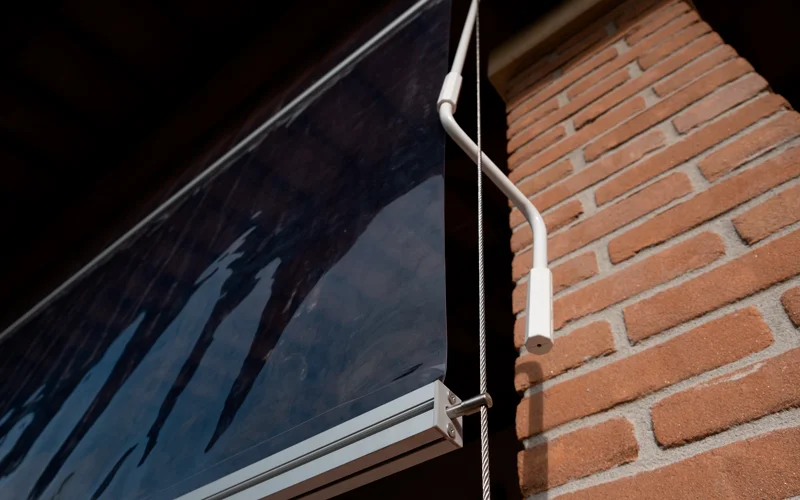

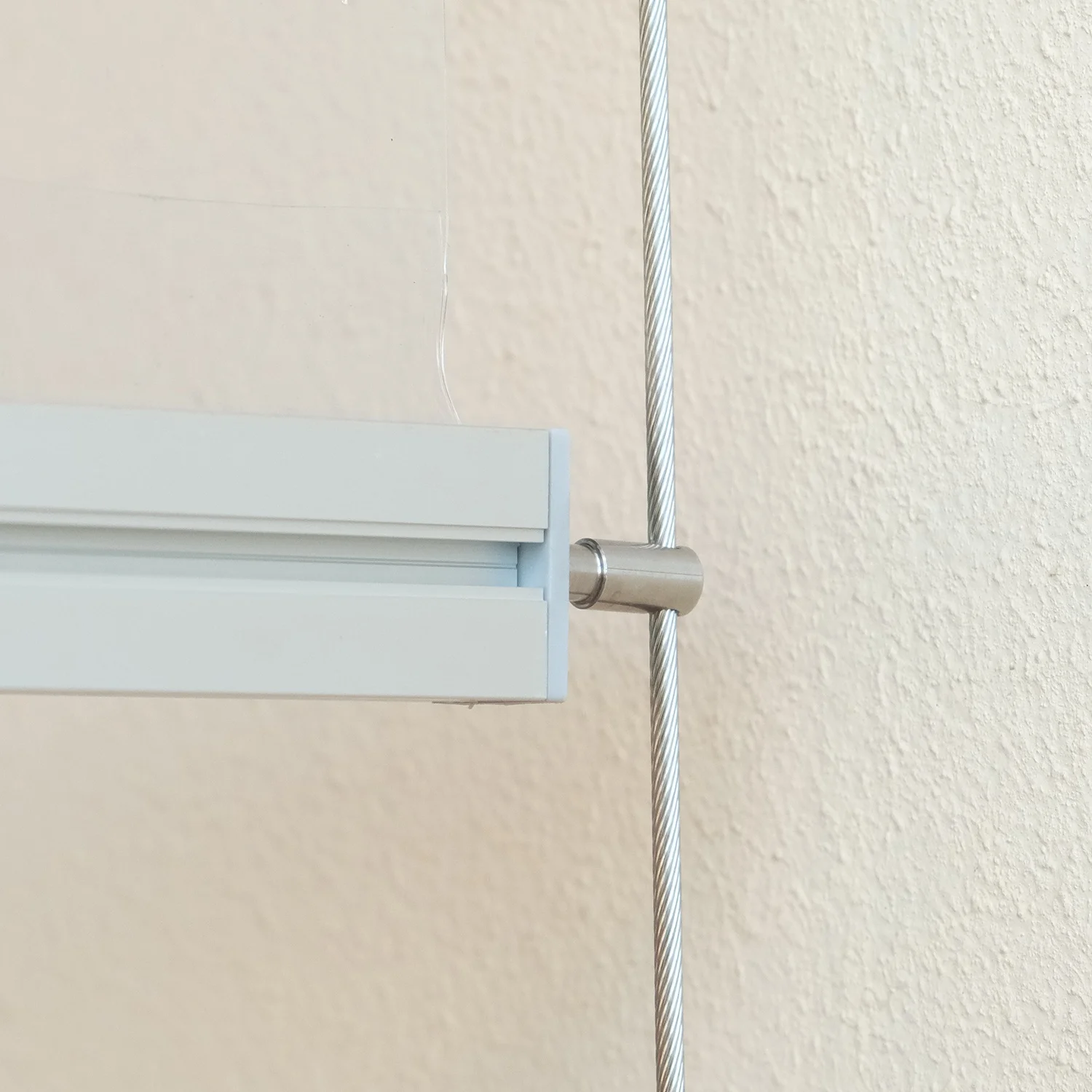

VERSION WITH SIDE CABLES
Easy Clear can be configured in a version with side cables.
These allow you to keep the canvas at half height and ensure that it does not flap in the wind causing damage.
This version is compatible with the 12v-Motor.

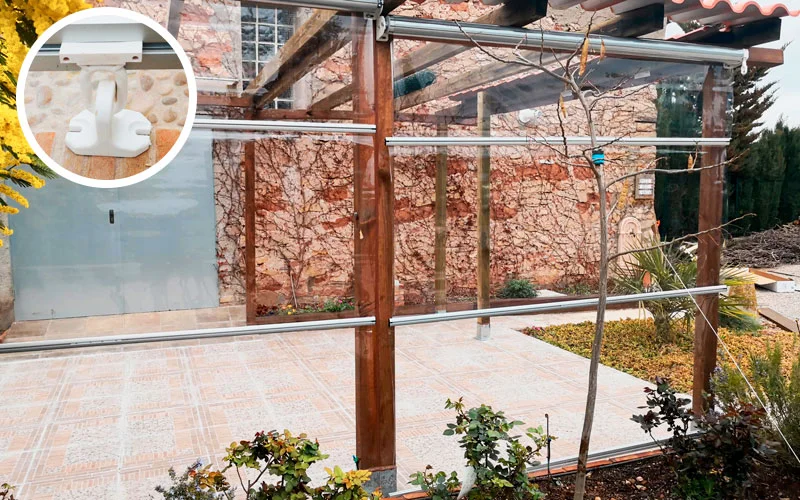

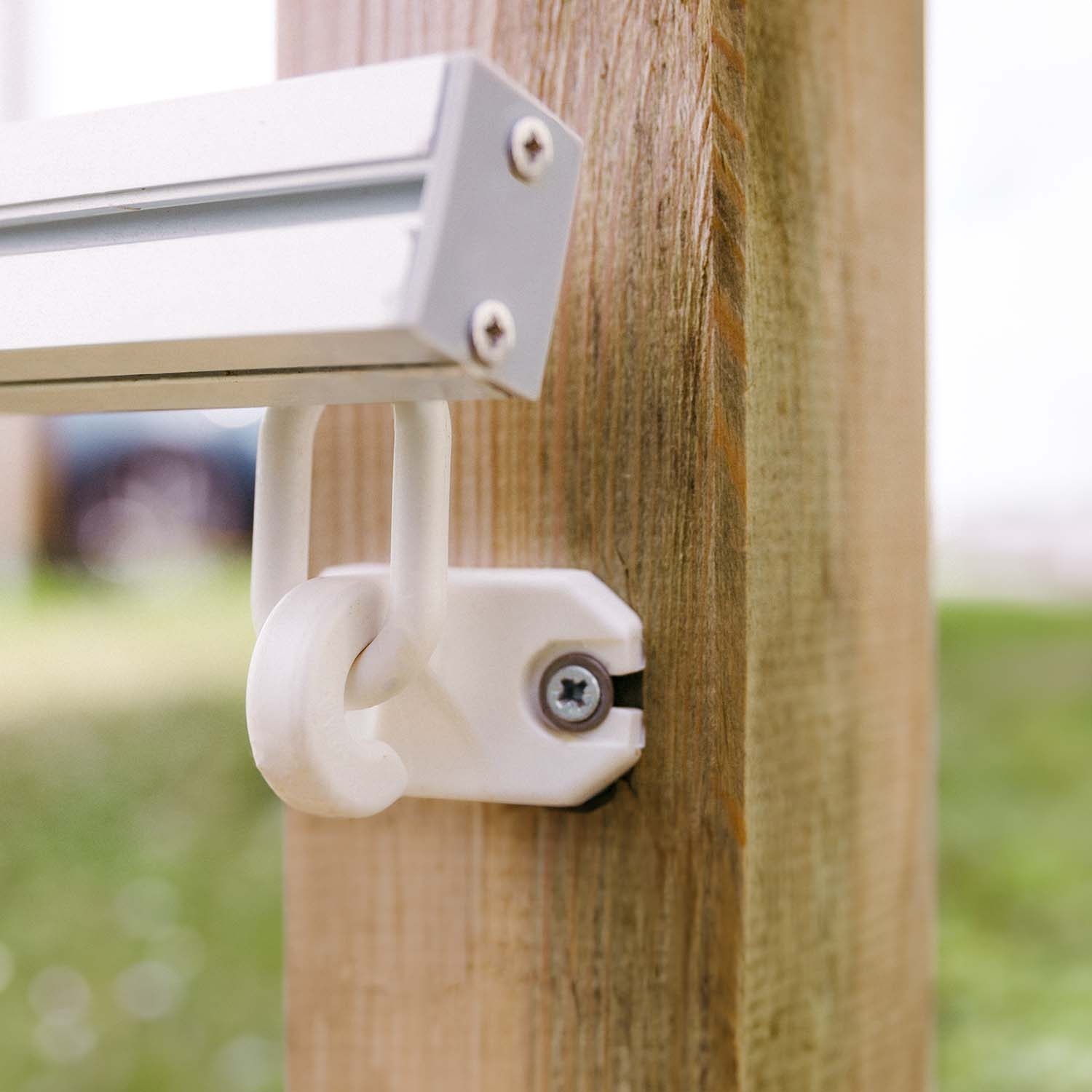

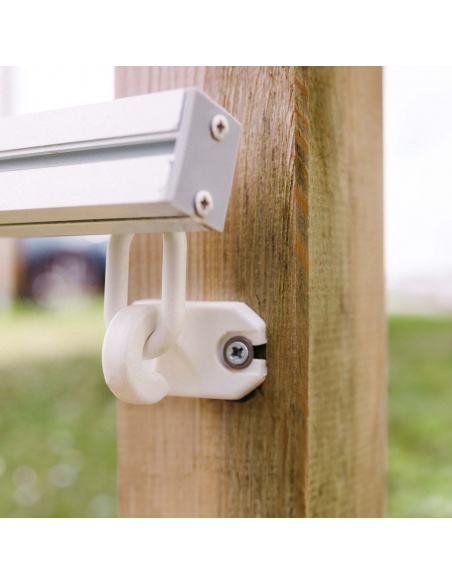

VERSION WITH FLOOR HOOKS
Easy Clear can be configured in a version with floor hooks.
The roller shade can be fixed to the floor and it will be necessary to unhook it manually before rolling it up.
We do not recommend motorising this version.

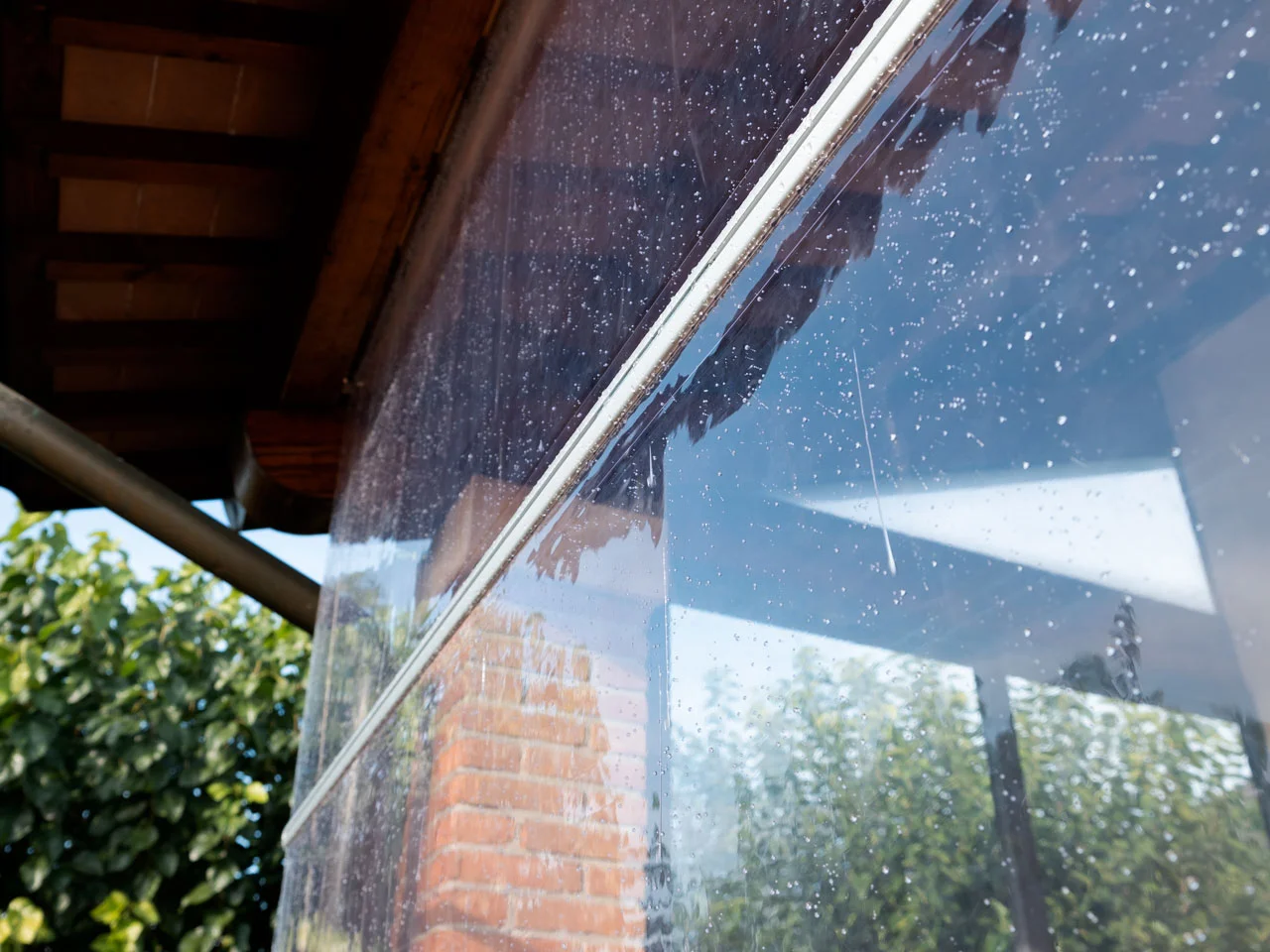

BENEFITS
INCREASED ROLLER DIAMETER
The extra robust profile with a diameter of 75 mm and an aluminum thickness of 2 mm, is specially oversized to give stability and safety even in case of bad weather.

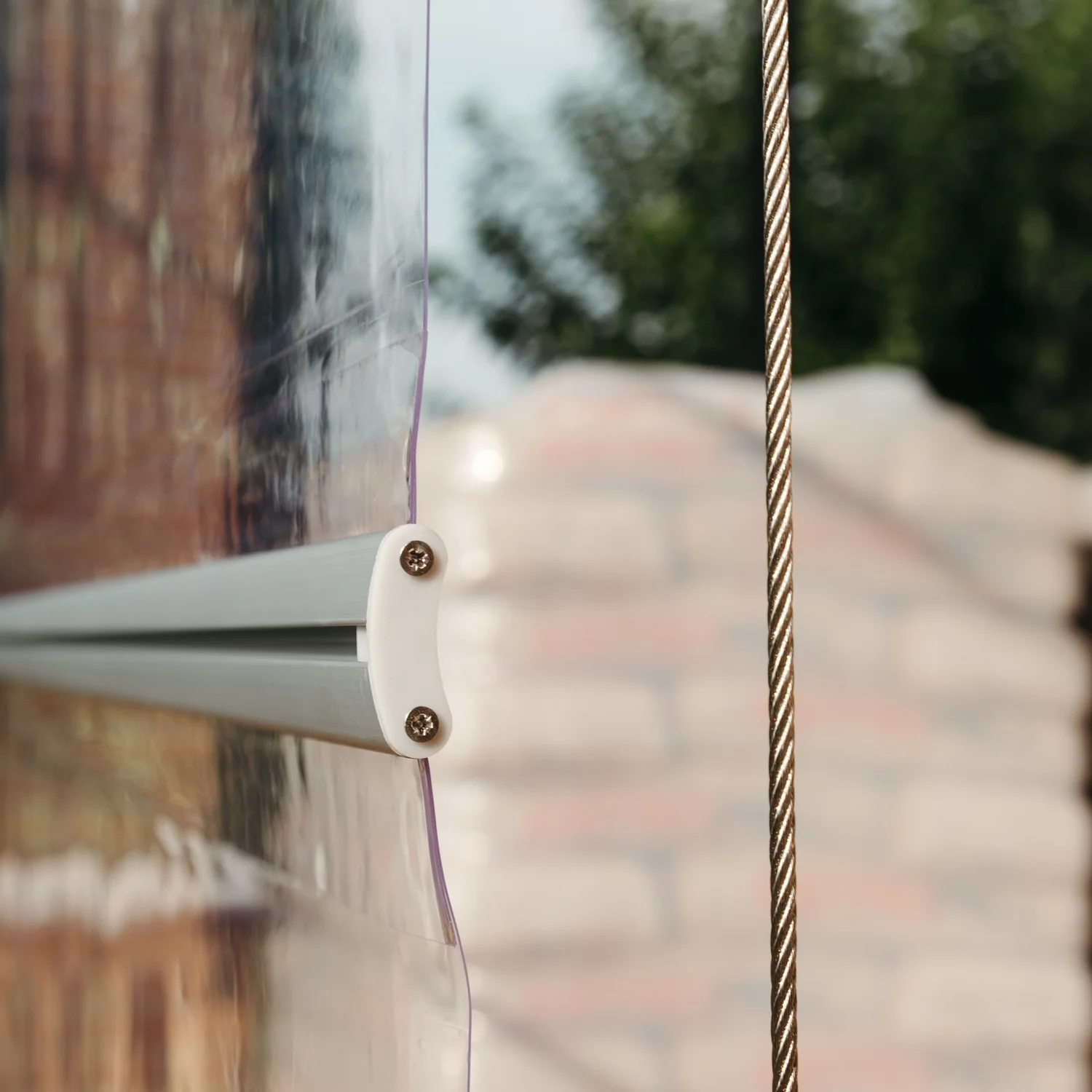

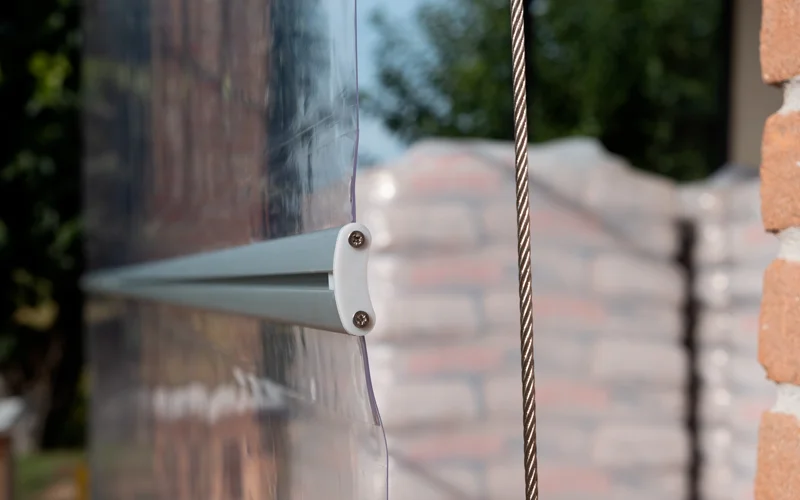

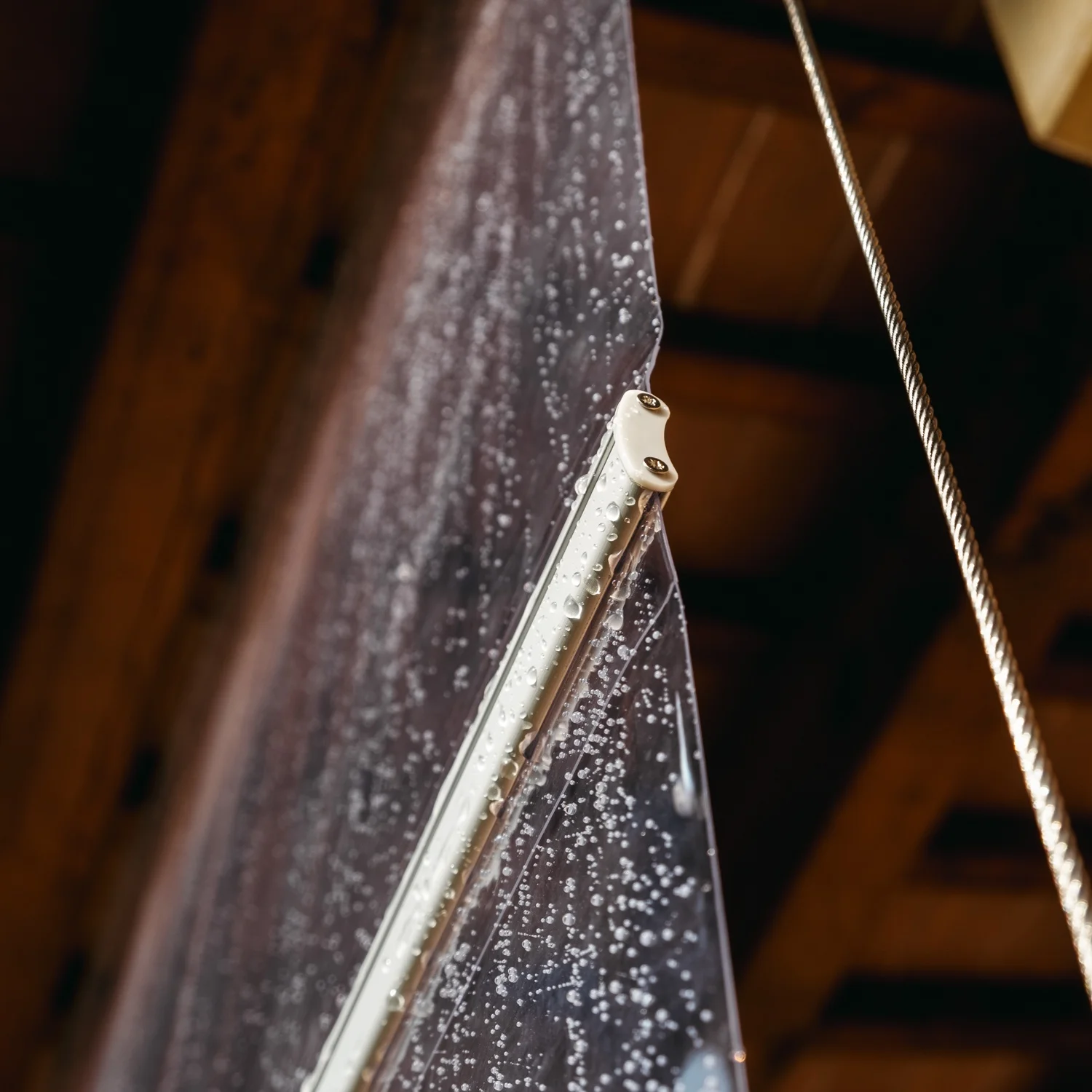

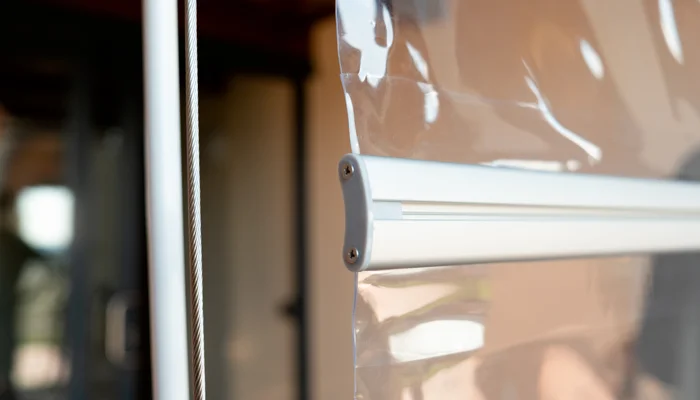

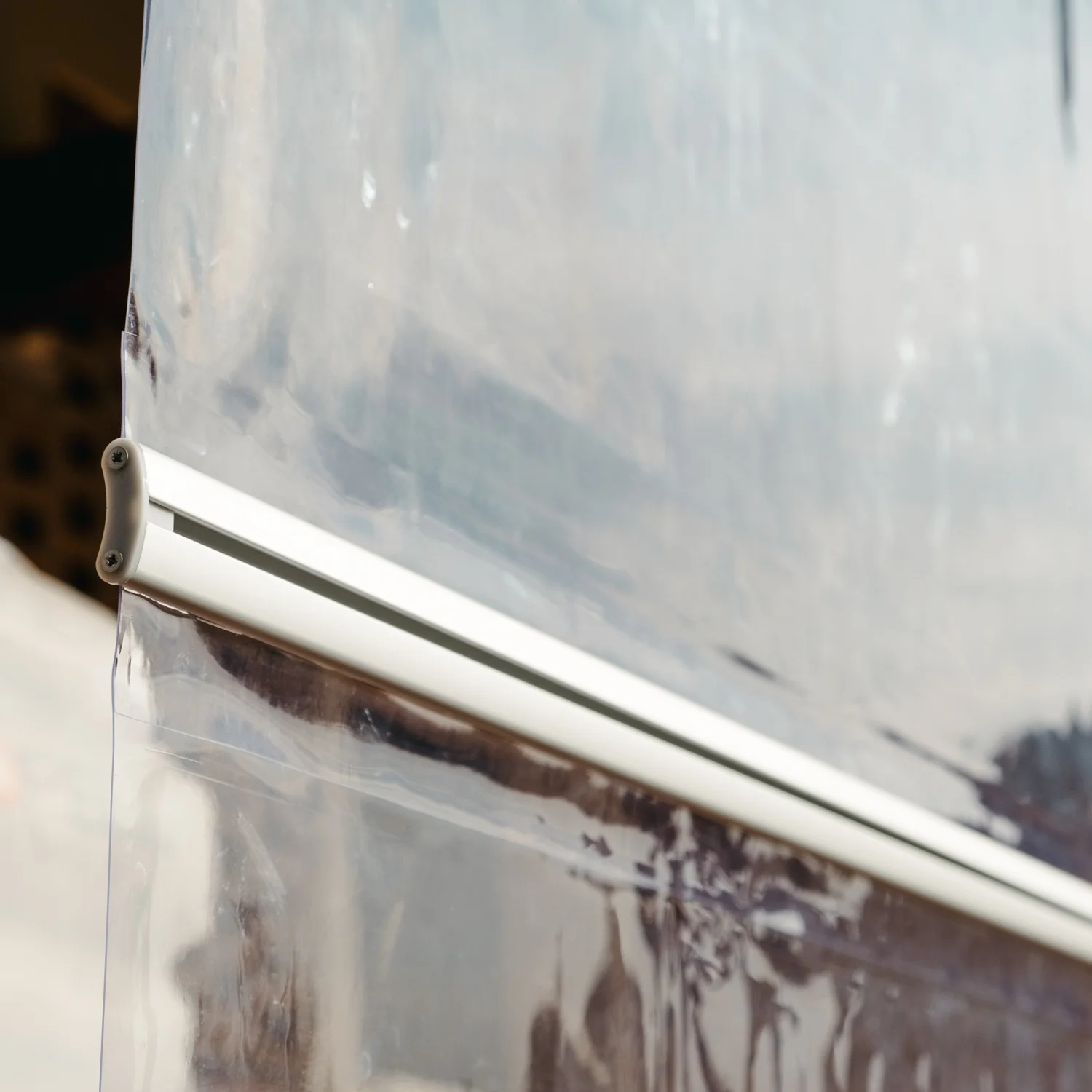

REINFORCEMENT PROFILE INCLUDED
all the "Easy Clear" shades with a height of more than 110 cm are made with an aluminum stabilizing profile included in the price. This makes the vertical awning much more stable in windy conditions.
WEIGHT BAR IN ALUMINIUM
The final profile usually consists of a plastic tube. In our case it has been replaced with an aluminum profile which gives stability and safety even in case of wind and bad weather.

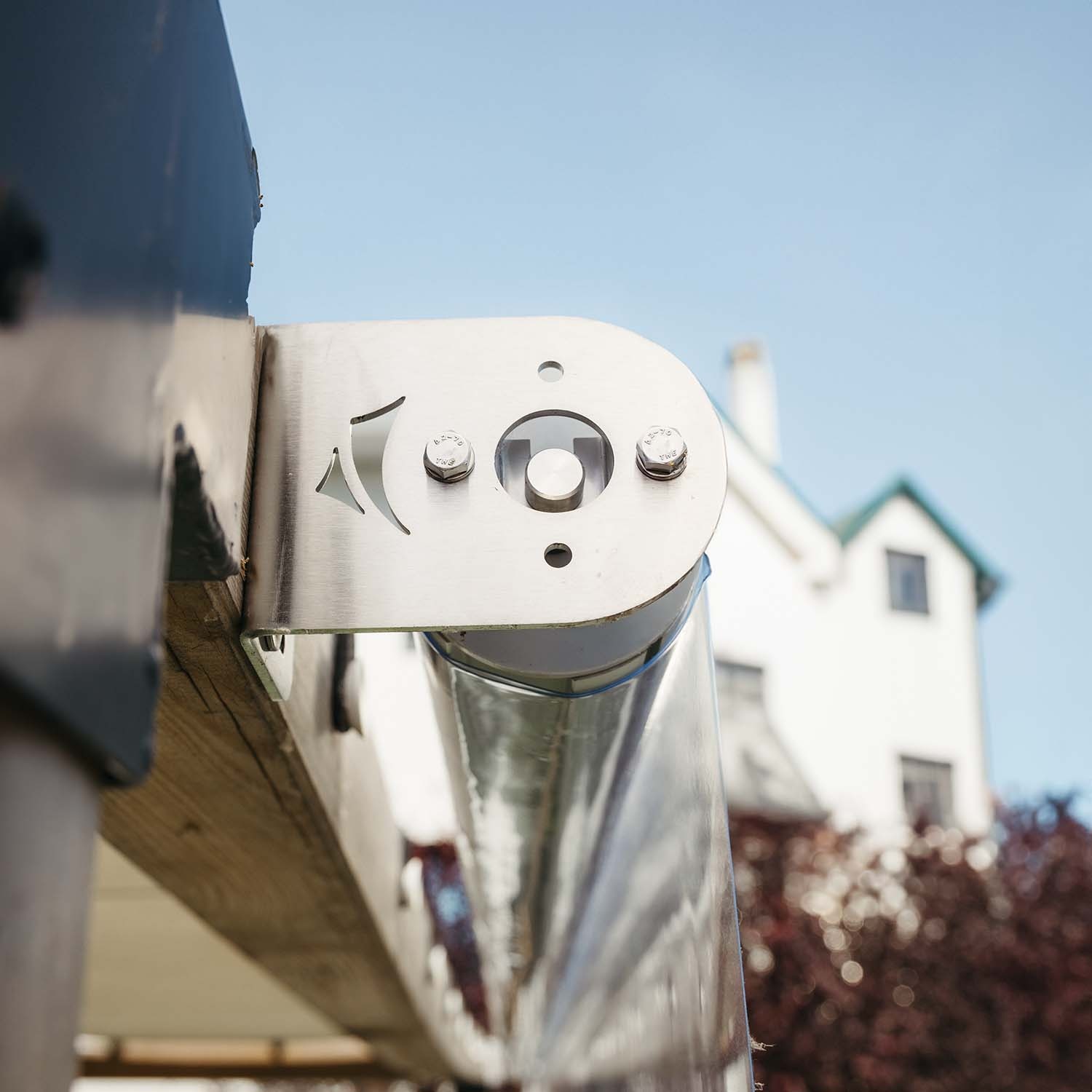

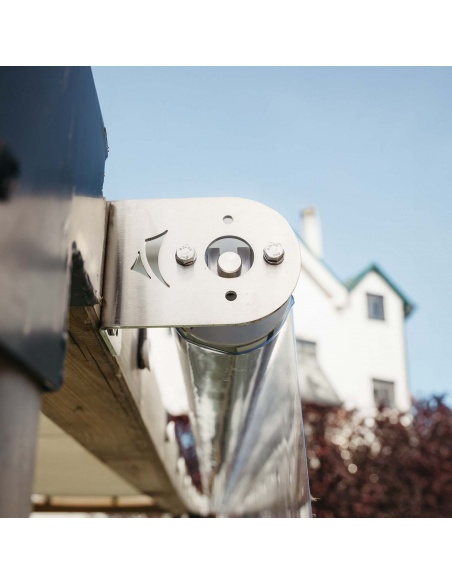

STAINLESS STEEL BRACKETS
The fixing plates of the winder roller are made in Italy in 304 stainless steel and allow the installation of the maneuvering system (motor or winch with rod) either on the right or on the left.
They can be installed on the ceiling or wall and allow multiple and therefore series installation.
EASYSWITCH®
The system allows you to replace the clear vinyl sheet with a shading fabric in the summer, for example with a Braidd5® or Purishade®.
Replacement is possible in just a few seconds and without the need to remove the winder roller.
MODULAR SYSTEM
If you are scared of costs but don't want to give up on quality, our modular system allows you to add the motor, the solar panel and many other accessories at a later date.
TAILOR-MADE
Easy Clear is available made-to-measure at a competitive price. Configure it directly above by entering the actual measurements available.
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of the goods, there will be no need for forklifts. Assembly will take two hours in two people!

Data sheet

EASY CLEAR: Clear vinyl outdoor roller shade made with 610 g/m² PVC .
Easy Clear is an outdoor roller shade with transparent PVC fabric. Its applications are on pergolas, porches but also on terraces and balconies to replace the classic arm awnings.

The aluminium roller profile is designed and drawn by our research and development team with an extra-large diameter. The side cables are in stainless steel to avoid rust problems.

Easy Clear is sold complete with all the accessories necessary for manual operation.
The motorization is available with an optional kit and recommended only in the version with side cables.
DATA SHEET
Model
Easy Clear
Available sizes
Custom made only
Overall weight
Variable according to the dimensions chosen
FABRICS
Fabric types
Clear®: Transparent PVC Vinyl film
Fabric weight
Clear®: 610 g/m²
Waterproofing
Yes
Seams sealed
Yes, the seams are heat sealed
Tear resistance / hail resistance
Yes
Maximum area
350 x 350 cm
STRUCTURE
Aluminum roller and terminal
Material: Aluminum
Color: Silver
Winder support plates
Material: 316 stainless steel
Color: Stainless steel
Available versions
With lateral cables or with floor hooks
PACKAGING
Box sizes
Minimum 2 boxes, maximum size 156 x 25 x 17 cm

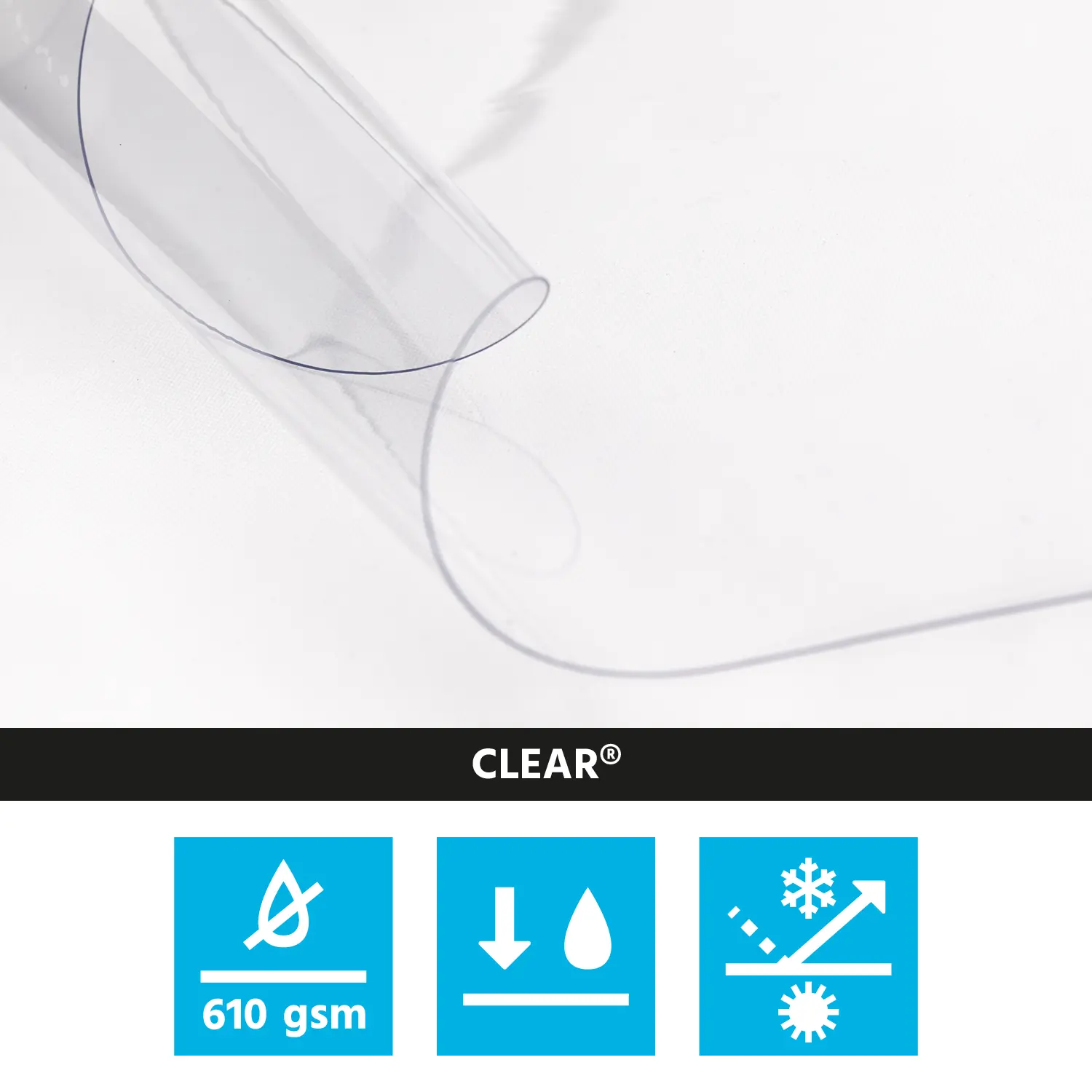

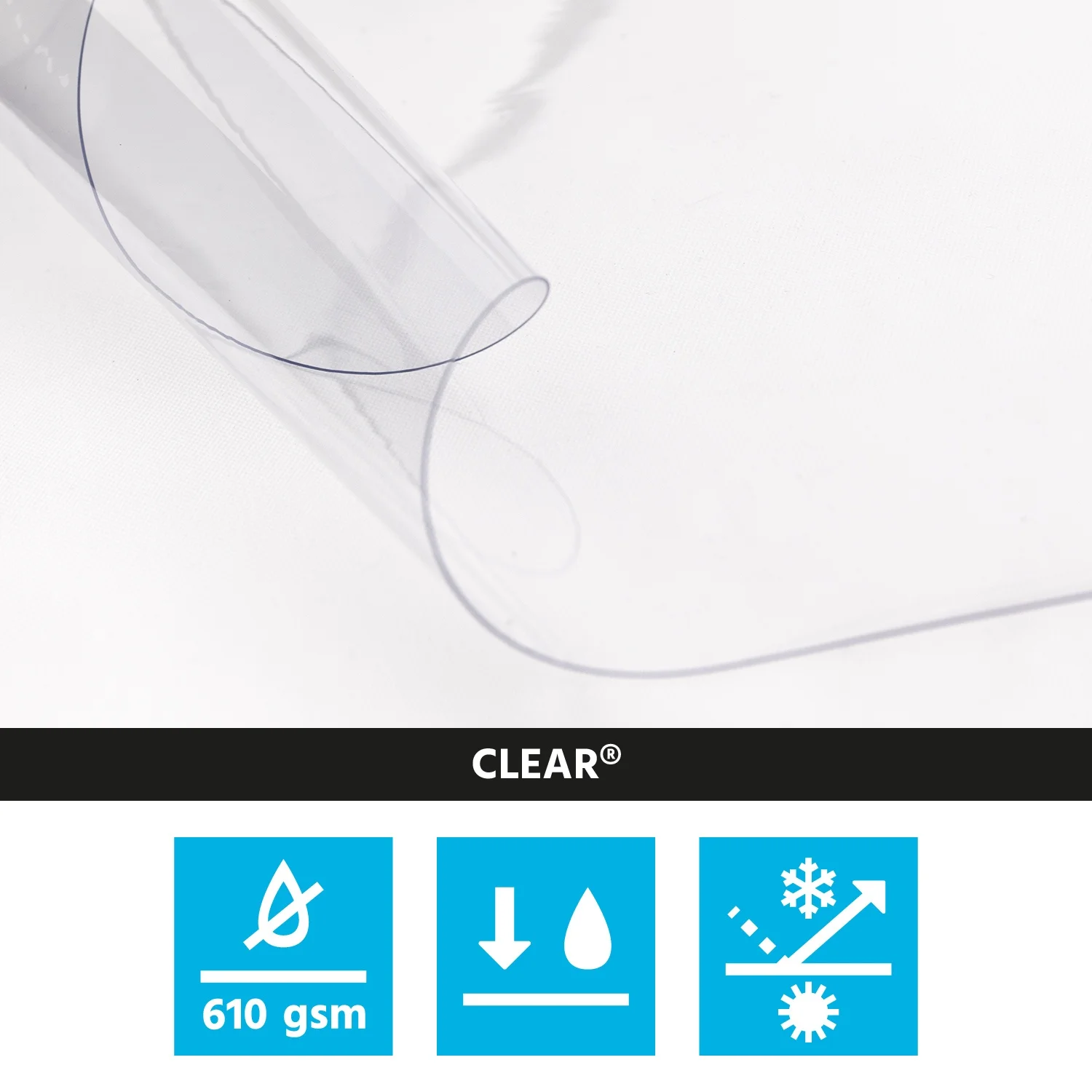

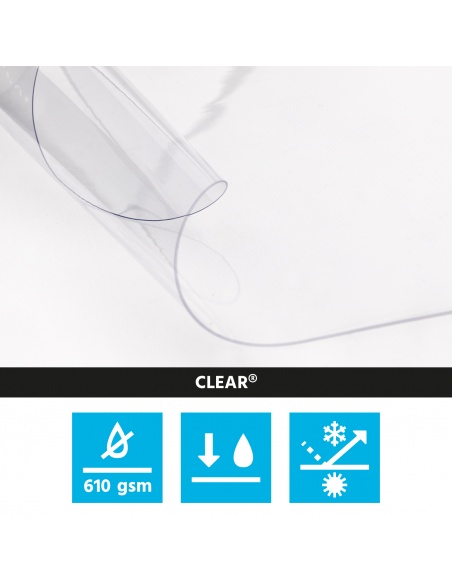

CLEAR VINYL PVC 610 g.
The Clear 610 g fabric is a transparent PVC vinyl resin film. This material is extremely light, resistant to bad weather and UV rays. Clear is also an excellent thermal insulator and is free from harmful chemicals.
The excellent mechanical qualities ensure a very high tear resistance, while maintaining softness to the touch.
Thanks to the transparent vinyl film, the Easy Clear PVC roller blinds allow you to create a protected and sheltered environment without losing the panoramic view and giving up natural light. With Easy Clear you can protect your outdoor spaces from the cold and rain and create an area to share with friends and relatives!

Package contents

PACKAGE CONTENTS
On this page you will find the included items, optionals, and accessories.
Easy Clear includes all the accessories needed for manual (crank) operation.
INCLUDED ELEMENTS

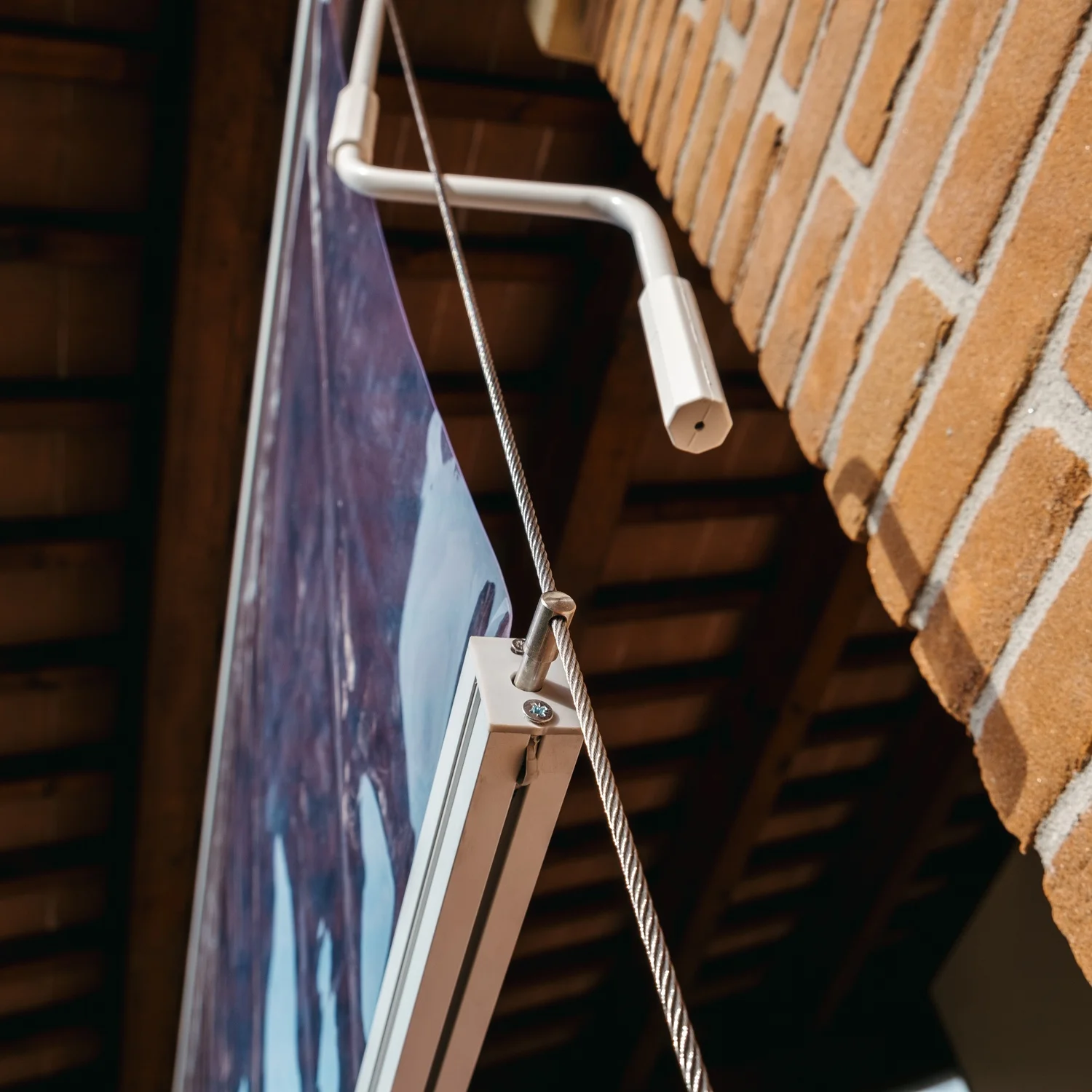

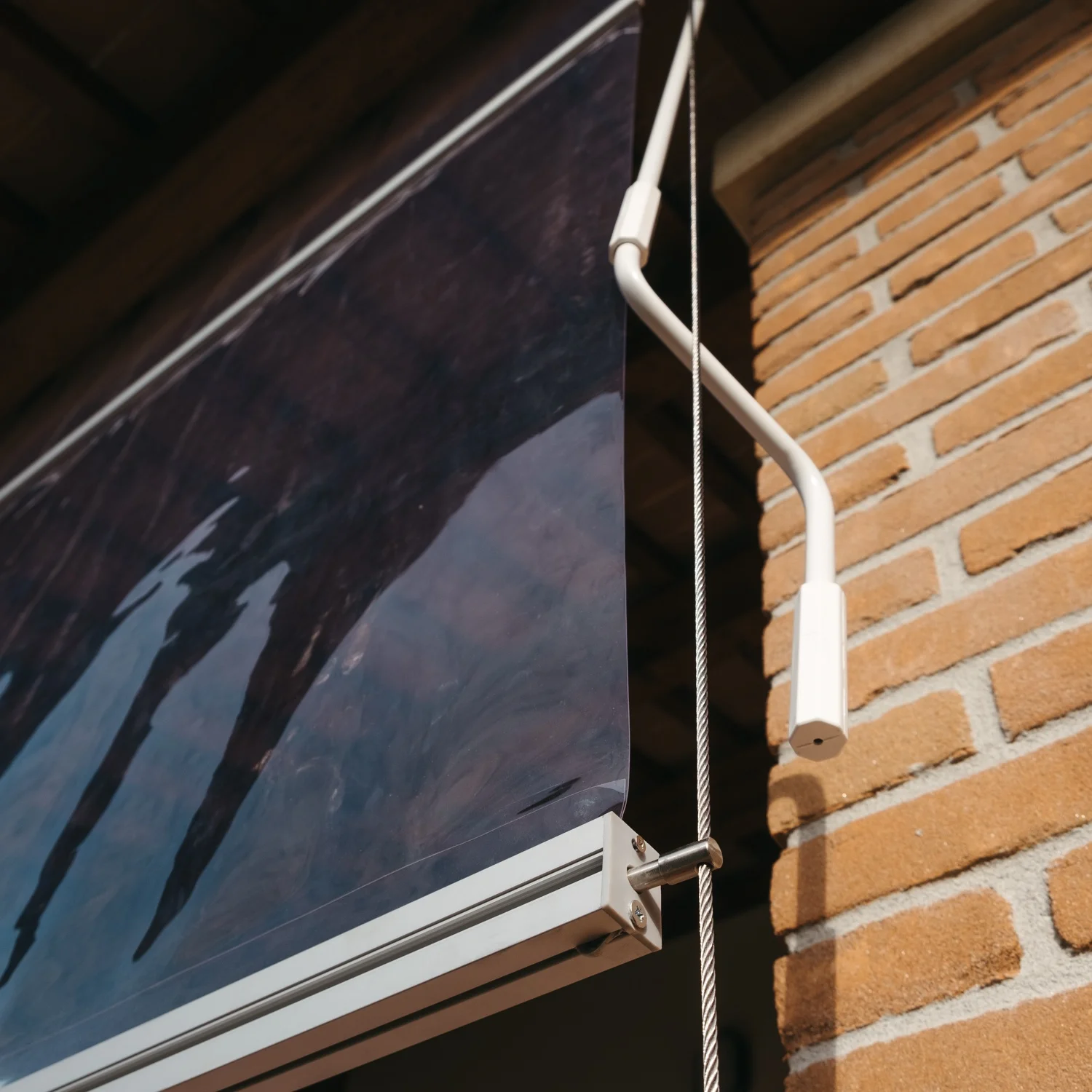

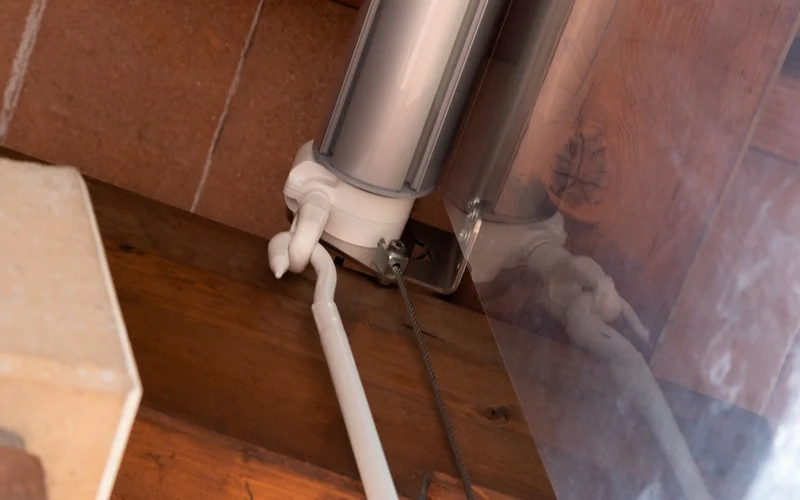

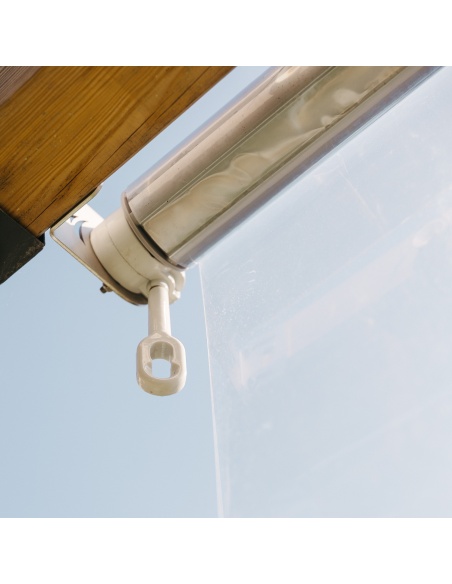

WINDER ROLLER AND OPERATING CRANK
The roller is the heart of the rolling system, with a unique technical design, with a diameter of 75 millimeters, it allows you to roll up vertical blinds with a maximum width of 350 x 350cm.

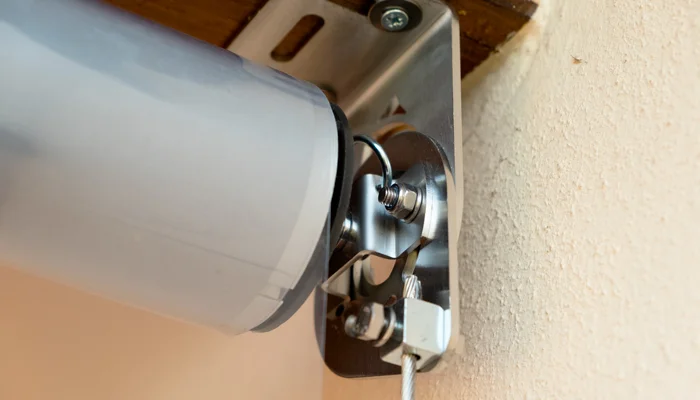

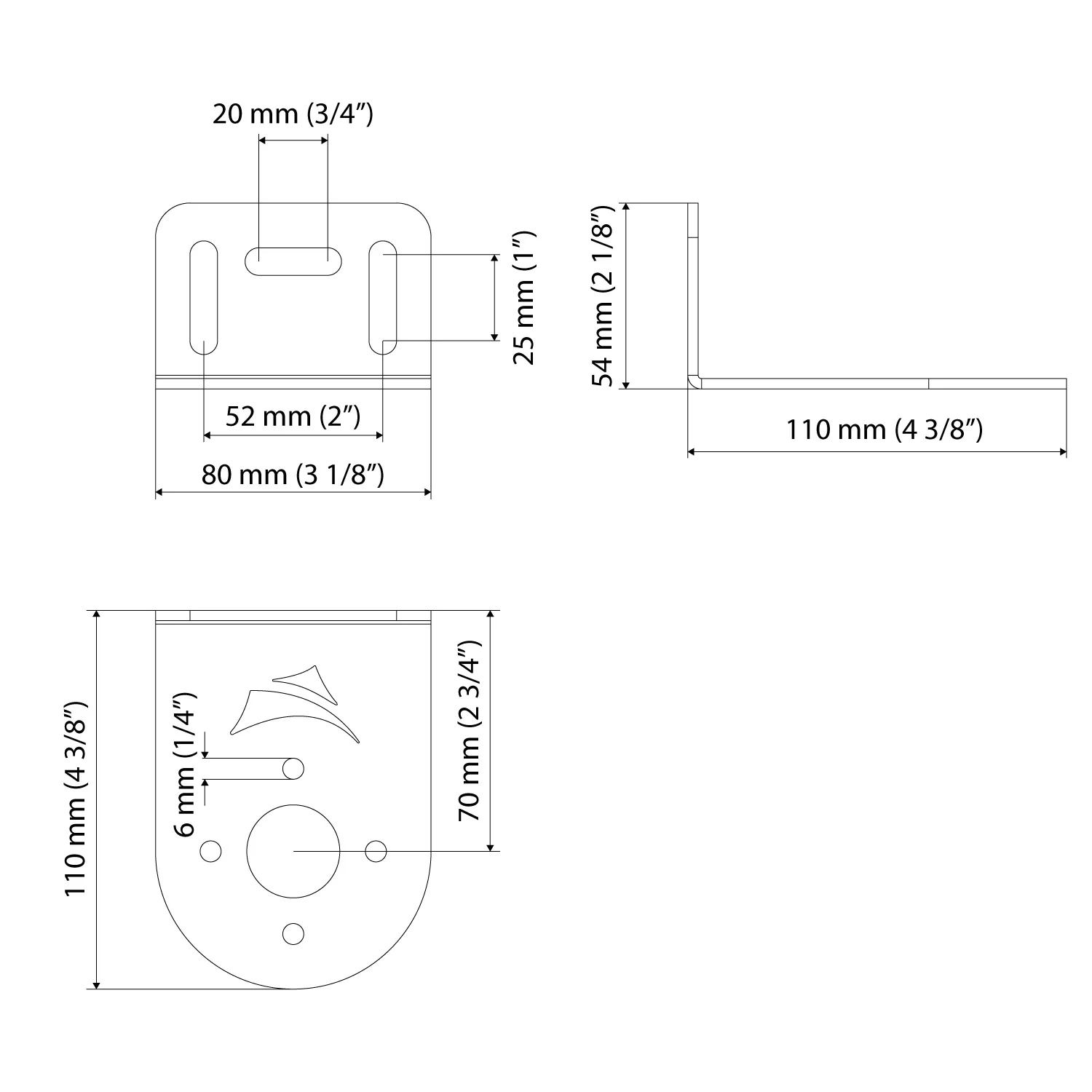

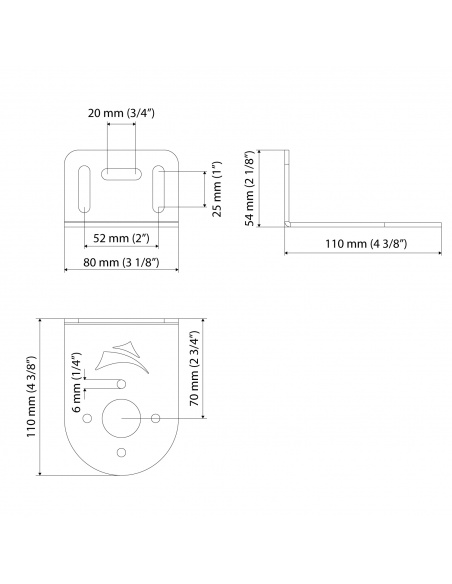

FIXING PLATES
The roller support plates are designed by Maanta and produced in Italy. They are made of 304 stainless steel and thanks to their modularity they can be fixed to the ceiling or perpendicular to the wall. They can also support compositions of vertical blinds (advise in the order notes).
REINFORCEMENT BAR
Included for all awnings over 110 cm high.
They guarantee sturdiness and safety in case of wind.

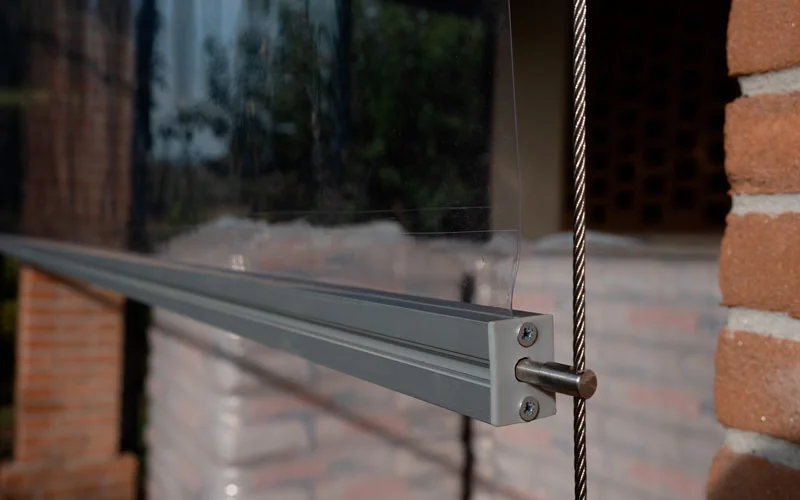

WEIGHT BAR
The weight bar is made in aluminium with a special Maanta design. It allows the roller shade to be very stable even in strong winds.

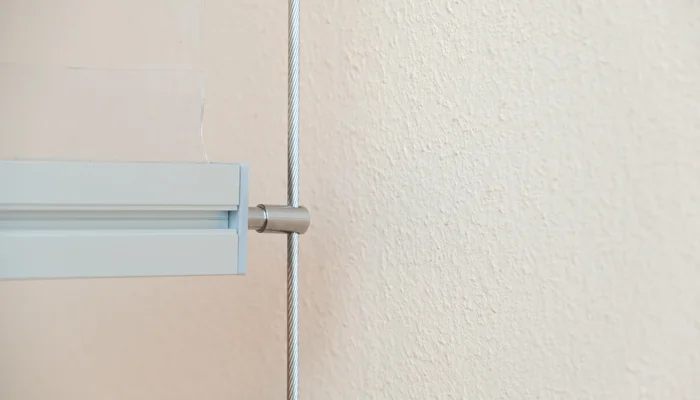

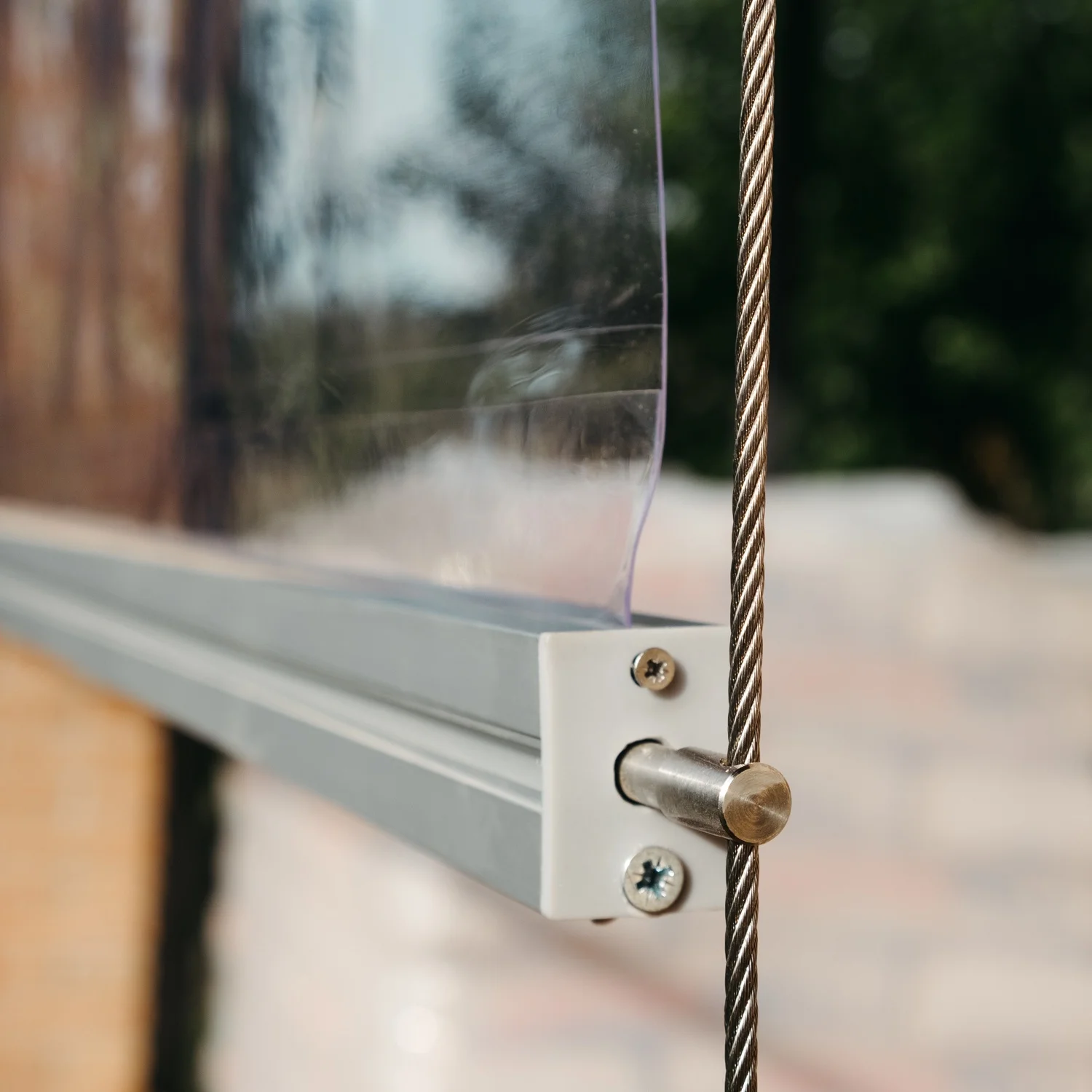

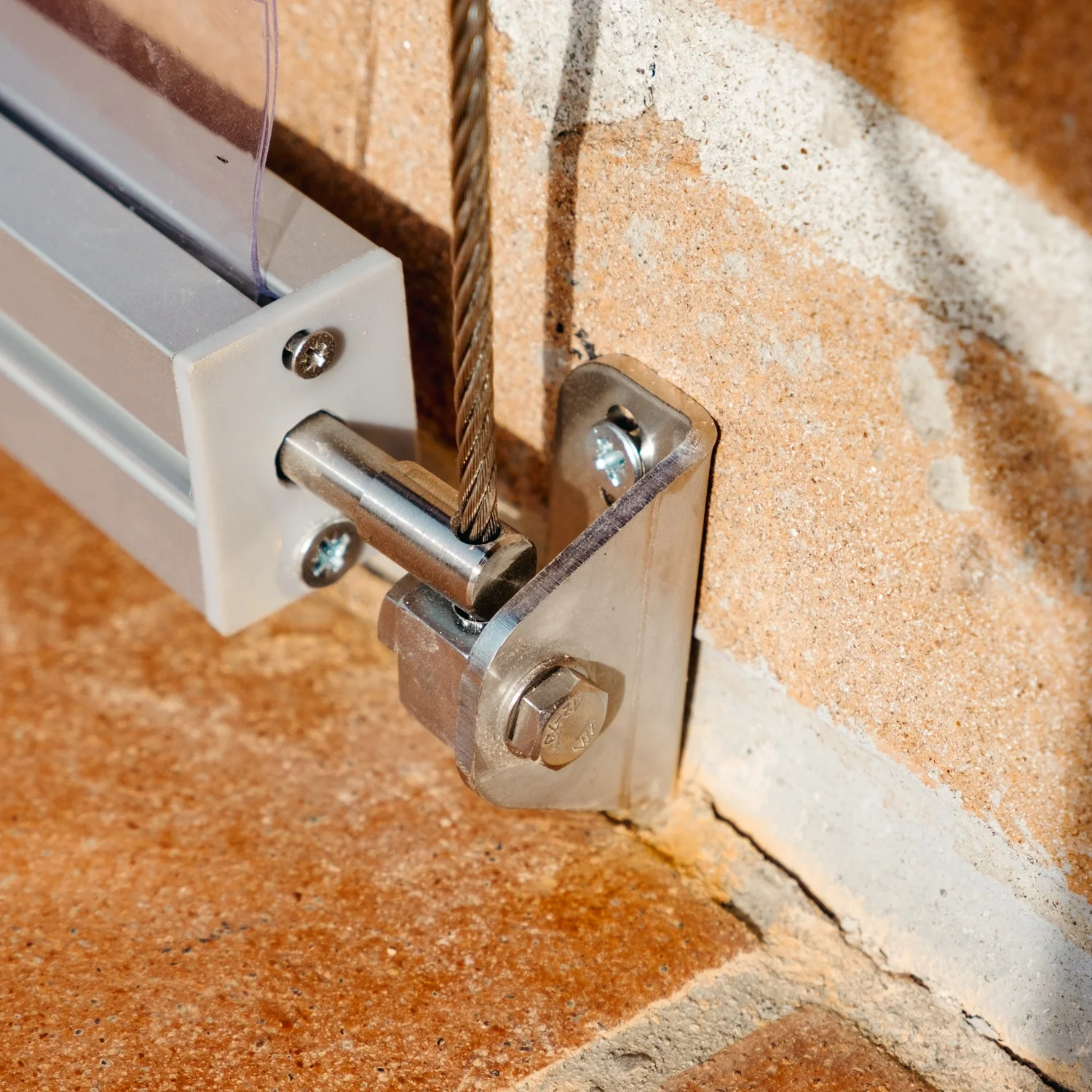

SIDE CABLES (ONLY FOR VERSION WITH CABLES)
The side cables are in 304 stainless steel, they are already supplied cut to size and allow excellent wind resistance.
OPTIONAL ACCESSORIES
A number of optional accessories are available. The following accessories are recommended only in the version with side cables.
You can find all the accessories in the appropriate category "accessories for roller shades".

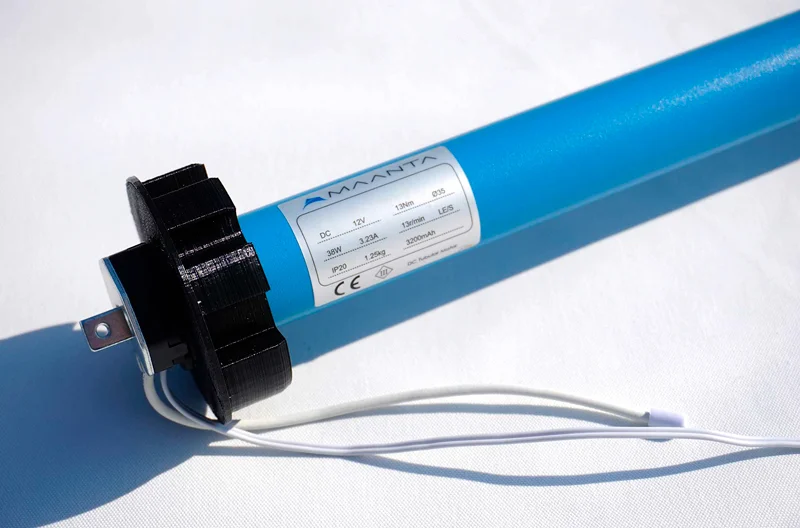

MOTORIZATION 12 VOLTS
Easy Clear with cables can be equipped with a 12v M13x13LT motor with integrated lithium battery that allows you to manage up to 200 descent and ascent cycles. Charging can be done in a few hours via USB or via solar panel.

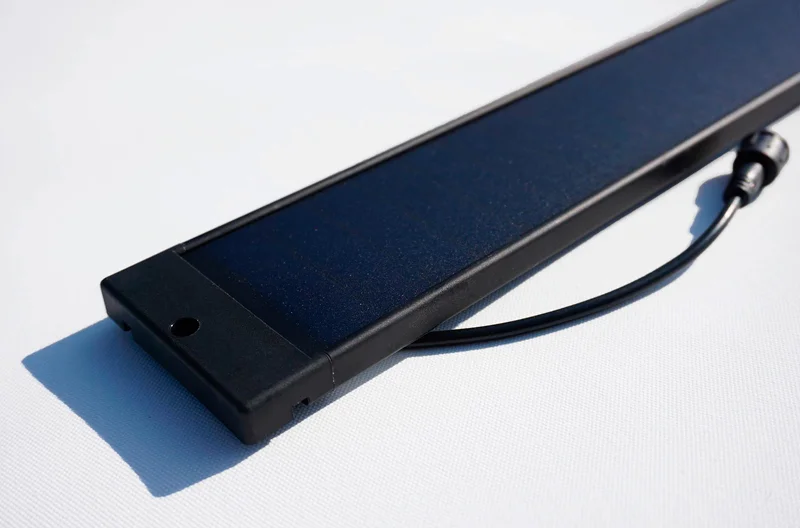

SOLAR PANEL
Modular accessorywith the possibility of being added at any time to recharge the motor of the vertical blind. Keeps the motor's built-in battery charged.

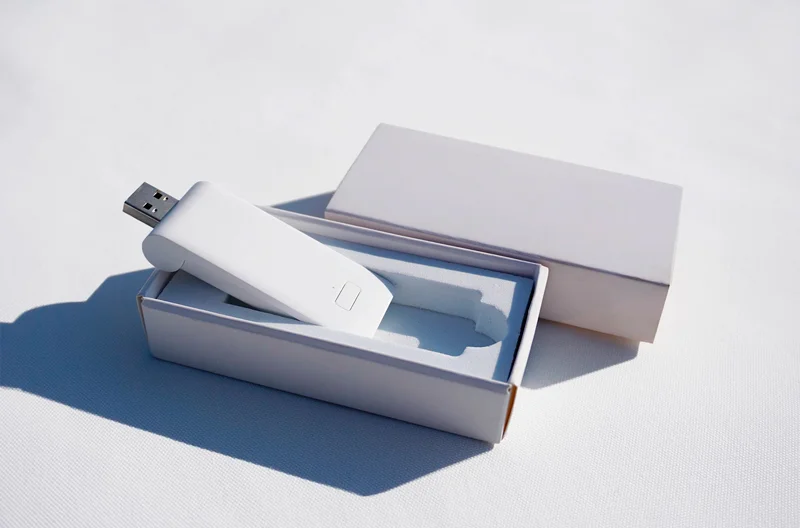

WIFI BRIDGE
Automate with Google Alexa and IFTTTvertical blinds. allows you to control openings/closures directly from your Smartphone! Thanks to the smartphone APP, we will be able to create 'scenarios' with automatic opening/closing at pre-set times.

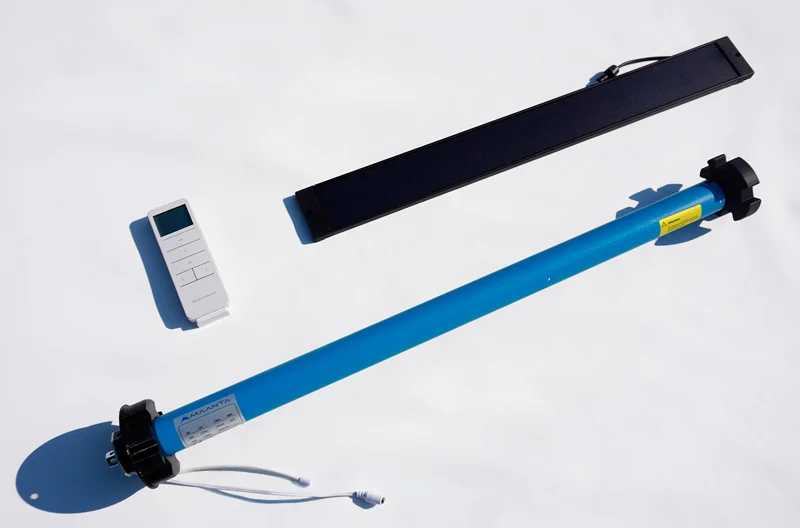

MOTOR KIT + REMOTE CONTROL + SOLAR PANEL
12v motor kit for roller blinds with solar panel and remote control. Ideal for controlling roller shades in total autonomy. The installation does not require masonry work to carry the current and no electrician.

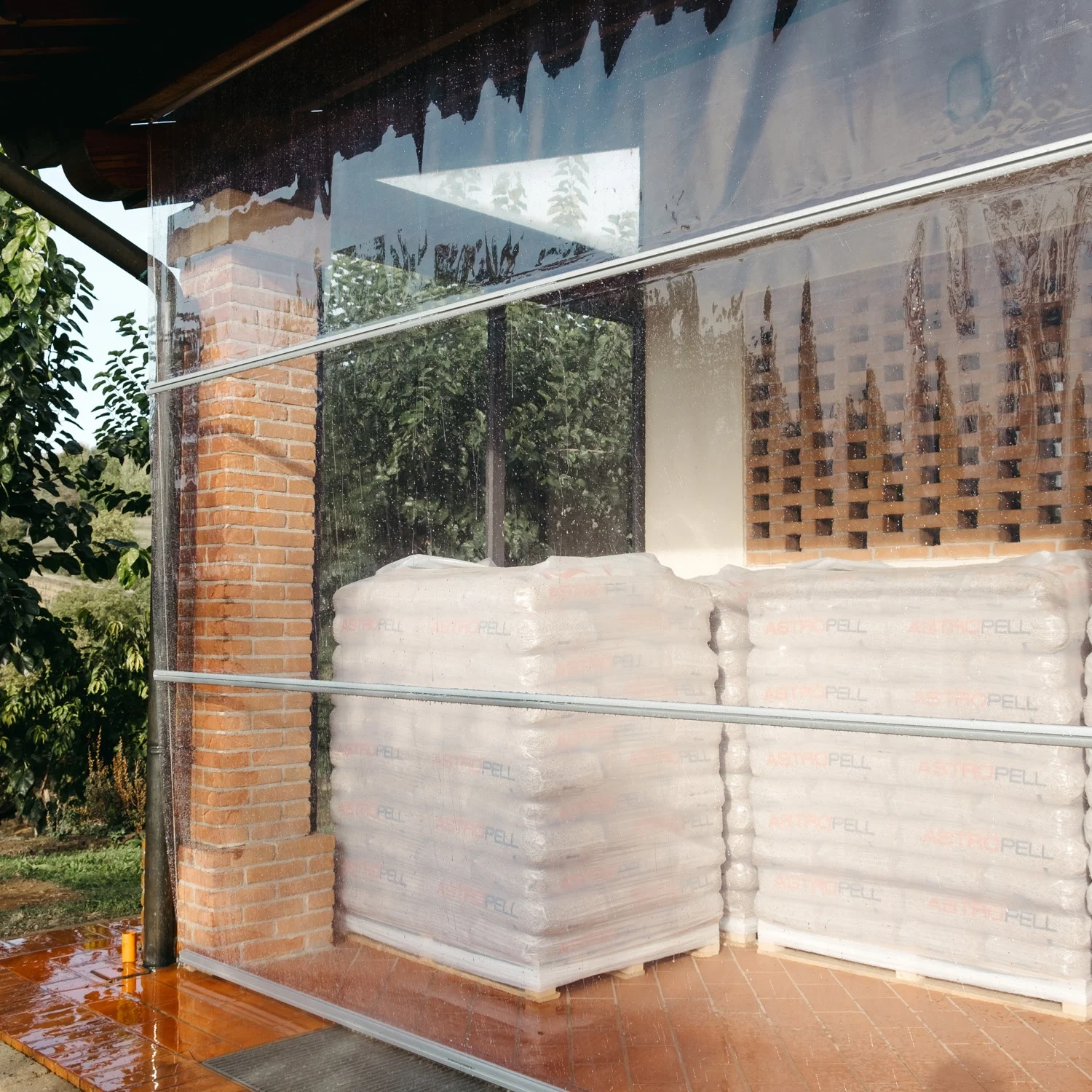

INSTALLATION EXAMPLES

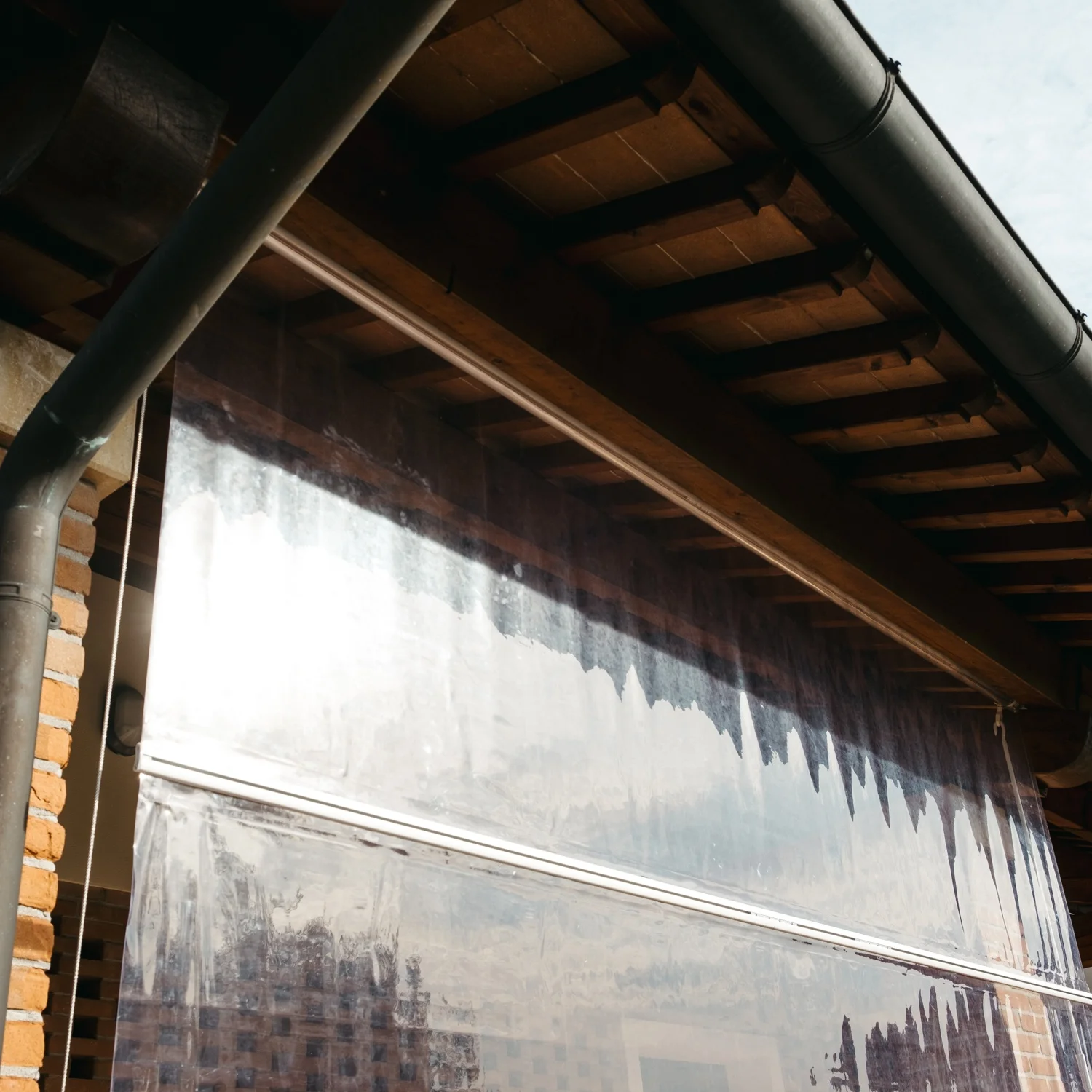

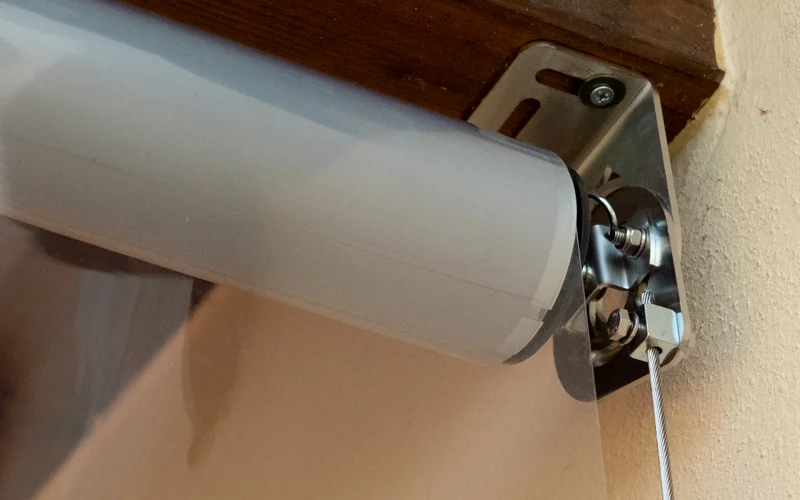

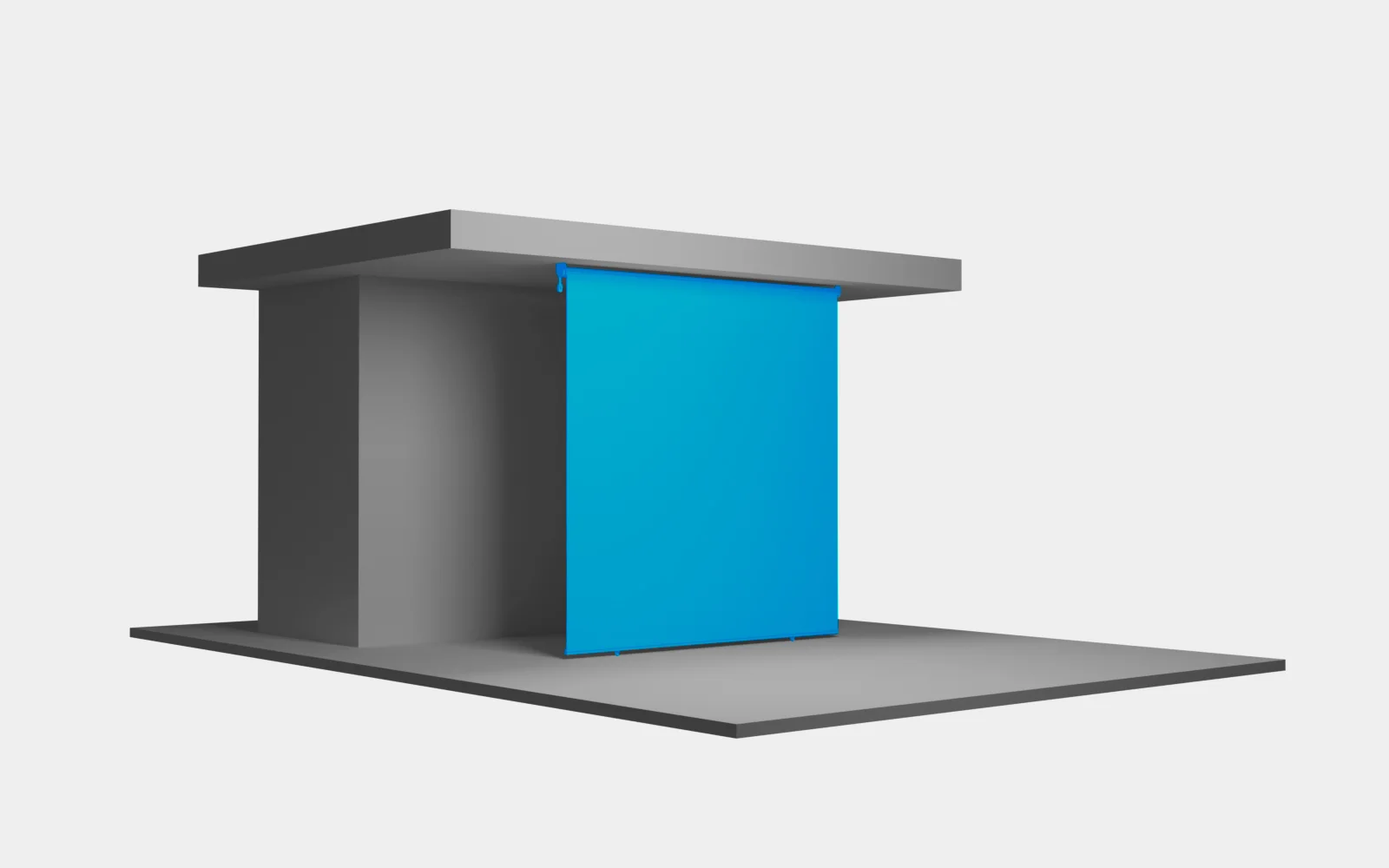

Single ceiling installation
In this example Easy Clear was installed on the ceiling.

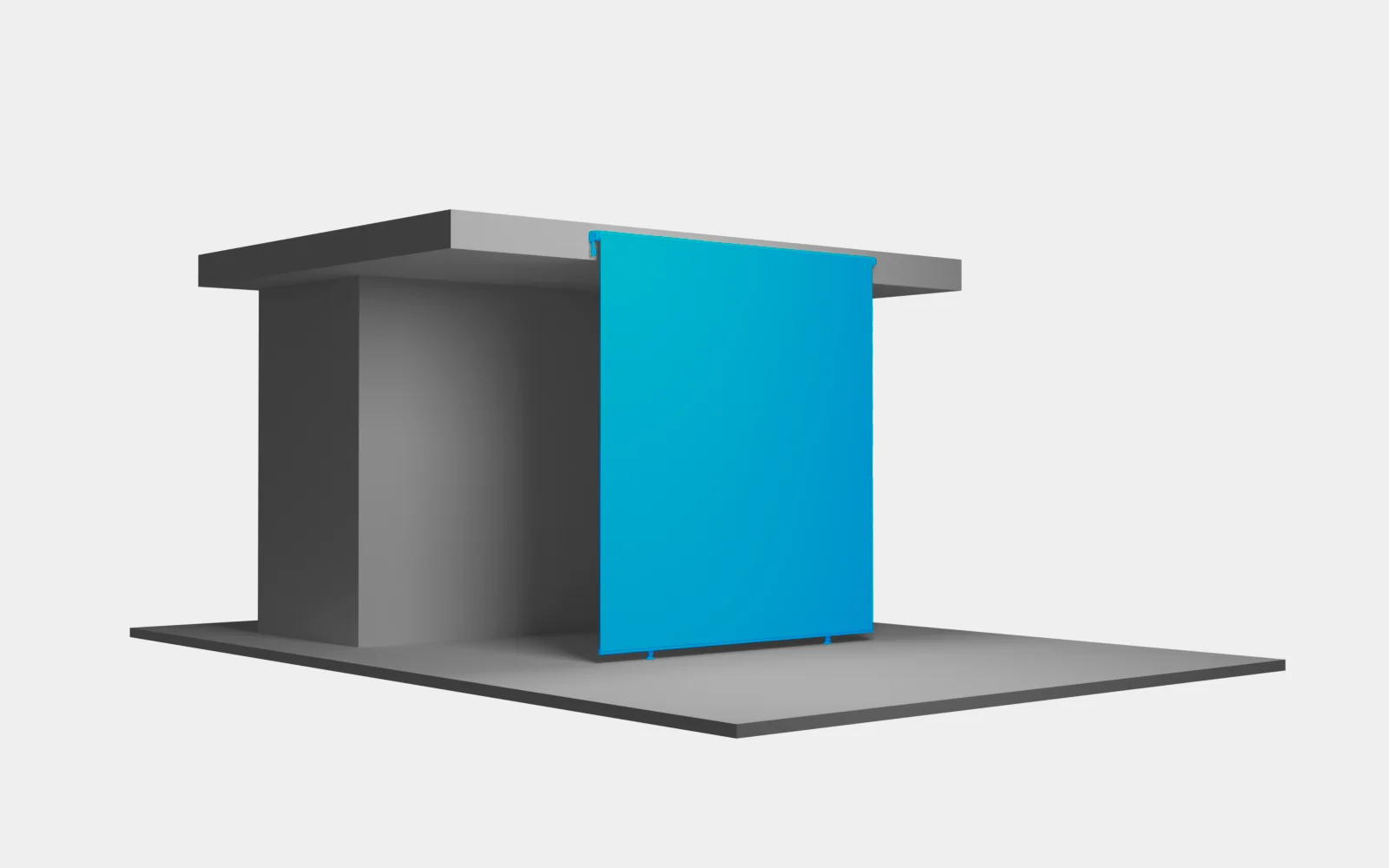

Single installation on vertical wall
In this example Easy Clear was installed on a vertical wall thanks to the modular plates included in the standard equipment.

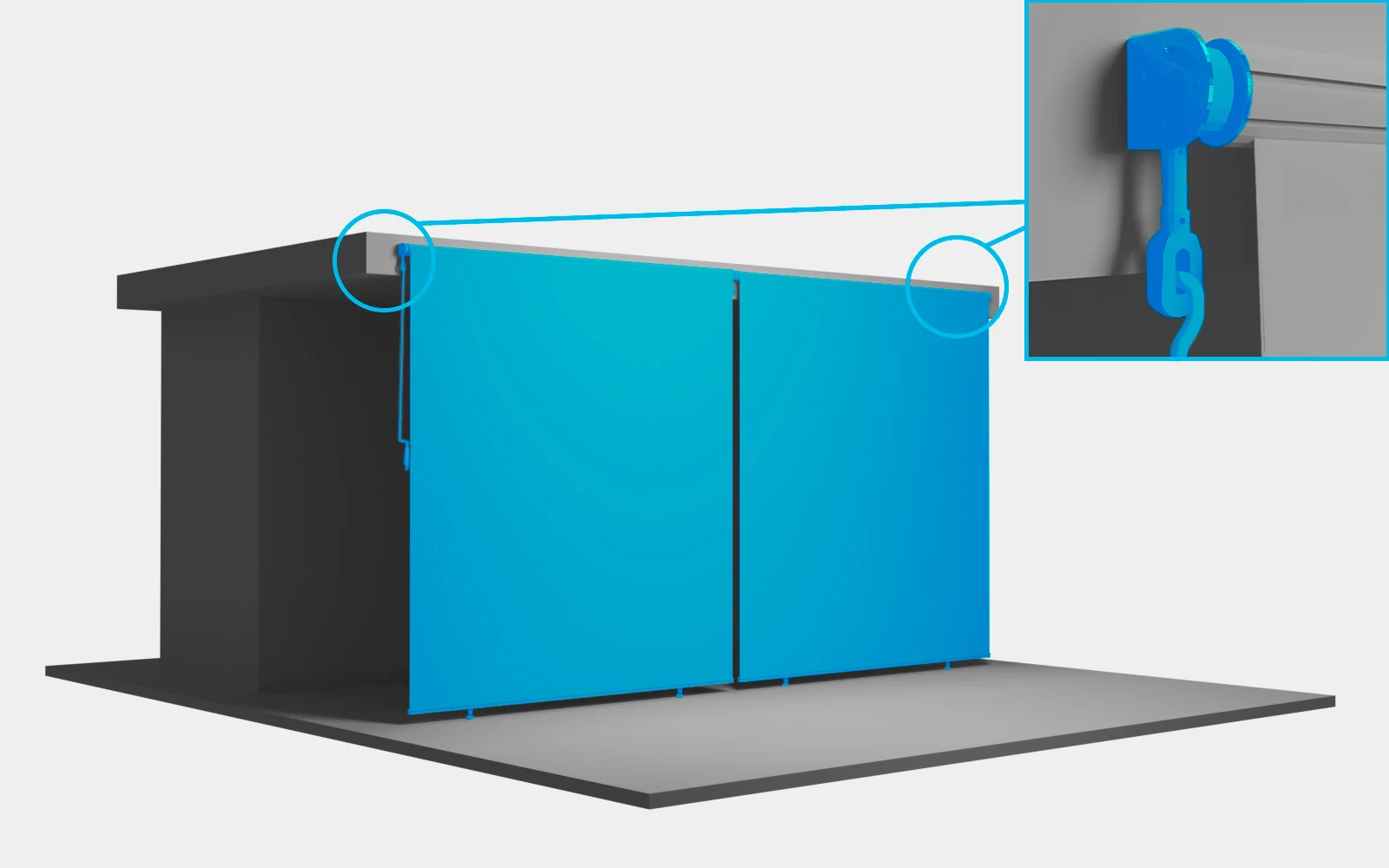

Multiple installation in series
The supplied plates can be used to install multiple roller blinds.In this case the winches with operating crank, or 12v motor, must be installed on the two external sides.
Go to the additional plate page

Instructions & Info

PRODUCT ASSEMBLY VIDEO
Assembling Easy Clear is simple and does not require skilled labor or special equipment.
The assembly procedure is similar to the Reef Roll model; we therefore refer you to this installation video.
icon-download

ASSEMBLY INSTRUCTIONS

Technical data sheet, package contents, assembly guide and guarantee.

Download the complete guide
in PDF format
ASSEMBLY INSTRUCTIONS IN PDF FORMAT
The Maistra pergola is fromeasy installationeven for the less experienced do-it-yourselfer.
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Componentsof complex assemblyAre supplied pre-assembled.

Inside the package are supplied thepaper instructions.
Also available and downloadable are theInstructions in PDF format, download available here
These versions are constantly updated based on feedback from buyers.
MAIN ASSEMBLY PHASES OF EASY CLEAR

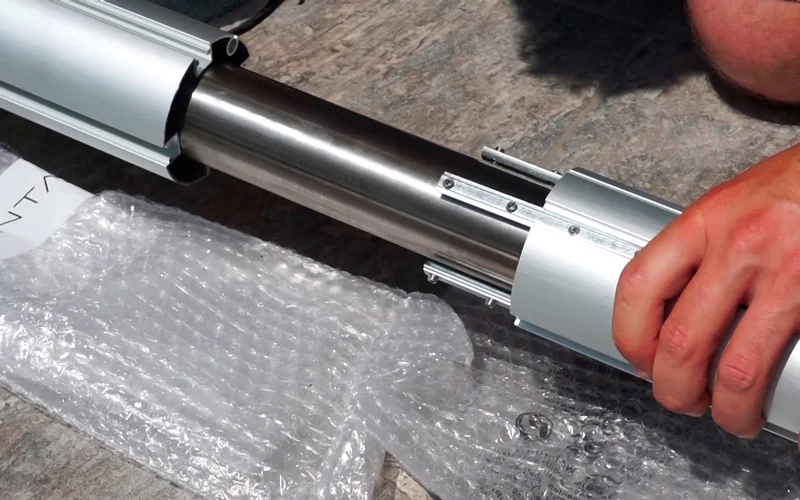

1 - ASSEMBLING THE ROLLER
It is delivered disassembled so that the roller and each of its components can be easily transported even to the highest floors.

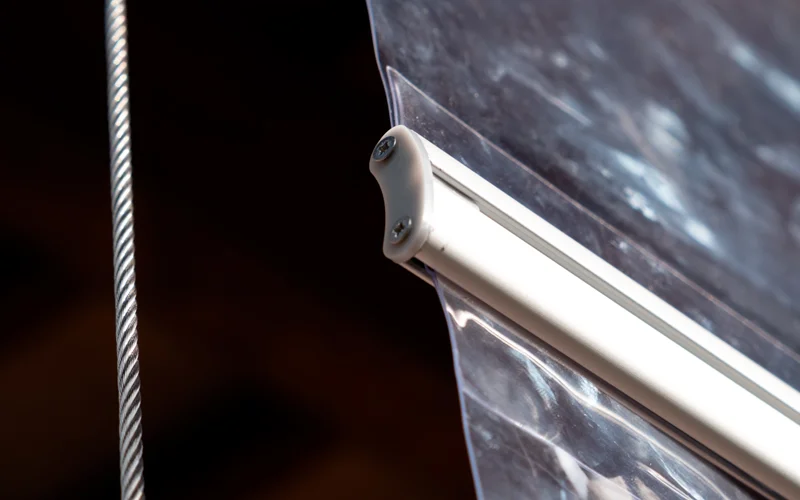

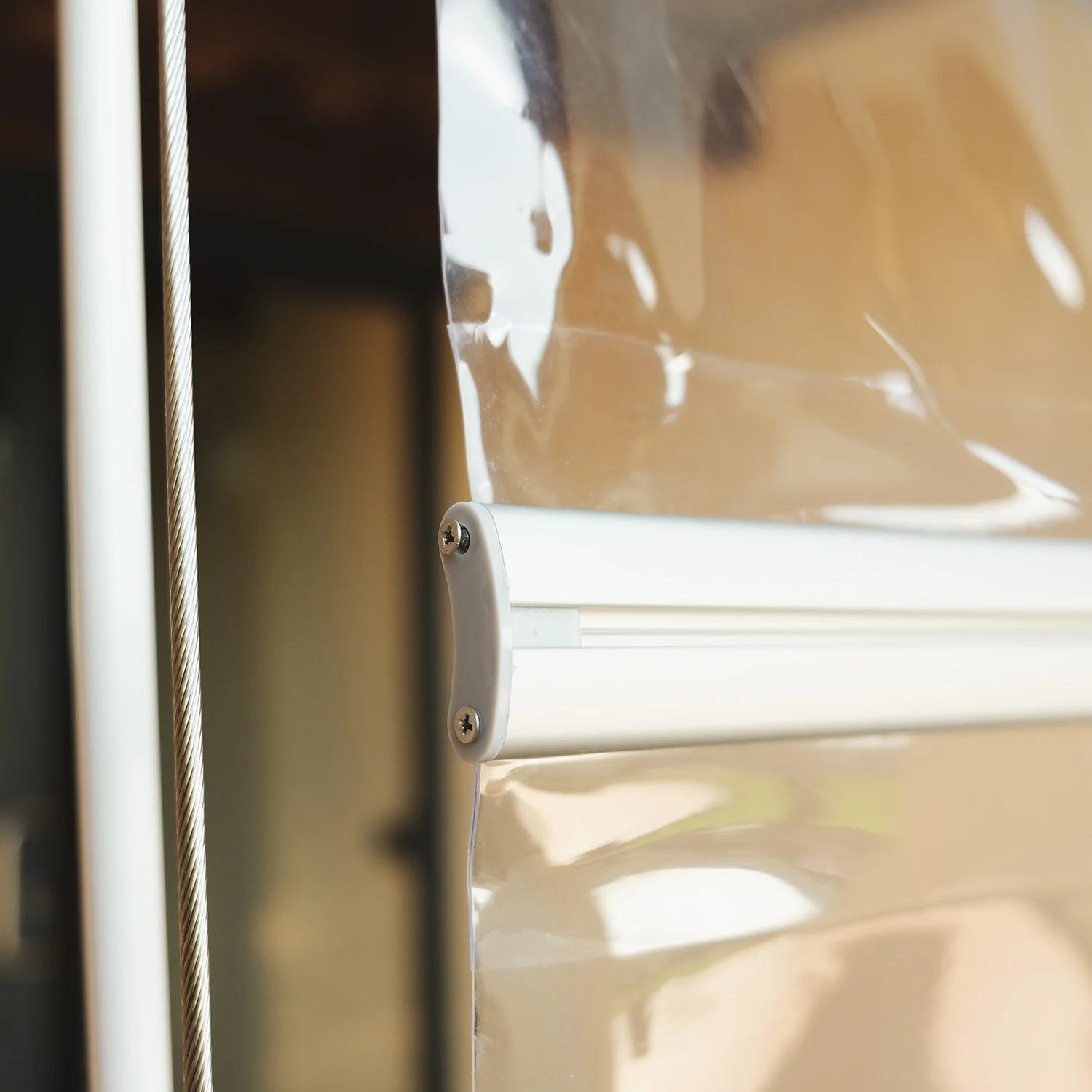

2 -ASSEMBLY OF REINFORCEMENT PROFILES (BARS)
Assemble the stabilizing profiles using the appropriate kits. The stabilizing profiles are supplied only in case of fabric with a height greater than 110 cm.

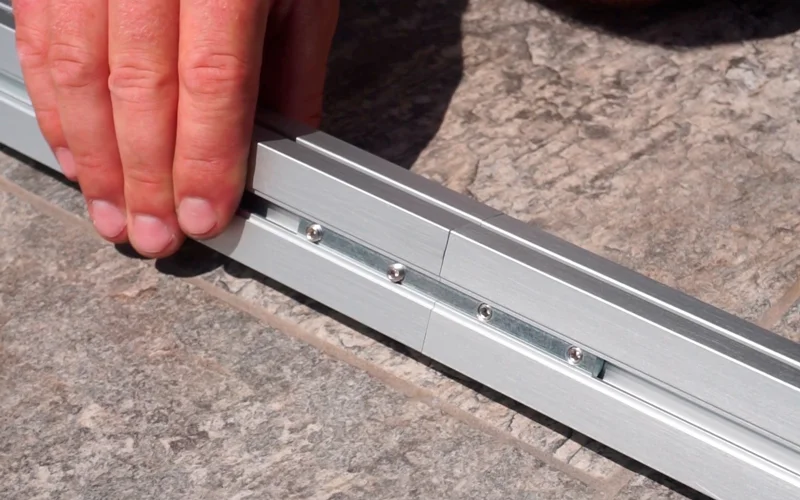

3 - ASSEMBLY OF THE END-PROFILE
As with the roller, the weight bar must also be assembled using the included T-nuts.

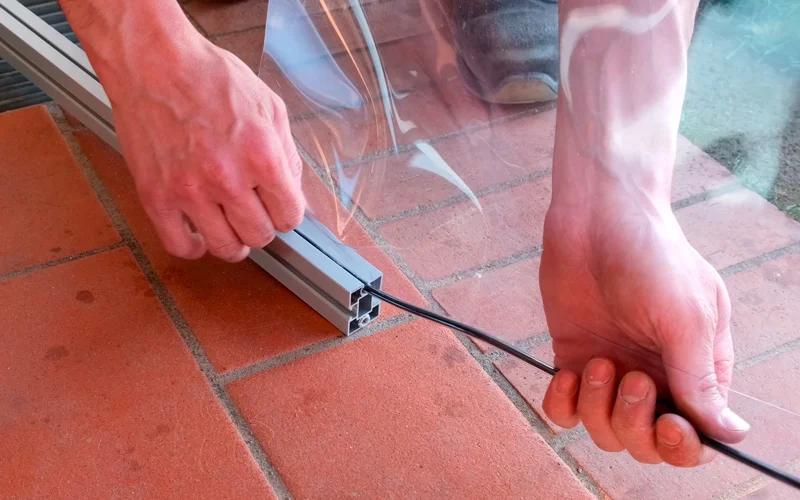

4 -FABRIC INSERTION
Insert the fabric in the groove and roll it up on the roller

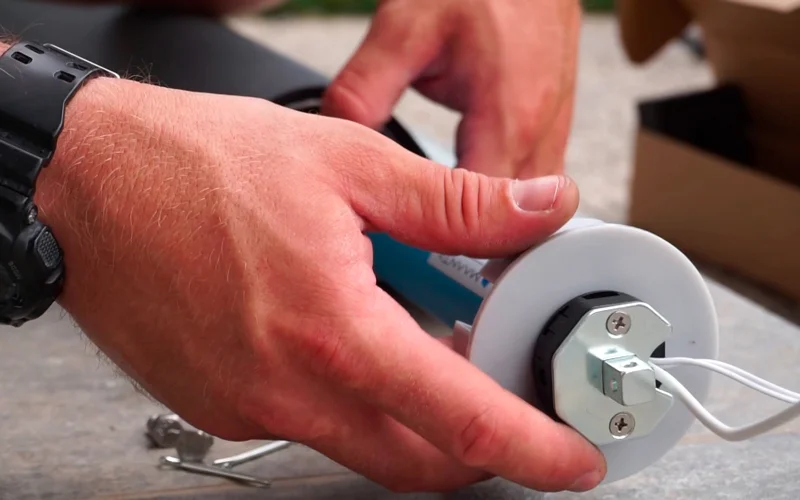

5 - INSERTING THE MOTOR (OPTIONAL)
Insert the motor (optional) into the winder roller, fix it using the supplied kit.

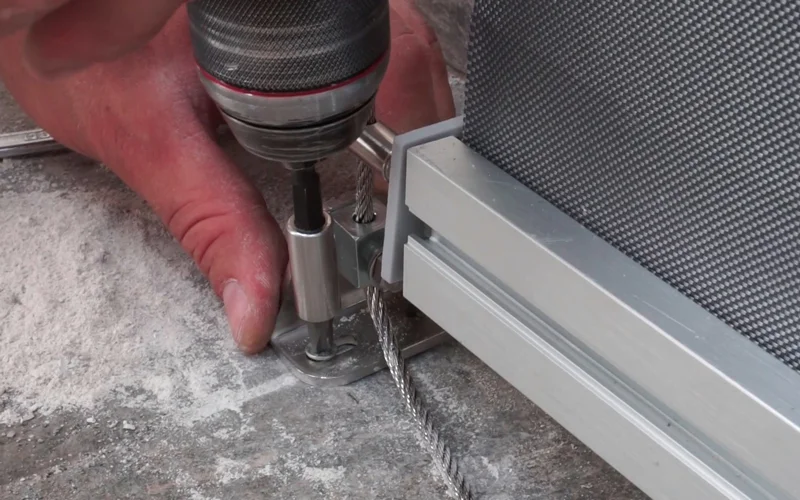

6 -CEILING AND GROUND PLATE FIXING
Fix the roller to the ceiling or wall according to the type of installation, once the upper part is fixed, lower the fabric and bring it perpendicular to fix the plates to the ground.

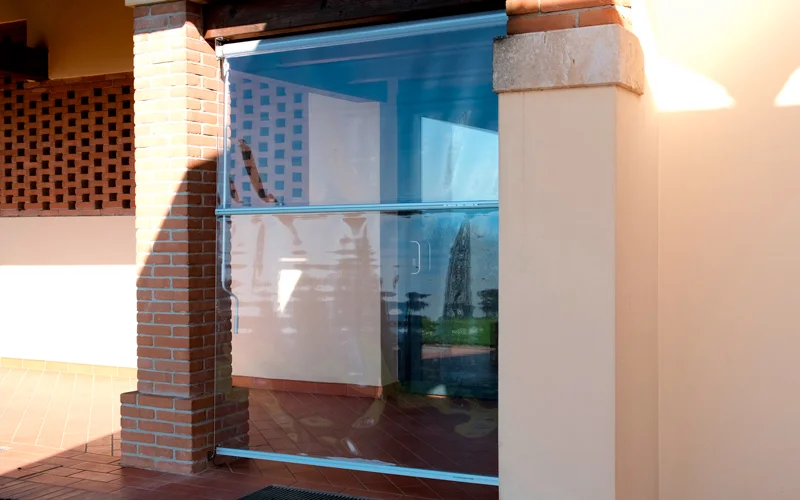

7 - TESTING AND INSPECTION
Test the sliding fluidity of the terminal in the lanyard, during the ascent and descent phases.

FAQ

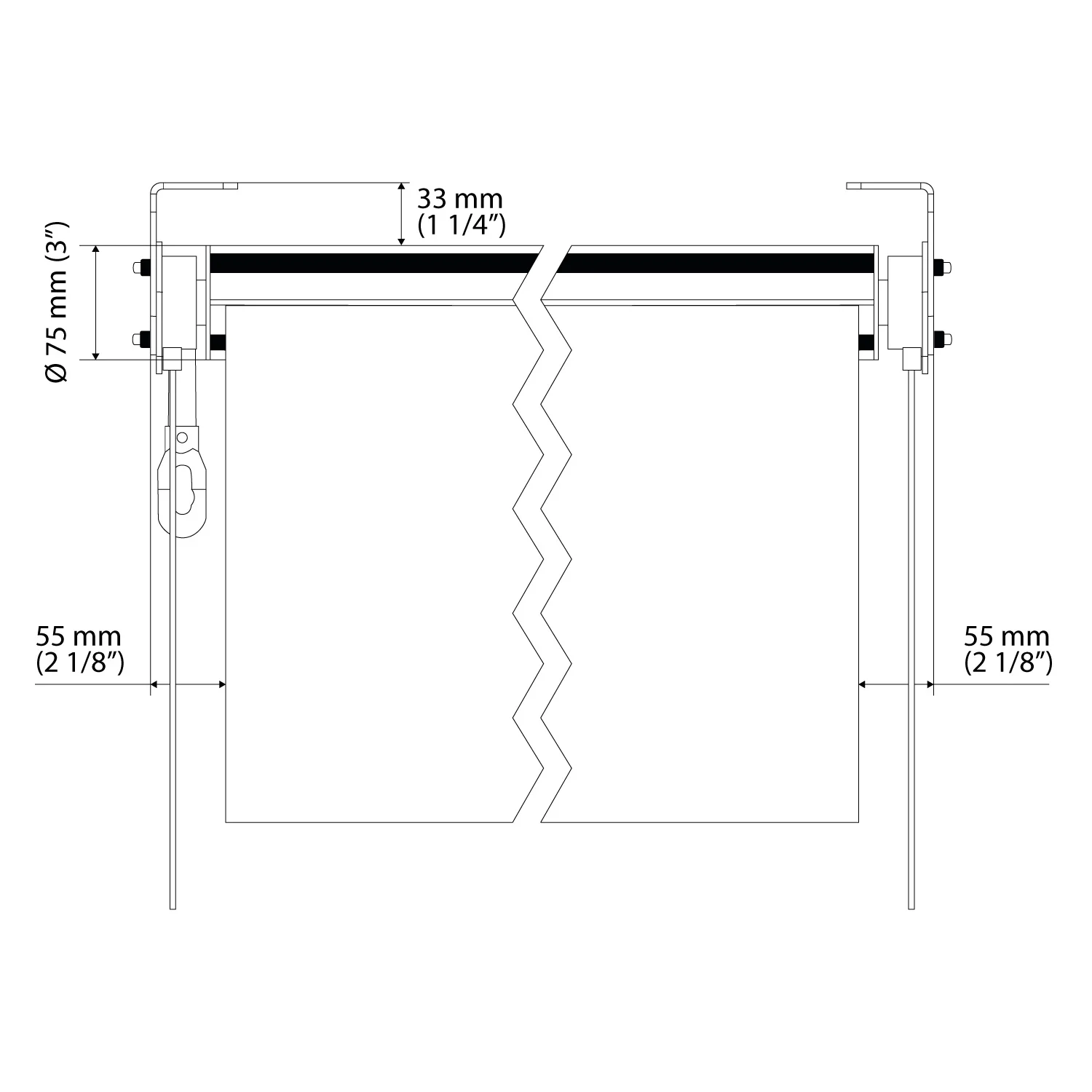

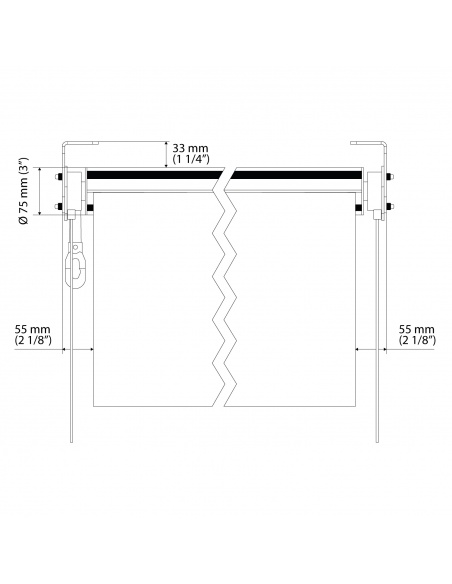

How to measure vertical roller blinds?

All measurements refer to the complete awning with roller and fixing plates.

The fabric/PVC film is slightly narrower.

Here are the distances from the outside of the plate to the fabric for the various products (the distances are symmetrical on each side).

Easy Clear and Easy Roll without guide wires:
The fabric is overall 92mm (46+46mm) narrower than the complete structure.

Reef Roll with guide wires:
The canvas is 98mm (49+49mm) narrower overall than the complete structure.

The dimensions of the fixing plates are identical for all Maanta vertical blind models.
