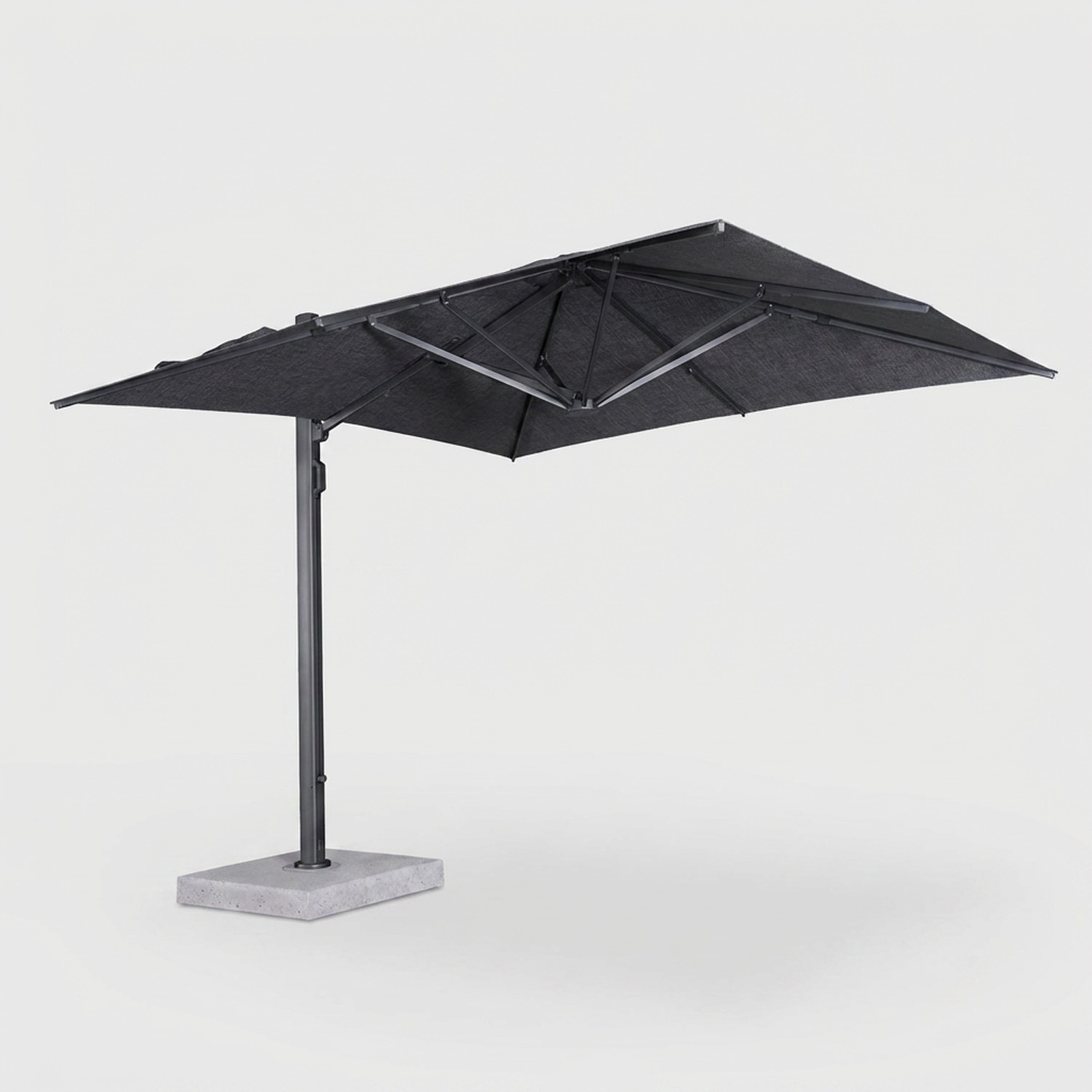

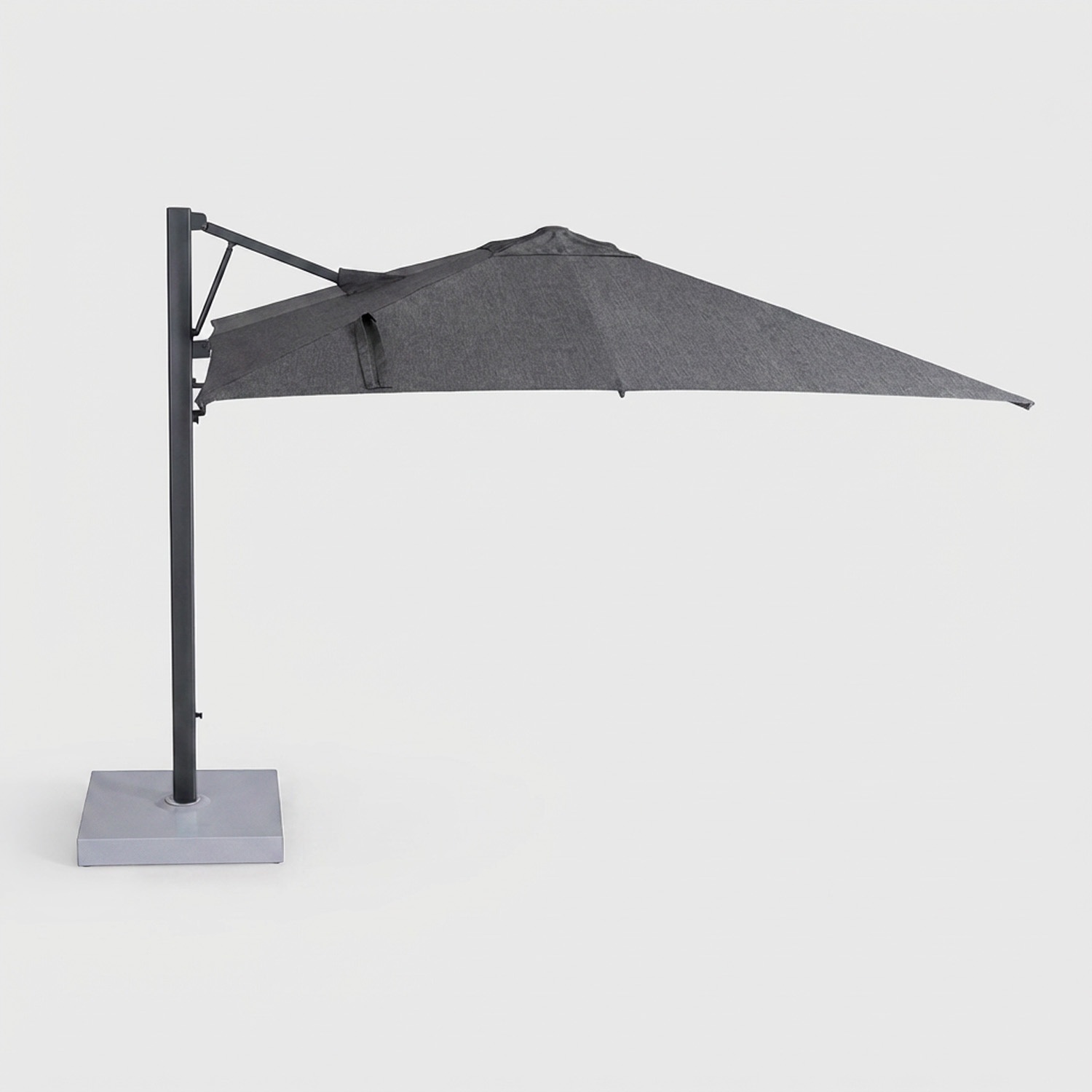

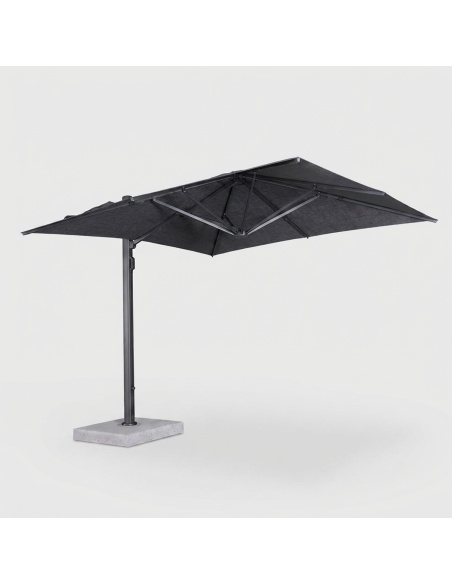

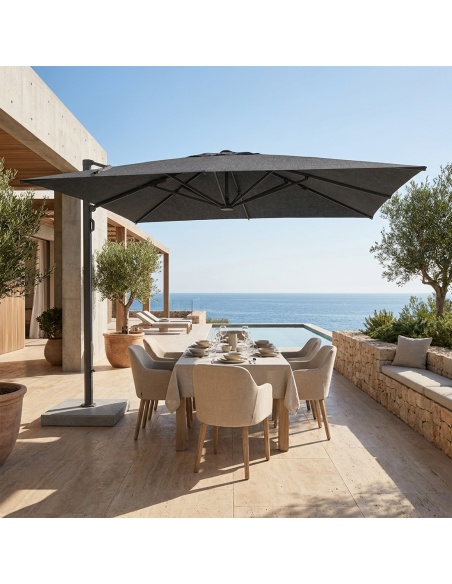

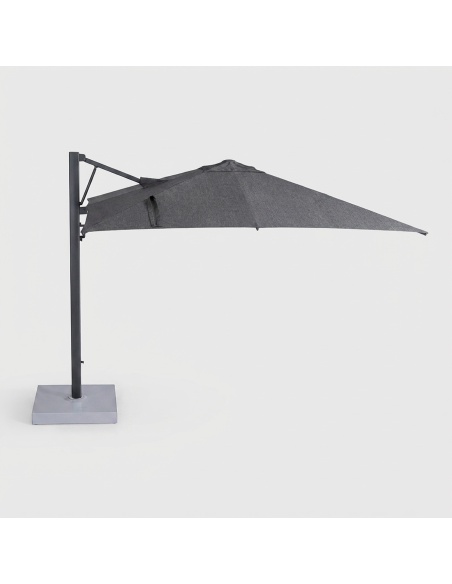

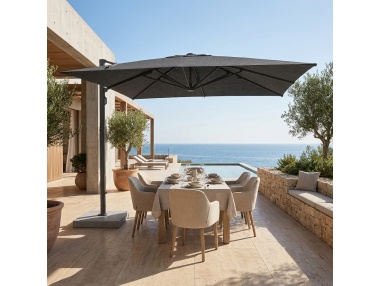

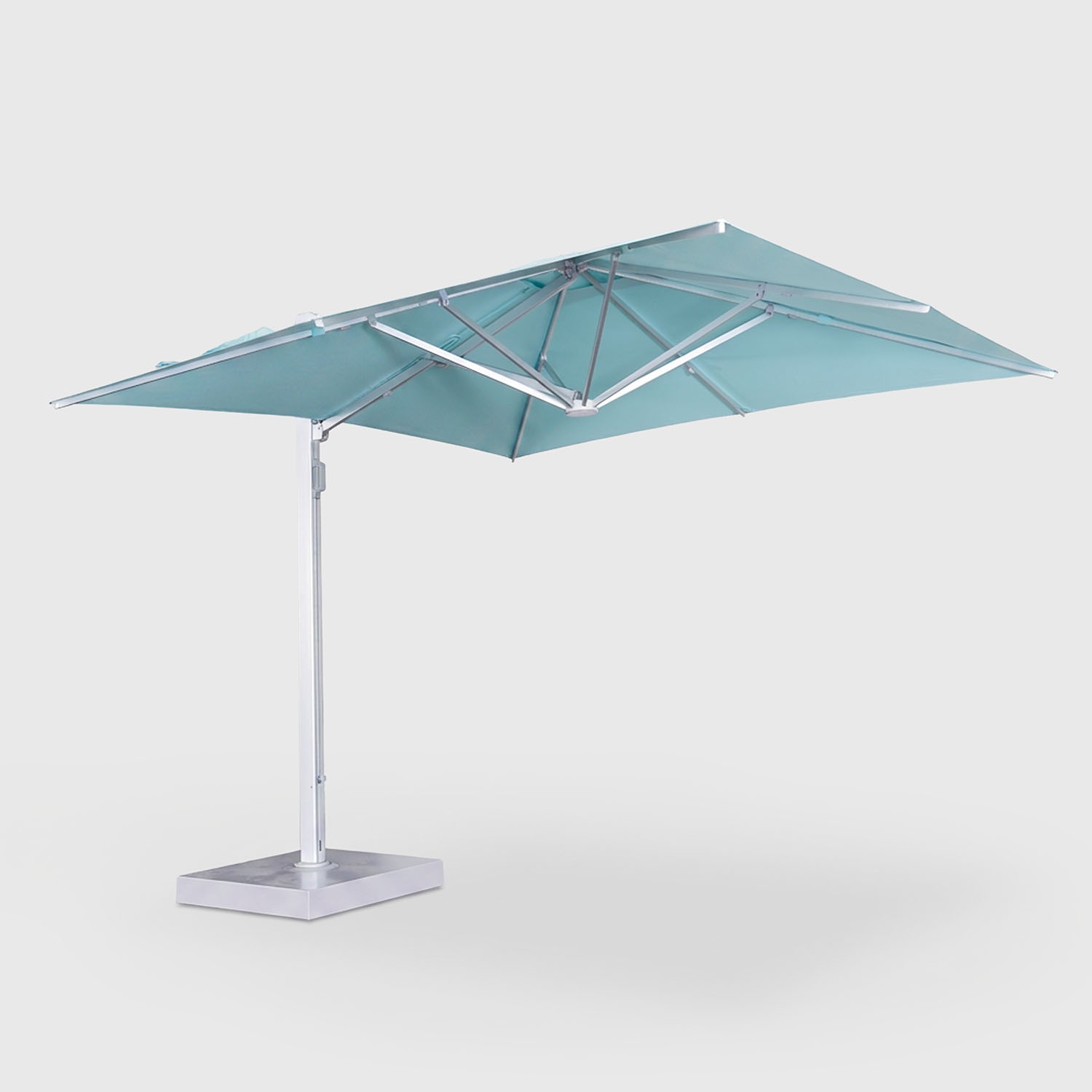

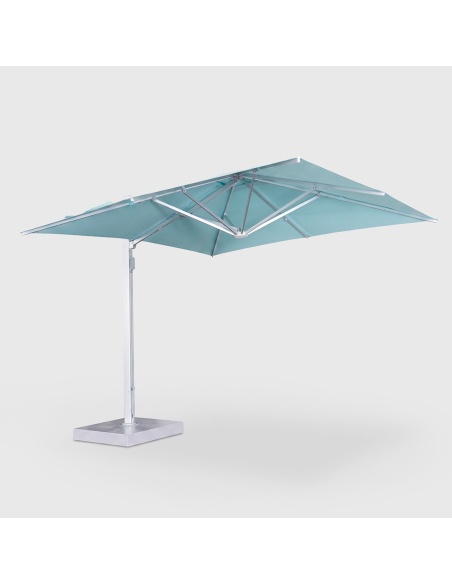

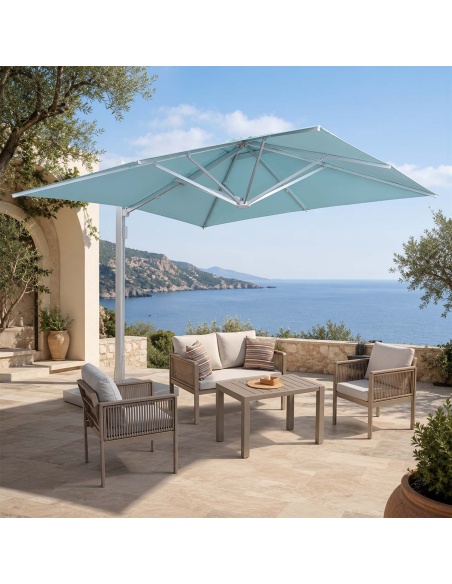

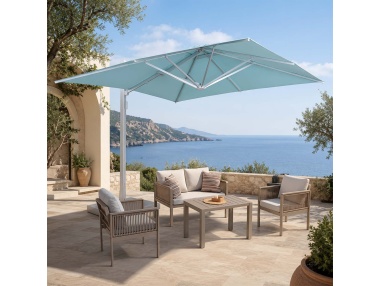

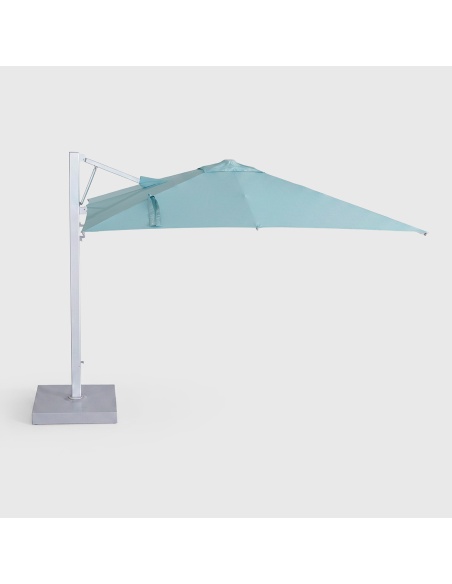

Cygnus opens nine square metres of shade with no centre pole. One light touch and the shade is already above you, for a terrace lunch that stretches past four, for a full afternoon by the pool. The sun moves, you turn the lever: everything underneath stays right where it is.
Choose colour and size
Free design service
After-Sales Service
Delivery 24 / 48 hours

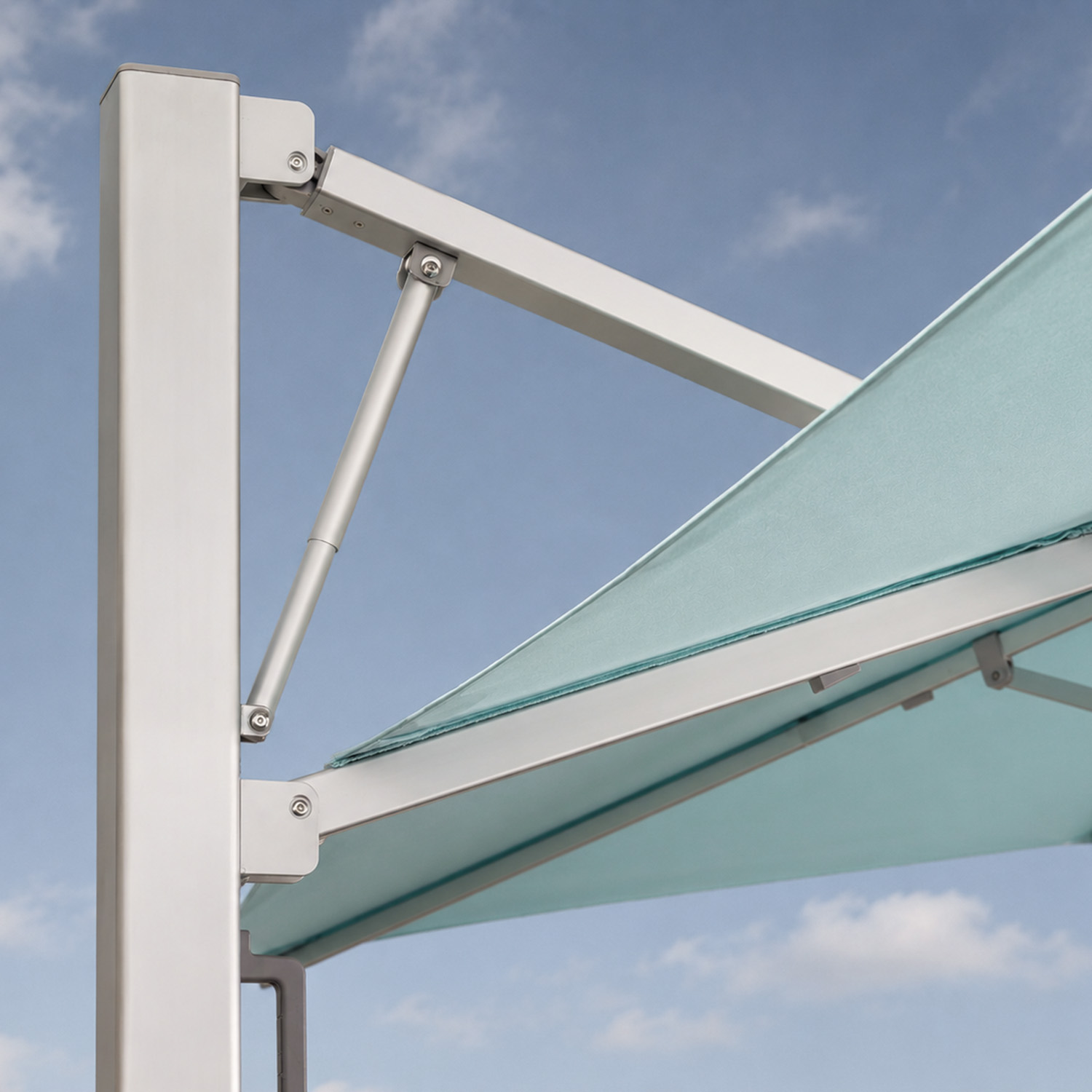

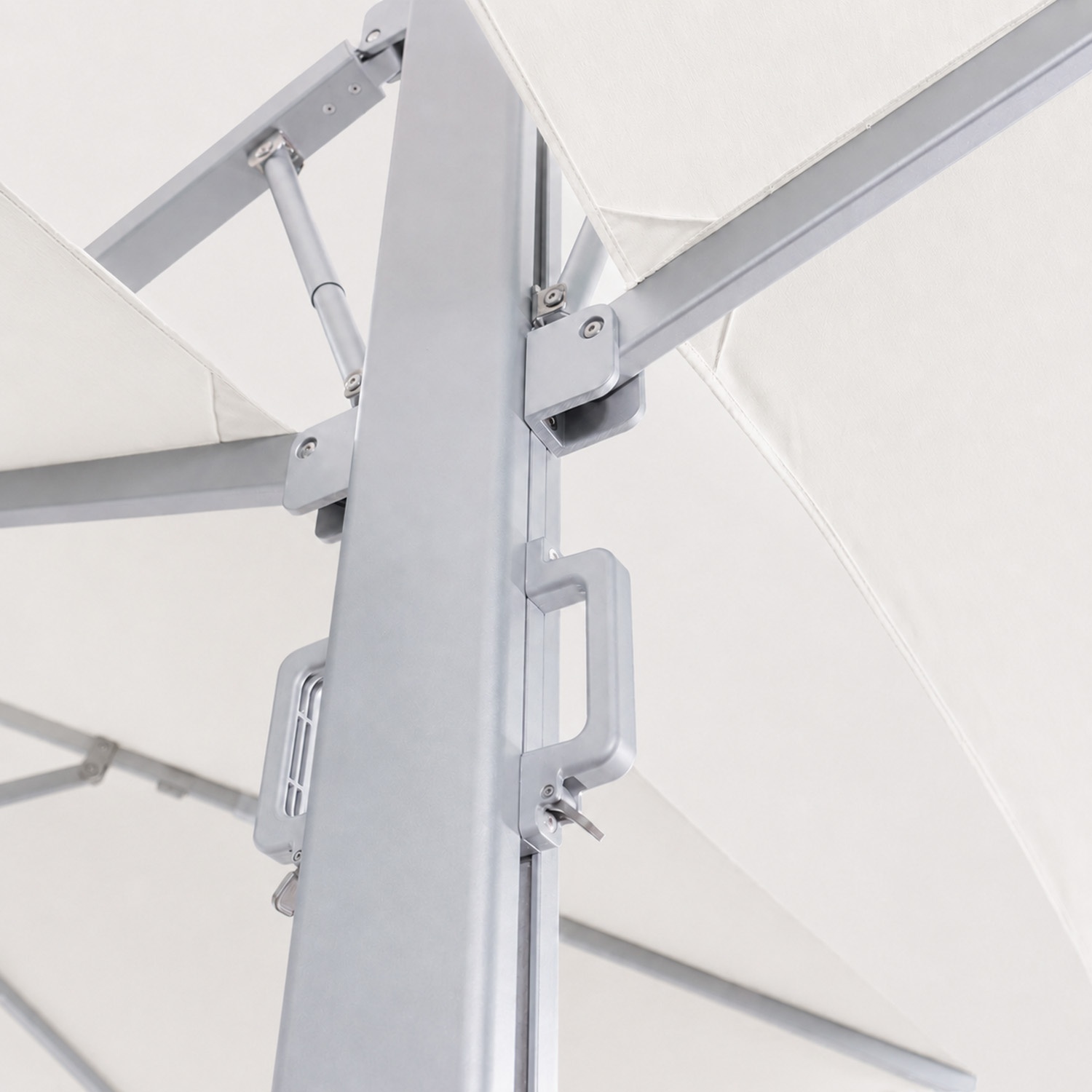

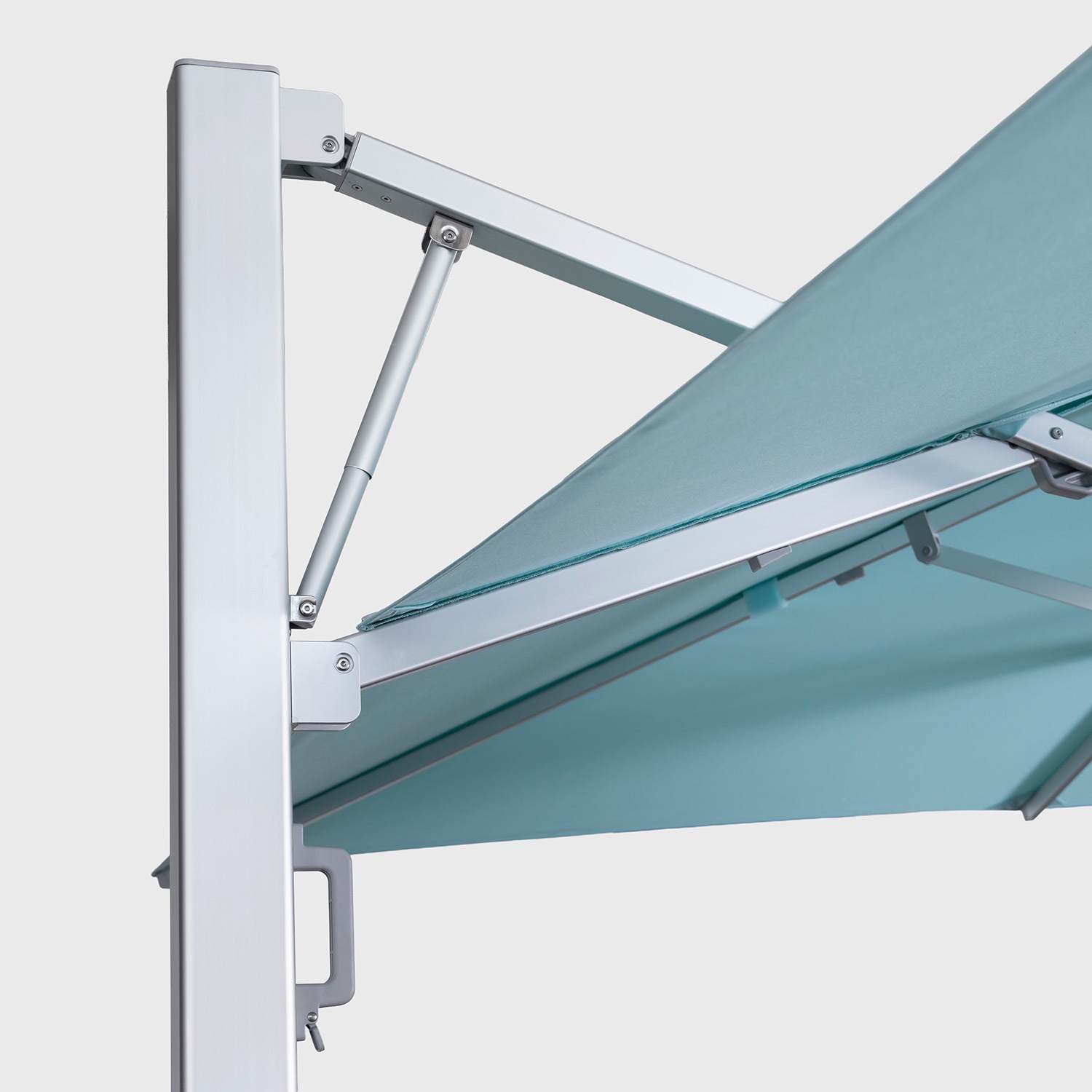

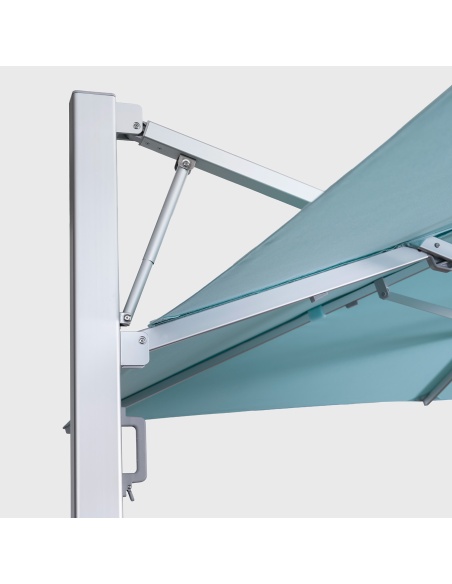

The gas piston that moves the Cygnus arm was designed to lift weight with a controlled motion: zero effort on your arms, uniform resistance from start to finish.
From a seated position, you open it effortlessly and close it in seconds when the weather changes. The piston handles both movements.
The gas piston that moves the Cygnus arm was designed to lift weight with a controlled motion: zero effort on your arms, uniform resistance from start to finish.
From a seated position, you open it effortlessly and close it in seconds when the weather changes. The piston handles both movements.
Each finish has its own dedicated fabric colours. A palette designed by the Maanta Style Centre, our in-house design studio.

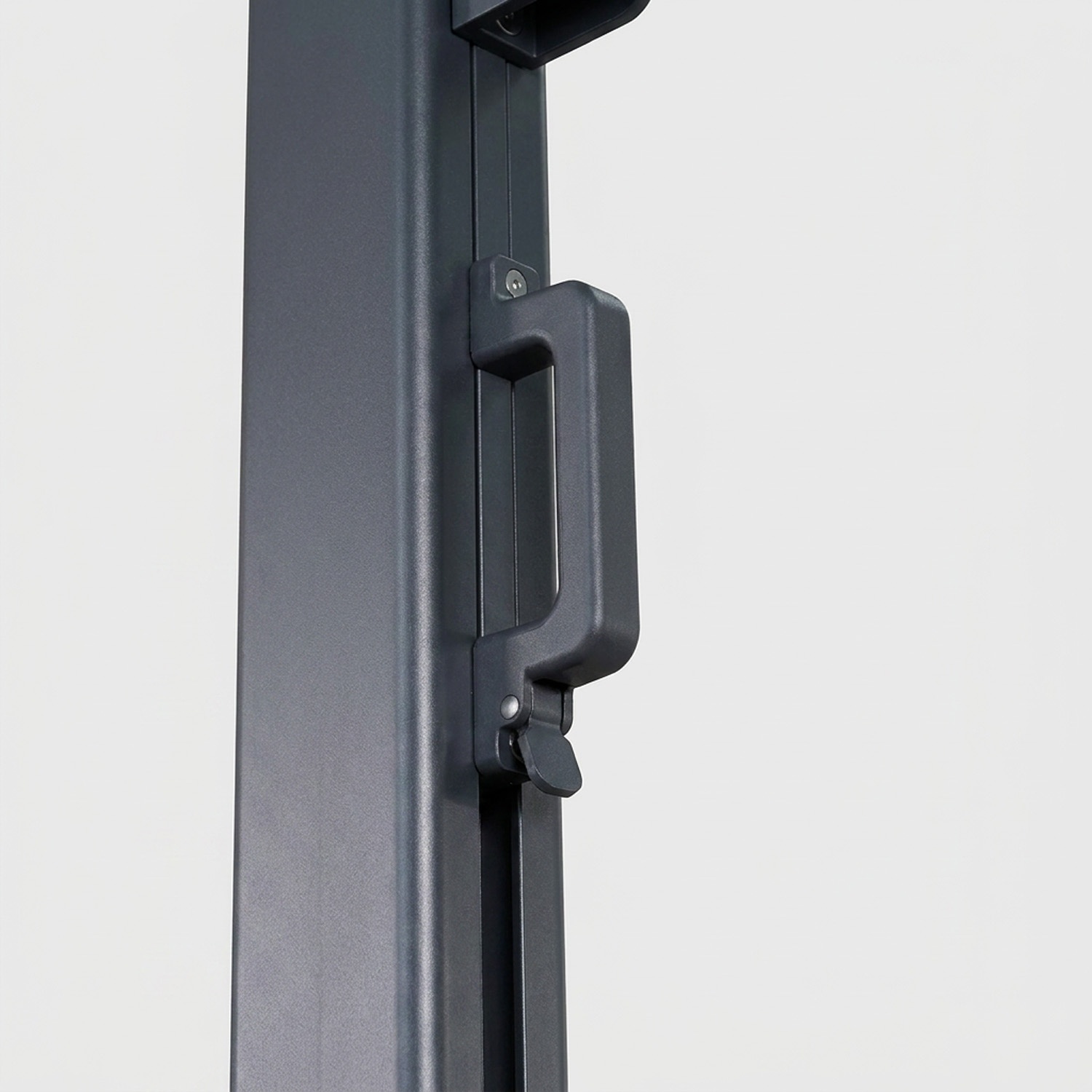

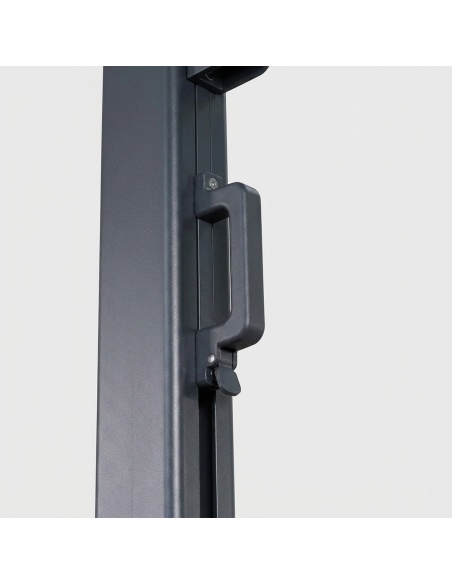

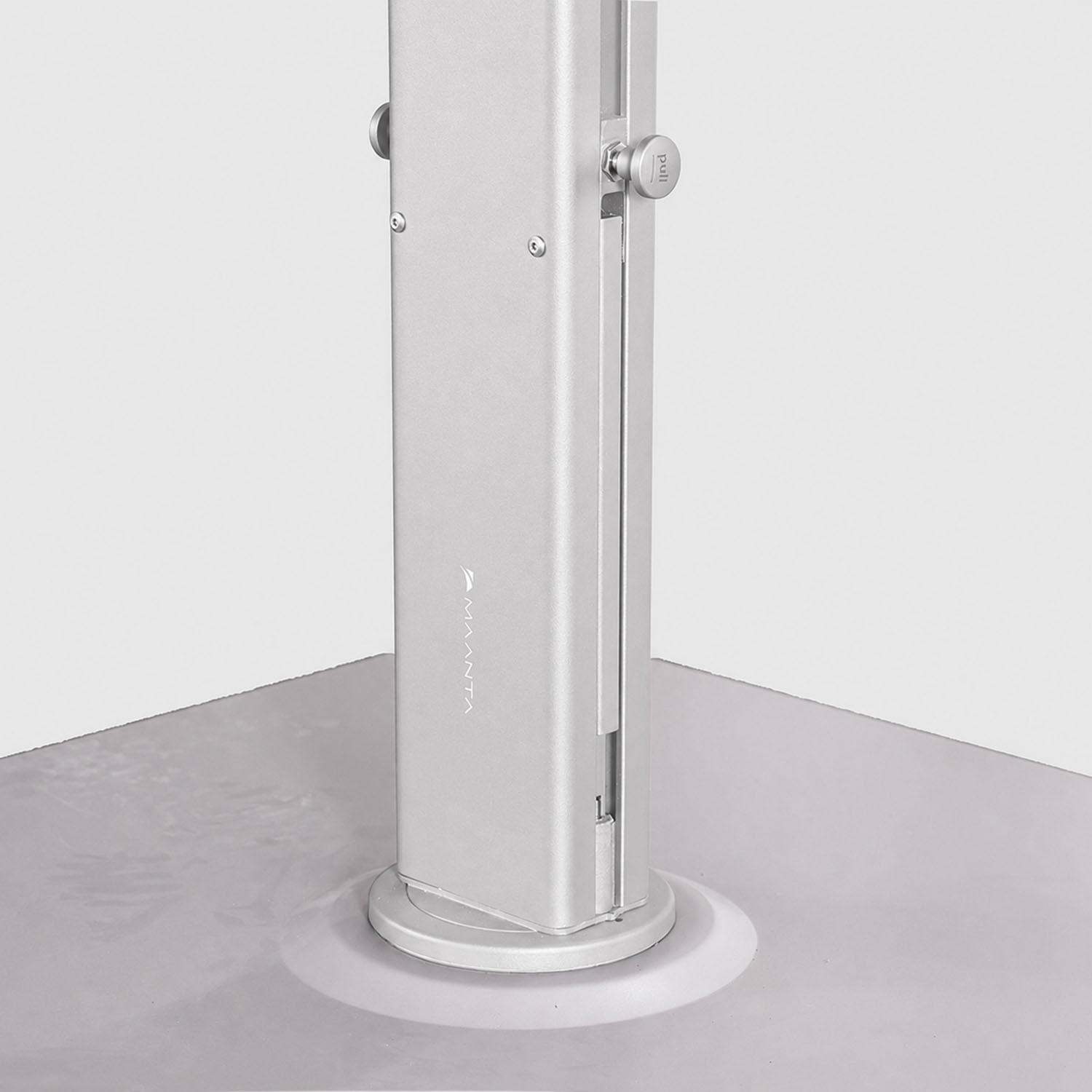

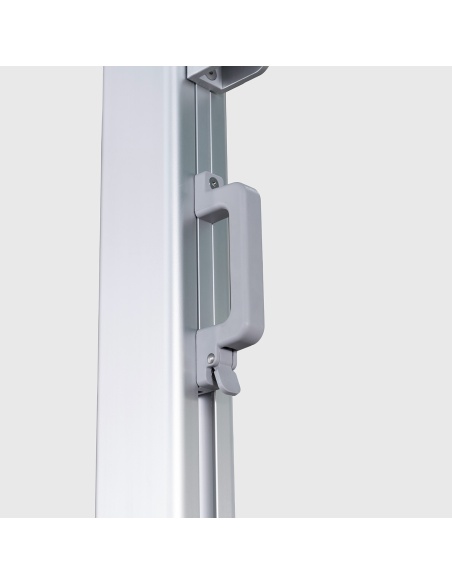

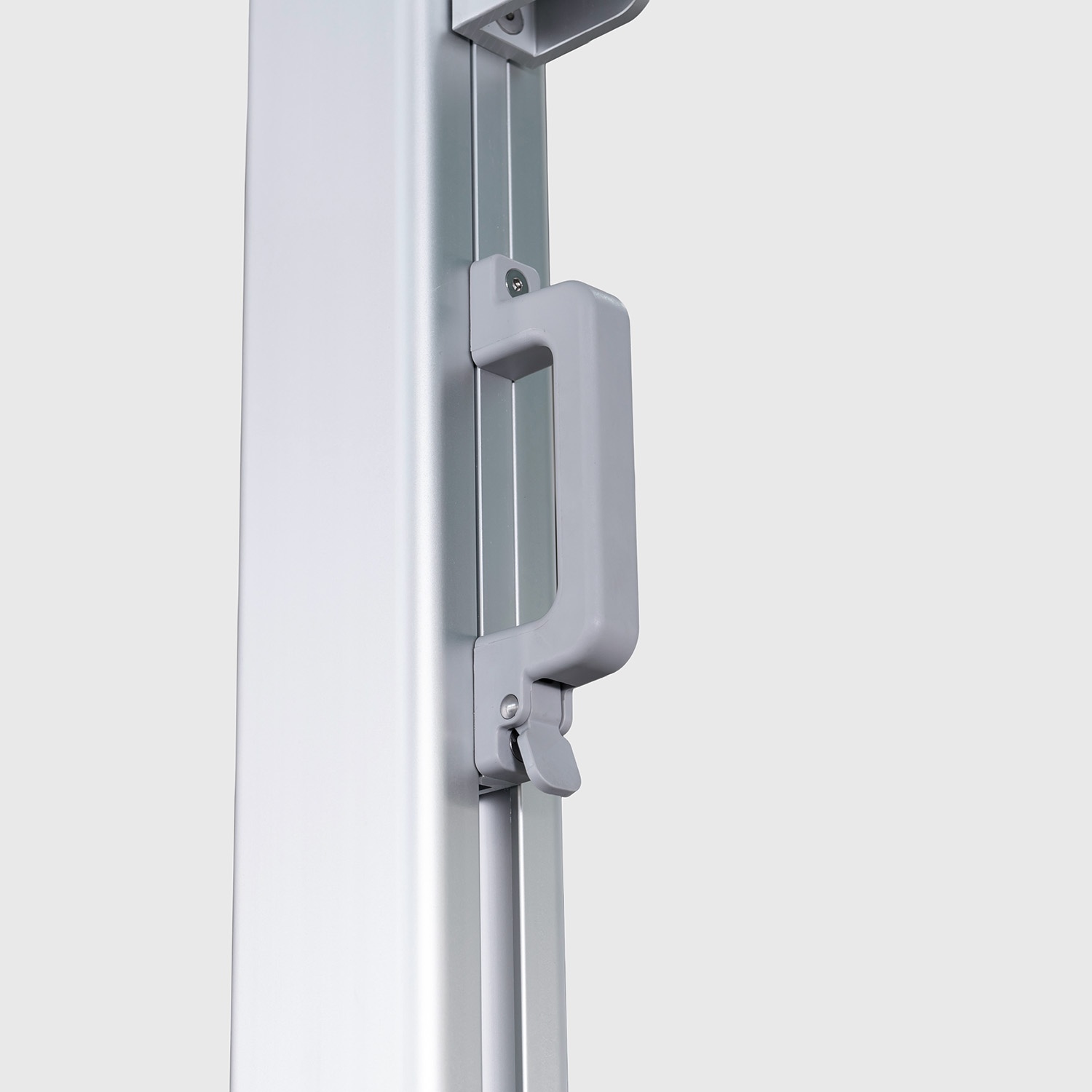

The lever at the base unlocks and rotates the pole to any position. The shade follows the sun, the table stays where it is.
260 g/m² acrylic fabric, solution-dyed. UPF 50+, water-repellent, certified colour fastness of 1,500 hours.
75×100 mm pole, 16×28 mm ribs, top airvent. Withstands up to 30 km/h in single configuration.

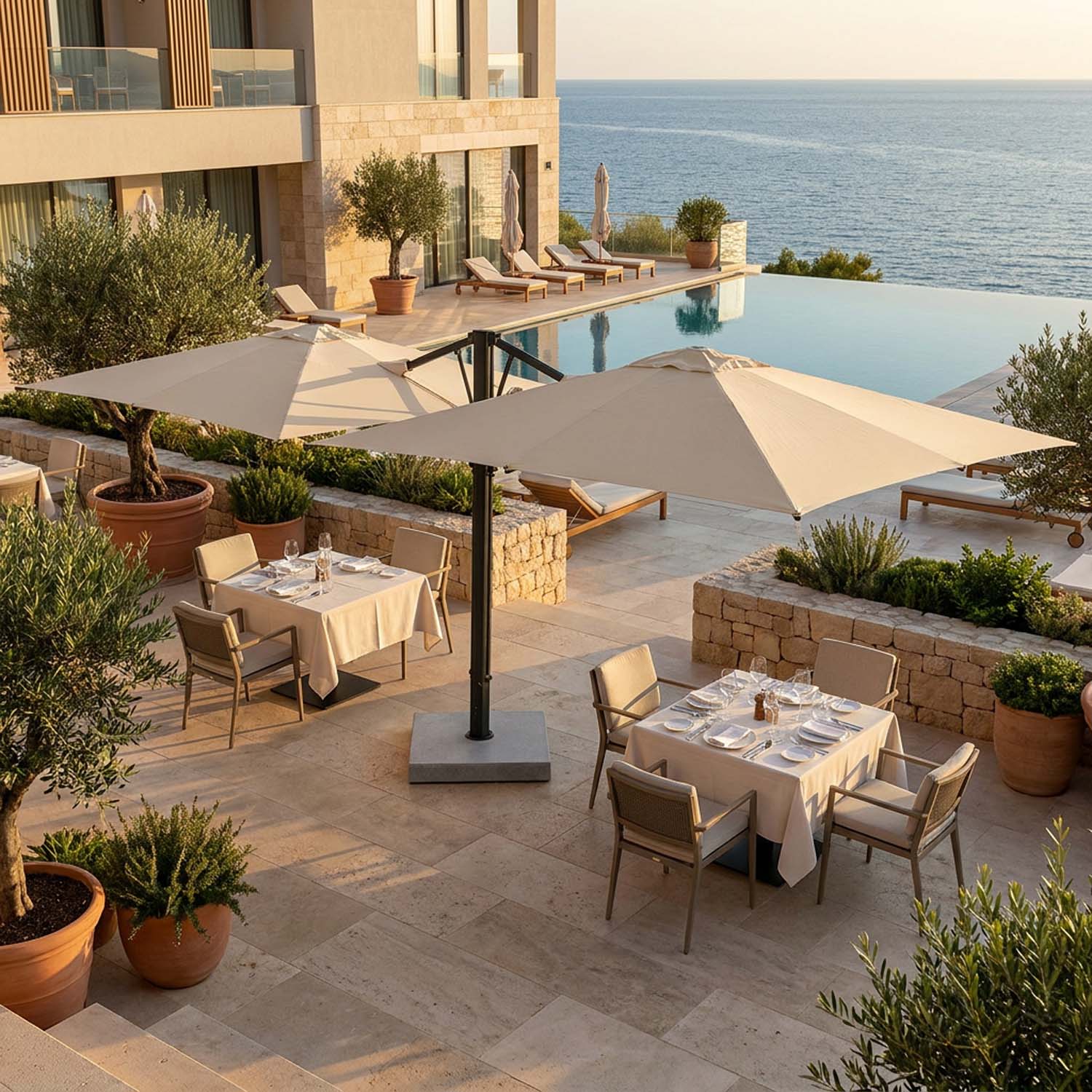

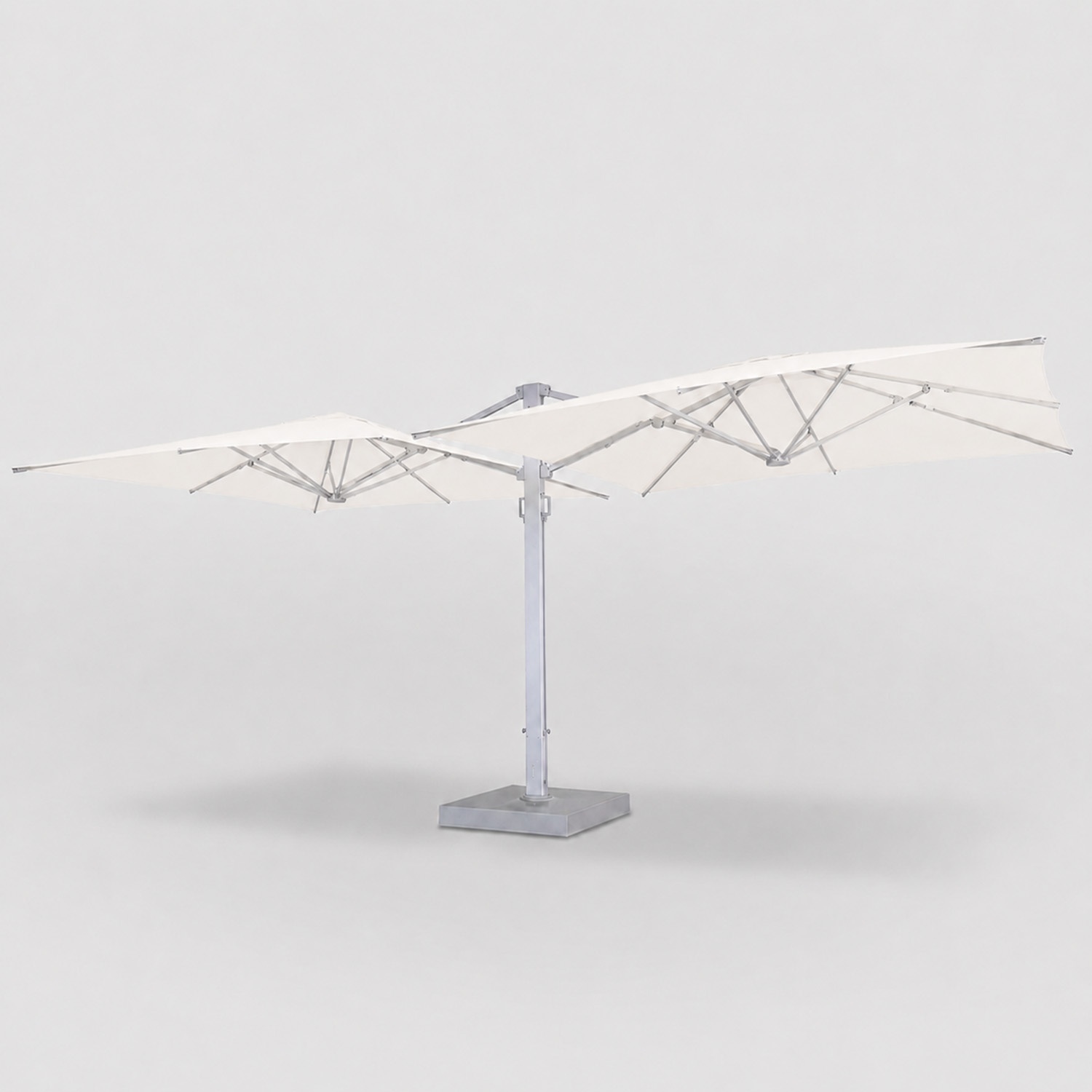

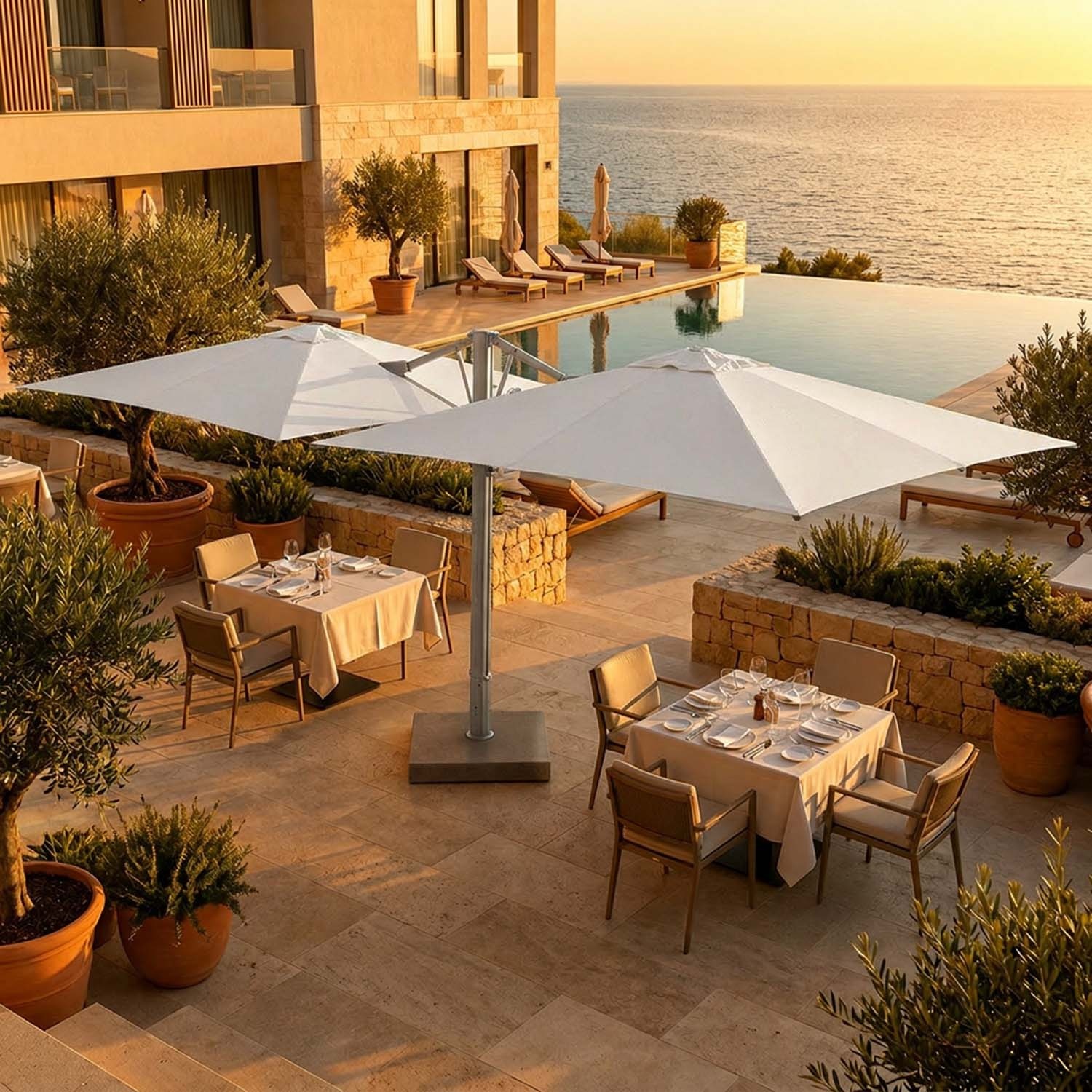

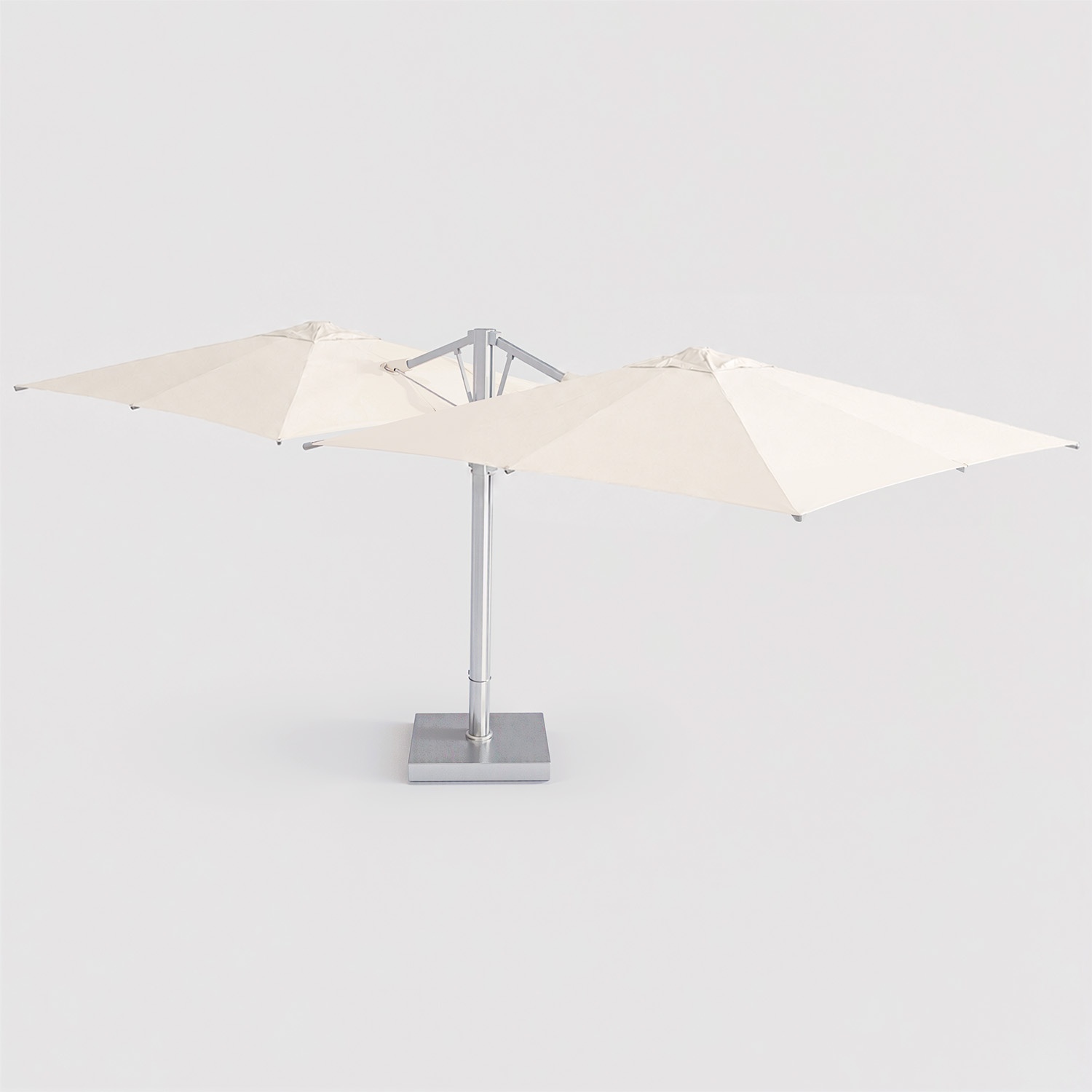

The only Maanta cantilever that grows: from a single 3×3 m to a 3×6 m Duo (two canopies) up to a 6×6 m Qadro (four canopies).
Manages the weight of the arm with constant pressure: no effort spikes, no jolts on the seams.
Comparison table
Auriga |
Cygnus |
Cygnus Duo |
Cygnus Qadro |
|
Type |
Side arm |
Side arm |
Side arm, double (2 arms on one pole) |
Side arm, quadruple (4 arms in a cross formation) |
Mechanism |
Heliflow® (tilt + flipping) + 360° rotation with foot pedal |
Gas piston + 360° pole rotation with lever |
Double gas piston + 360° pole rotation with lever |
Four gas pistons + 360° pole rotation with lever |
Available sizes |
Square: 3×3 · 3.5×3.5 m |
Square: 3×3 m |
Rectangular: 3×6 m |
Square: 6×6 m |
Slats |
8 aluminium + LED |
8 aluminium |
||
Fabric |
Acrishade 260 g/m² |
Acrishade 260 g/m² |
Acrishade 260 g/m² |
Acrishade 260 g/m² |
Solar lighting |
✓ integrated (LED + Magnetic Light included) |
optional |
optional |
optional |
360° rotation |
✓ with foot pedal |
✓ with lever |
✓ pole rotation (2 canopies together) |
✓ pole rotation (4 canopies together) |
Wind resistance |
30 km/h |
30 km/h |
25 km/h |
25 km/h |
Warranty |
7 + 3 years |
7 + 3 years |
7 + 3 years |
7 + 3 years |
Ideal applications |
Premium terraces, villas, resorts |
Panoramic terraces, lounges, outdoor dining areas |
Large terraces, restaurants, lounge bars |
Large hospitality venues, events, resorts, clubs |
Discover Auriga |
Discover Cygnus |
Discover Cygnus Duo |
Discover Cygnus Qadro |
Available sizes |
3×3 m (9 m² coverage) |
Opening and movement |
Gas-assisted push-open one-stop · 360° rotation via lever at the base of the pole (no tilt) |
Fabric |
Acrishade 260 gsm, UPF 50+, water-repellent |
Frame |

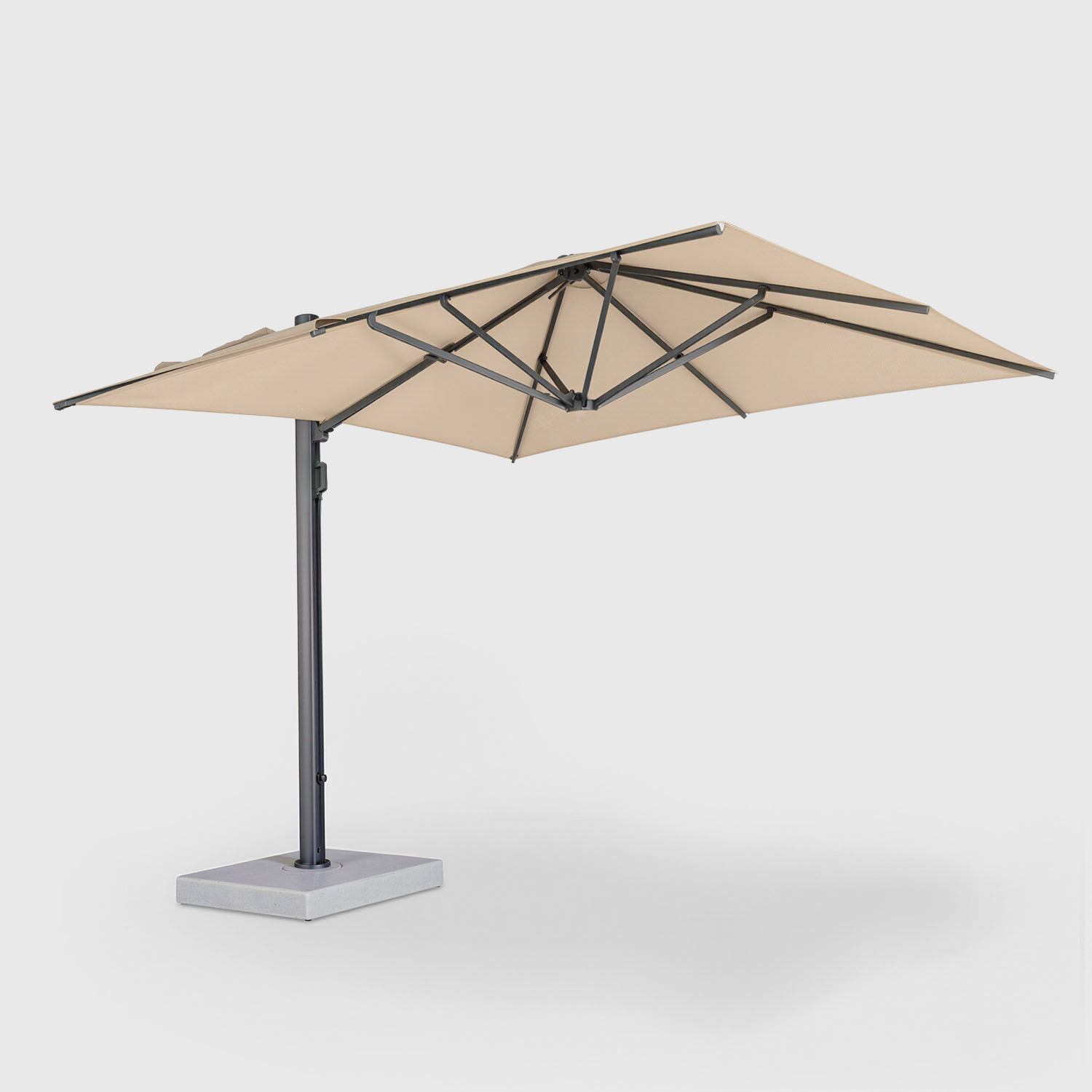

Commercial-grade aluminium · pole 75×100×2.5 mm · arm with 8 ribs 16×28×1.2 mm · arm projection: 100 cm |
Wind resistance |
Up to 30 km/h, minimum base ballast 120 kg |
Heights |
Total open: 247 cm · headroom beneath the canopy: 210 cm · closed: 50 cm |
Lighting |
Central hub fitting beneath the canopy · compatible with MGL-8138 (magnetic lamp, 2,500 mAh battery) and MGL-8109 (clip lamp, 1,600 mAh battery), both sold separately |
Net weight |
29 kg |
Frame finishes |
Anthracite · Matt Anodizing, base not included |
Warranty |
7 years frame · 3 years Acrishade canopy |
Solution-dyed acrylic,
UPF 50+, water-repellent.
Nine square metres of shade,
pole positioned outside the covered area.

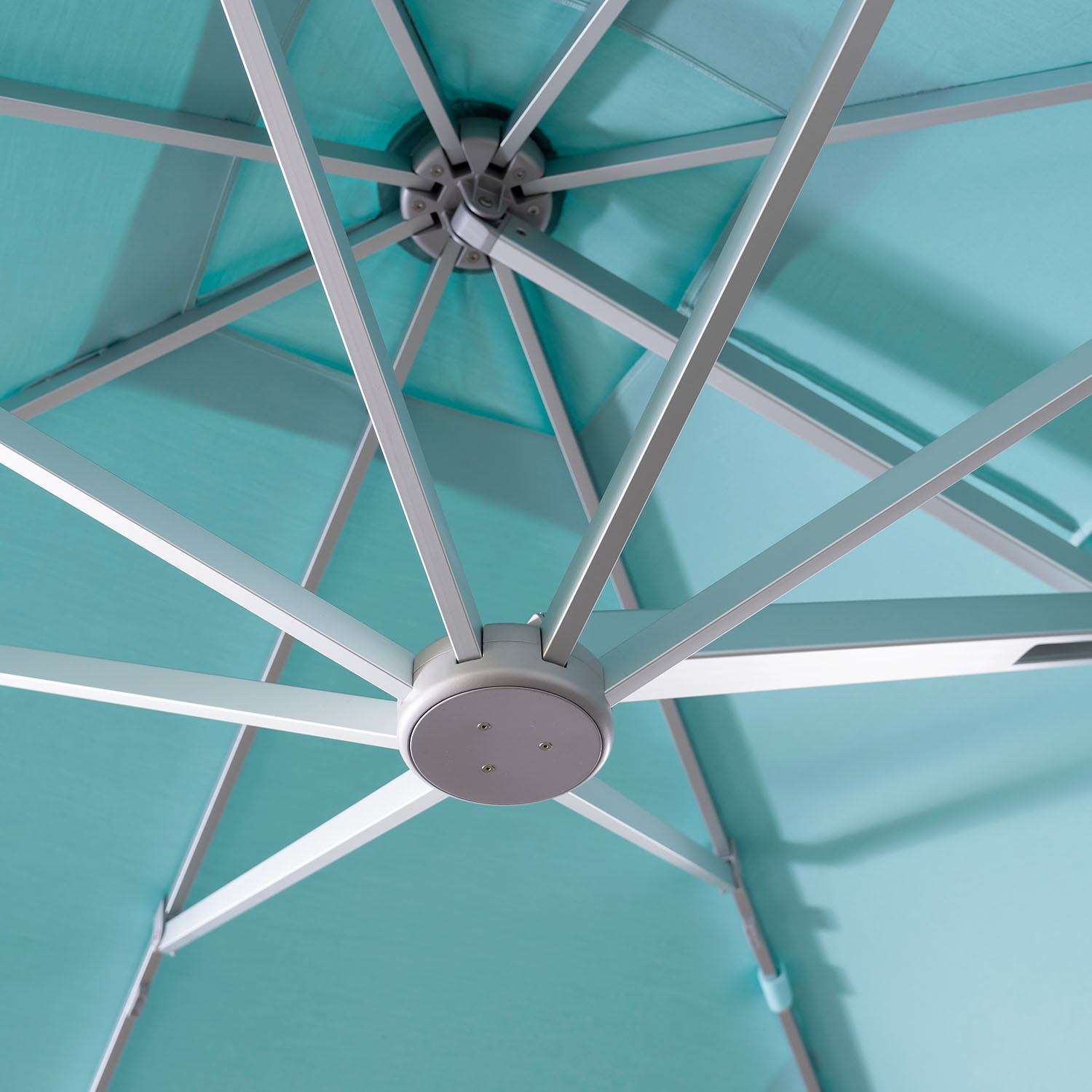

16×28 mm profile, rigid
and resistant to repeated use.
Assisted opening and closing
in seconds, with two fingers.
Releases gusts and stabilises
the canopy up to 30 km/h.
Compatible with two rechargeable
LED accessories, sold separately.
Directs shade in any
direction from the post base.
Structure |
|
Available sizes |
3×3 m (9 m² coverage) |
Shape |
Square |
Opening |
Push-open one-stop, gas piston assisted |
Movement |
360° rotation via lever at the base of the pole (no tilt) |
Fabric |
Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, single airvent without flap, perimeter velcro closure, spray test AATCC 22-2017 = 90, light resistance 1,500 h grade 4 (AATCC TM 16.3-2014) |
Frame material |
Commercial-grade aluminium |
Pole |
75 × 100 × 2.5 mm |
Ribs |
16 × 28 × 1.2 mm, 8 ribs |
Frame finishes |
Anthracite · Matt Anodizing |
Available canopy colours |
Graphite · Vellum · Glacier · White · Terracotta · Wheat |
Coverage width |
300 × 300 cm |
Height |
Total open: 247 cm Closed: 50 cm Pole: 252 cm |
Arm projection from pole |
100 cm |
Usable headroom under the canopy |
210 cm |
Wind resistance |
Up to 30 km/h, minimum recommended base ballast 120 kg |

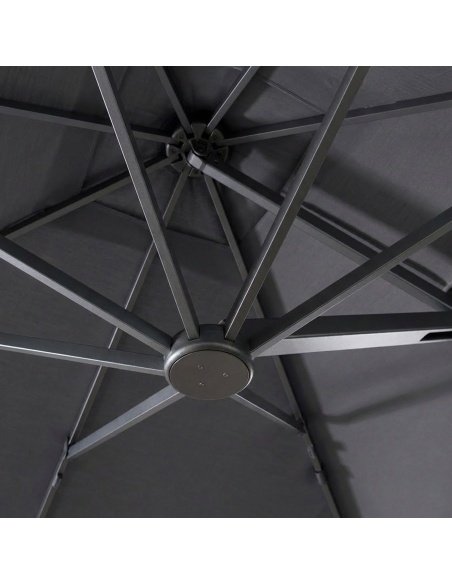

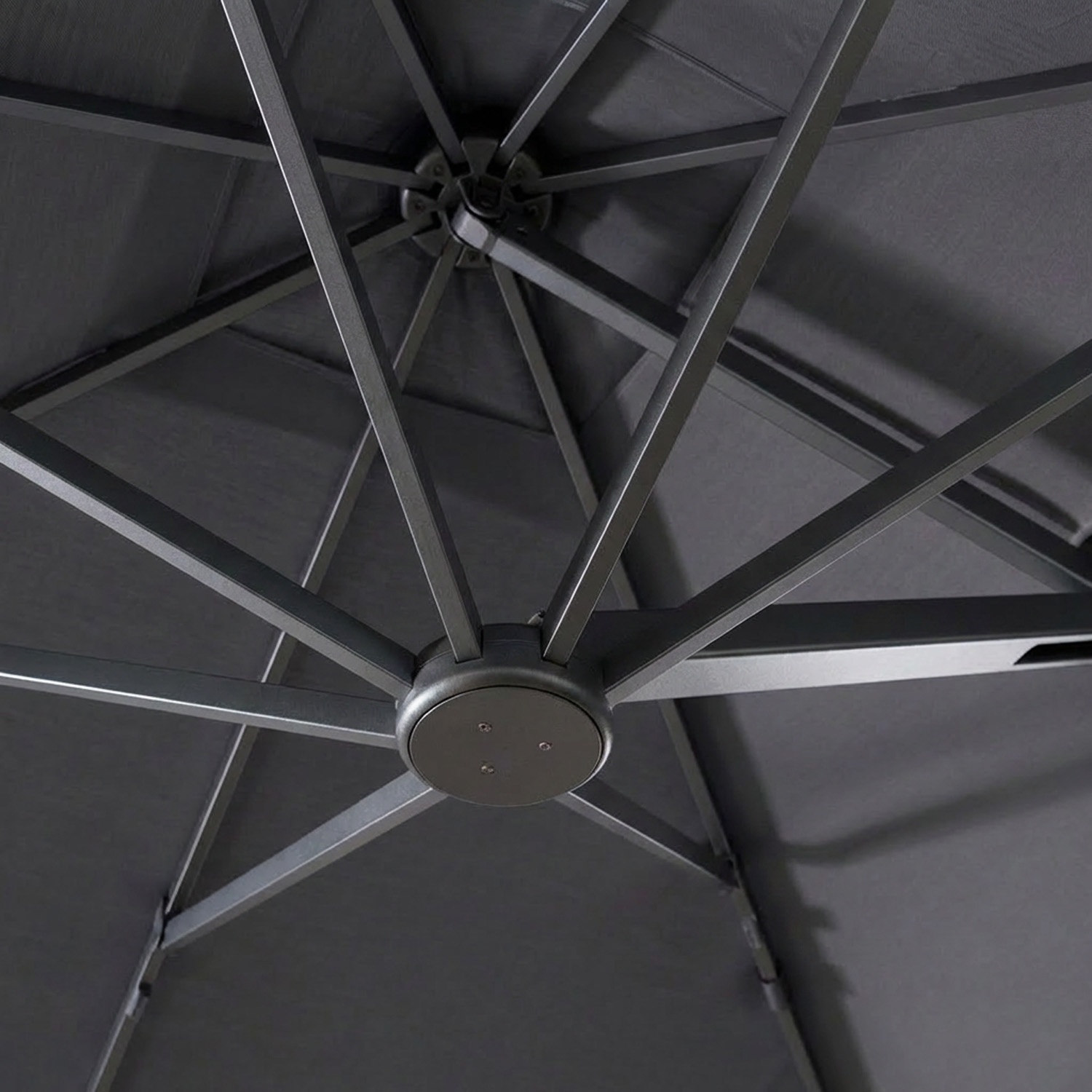

Lighting provision |

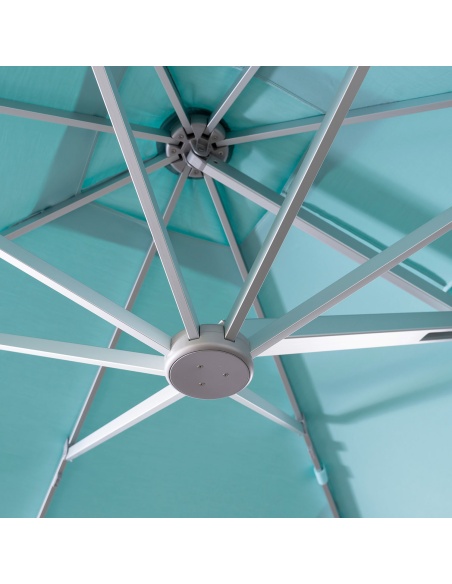

Central hub under the canopy, compatible with two dedicated rechargeable LED accessories |
Weight |
Net: 29 kg Gross: 34 kg |
Packaging and warranty |
|
Package dimensions |
269 × 22 × 48 cm · 1 piece per package · 0.28 m³ |
Package contents |
Complete parasol only: canopy, frame, and mounting accessories. |
Compatible bases (not included) |

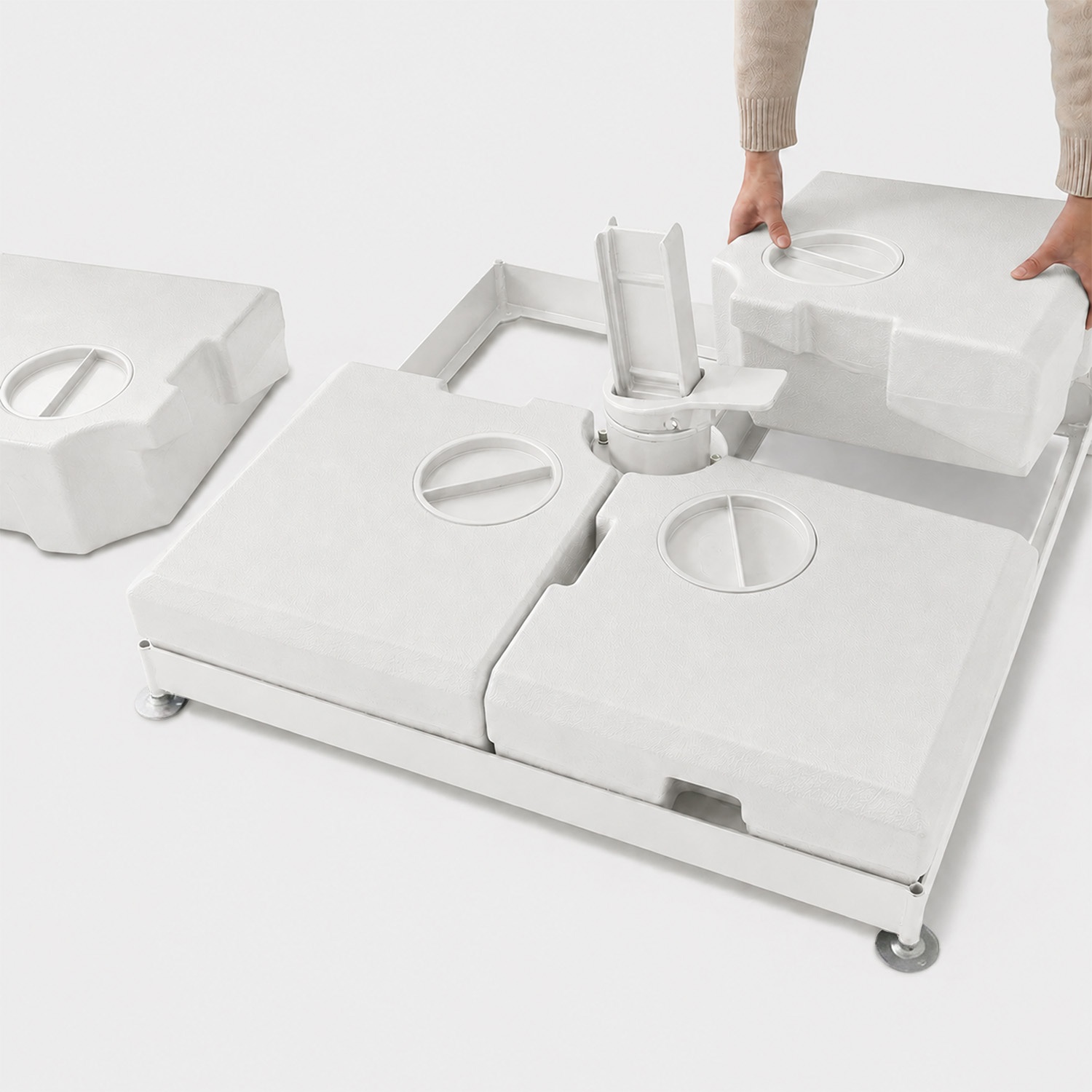

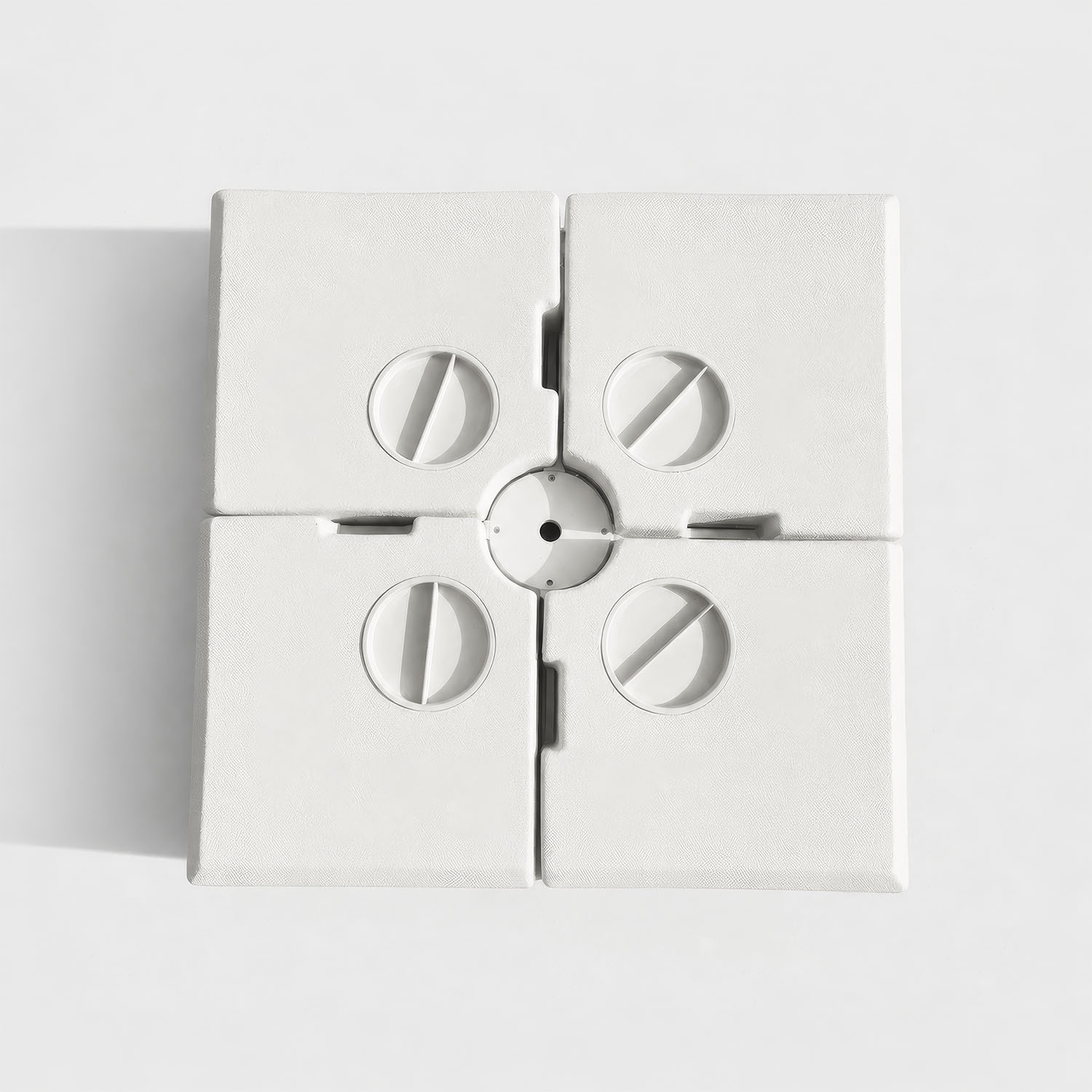

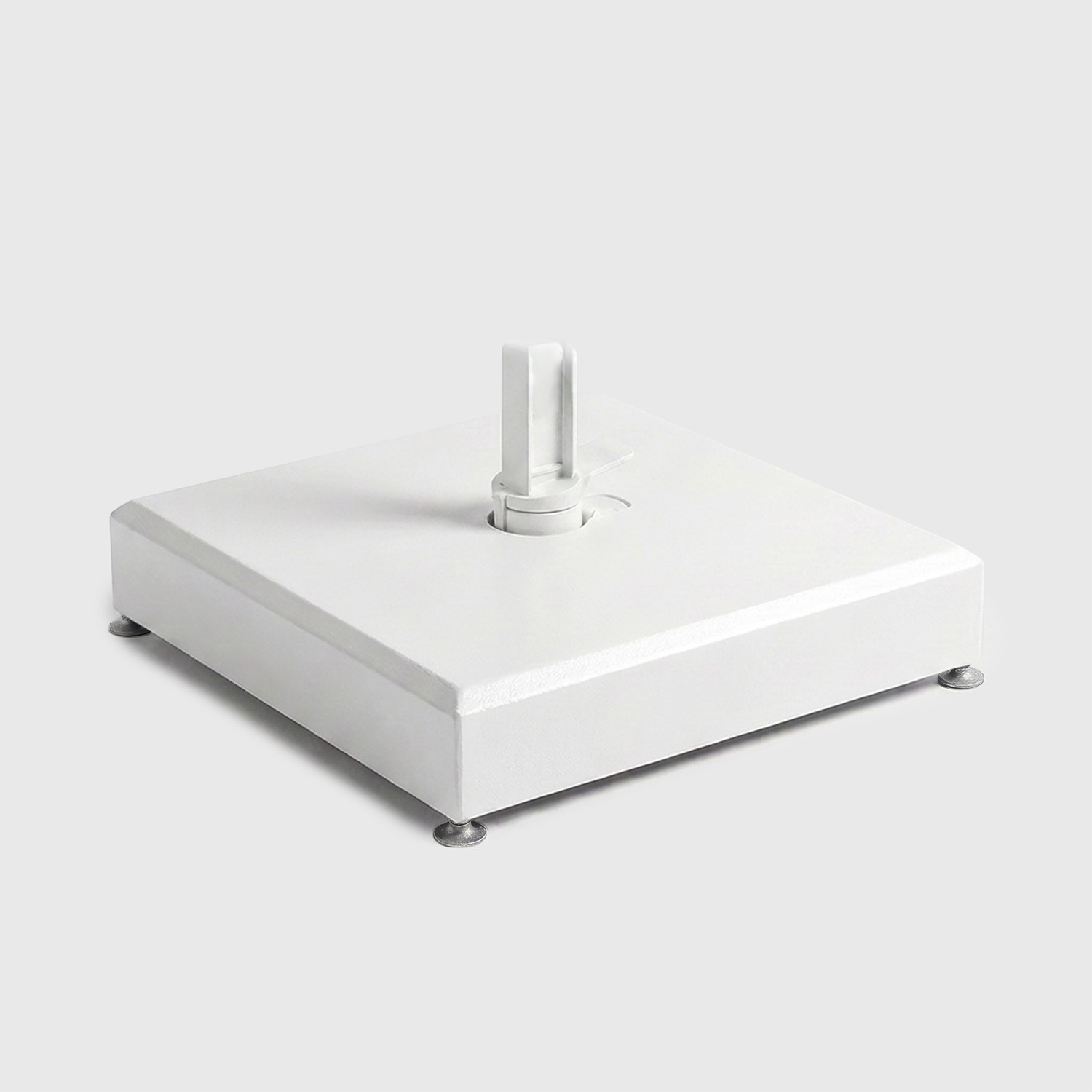

Fillable Cantilever parasol base Concrete anchoring plate Timber floor anchoring plate Fillable 4-in-1 parasol base In-ground anchoring plate |
Compatible protective cover (not included) |
Shaped 3×3 protective cover in 210 g polyester with PU coating |
Warranty |
7 years frame · 3 years canopy |
Read less -
Read more +
It can be self-installed using the included manual. For safe handling during installation, we recommend having two people when lifting the arm onto the upright: the complete assembly weighs 29 kg.
Express worldwide shipping via DHL in 3-5 working days from confirmed order. You'll receive your tracking number by email as soon as the parcel leaves our warehouse.
Yes, provided the building's regulations permit side-arm parasols and the flooring can support the minimum 120 kg of ballast required. Also check the opening clearances from the parapet walls.
We operate primarily as a pure e-commerce player. For large-scale projects, specific requests, or simply if you'd like to visit, we can arrange appointments at our premises in Gambellara (VI).
Continuous. The lever at the base of the upright lets you rotate the arm to any position around the pole and lock it wherever you need.
Yes. On wooden decking, you can use the 4-in-1 fillable base or the wooden floor anchor plate. The in-ground anchor plate is not suitable for decking, unless there is a load-bearing structural frame underneath.
The Acrishade fabric is water-repellent and can handle brief showers. If prolonged rain or winds above 25 km/h are forecast, close the parasol: the perimeter velcro band keeps it neatly secured along the pole.

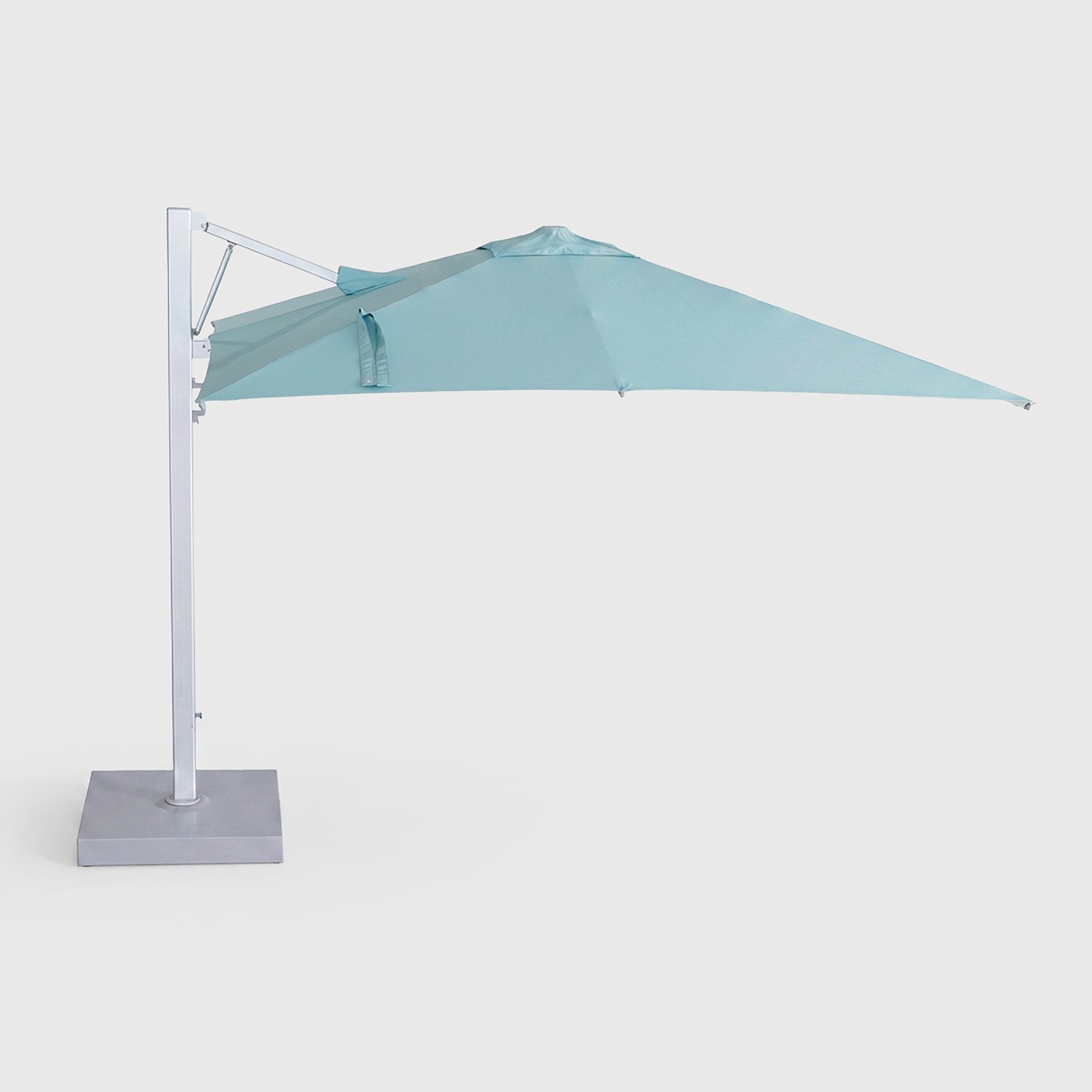

It is a parasol where the pole is not positioned at the centre of the canopy but to one side. The fabric is suspended from a horizontal arm, leaving the space underneath completely clear — no obstructions for tables or seating.
It is a pressurised gas spring, the same technology used in car boot lids. It pushes the arm when you open it, and holds it back when you close it. You make a gentle movement, and the piston handles the weight.
It is a single opening at the top of the fabric, without a flap. When wind builds up beneath the canopy, the airvent allows it to escape upwards: this reduces pressure on the structure and lowers the risk of the shade sail being overturned.
Water-resistant. Acrishade repels water and handles light to moderate showers, but it’s not a fully waterproof barrier: during prolonged or heavy rainfall, some water may come through. In heavy downpours, it’s best to retract the awning.
Yes, with two dedicated accessories available separately that attach to the central hub beneath the canopy. The magnetic lamp MGL-8138 (Ø 278 mm, continuous dimmer, 2,500 mAh battery) or the clip lamp MGL-8109 (Ø 200 mm, three warm white light levels, 1,600 mAh battery).
Up to 30 km/h. Above this threshold, we recommend closing it: the gas piston-assisted closure takes you from open to closed in just a few seconds, even before a sudden summer storm.
Via USB cable. Simply detach them from the hub, charge them from any standard power source (phone charger, power bank, or computer), then snap them back into place magnetically. Typical battery life lasts a full evening with the dimmer set to medium.
Between 30 and 45 minutes the first time, including fitting the base. After that, seasonal opening and closing takes just a few minutes.
It is recommended, yes – at least for lifting the arm onto the pole. Once the arm is in position, the gas piston takes care of the rest.
Yes. The base is set up first – either ballasted with sand or water, or secured to the ground using the dedicated fixing plate – then the Cygnus pole is inserted into the fitting and locked in place.
The anchoring accessories compatible with Cygnus are:

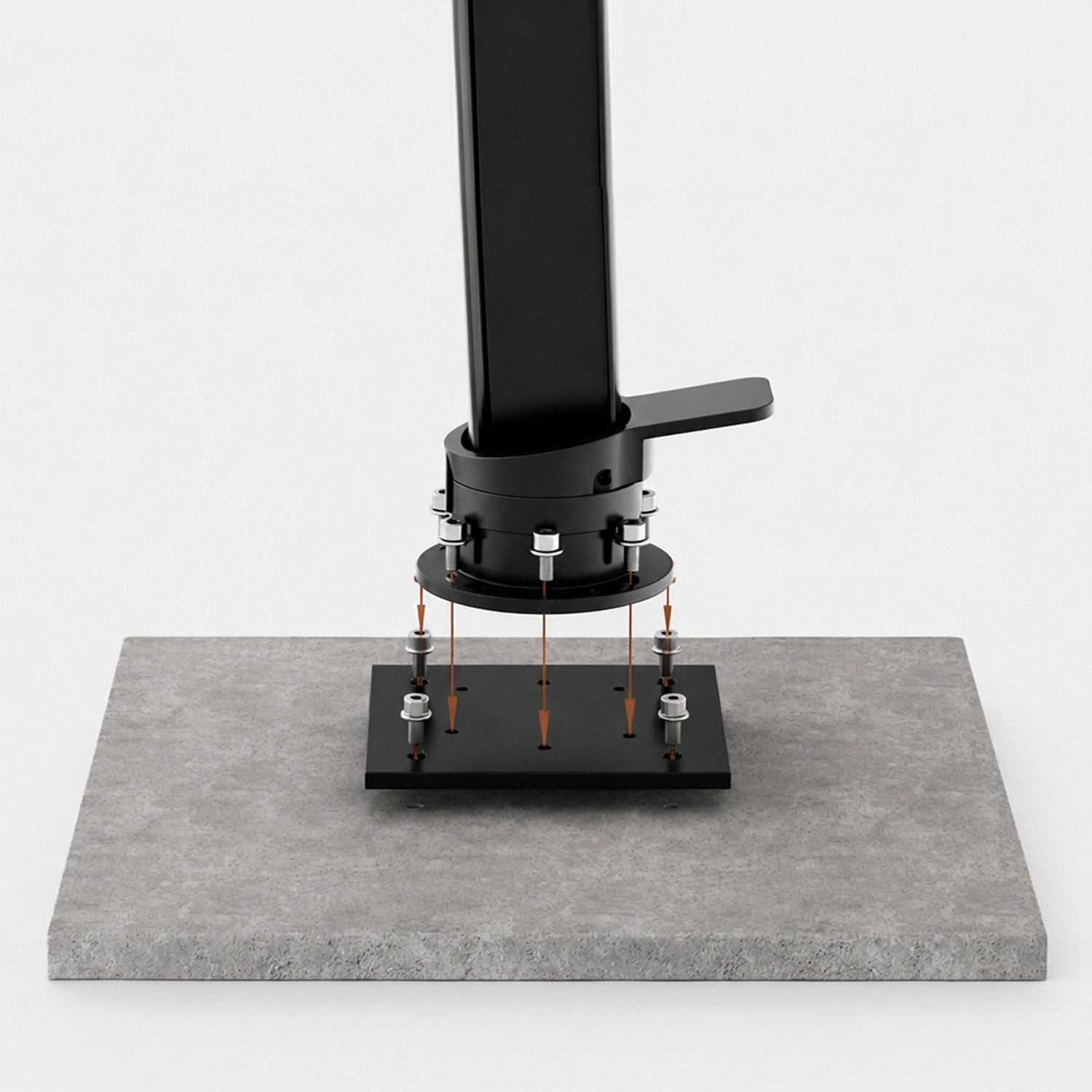

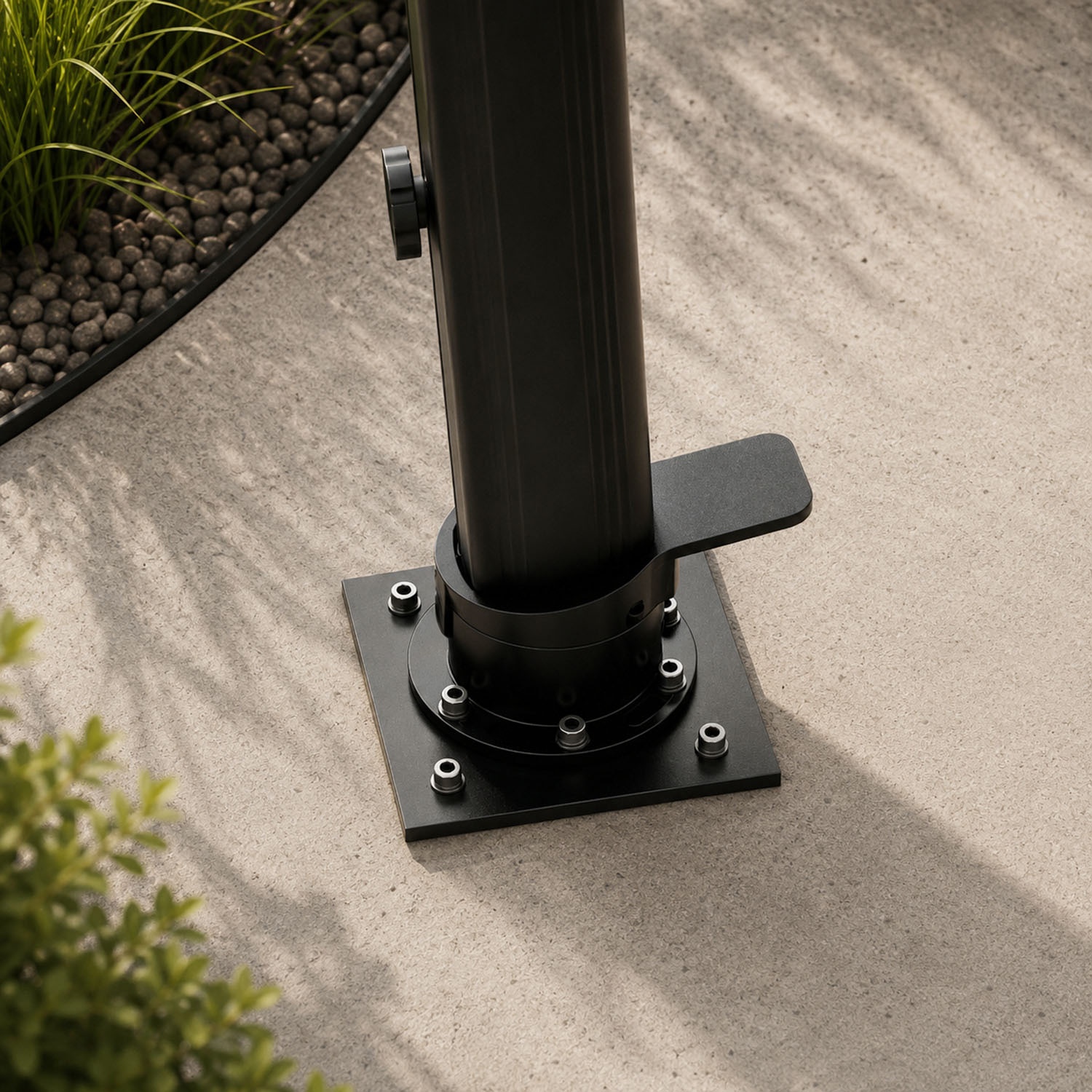

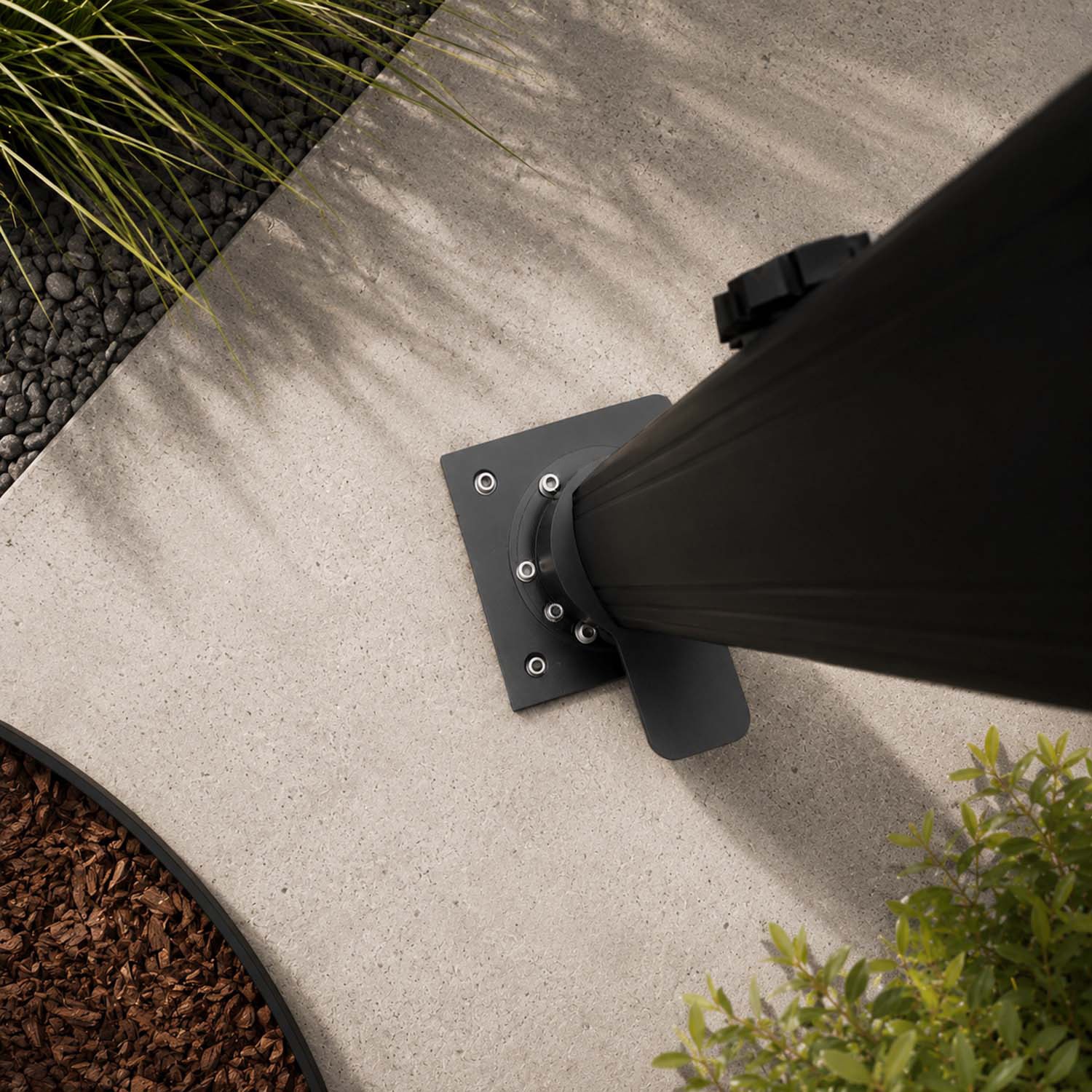

Yes, you can use the steel concrete anchor plate or the in-ground anchor plate. This is the ideal solution for permanent installations, where there is no need to move or store the parasol seasonally.

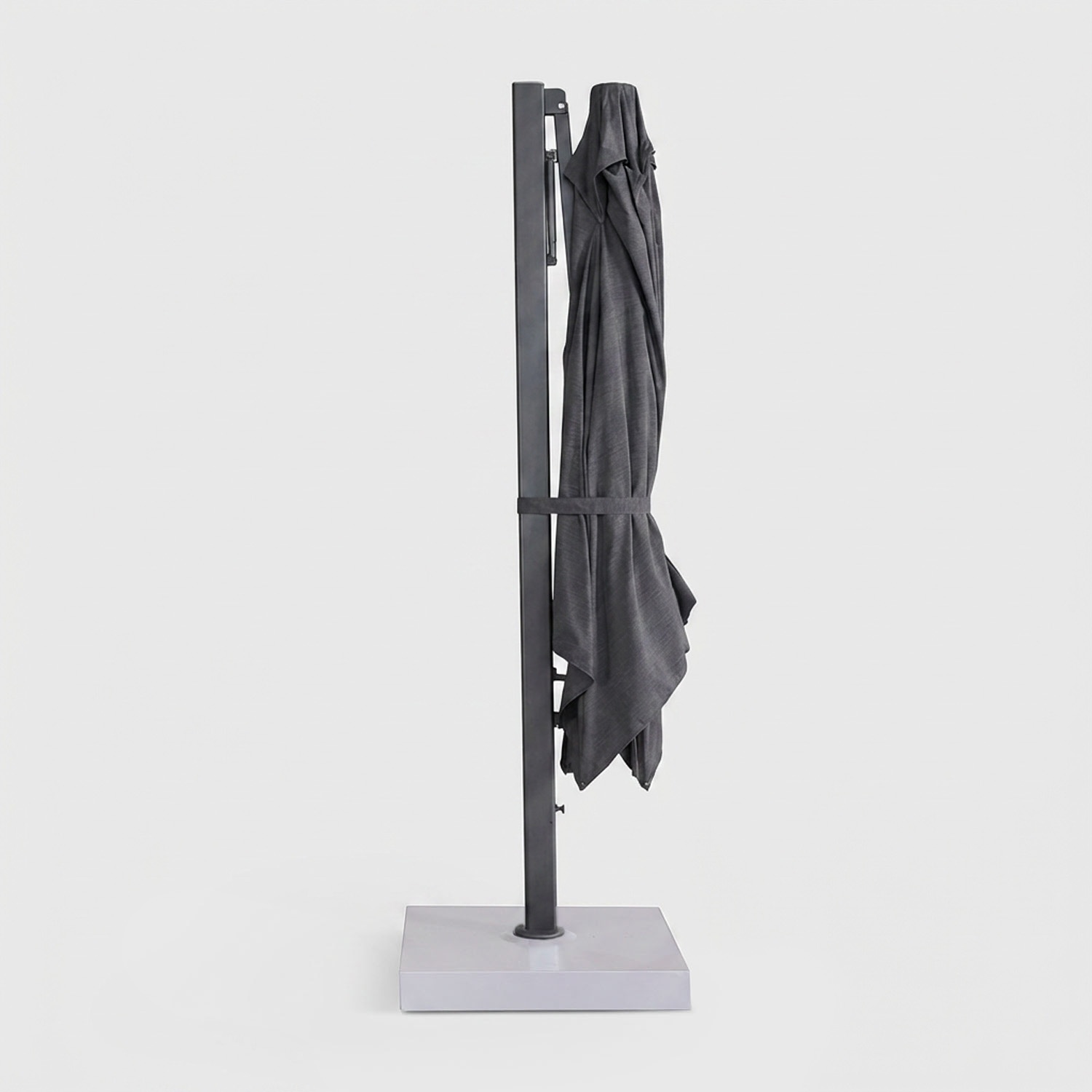

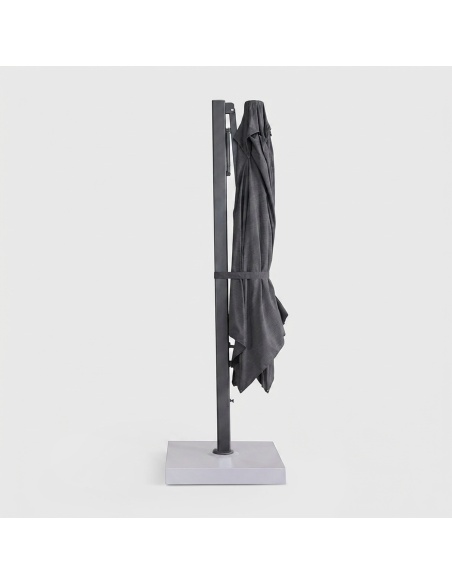

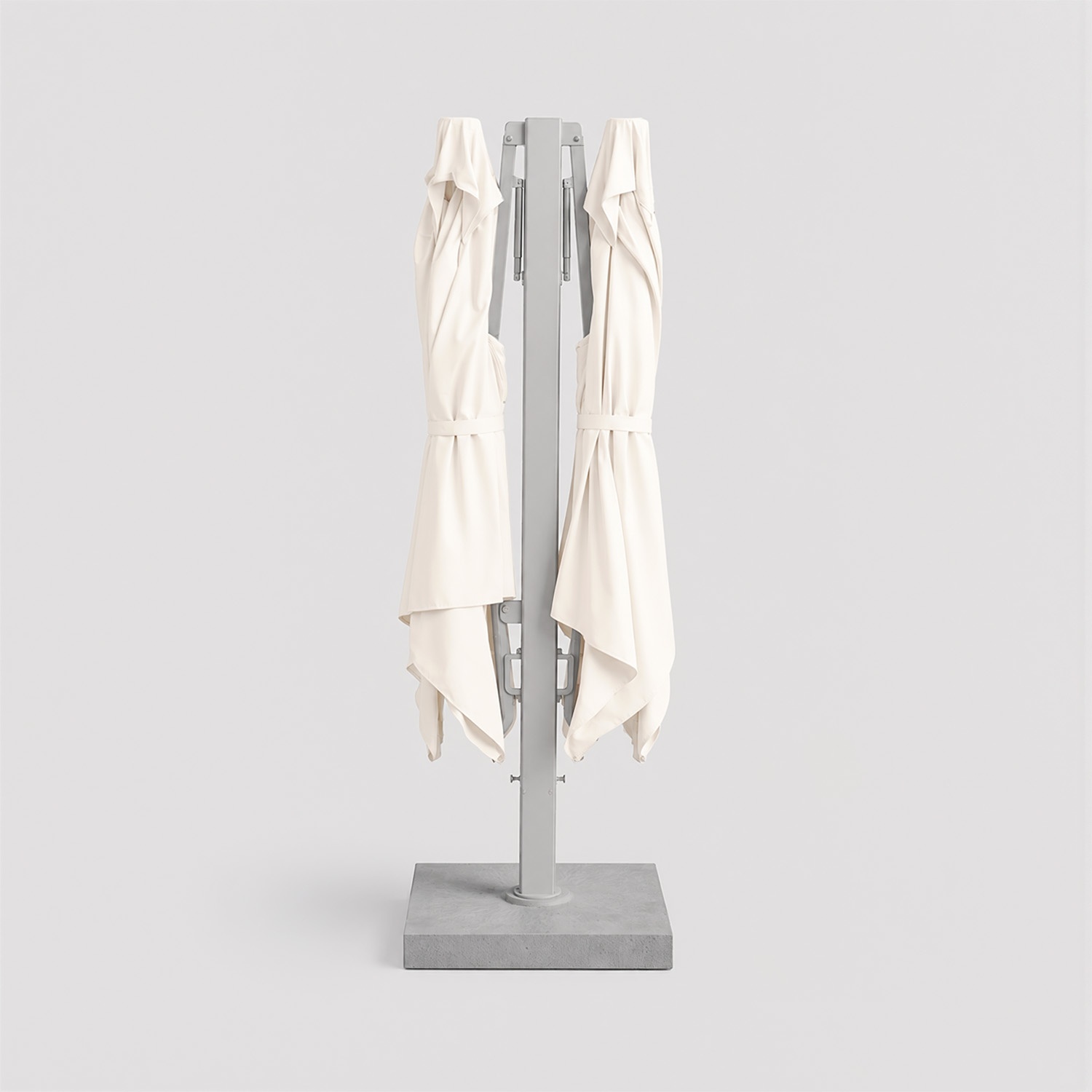

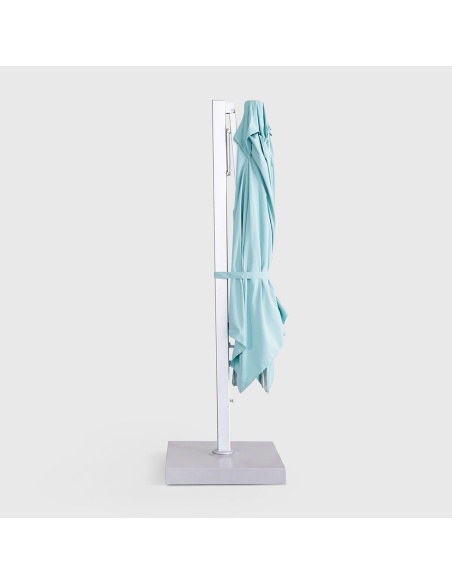

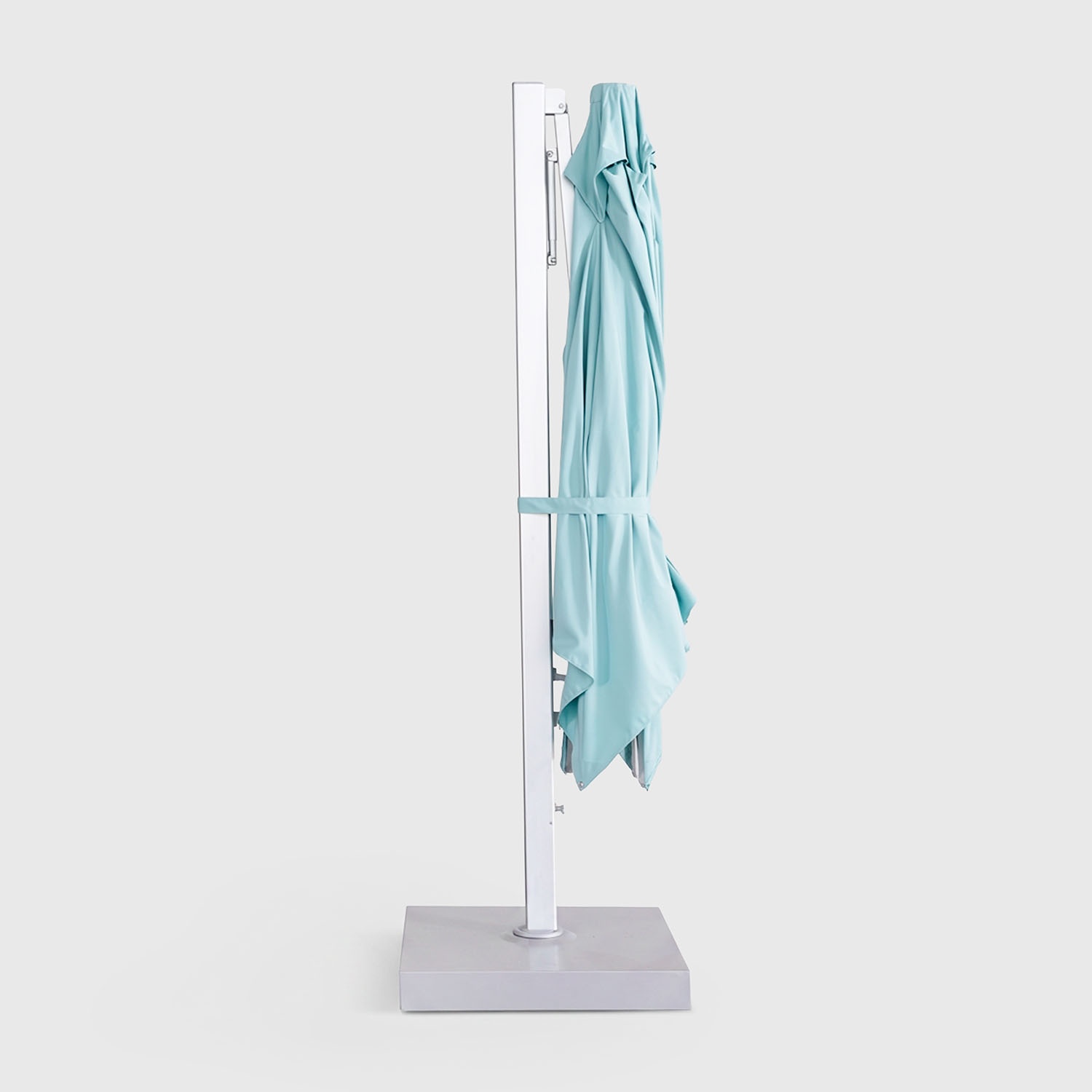

Lower the arm, close the fabric along the pole using the perimeter velcro strap, then cover it with the protective cover (sold separately). If possible, remove it from the upright and store it in a dry place.
Yes. Use lukewarm water, mild soap, and a soft sponge. Avoid solvents, high-pressure washers, and washing machines. Leave the fabric to dry fully open, in the shade.
It's not essential if the area is sheltered and winter winds are manageable. If the location is more exposed, we recommend closing it, covering it with the protective cover, and storing it safely indoors – whether that's at home or in a garage.
Yes, it is available as a separately purchased accessory. Shaped to fit the Cygnus cantilever arm, it covers the fabric when closed along the pole. Made from a material resistant to sun and rain.
There is a lever at the base of the pole. Simply unlock it, rotate the arm to the desired position, then lock it back in place. The rotation is continuous through 360°.
7 years on the frame (pole, arm, mechanisms, aluminium). 3 years on the fabric (stitching, Acrishade fabric, textile accessories).
Yes. You have 14 days from the date of receipt to exercise your right of withdrawal (private purchases). The product must be returned intact and in its original packaging.
You have 14 days from the date of delivery, in accordance with European regulations on distance purchases. The period begins on the day you physically receive the parcel.
Open the parcel in front of the courier where possible. If you notice any external damage, accept the delivery with reservation. Photograph both the packaging and the product, then send everything to us within 48 hours – we'll handle the claim directly with DHL.
