Steel carabiner D60 Stainless or Galvanised D60

4.8

17 verified reviews

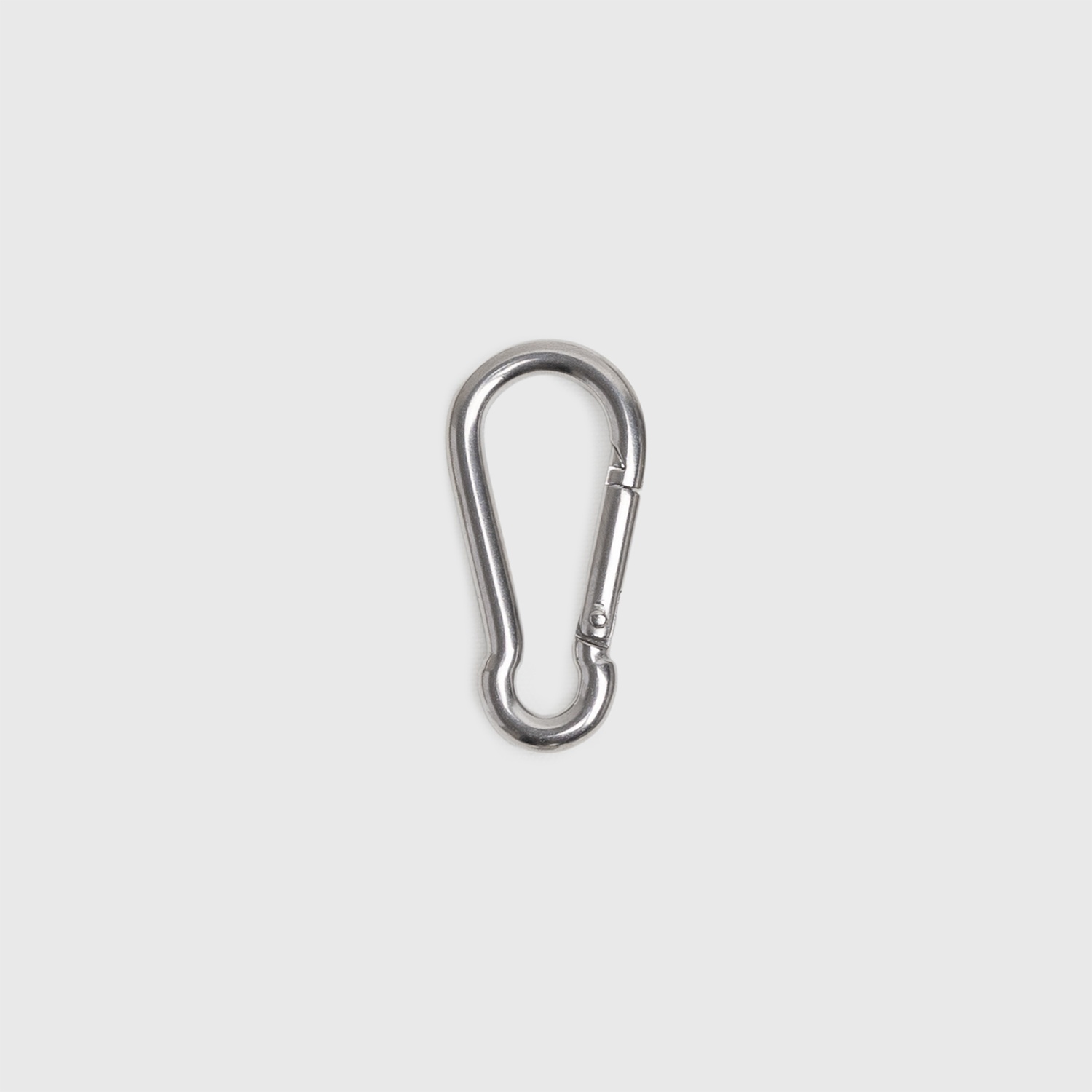

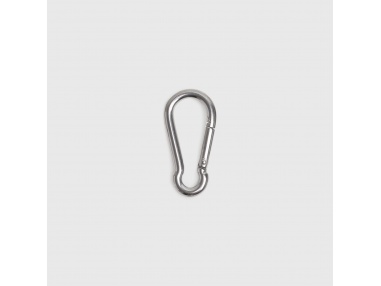

This is where the full load of your shade sail is held: the Maanta D60 steel snap hook clips in, keeps the tension, and releases in one simple movement. Certified to DIN 5299 Form C, it is available in stainless steel or zinc-plated steel, with a breaking load of 120 kg. Designed to withstand the constant tension of shade sails in gardens and on terraces.

120 kg breaking load: certified to DIN 5299 Form C, a standard also used in the marine and construction sectors
Stainless steel or zinc-plated steel: stainless steel is ideal for marine or humid environments; zinc-plated steel is suitable where mechanical strength is the priority
60 mm length, 6 mm wire diameter: sized for Maanta anchor points
Packs of 1, 2, 4 or 10 pieces: order exactly the quantity you need, with no surplus

Choose colour and size

Material: Stainless Steel

Galvanized Steel
Stainless Steel

Single or Box: 1 Carabiners

1 Carabiners
Box 2 Carabiners
Box 4 Carabiners
Box 10 Carabiners

Total price

€ 3.95 € 3.95

Order now and receive it by

with DHL Express

Free design service

After-Sales Service

Delivery 24 / 48 hours

Datasheet

Product Identification
Product Name	Steel Snap Hook for Shade Sails
Model	D60
Type	Spring snap hook, C-shape
Reference Standard	DIN 5299 form C
Available Materials
Stainless Steel	Corrosion-resistant, suitable for humid and marine environments. Polished finish.
Galvanised Steel	Bright silver galvanised finish, for standard outdoor use. Not recommended in environments with prolonged salt exposure.
Dimensions	Total length: 60 mm Wire diameter: 6 mm
Performance
Working Load Limit	120 kg
Closing Mechanism	Automatic spring latch, manual opening, automatic closing
Available Pack Sizes	1, 2, 4, 10 pieces
Maanta Compatibility
Compatible Shade Sails	Solaria Impermeabile, Solaria Traspirante, Solaria +Plus, EZ Breez Impermeabile, EZ Breez Traspirante, Furl, Solaria Lean, Bugna
Compatible Anchoring Systems	Eye-to-eye M6 stainless steel tensioners, EZ Wall Fix Wall Kit, Nautical Rope Wall Kit, Alu Simple Poles, Ulisse, EZ Mast, EZ Mast Inox
Not Compatible With	Kit Parete Muscle x3 (use the attachment system included in the kit)
Packaging and Warranty
Packaging	1 parcel, often included within the main order parcel
Weight	0.044 kg/each
Warranty	2 years

Read less -

Read more +

FAQ

It connects the corners of the shade sail to the anchor points of your system: wall eyelets, tensioners, and pole tops. It is the junction point between the shade sail and the support structure. Without a proper attachment, the shade sail cannot be tensioned correctly or removed without difficulty.

It depends on the shape of your shade sail: a triangular sail uses 3 carabiners (one per corner), while a quadrilateral sail uses 4. If your shade sail has additional tensioning points, the number may increase. Check the instructions for your Maanta shade sail or get in touch with us for a precise calculation.

Yes, the DIN 5299 Form C carabiner is a widely used industry standard. If your shade sail's eyelets and anchor points are compatible in size, it will work with other systems too. Always check the dimensions before purchasing.

The packs of 2, 4 and 10 pieces contain items made from the same material. If you need both variants, simply place two separate orders. For specific requirements or larger quantities, please get in touch with our customer service team.

DIN 5299 is the German industrial standard for spring snap hooks. "Form C" refers to the specific geometry: an open C-shaped body with a spring-loaded hook on the long side and a fixed eye on the opposite side. This shape ensures proper load alignment and prevents accidental opening under tension.

Stainless steel resists corrosion even in coastal or high-humidity environments. It is the ideal choice for permanent or seaside installations. Galvanised steel is suitable for standard outdoor use, but when exposed to salt air or prolonged moisture, it tends to oxidise over time. If you are unsure, go with stainless steel: it will last far longer.

120 kg is the Working Load Limit, calculated with a safety factor relative to the minimum breaking strength as specified by DIN 5299.

No. The Muscle Kit x3 includes a proprietary attachment system that is already integrated. For all other Maanta wall kits (EZ Wall Fix, Wall Mounting Kit Nautical Rope), the D60 is fully compatible.

Press the spring hook downward with your thumb, insert the shade sail's eyelet into the opening, then release: the mechanism closes automatically. To detach, press the hook again and slide the eyelet out. No tools required.

The stainless steel version requires no periodic maintenance. The galvanised version deserves an annual inspection: if you notice surface rust, replace the part before it affects the load capacity. In both cases, check the spring action once a season.

The 2-year legal warranty covers manufacturing defects and non-conformity at the time of delivery. If the carabiner arrives with a faulty spring, structural deformations, or not matching the stated dimensions, get in touch and we will replace it.

Report the damage to the courier at the time of delivery, then contact our customer service team with photos of the damage and the packaging. We will arrange a replacement. If the damage is not visible on the outside, you still have time to let us know after opening the parcel.
