Reference

Fischer Thermax 8/120 M6 Fastening system for sails with wall profile

5 (3) |

verified reviews

The Fischer Thermax 8/120 M6 is a spaced fastening system designed specifically for applications on insulating coats.
It is used for fixing the sails with wall profile Solaria Lean and Solaria +Plus Lean on walls with insulation from 100 to 120 millimetres.

Suitable for 100 – 120 mm thermal coats
No thermal bridges thanks to the insulating cone
Simple installation without specific mounting accessories

Do you need support? Contact our team for personalised assistance!

€97.95

Order now and receive it

with UPS Carbon Neutral

YOU CAN TRUST

Free design service
Delivery 24 / 48 hours
After-Sales Service

Accessories

Fischer Thermax

99.95 €

Solaria Waterproof

Our best radial cut shade sail

515 €

Solaria Breathable

Our best radial cut shade sail

443 €

Solaria +Plus Waterproof

The evolution of our best radial cut shade sail

898.95 €

Solaria +Plus Breathable

The evolution of our best sail with radial cut

773.95 €

Description

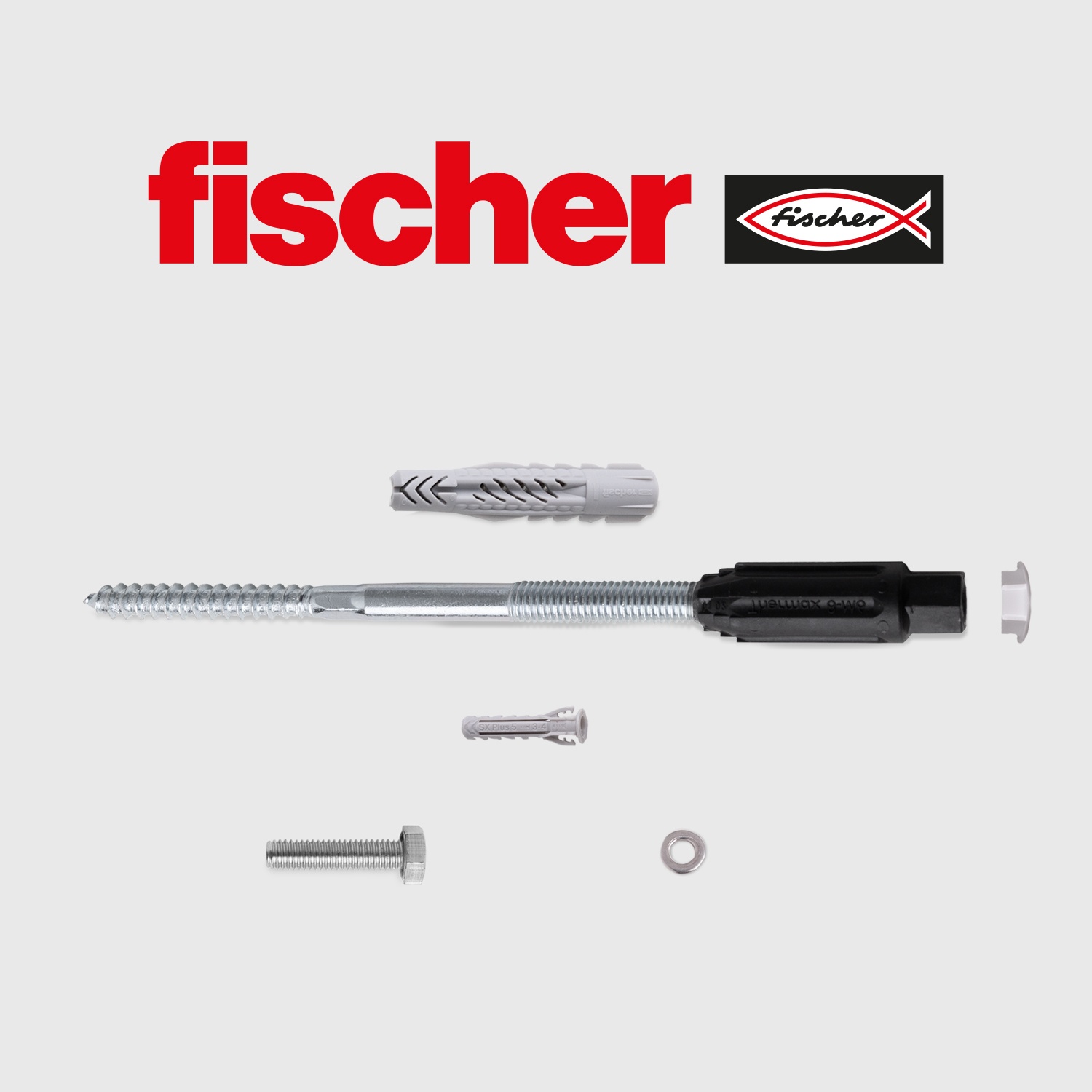

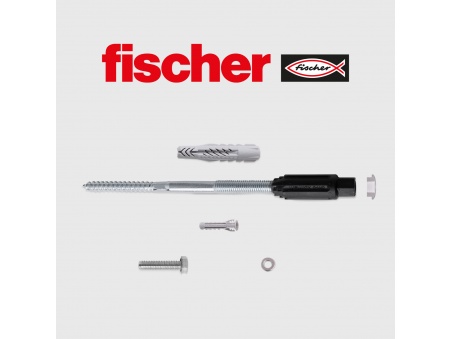

Thermax 8/120 M6

Ideal fixing for Lean sails on thermal coated walls

The Thermax 8/120 M6 from Fischer is an innovative spaced fastening system designed for applications on insulating thermal coats thickness from 100 to 120 millimetres.
This product offers a stable connection without thermal bridges and is ideal for fixing Maanta sail shades with profile on walls, suitable for models Solaria Lean and Solaria +Plus Lean.

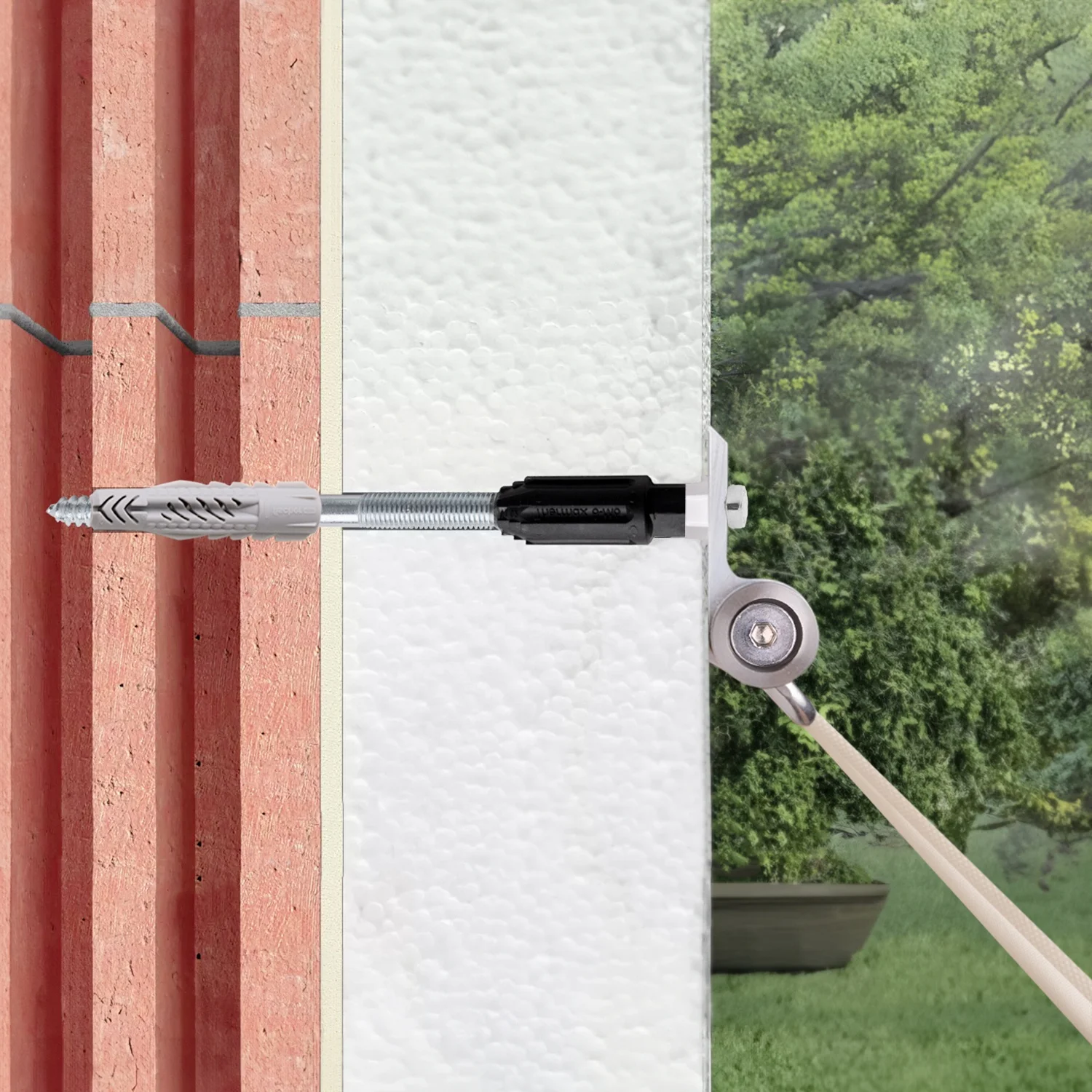

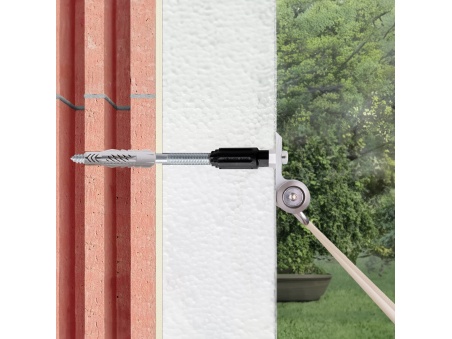

The plastic cone forms a thermal barrier between the fixed object and the inside of the support, ensuring an energy-efficient fastening.

The support materials are several and can range from concrete to full or semi-solid brick, to wood. TherMax 8 and TherMax 10 are suitable for non-through installations.

Complete datasheet available at Fischer site.

Data sheet

Brand	Fischer Thermax
Model	8/120 M6
COMPATIBILITY
Sails	Sails with straight wall profile Models Solaria Lean and Solaria +Plus Lean
Thermal coat size	From 100 to 120 mm
Support materials	Concrete Solid clay brick Calcium silicate solid brick Semi-solid (vertically perforated) clay brick Semi-solid (vertically perforated) calcium silicate brick Lightweight concrete hollow block Autoclaved aerated concrete (cellular concrete) Wood For other supports consult the Thermax specifications
TECHNICAL DETAILS
Packaging	Set of 20 pieces
Dimensions	Please see Fischer technical datasheet
Materials	Galvanised steel, fiberglass reinforced plastic, stainless steel
Screws	Included 6 x 25 TE + washers 6 x 12 (galvanised) Chipboard / metric screws are alternatively compatible / for sheet metal with the following diameters (4.5 - 6.0 / M6 / 6.3)
MATERIAL NOT INCLUDED
Tip	Drill bit length 18 cm not supplied. Hole diameter 10 mm. Anchoring depth 60.
PACKAGING AND WARRANTY
Warranty	2 years
Box size	Maximum size 20cm x 20cm x 10cm

ITEMS INCLUDED

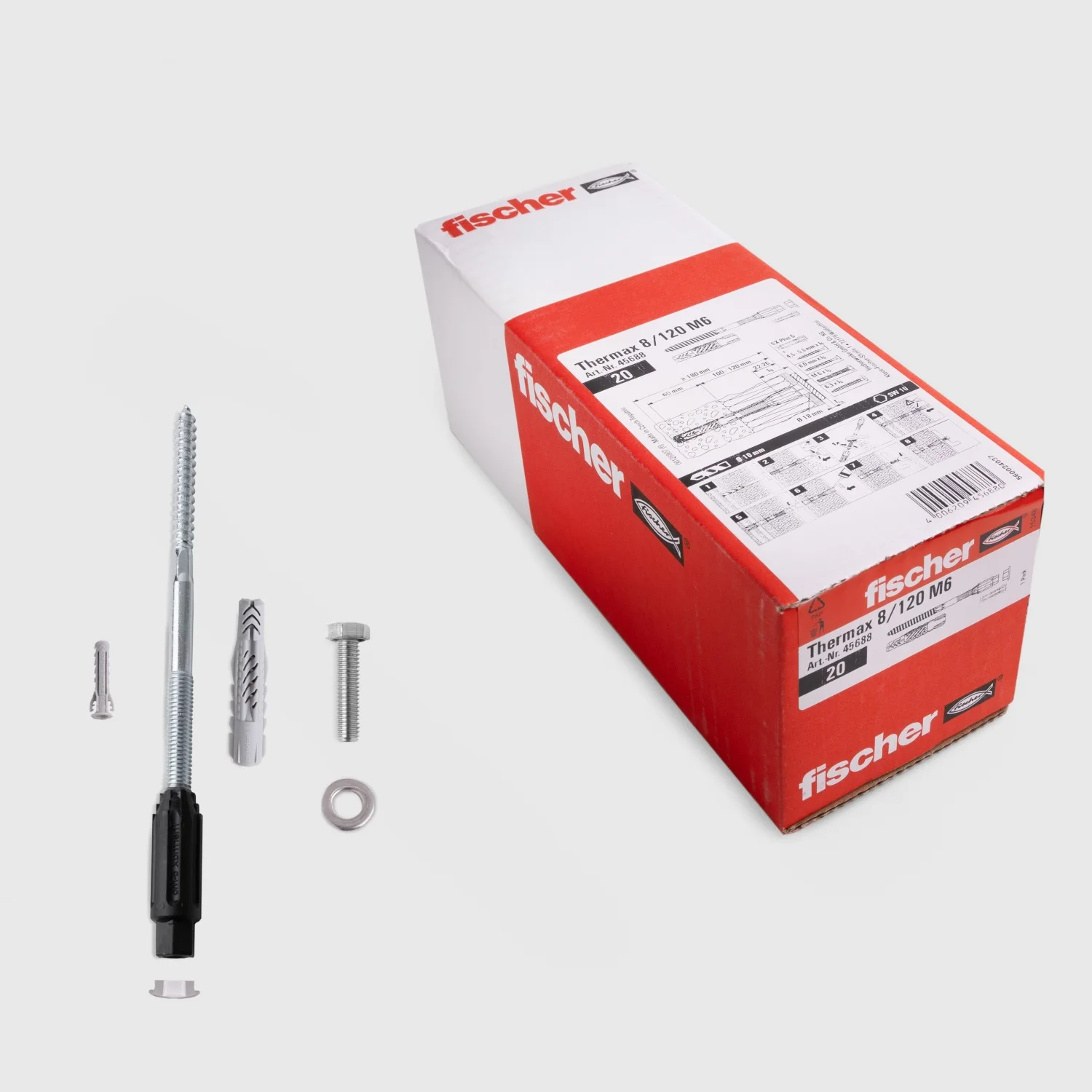

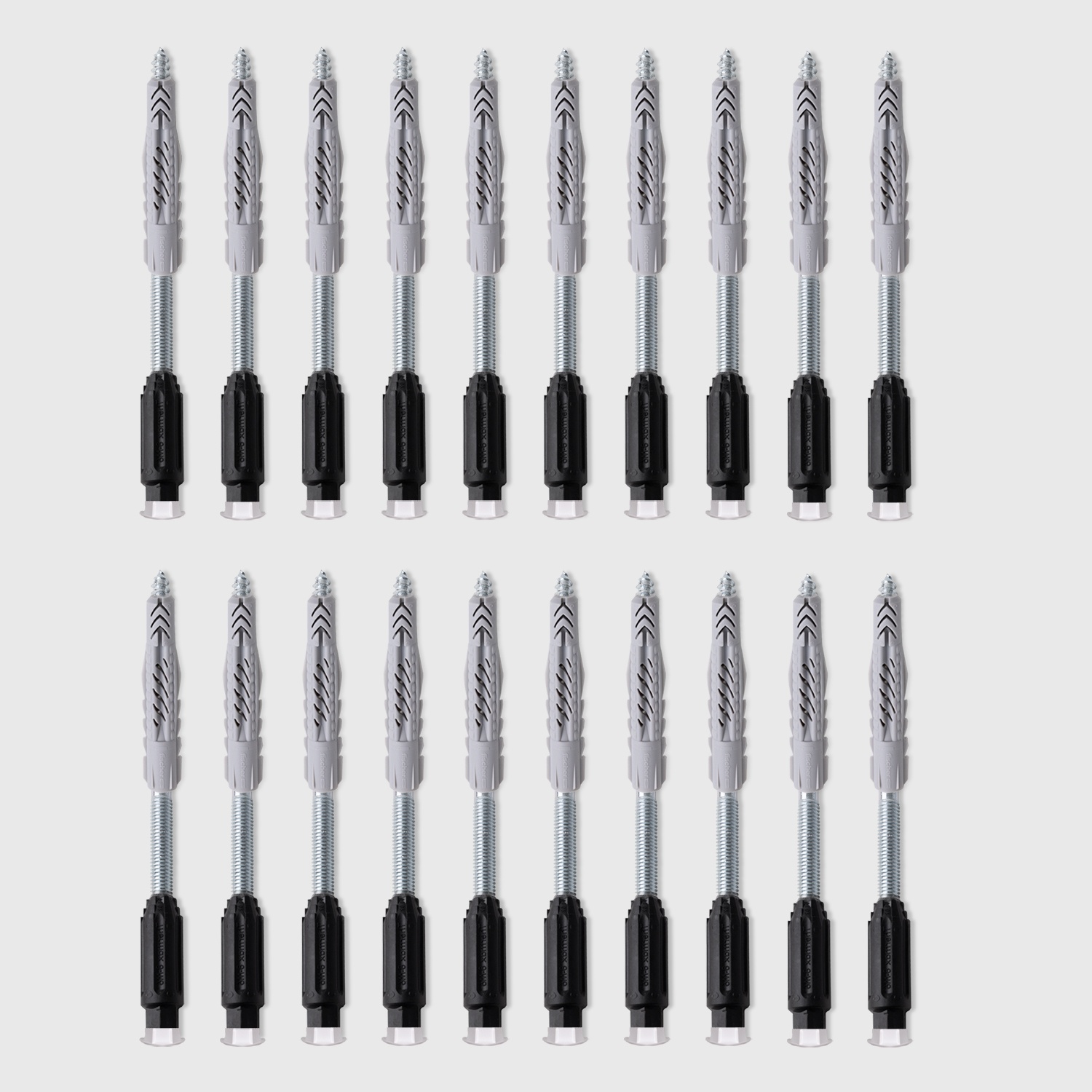

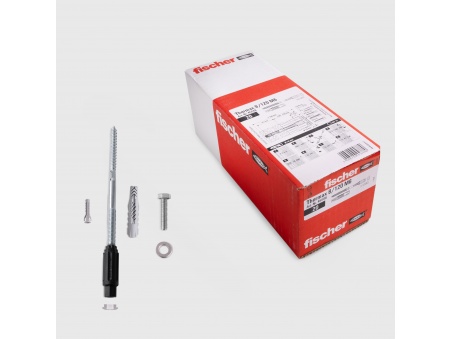

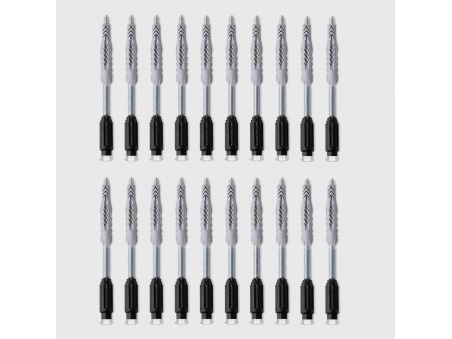

Set 20 pieces Fischer Thermax 8/120 M6

The Fischer Thermax 8/120 M6 Set includes 20 pieces for a secure and thermally insulated fastening on insulating thermal coats.

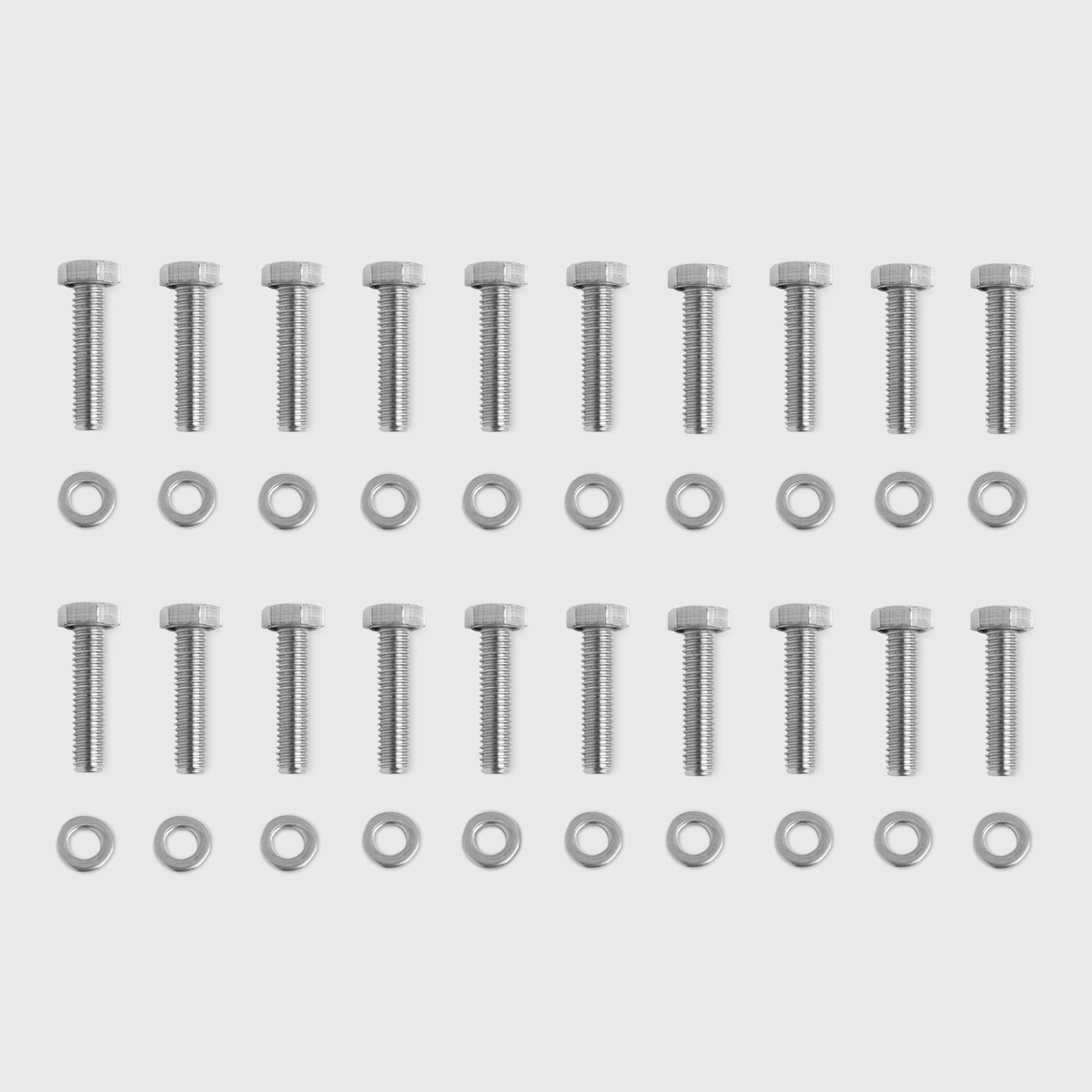

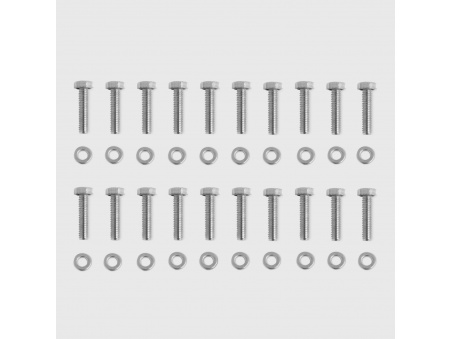

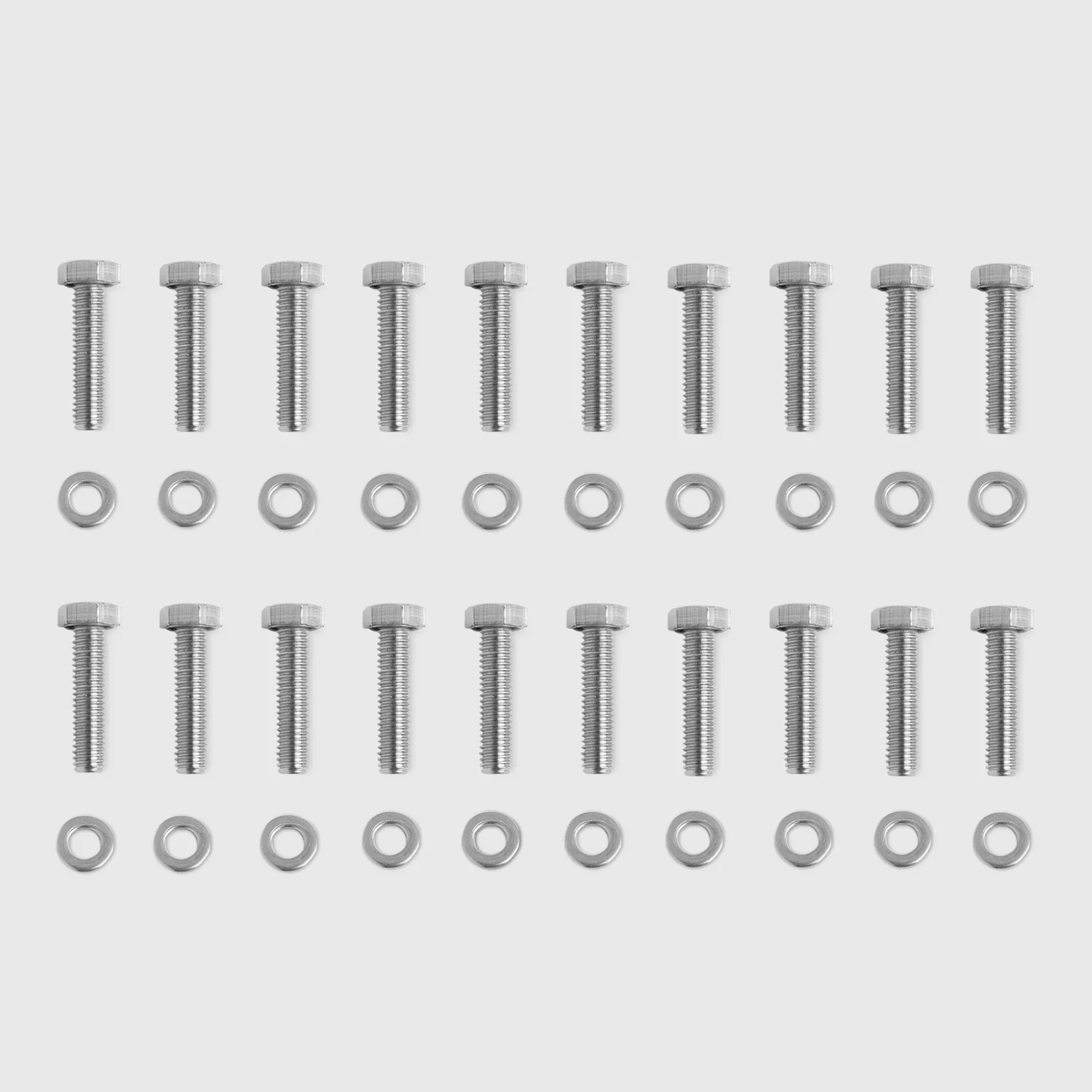

Set 20 pcs Including 6 x 25 TE screws + washers 6 x 12 (galvanised)

Set on 20 pcs 6 x 25 TE screws + washers 6 x 12 (galvanised) for fixing the wall profile on Fisher Thermax.
