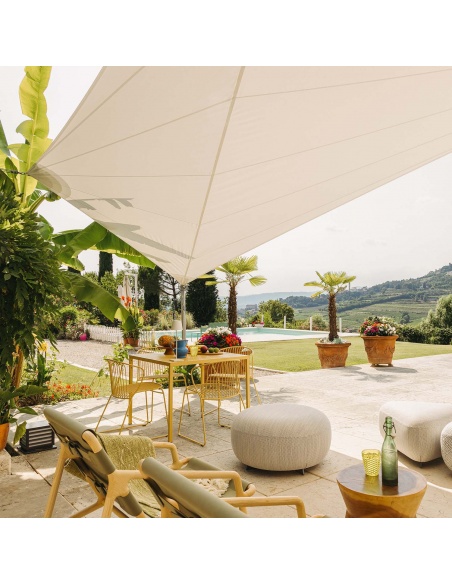

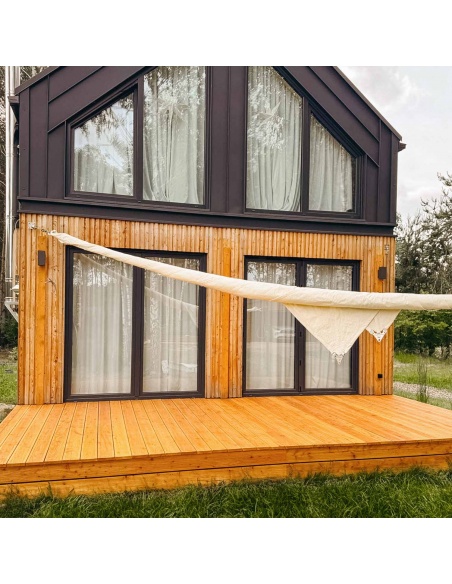

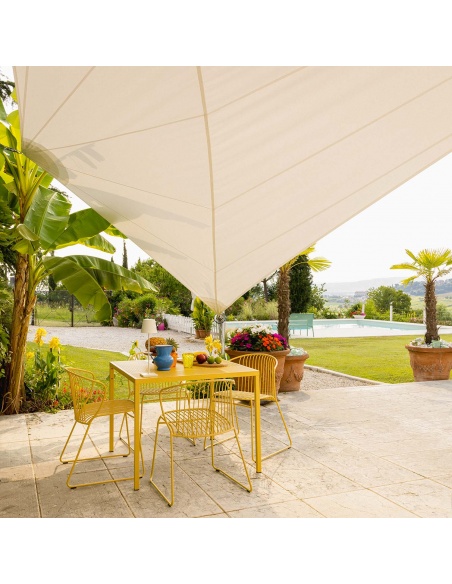

Solaria Furl Waterproof Roll-Up Our best retractable, radial-cut furling sun shade sail

Solaria Furl Waterproof, rolls up on itself thanks to the Maanta furler.
This Premium sail protects from rain and you will always be safe: in case of heavy storms or prolonged absences, you can quickly close the sail via the included furler.
The roll-up sail Solaria Furl Waterproof is made in radial cut with Purishade®-fabric.

  • Roll-up rectractable shade sail, waterproof, with radial cut
  • Manual roll-up sytem (no maintenance), retractable in seconds
  • Corners with multilayer reinforcements
  • Corner plates in 316 marine grade stainless steel
  • The only one with adjustable perimeter straps

Product or design questions?
Get our free design help or call us on ✆ +44 330 808 8140

Colour: Ivory Purishade®
  • White Purishade®
  • Ivory Purishade®
  • Beige Purishade®
  • Cloud Purishade®
  • Graphite Purishade®
Size under tension: rectangle 3x4m
€1,219.00
truck
truck
Order now and receive it
with UPS Carbon Neutral

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

Accessories

Alu Simple - Pole for shade sails with variable height

Alu Simple

Pole for shade sails with variable height
359.1 €
Solaria +Plus Furl Waterproof - The evolution of our best radial-cut furling sail

Solaria +Plus Furl Waterproof

The evolution of our best radial-cut furling sail
1798.95 €
Wall Mounting Kit Muscle x3 - Wall anchoring with pulleys

Wall Mounting Kit Muscle x3

Wall anchoring with pulleys
34.76 €
Fabric samples - Saill and Solaria sail fabrics

Fabric samples

Saill and Solaria sail fabrics
1 €
Spliced endless line

Spliced endless line

22.95 €

Description

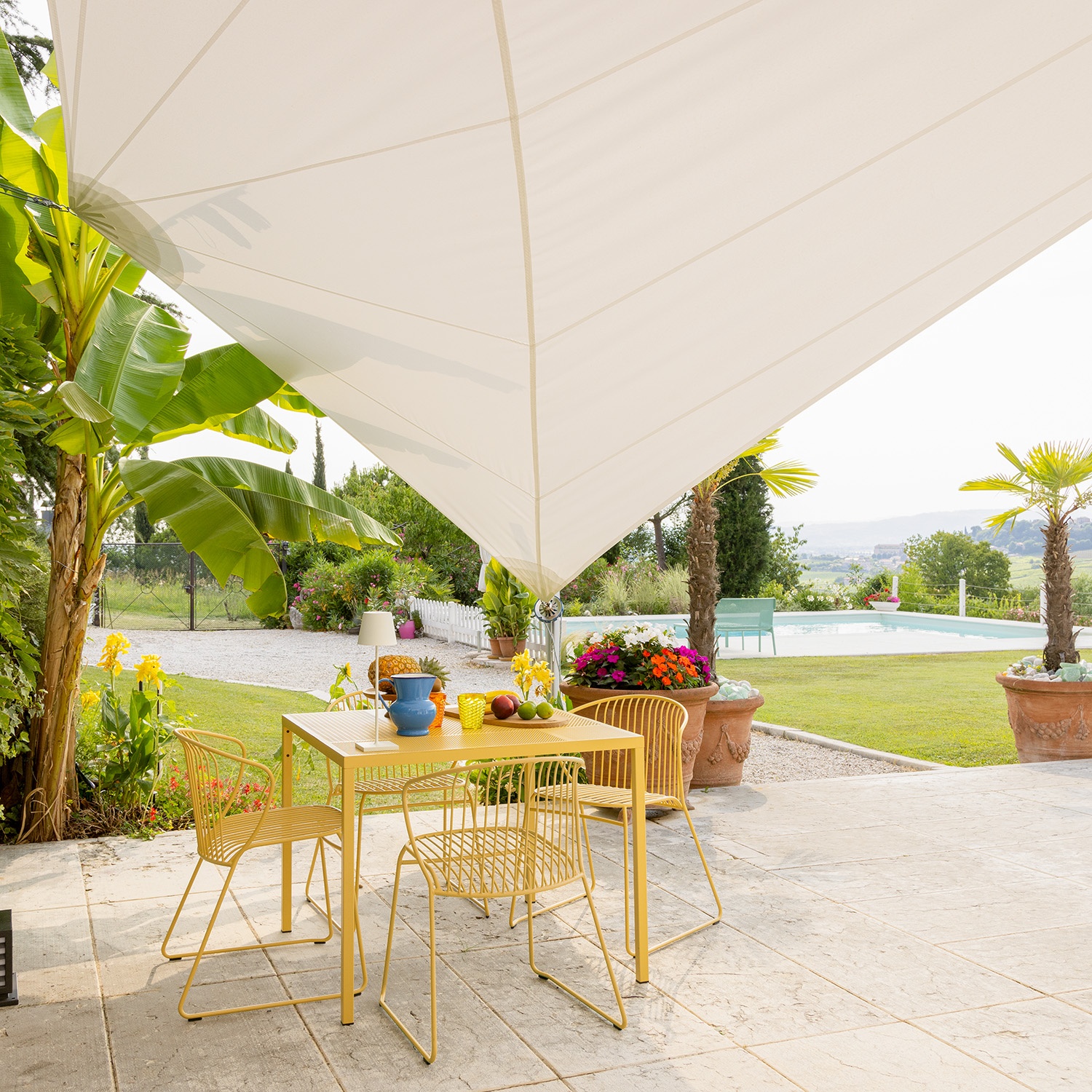

SOLARIA FURL waterproof: The roll-up sail with nautical design and technology
Nautical technology at the service of roll-up shade sails.
Solaria Furl was born from the need to quickly and safely roll up our high-quality radial sails.
The performance of the product combined with ease of use allows opening and closing maneuvers in a maximum of 27 seconds. The same can be said for installation and set-up operations that will be within everyone's reach.

FURLER (winder): The nautical quality of the materials (aluminum and 316 stainless steel) combined with the unique design means that this product sets a new standard in roll-up retractable shade sail canopies.

SOLARIA: Radial-cut sail that allows greater distribution of the tension, structural rigidity, durability and better wind resistance (up to 62 km/h).

Radial cutting invented in 1983 by sails designer Tom Schnackenberg introduced a revolution in terms of fiber orientation and thus cutting as well as seaming. Radial sails are more wind resistant and last longer because of the more even tension and load distribution.

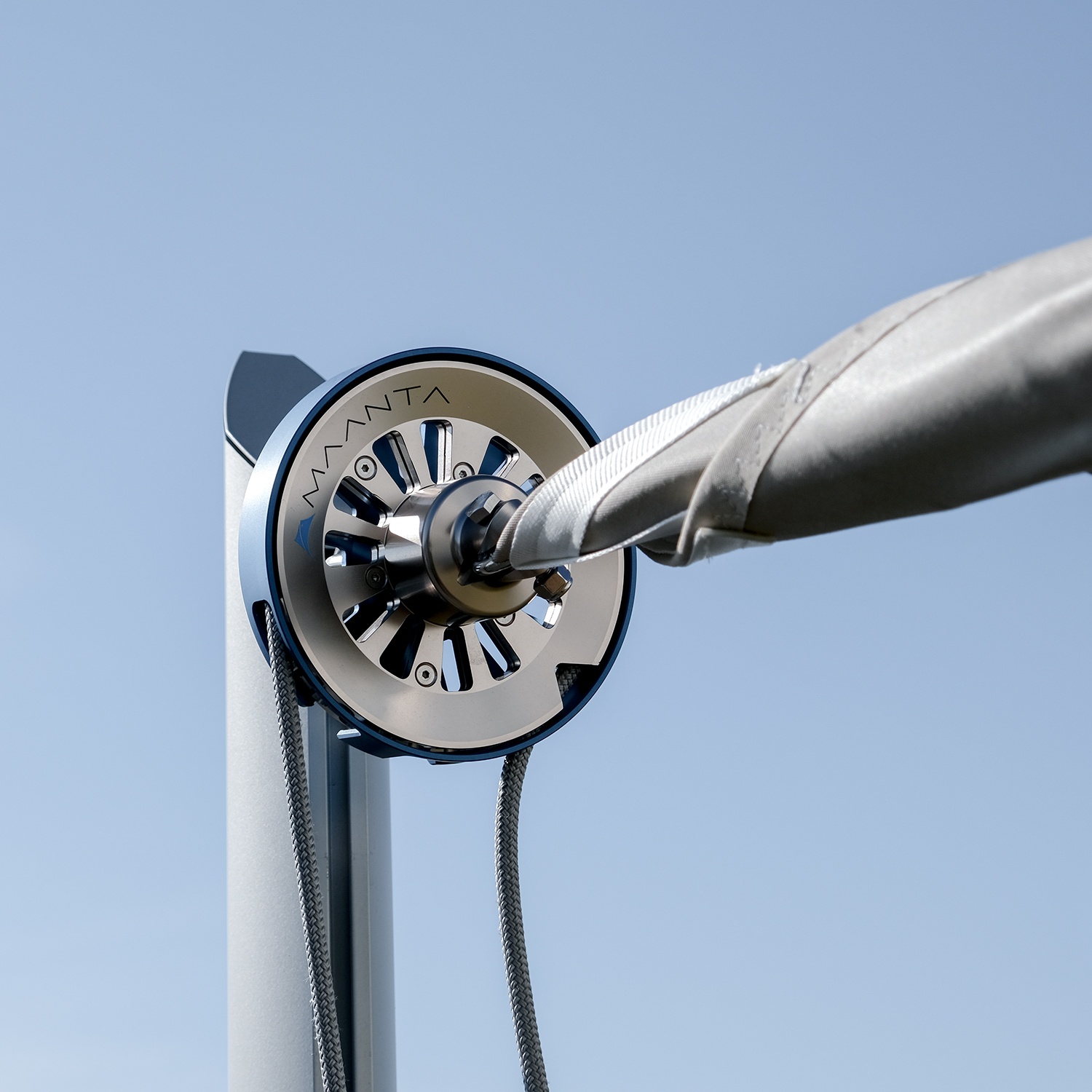

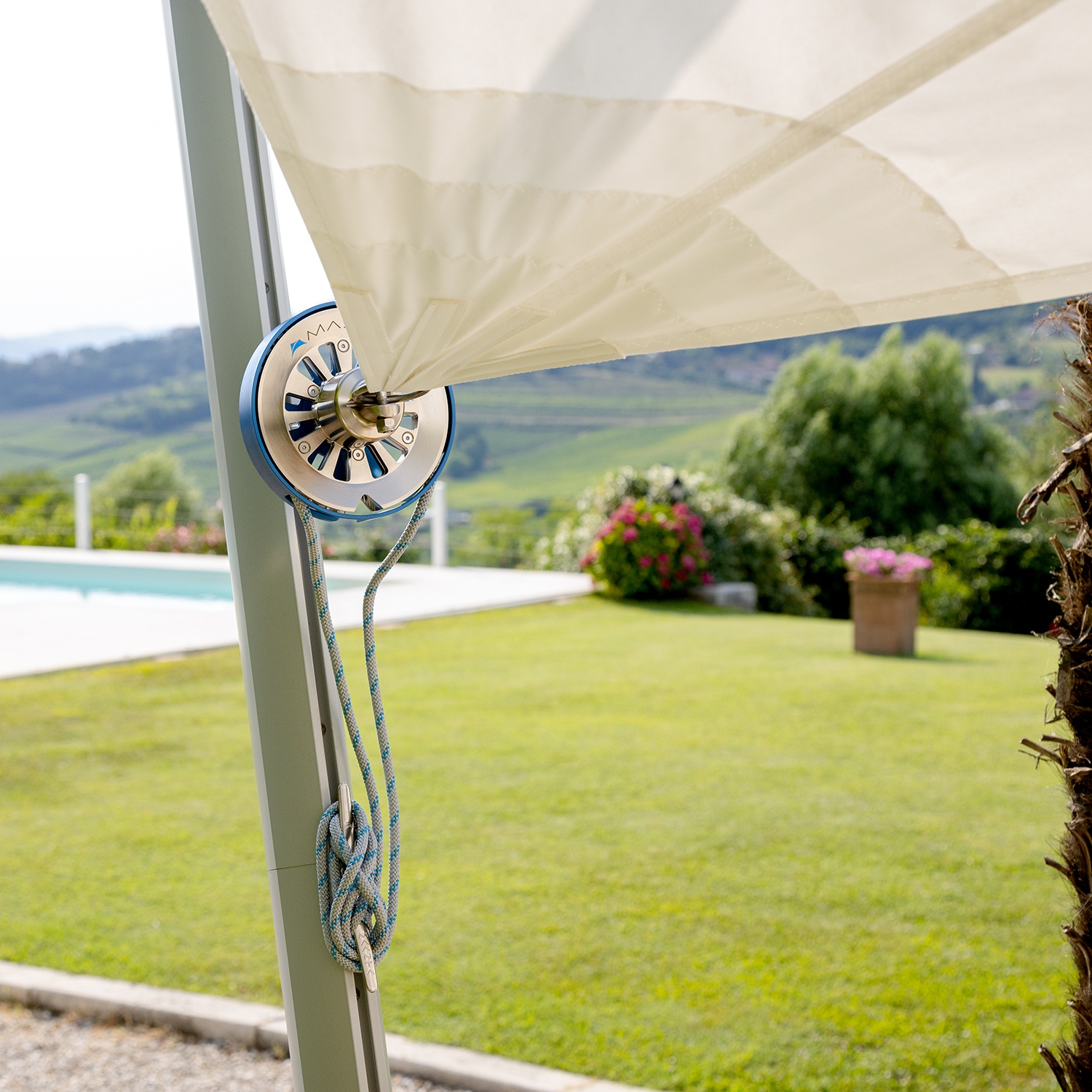

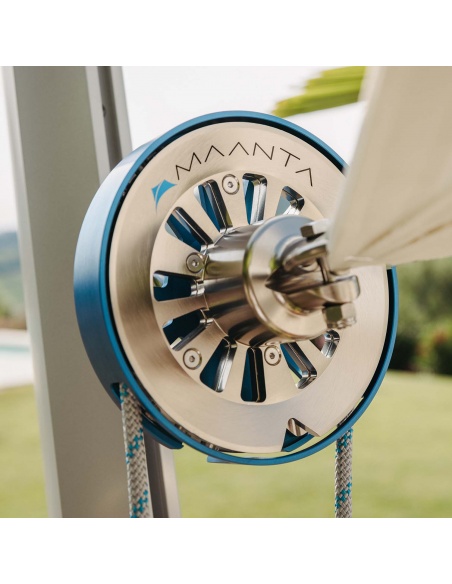

THE FURLER OF SOLARIA FURL
We started with the idea of using a nautical gennaker furler. Soon, however, the Maanta team realized that the requirements for a shade sail are completely different. After many months of planning, we made the Maanta furler from a solid block of aluminum.
This machining from solid makes the piece unique not only in design but also in technical features.
Large bearings are specifically needed to support the horizontal force exerted by the sail, thus solving another major critical issue.
WHY CHOOSE A MAANTA FURLING SAIL?
THE FURLER, THE S-GRIP TECHNOLOGY AND THE MILLING MACHINED FROM SOLID.
The particular S-shaped hollow of the furler (S-GRIPP technology), has been studied in order to prevent the endless line necessary for winding from slipping. It is made from solid, i.e., 'hollowed out' from a block of aluminum by means of a CNC lathe.
Very elaborate milling ensures a performance suitable for shade sails and a unique design. This solution requires some very complicated machining but eliminates any risk of rope slippage that would cause difficulties in opening and closing. Rope wear is also greatly reduced compared to a classic nautical furler.
THE CORNERS WITH STAINLESS STEEL PLATES AND THE ADJUSTABLE PERIMETER STRAPS
We use marine grade 316 stainless steel corner plates for all of our sails. The reinforcement plates are part of the tensioning system which, thanks to the adjustable perimeter straps, an exclusive Maanta innovation, are essential for uniformly tensioning the entire sail.
The innovative system with individually adjustable perimeter reinforcement straps allows uniform distribution of tension over the entire surface of the sail.
THE TECHNOLOGIES
RADIAL CUT:
Radial seams, among other advantages, better withstand the stress of continuous winding and unwinding.
WIDE SPOOL:
Larger diameter coil increases the speed of opening and closing.
XXX-LITE:
The lightness created through design and choice of materials enables faster and more effective windings.
S-GRIPP:
The special S-shaped hollow deforms the nautical rope and ensures greater grip, less wear and tear, and more effective and safer windings.
M-SMOOTH:
Maanta smooth! No rod and no winding winch.
The furling system via nautical rope ensures smoothness in every maneuver and is designed to be installed just as smoothly and pleasantly!
BENEFITS
1 STEP CONFIGURATION: Muscle Kit X3 included
Thanks to the included Muscle X3 kit, you will be able to tension the sail diagonally without having to measure to the centimeter. Never again will sails be too small or too big: in just one step you will be able to configure the sail and have it at home ready for installation.
COVER CAN BE OPENED/CLOSED IN SECONDS
In seconds, with minimal force we will go from sunshine to shadow, from starry sky to modern cover!
DESIGN
The design of the furler is modern, essential and minimal. It is inspired by modern nautical furling but also by wide-ranging elements of furniture and objects.
ROBUST, MAINTENANCE-FREE MATERIALS
The choice of combining aluminum elements and polypropylene fabric was made to avoid rust and wear problems that would be very troublesome.
ENVIRONMENTAL RESPECT
Aluminum, stainless steel and all Maanta fabrics are easily recyclable and environmentally friendly. All Maanta shipments are made with 'UPS Carbon Neutral' service to fully offset the CO2 produced by transportation!
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of the goods, there will be no need for forklifts. Assembly will take about 30 minutes!
ABRASION-RESISTANT AND ANTI-MILDEW
Maanta fabrics are selected for their specific abrasion resistance and will not have problems with wear due to the many openings and closures. Especially the Purishade® fabric demonstrates much more abrasion resistance than its competitors in Polyester and Acrylic. Both fabrics are also mildew resistant!
A LITTLE HISTORY ON THE DESIGN OF THE FURLER MAANTA
Our research and development crew worked on this project for a long time. Our best sun sail needed a smart system so that it could be furled and unfurled at will. We started by analyzing the best players in the nautical market, however, considering the fact that furlers, or nautical furlers, furl vertically while sail shades roll up horizontally - the distribution of forces is therefore completely different.

We then started by creating a WIDE SPOOL furler that allows more fabric to be wound than we had seen.

In the hand, the solidity of the furler is immediately noticeable. The robustness of the furling mechanism is essential to ensure smoothness and ease of operation. The design and rigorous choice in nautical materials was made to meet the XXX-LITE standards we set for ourselves.

Our S-GRIPP technology was developed to prevent the nautical rope from slipping on the furler: through a forced S-shaped path the rope is 'embedded' in the slot. This ensures less wear, a secure grip and effective windings without risk of slipping due to the load.
After several tests, here we are at the end of the road: SOLARIA FURL the first designer roll-up shade sail produced with nautical materials and technologies.

Data sheet

SOLARIA FURL Waterproof: THE SHADE SAIL ROLLING UP ON ITSELF
The Maanta crew has been well attentive to the needs and demands of customers, thus integrated nautical technology with shade sails.

Solaria Furl was born from the need to manually furl shade sails, quickly and safely.


The Maanta furler is made of anodized aluminum painted in a "stainless steel" look. It has oversized bearings to ensure the best smoothness even under load. These are important details since shade sails work horizontally and not vertically!

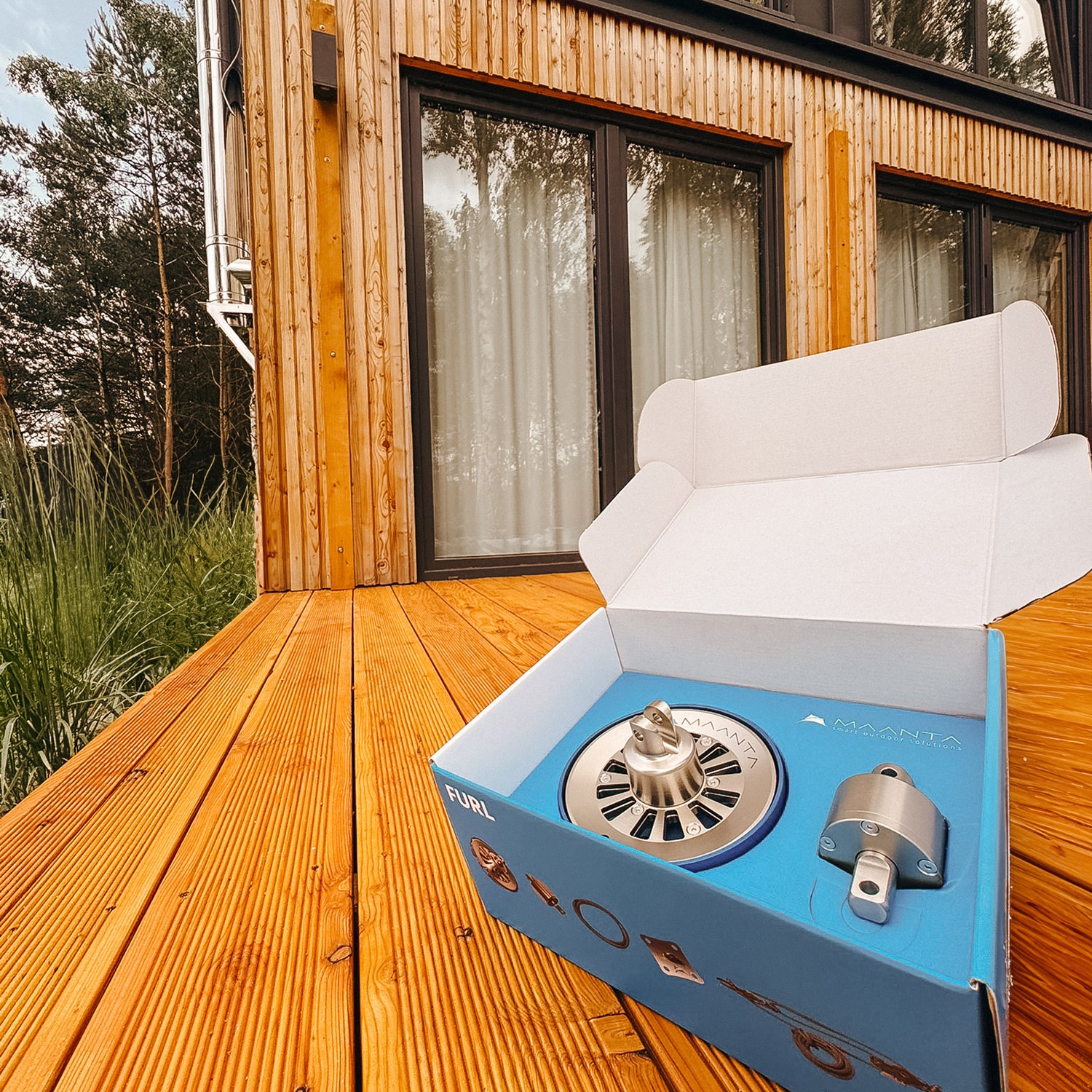

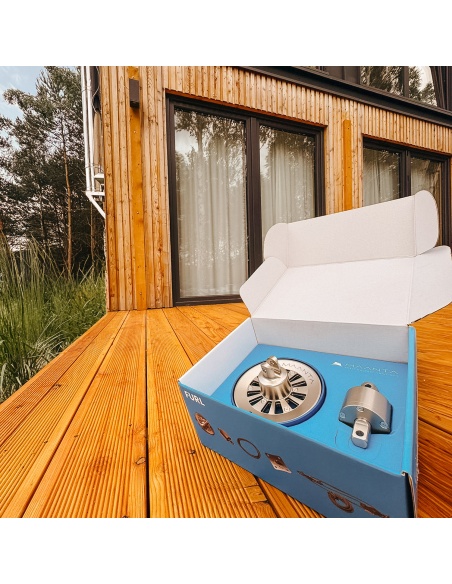

Solaria Furl with waterproof fabric is comes complete with its Furl Kit, consisting of furler, swivel, Muscle X3 system with wall plate and endless line.

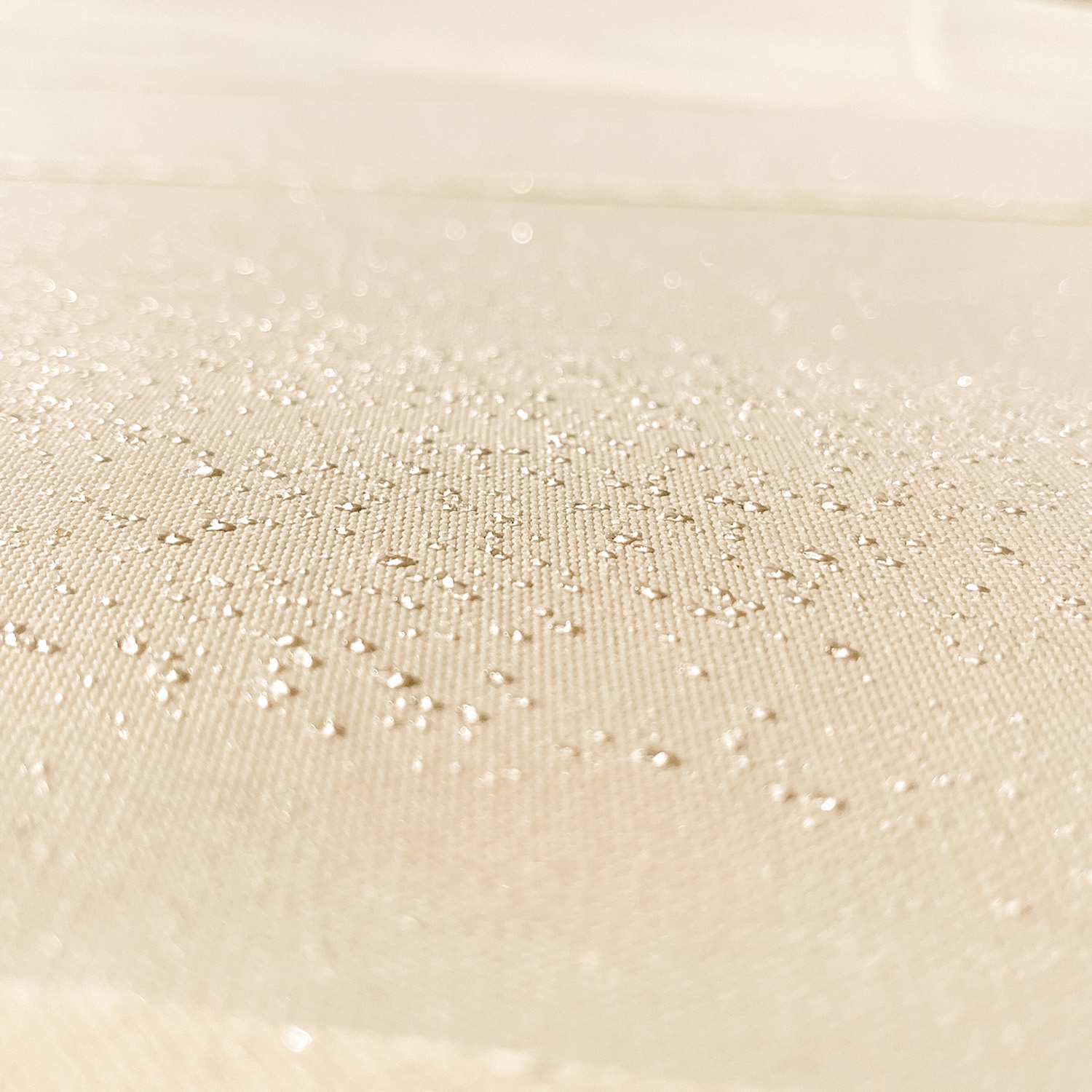

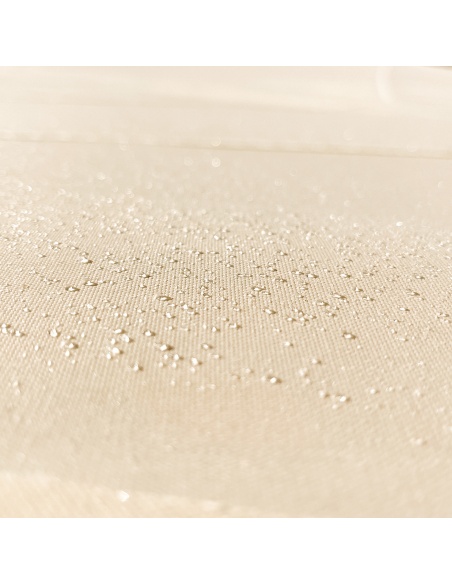

PURISHADE® WATERPROOF FABRIC
The first waterproof yet breathable fabric that respects nature and combines toughness, absolute waterproofness and micro-breathability. It combines eco-friendliness and textile performance with an aesthetic impact of excellence.

Purishade® by its nature is water-repellent, stain-resistant, and resistant to mold, moths and bacteria.
Abrasion resistance is measured by a test (UNI EN ISO 12947): Purishade® required 35,000 cycles, compared with 600 for common polyester and 100 for common acrylic fabrics.
The mechanical strength developed by the fabrics is measured through another laboratory test (UNI EN ISO 13934-2). Here, too, the results are very clear: Purishade® is 40% stronger than other common polyester fabrics.

Purishade® is available in 5 colors: ivory, beige, cloud, white and graphite.
You can continue reading with insights on the Purishade® page or request free samples by clicking here.
DATA SHEET
Model:
Solaria FURL waterproof
Available sizes:
Standard and Custom via online configurator
Total weightVariable based on fabric size
Fabric
Fabric types
Purishade®: Olefin Polypropylene
Fabric weight
Purishade®: 270 gsm
Waterproof
Yes, with sealed seams
Sealed seams
Yes
Maximum area
25 m²
Wind resistance
Purishade®: 51-62 Km/h
Fabric cut
Radial
SAIL STRUCTURE
Cut
Radial
Seams
Triple stitch (zigzag)
Corners
Triple reinforcement
Plates
316 stainless steel
Perimeter
Adjustable straps
FURLER STRUCTURE
Body
Material: Aluminum and Stainless Steel AISI 316
Color: Anodized in blue and stainless steel
Swivel
Material: Aluminum
Color: Stainless Steel
Endless-line
Hand-spliced nautical
PACKAGING
Box sizes
2 boxes, maximum size 48x60x70 cm

Package contents and giveaways

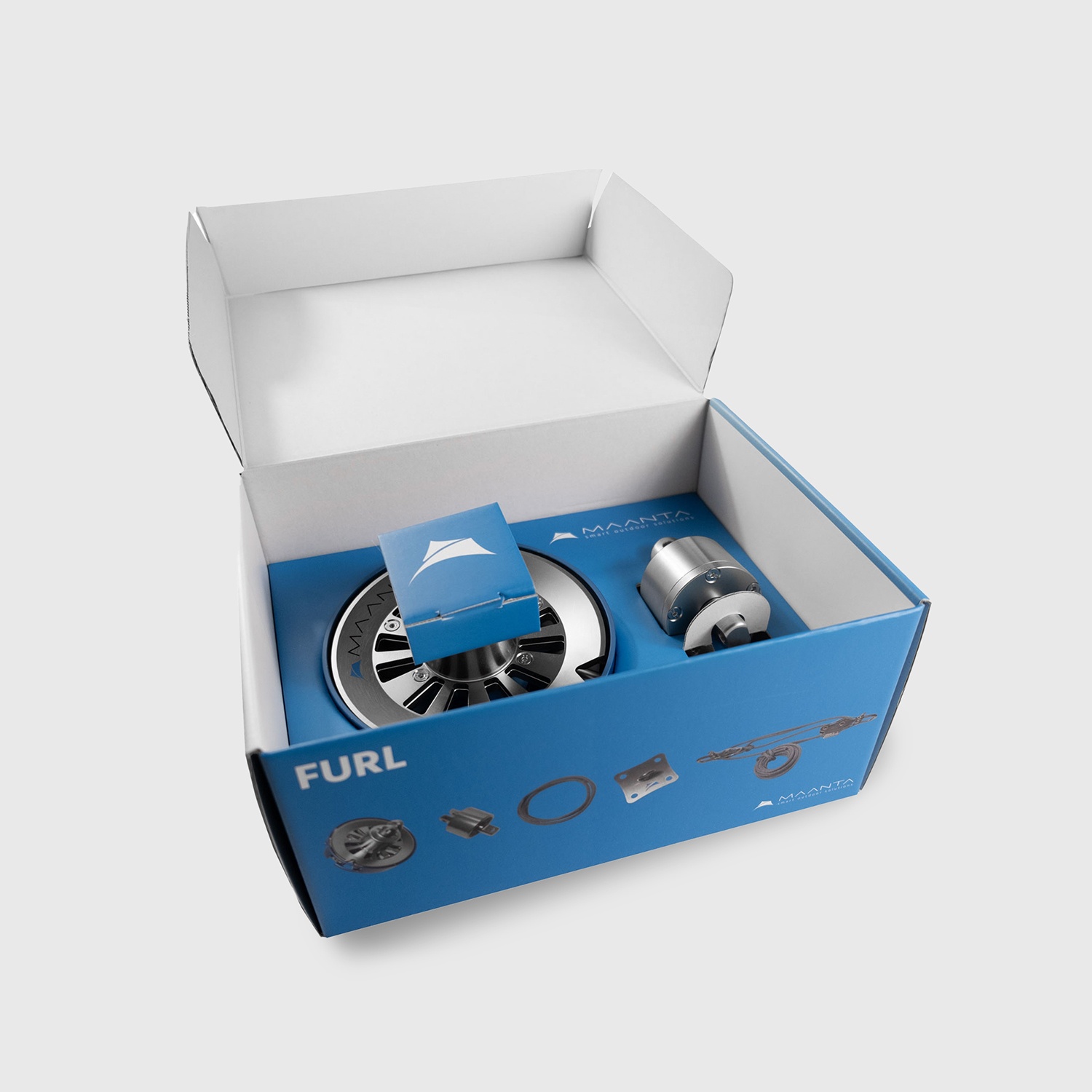

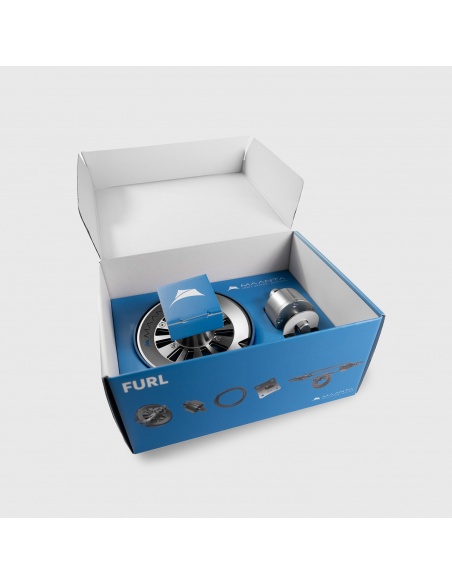

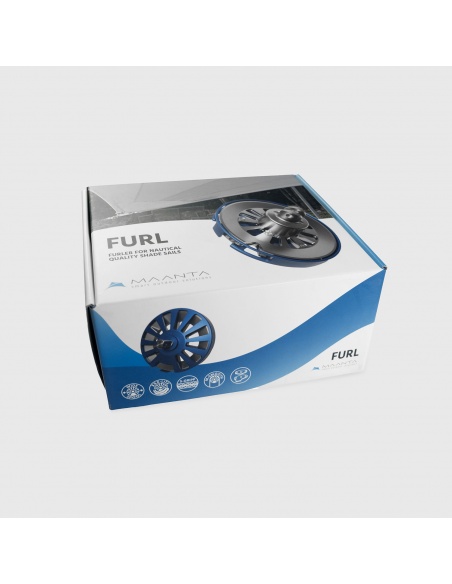

PACKAGE CONTENTS
Solaria FURL waterproof contains all the necessary accessories. This sales policy will allow you to have a complete product without any surprise.
On this page you will find the included elements.
INCLUDED ELEMENTS

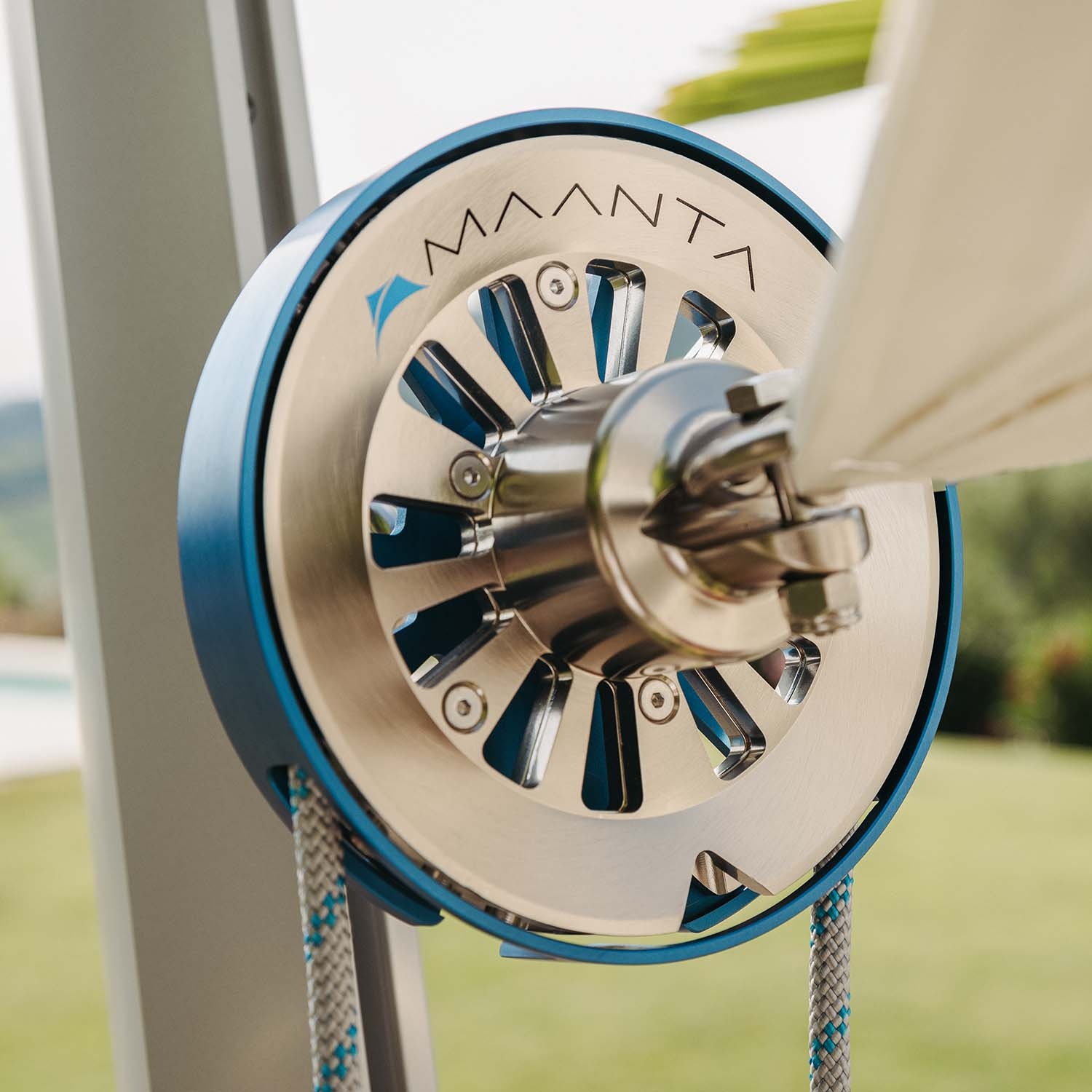

MAANTA FURLER
The furler drum is the heart of the furling system. The furler turns and rolls the sail onto itself via an endless line that fits into the hollow with S-GRIPP technology.
Winder swivel
The swivel is installed on the opposite side of the furler. Thanks to the bearings, it allows the sail to furl without stressing the fabric.
Muscle X3
The system includes a Muscle X3 kit with wall plate, our tensioning system via pulley transmission that allows the sail to be tensioned and the furling diagonal to be secured.
Additional fixing accessories are not included. These may be chosen according to the number of corners to be fixed. See installation examples

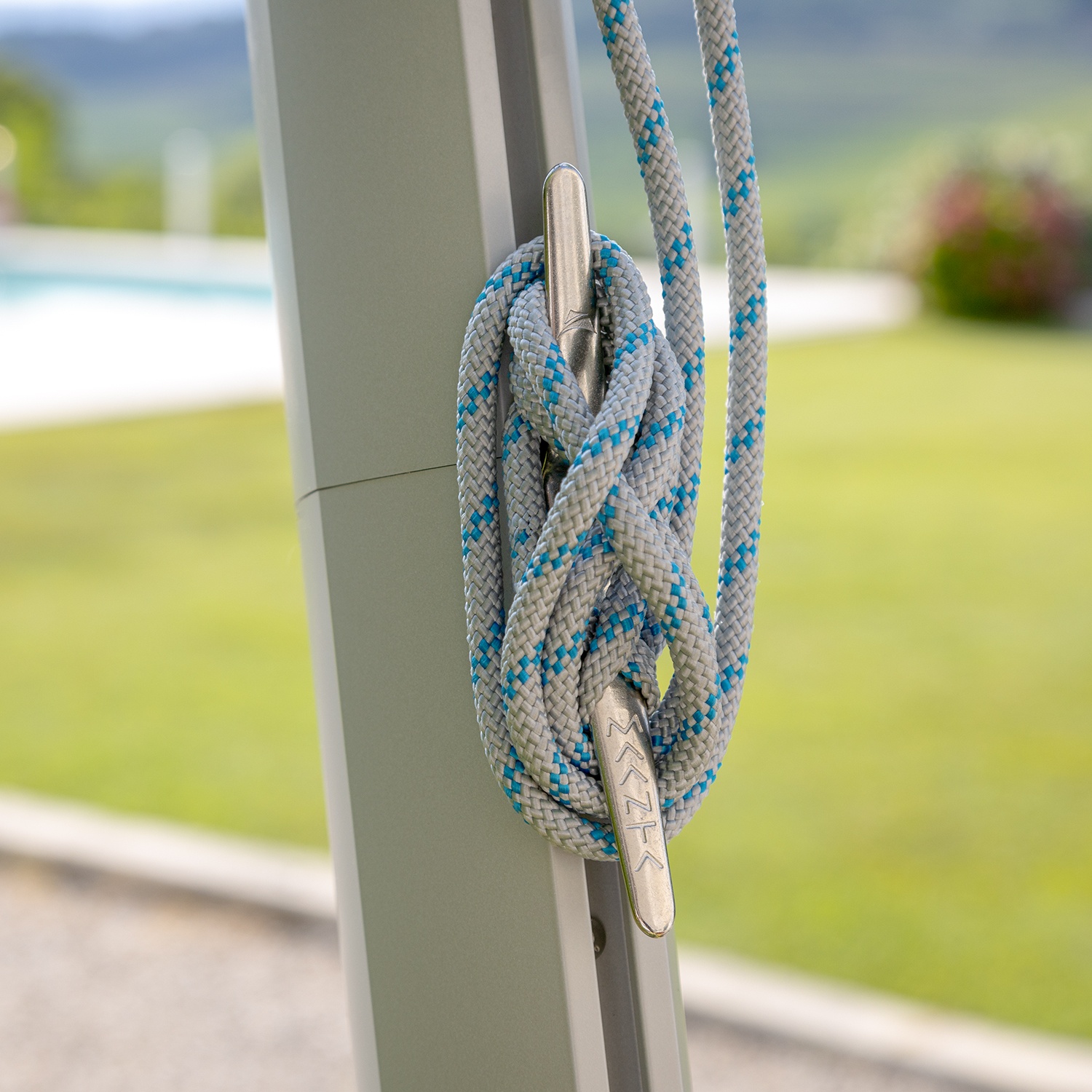

Spliced, endless line
The line used to furl the sail is endless. This avoids having dozens of meters of line that would fall to the ground. The joining is done by hand in Italy.

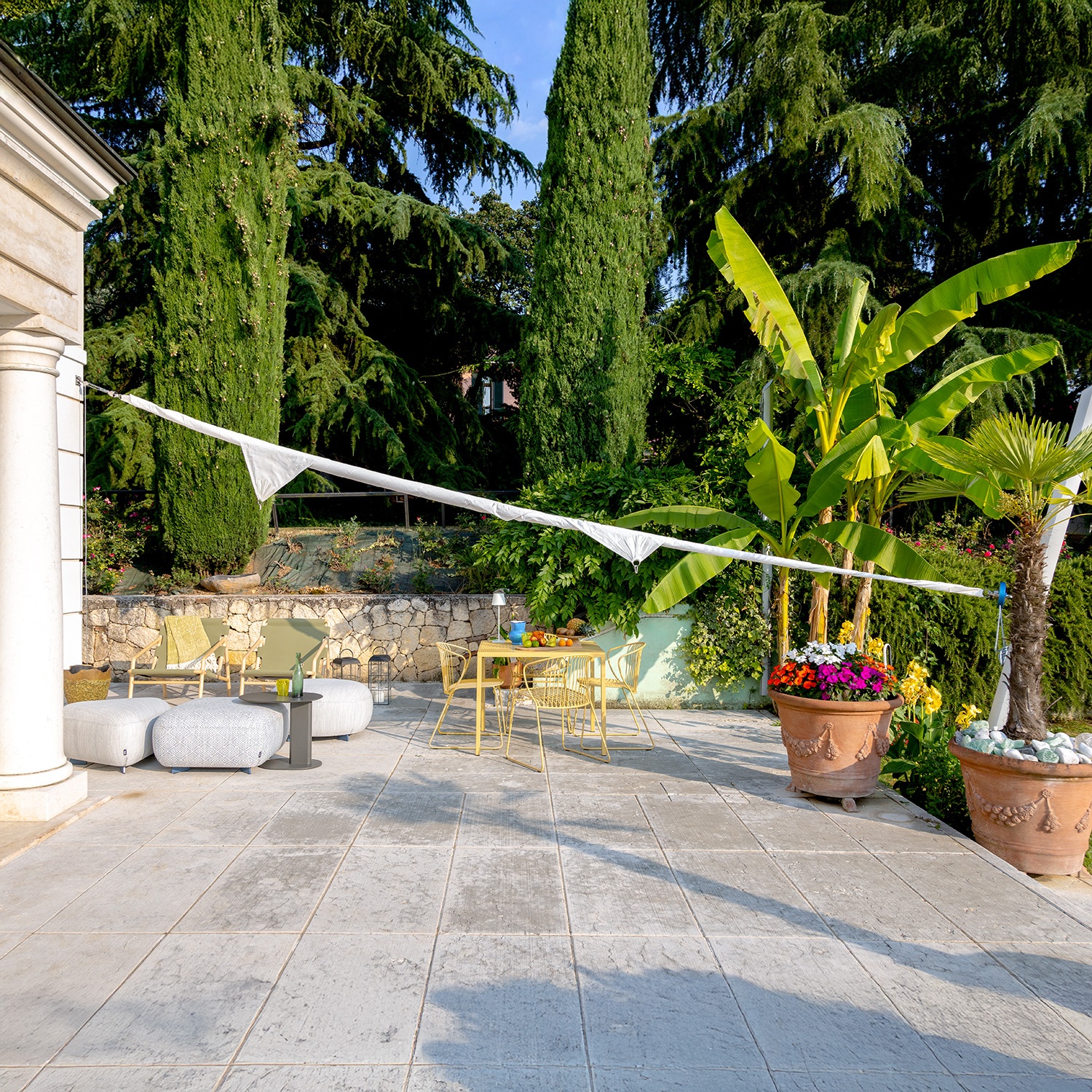

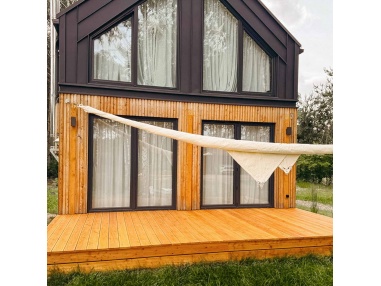

INSTALLATION EXAMPLES AND OPTIONAL ACCESSORIES
Two walls and a Maanta pole
The roll up diagonal AC will be fixed to the two walls. The Furler and its swivel will need to be attached via two optional Muscle X3 kits.

Optional accessories for this configuration:
1 x poleAlu Simple or Ulisse
One wall and two Maanta poles
The roll-up diagonal AC will be attached to the wall and the shade sail pole. Maanta poles already contain the Muscle X3 kit.

Optional accessories for this configuration:
2 x poles Alu Simple or Ulisse
One wall kit and three Maanta poles
The roll-up diagonal AC will be attached to the wall and the shade sail pole. Maanta poles already contain the Muscle X3 kit.

Optional accessories for this configuration:
3 x poles Alu Simple or Ulisse
Four Maanta poles
The roll-up diagonal AC will be attached to the two poles that are included with the Muscle X3 kits.


Optional accessories for this configuration:
4 x poles Alu Simple or Ulisse

Instructions & Info

HOW TO INSTALL SOLARIA FURL
Installing Solaria Furl is easy and does not require
specialized labor or specific equipment.

The furl kit comes pre-assembled,
simply follow the steps in the installation video,
or in the printed guides inside the package.

icon-download

ASSEMBLY INSTRUCTIONS

Data sheet, package contents, assembly guide and warranty.

Download the complete guide
in PDF format
