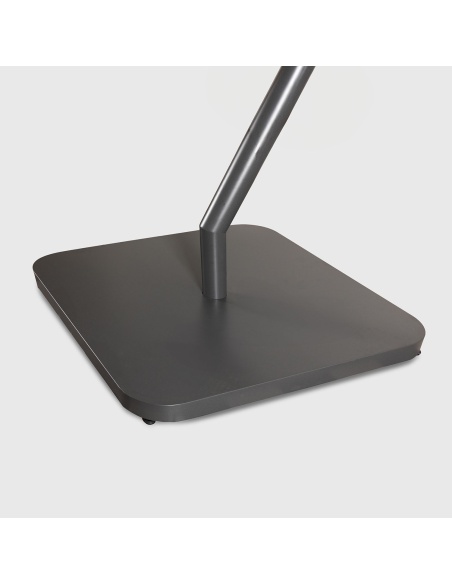

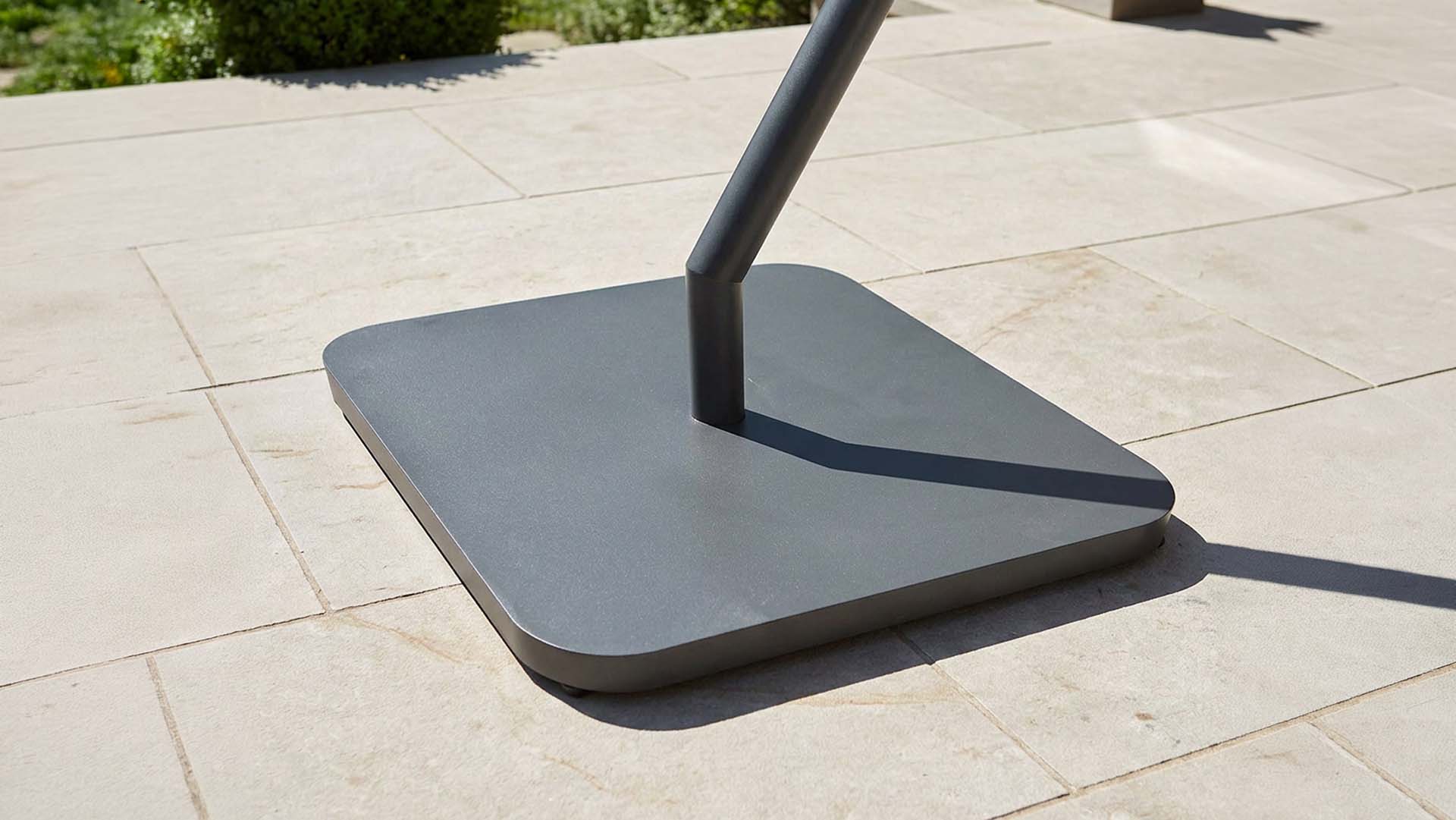

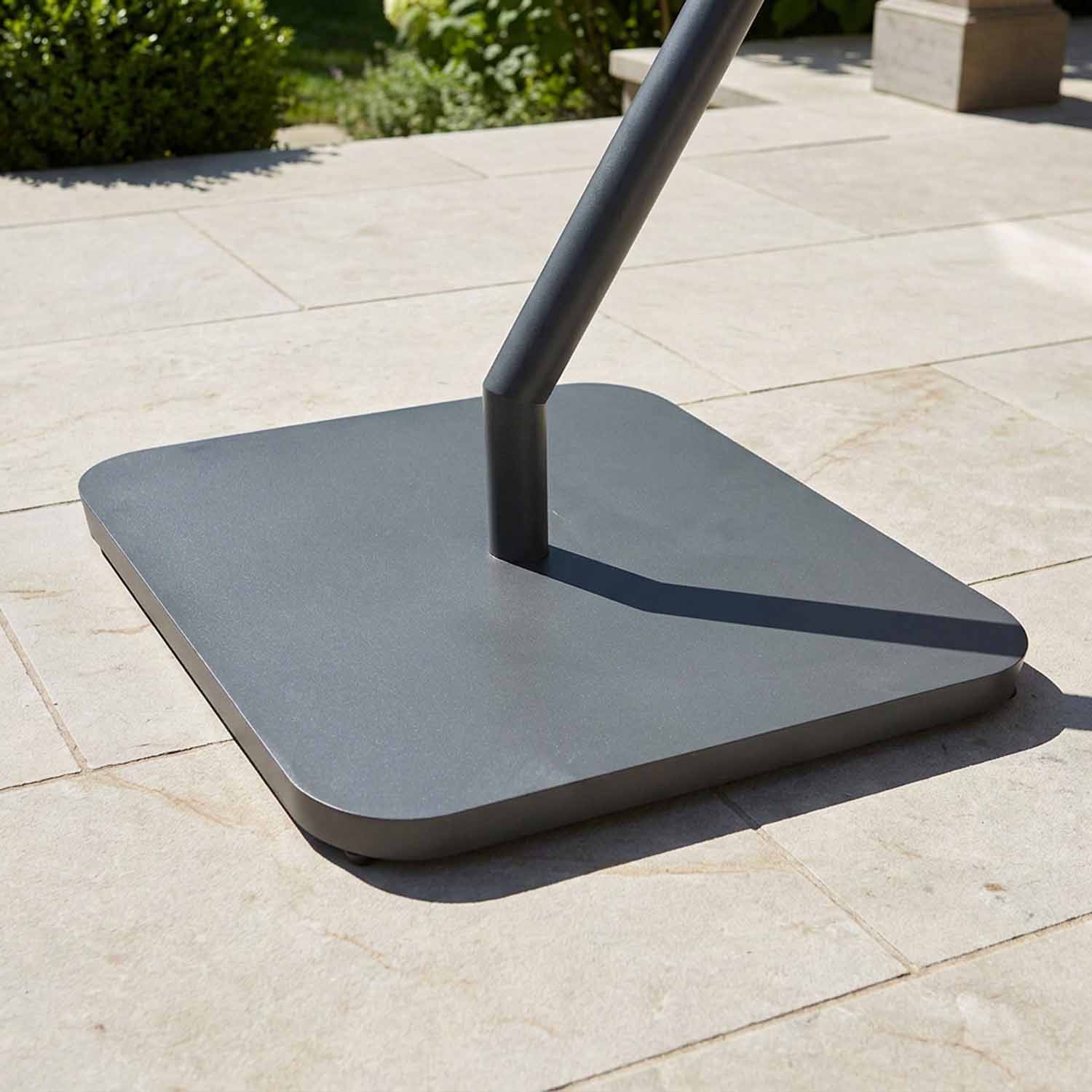

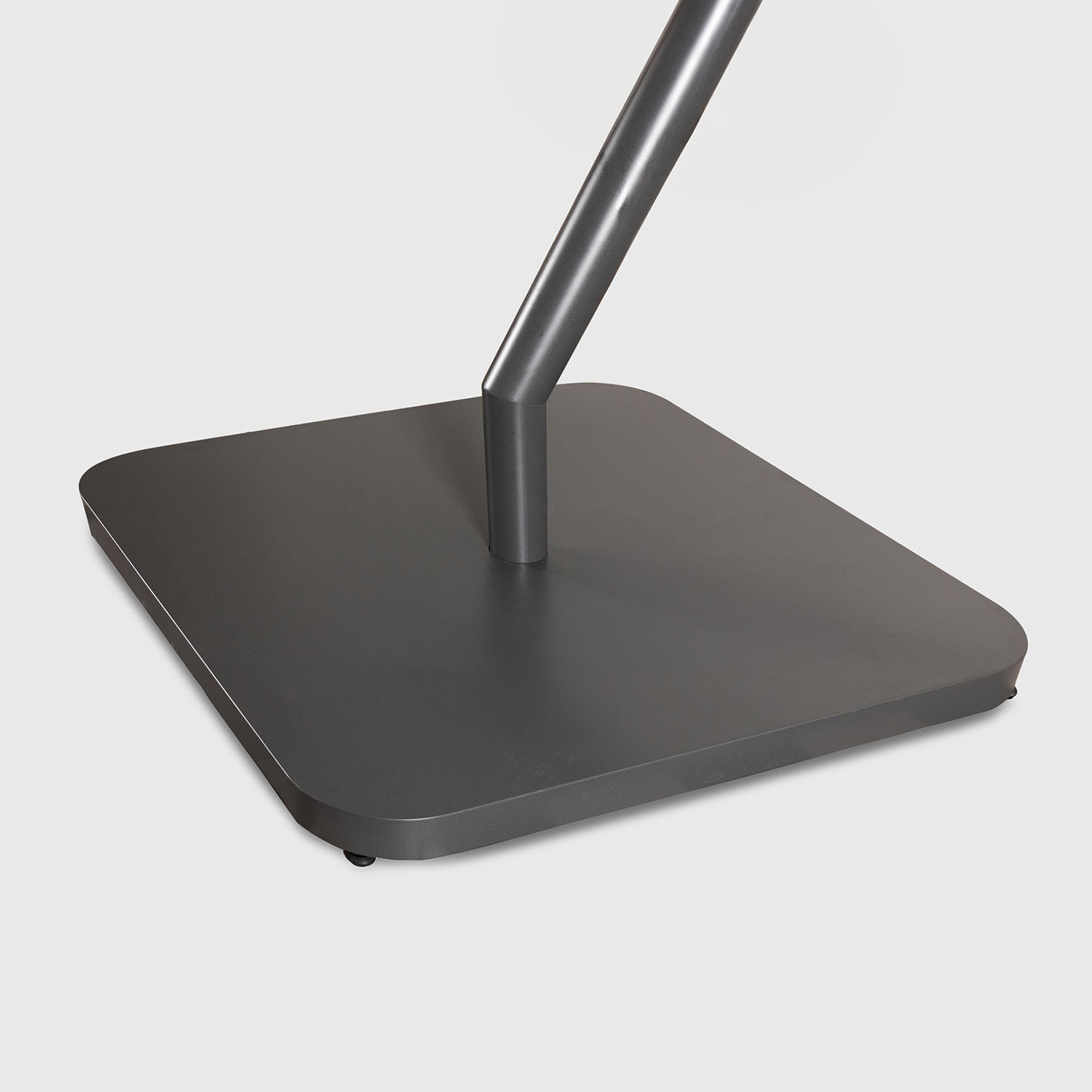

Elicro Weighted Base Free-standing base, no floor drilling

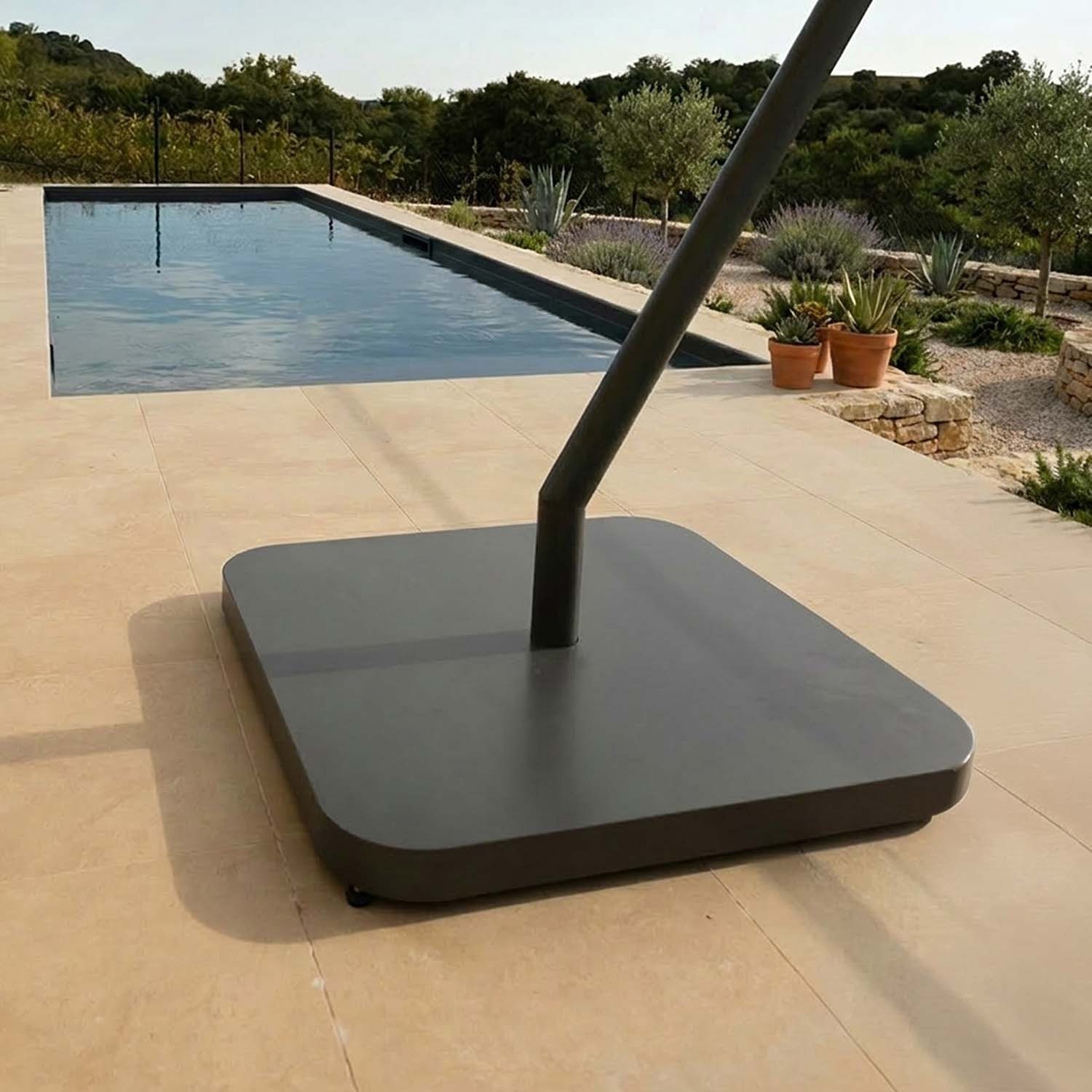

The ballast base makes the Elicro sail parasol freestanding — no need to drill the floor. What holds it steady is the weight of the base plus the slabs you load inside: designed for places where drilling isn't possible or wanted, like a terrace, poolside or any flooring you don't want to damage.

  • Keep Elicro steady without drilling the floor: an alternative to ground anchoring, ideal where you can't or won't cut into the screed.
  • 110×110 cm plate in corrosion-resistant galvanised steel: 50 kg empty with the cover.
  • Four adjustable feet with 30 mm of travel: compensate for uneven ground and keep Elicro level even on irregular terraces.
  • Standard slabs not included, available off the shelf: 4 slabs of 50×50 cm.

Total price

€ 975.00
truck
truck
Order now and receive it by
with DHL Express

Free design service

After-Sales Service

Delivery 24 / 48 hours

Product Overview

What is the ballast base for

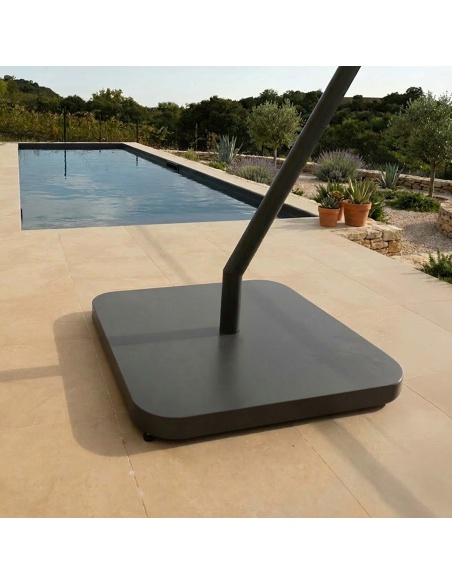

If you want to position Elicro in a place where drilling is not possible, for example a terrace you want to preserve, a poolside, or an apartment building, the ballast base makes it self-supporting, with no need to anchor it to the floor.

You ballast it with simple concrete slabs, available at any DIY store: place the plate, arrange the slabs, level with the feet and close with the cover, with no need for specialist labour.

What is the ballast base for

If you want to position Elicro in a place where drilling is not possible, for example a terrace you want to preserve, a poolside, or an apartment building, the ballast base makes it self-supporting, with no need to anchor it to the floor.

You ballast it with simple concrete slabs, available at any DIY store: place the plate, arrange the slabs, level with the feet and close with the cover, with no need for specialist labour.

Key Features

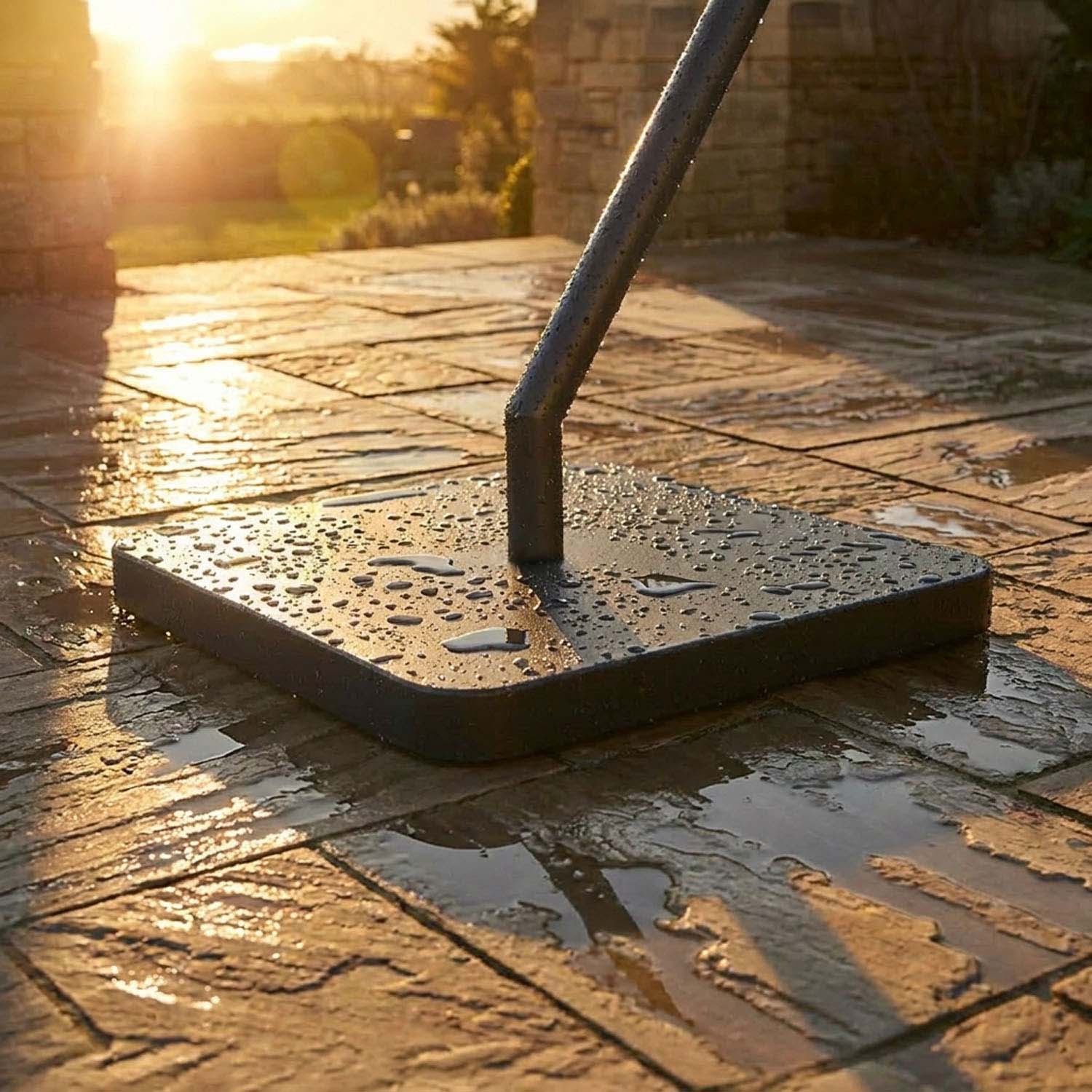

Galvanised steel anti-corrosion
Structure

Rust-resistant

110×110×8 cm galvanised steel plate, designed by our R&D team to withstand the harshest weather conditions.

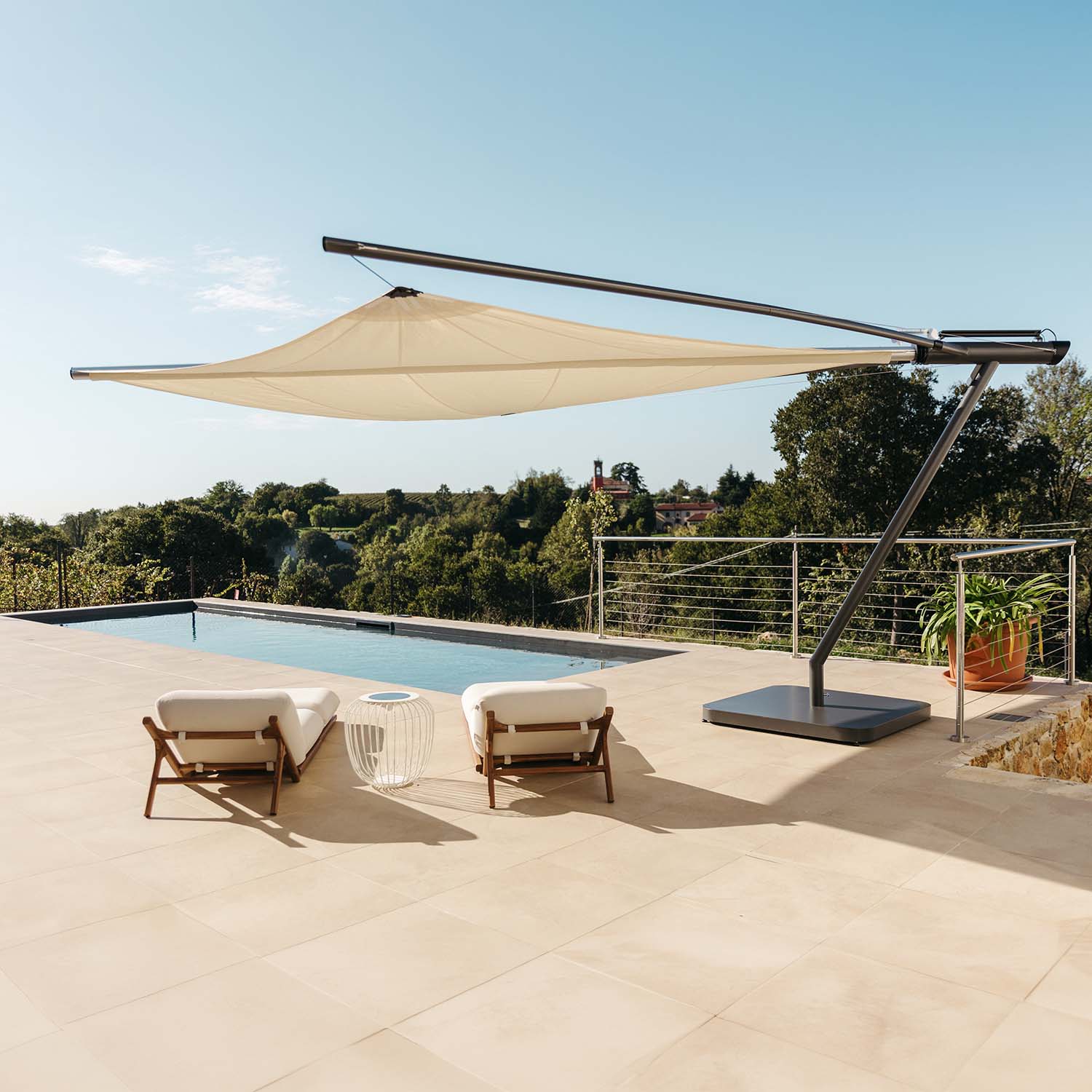

No drilling required
Installation

Ideal for terraces too

The total weight of the parasol and base transferred to the ground is designed to stay within standard floor slab limits, making it ideal for large terraces.

Four adjustable feet
Levelling

Four adjustable feet

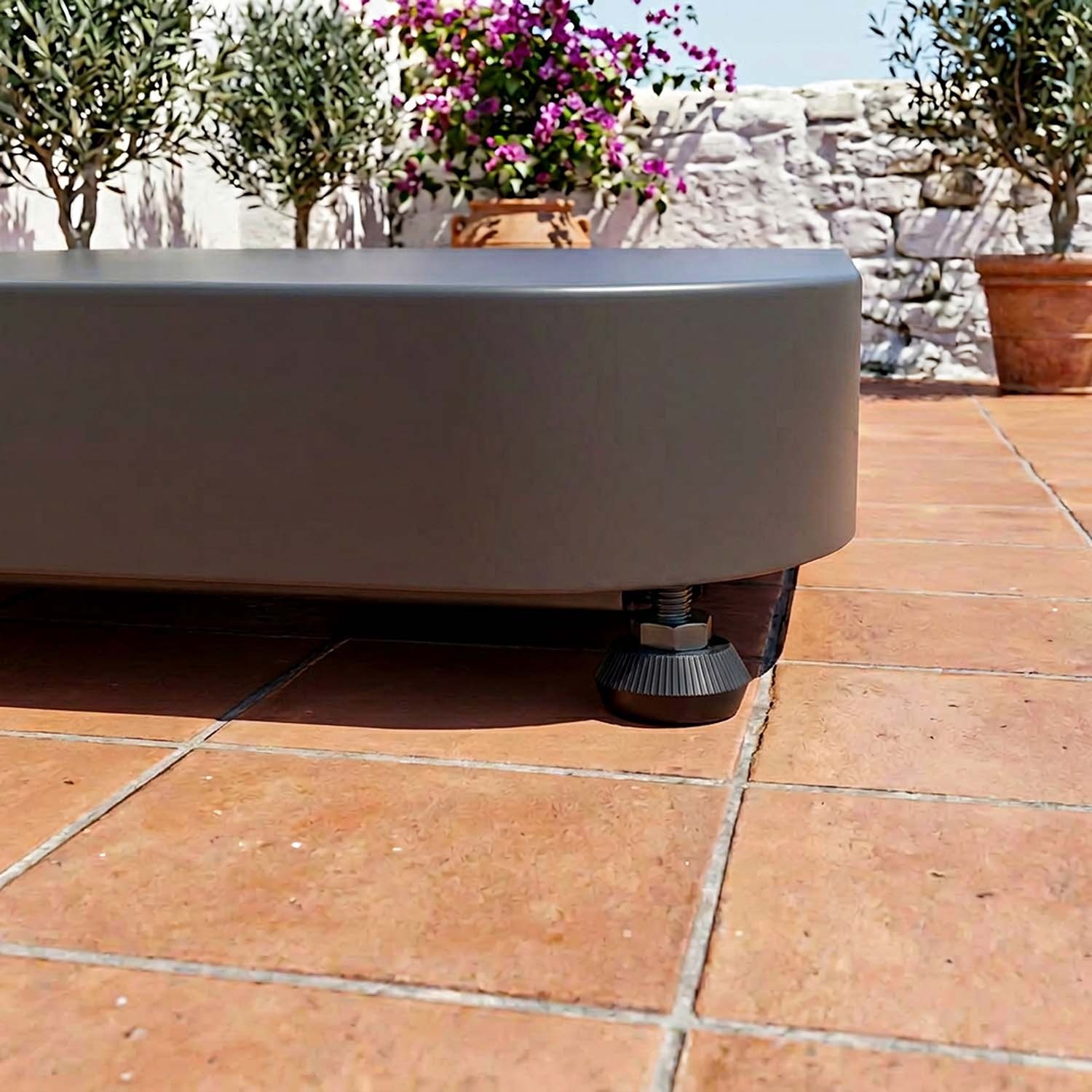

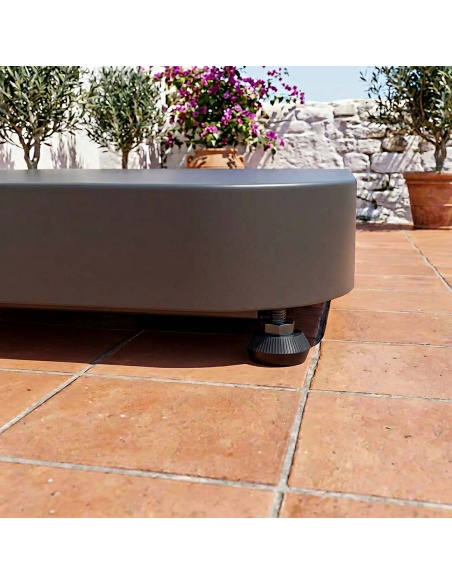

One per corner, 30 mm of travel: they compensate for uneven surfaces and keep Elicro level even on irregular terraces.

Get inspired

Everything you need: guides and instructions

Document / Video Action

Technical specifications

Structure


Compatibility

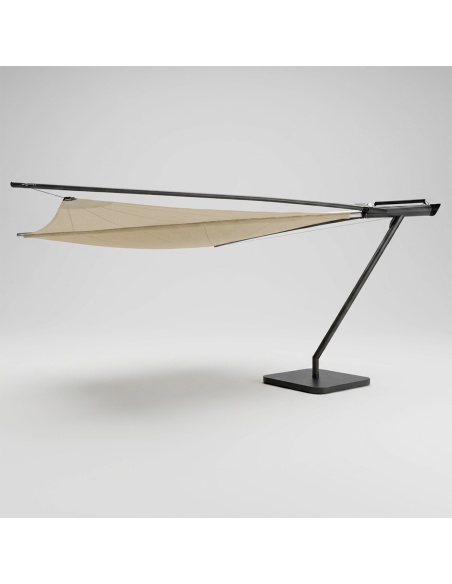

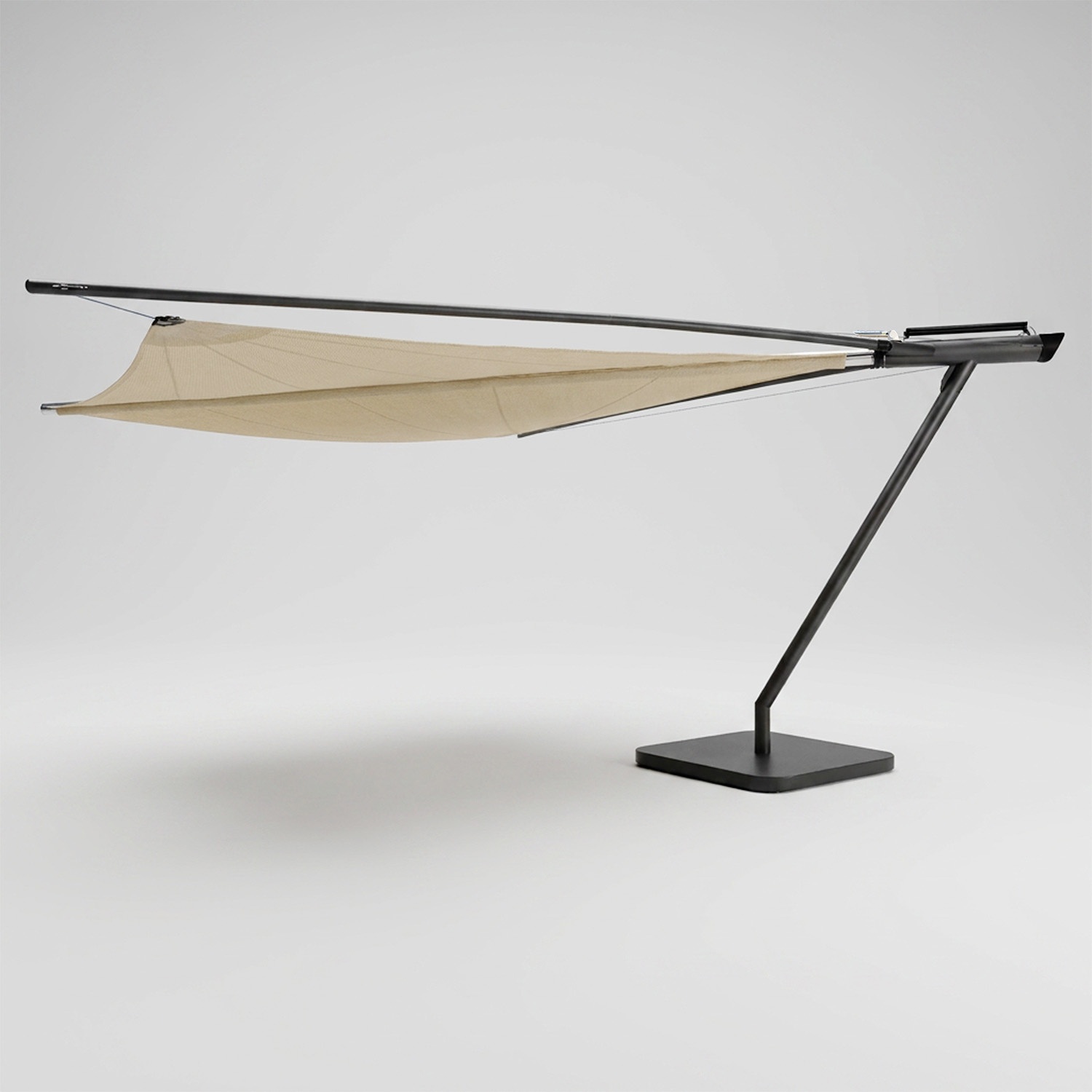

Elicro shade sail parasol, all configurations (3.6×3.6 / 4×4×3.65×3.65 / 4×4)

Function

Installation of Elicro without floor anchoring, as an alternative to fixing with anchor bolts

Base material

Anti-corrosion galvanised iron

Base dimensions

110 × 110 × 8 cm

Footprint

1.21 m²

Empty base weight (with lid)

50 kg

Lid (LID)

Galvanised and powder-coated iron · removable for access to the ballast · anti-rotation centring plates

Adjustable feet

4 (one per corner) · 30 mm travel · to compensate for uneven floors

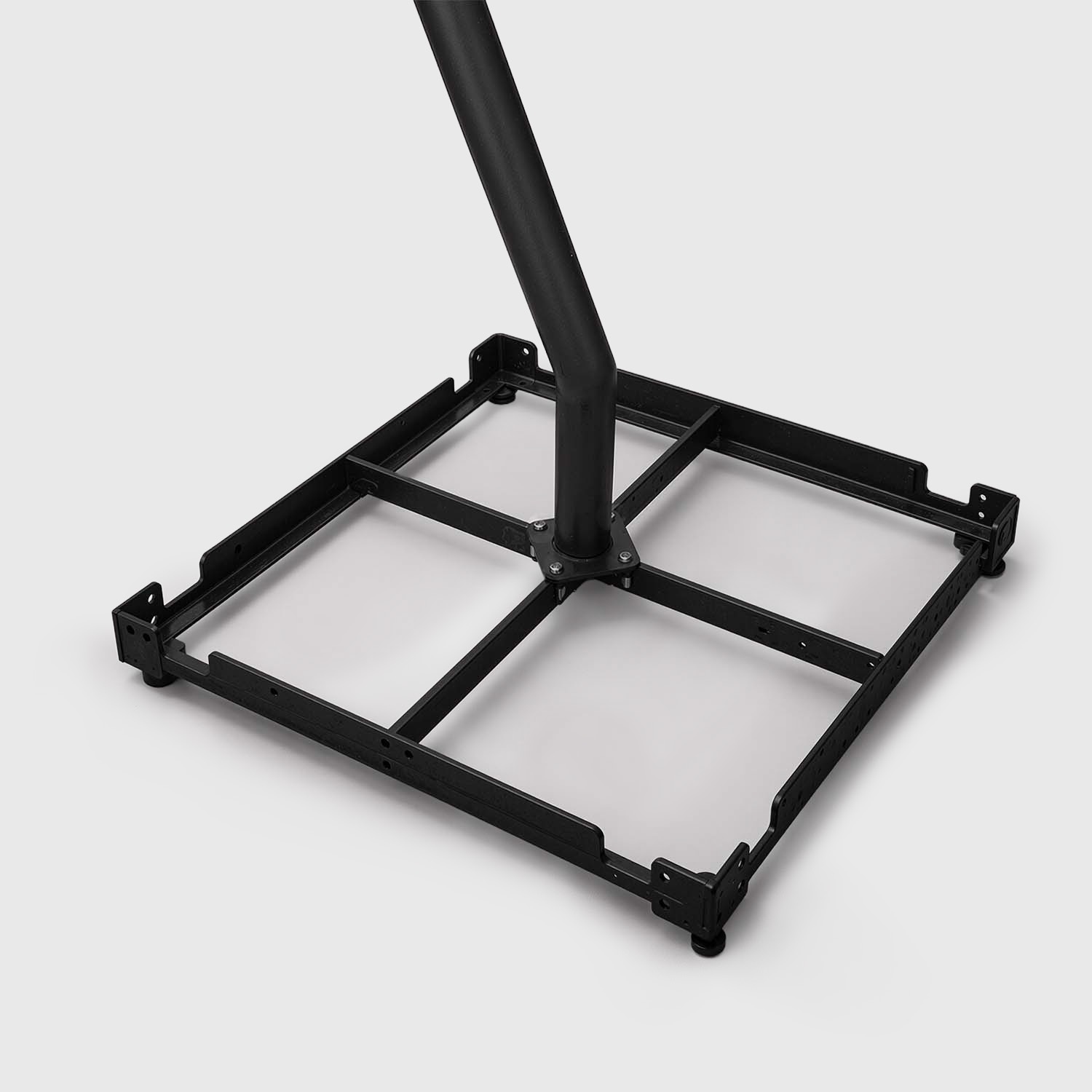

Ballast compartments

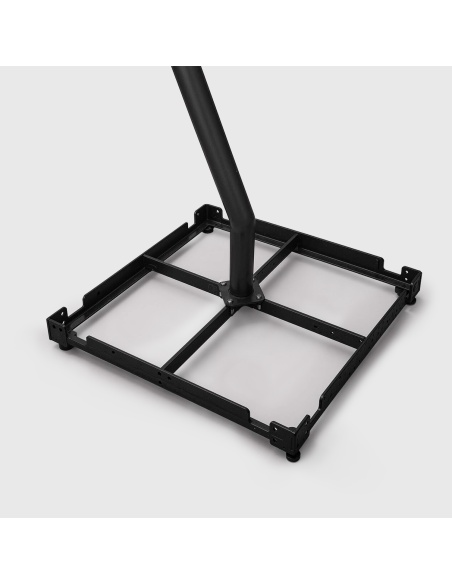

4 measuring 50×50 cm + 4 optional measuring 40×40 cm

Required ballast

Not included. Up to 8 slabs: 4 mandatory measuring 50×50 cm + 4 optional smaller ones. All commercially available and to be purchased separately.

Complete system weight

Approximately 200 kg (Elicro + base + 4 mandatory ballast slabs)

Ground load

Approximately 165 kg/m² · compatible with floors built to legal standards (minimum load capacity 200 kg/m² for habitable floors)

Elicro height with ballastable base

249 cm

Package contents

1 galvanised iron base + 1 LID lid + 4 adjustable feet.

Material not included but required

4 ballast slabs

Warranty

2 years

Read less -

Read more +

What you receive with the Ballast Base for Elicro

FAQ

FAQ

It keeps Elicro firmly in place without drilling into the ground: it's the alternative to floor anchoring with wall plugs (included with Elicro), where the weight of the ballast does the job that holes in the screed would otherwise do.

No. It is an optional accessory that can be purchased separately, if you want to install Elicro without drilling into the floor.

Perfect for terraces, balconies, and surfaces you cannot or prefer not to drill into: tiled flooring, flat installations in shared buildings, and poolside areas.

110×110×8 cm, 50 kg empty with the lid. With the required ballast weights, the complete system with Elicro reaches approximately 200 kg.

The frame is made of galvanised anti-corrosion iron, while the cover is finished in powder-coated iron — the same treatment used on Elicro: rust-resistant and perfectly suited to coastal areas too.

The cover, made from powder-coated steel, protects the ballast weights and gives the base a neat, finished look. It is removable, so you can easily access the slabs whenever needed.

Yes, slightly: with the ballast base, Elicro stands at 249 cm, compared to 240 cm with the floor fixing.

No, the ballast weights are not included. You will need 4 slabs measuring 50×50 cm, approximately 20 kg each (80 kg in total). The base arrives complete with a lid and feet, ready to receive them.

They are standard 50×50 cm concrete slabs, widely available at any DIY store or garden centre across British high streets and retail parks. No proprietary spare parts to order.

Yes, the base can accommodate 4 optional 40×40 cm slabs (approximately 12 kg each). However, they bring the total system weight to around 248 kg: we do not recommend them for terraces or flat roofs, and we suggest reserving them for suitably rated concrete slabs or ground-level installations.

With the required ballast, the complete system weighs approximately 165 kg/m², a value compatible with structurally compliant floor slabs (minimum load capacity of 200 kg/m² for habitable floors). For specific cases, have the load capacity checked by a qualified engineer.

No. The base simply rests and is ballasted; the 4 adjustable feet, with 30 mm of travel, compensate for uneven surfaces and level Elicro perfectly.

Practically none: galvanised steel is maintenance-free under normal conditions. In coastal areas, we recommend a periodic visual check and a rinse with fresh water to remove salt deposits.

2 years from the date of purchase, managed directly by Maanta.

Manufacturing defects in the structure.

You can reach us via the contact page on our website or directly through our customer service address. Support is handled directly by Maanta, with no middlemen involved.
