Maistra The retractable designer aluminum canopy / umbrella

The innovative Maistra pergola canopy is entirely made in Italy with absolute quality raw materials designed for outdoor use.
The opening and closing maneuvers are incredibly fluid and fast. Delivery in a few days, do-it-yourself assembly in just a few hours.

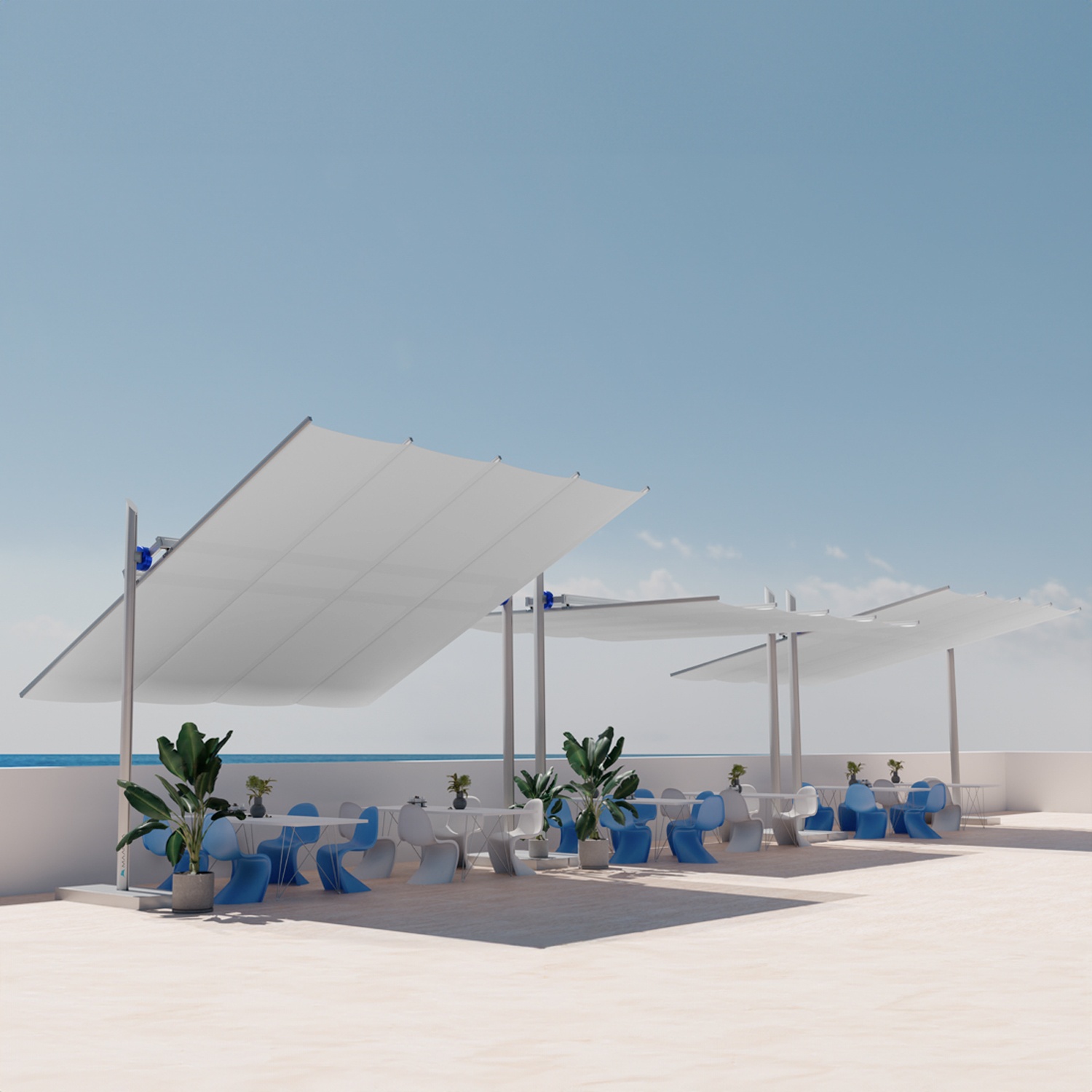

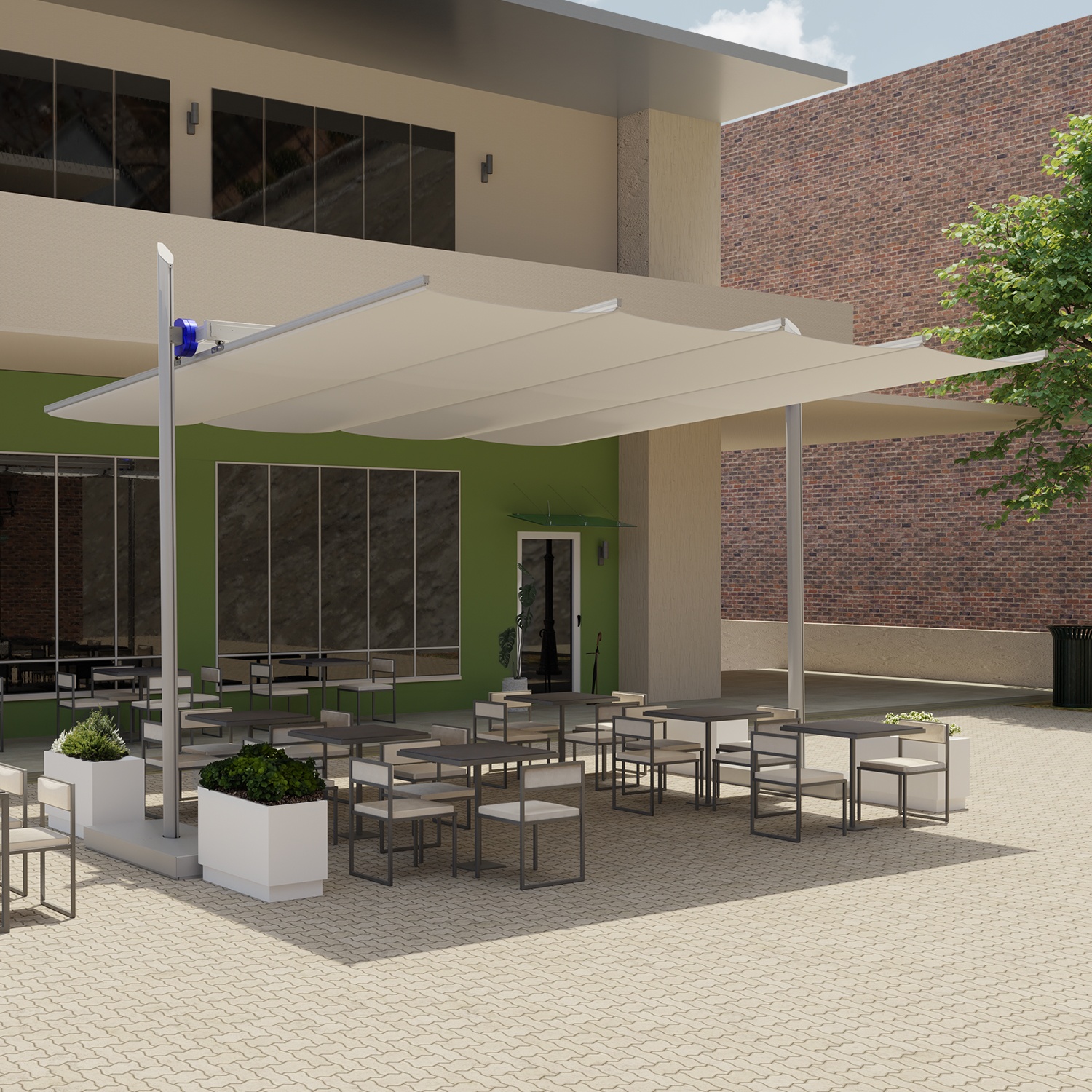

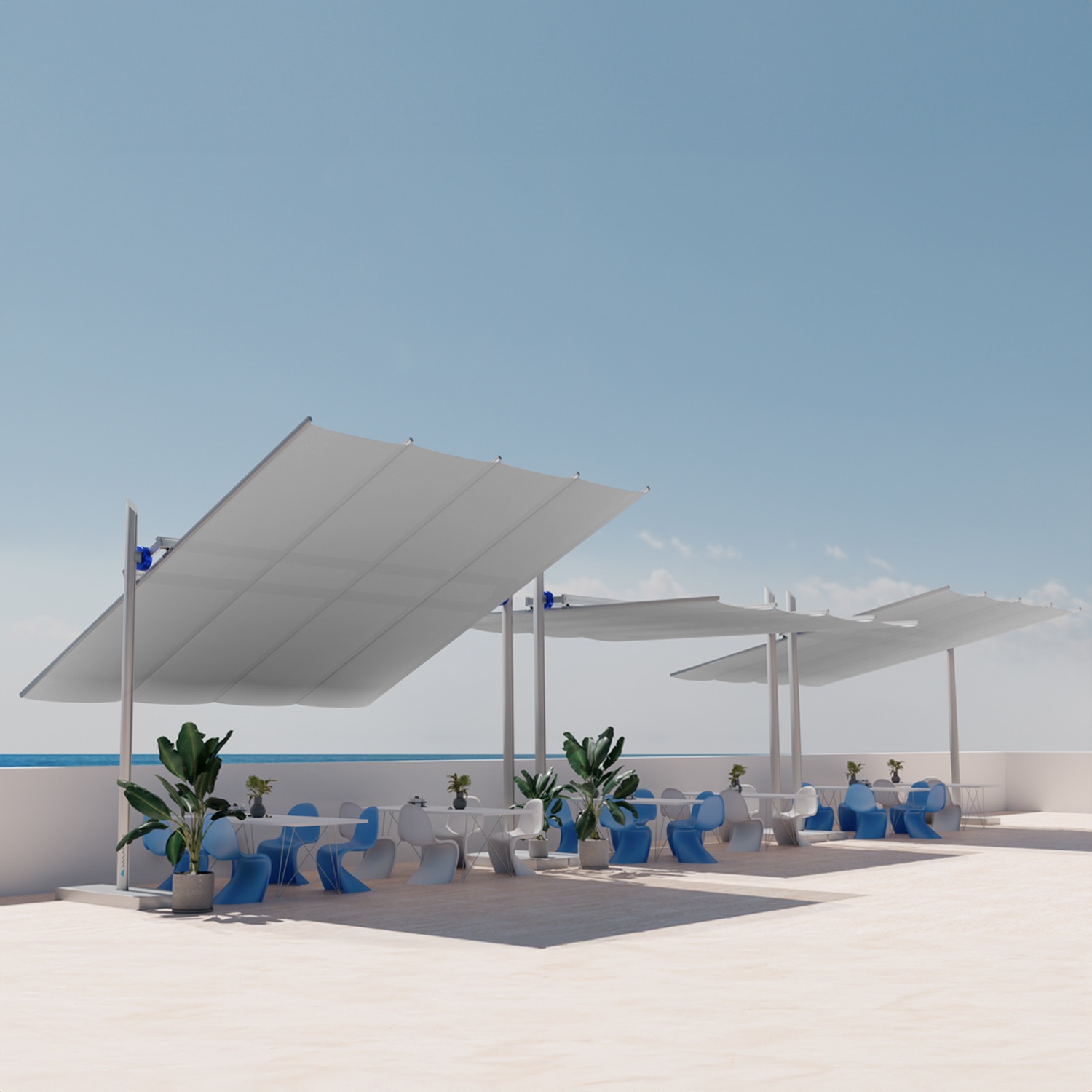

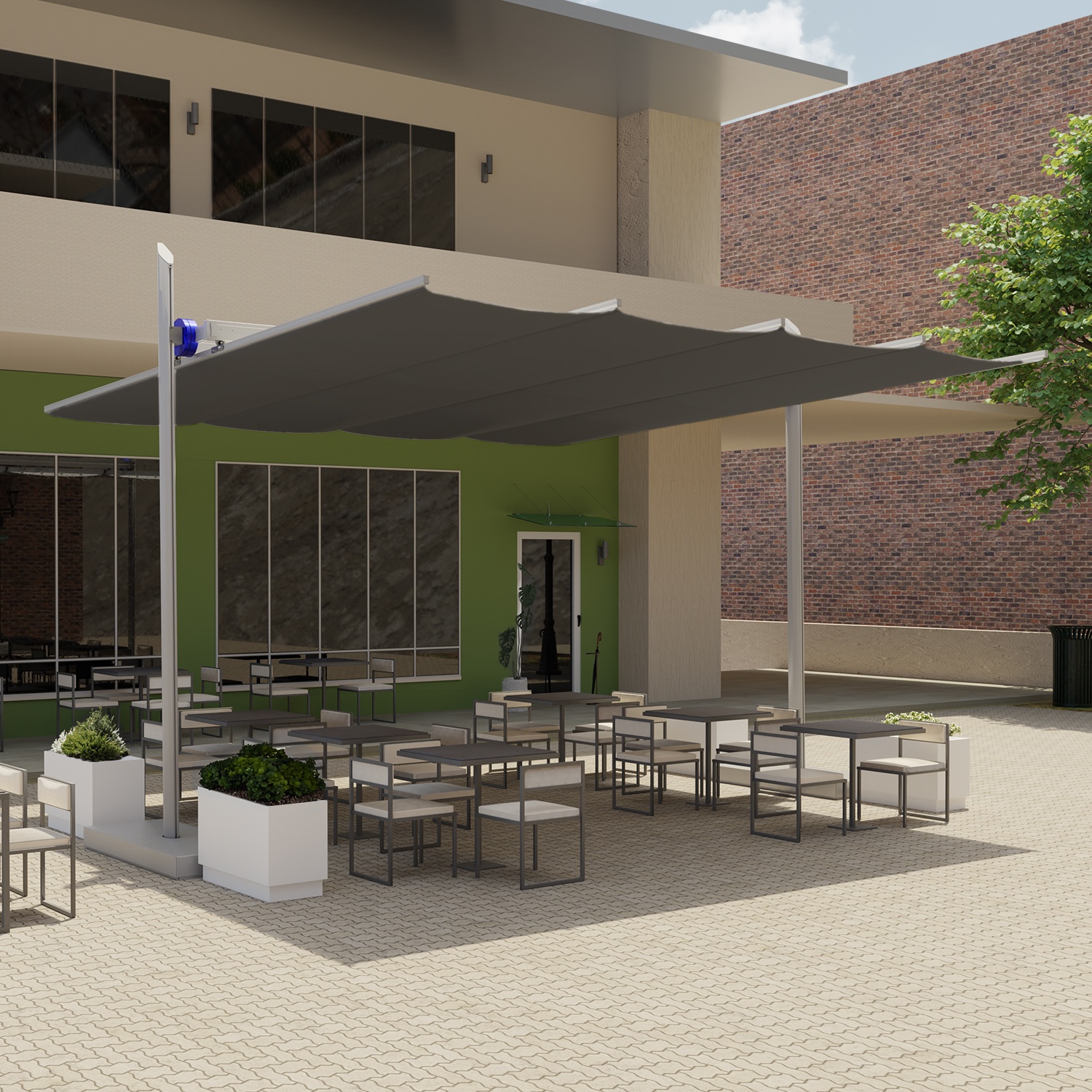

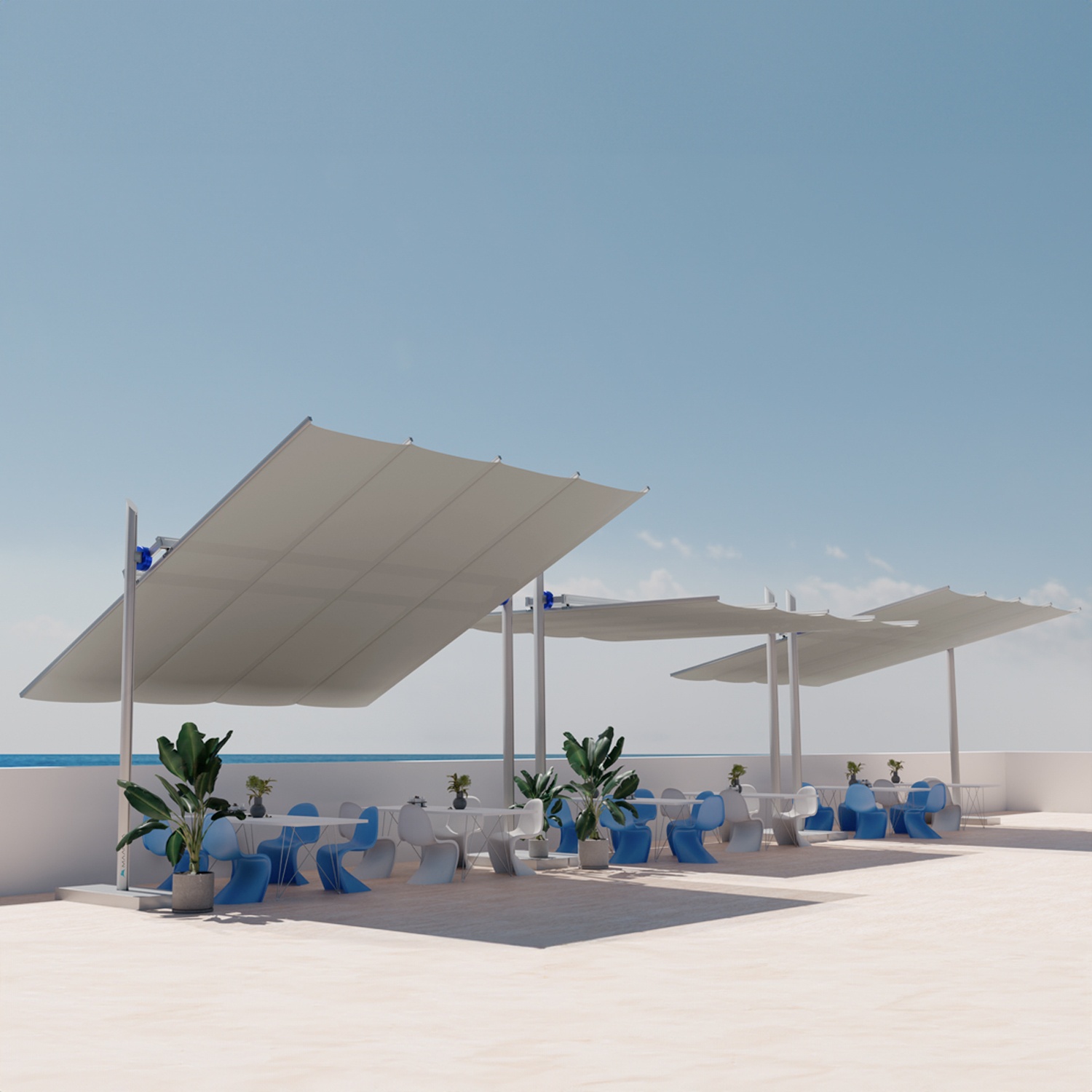

Maistra will give a stunning look in all situations and places such as gardens, patios, near a swimming pool or to decorate bars and restaurants.

  • PP Purishade® cover fabric, very low environmental impact, mold and bacteria resistant, breathable and waterproof
  • Rotary lock-pin technology that allows both great stability in all situations and roof tilting
  • Robust and maintenance-free materials
  • Wind resistance up to 62 km/h (depending on the type of installation)
  • Smooth opening and closing maneuvers

Do you want to receive a personalized offer and more information about the product?
Contact our technical team by filling out the contact form
or call us on ✆ +44 33 0808 8140

Size: 3x3m
Fabric colour: White Purishade®
  • White Purishade®
  • Ivory Purishade®
  • Cloud Purishade®
  • Beige Purishade®
  • Graphite Purishade®
-30% €3,670.00
€2,569.00
truck
truck
Order now and receive it
with UPS Carbon Neutral

YOU CAN TRUST

  • garanzia

    Free design service

  • 1-milione-vendite

    Delivery 24 / 48 hours

  • aiuto-progettazione

    After-Sales Service

Description

MAISTRA: THE DESIGNER PERGOLA FOR GARDEN AND TERRACE
Maistra is a pergola canopy produced entirely in Italy with top-quality raw materials designed specifically for outdoor use. In fact, the aluminum and polypropylene are maintenance-free and will not present problems of rust and mold. The design combines elements of essentiality, modernity and elegance and will allow to give a wonderful look in all situations and places such as gardens, patios, near a swimming pool or to furnish bars and restaurants.

You can spend time on the patio without having to worry about excessive sun exposure, as Maistra provides pleasant shade. The breathable fabric will promote enough air circulation to allow for a freshness diffculty to be found with other fabrics. The unique Rotary Lock-Pin joint at the same time gives great stability to the roof and also allows it to rotate in a variety of positions, having the ability to optimize the cone of shade and thus effective protection from the sun.
ROTARY LOCK-PIN
It is one of the secrets of this structure. It is made from a solid piece of aluminum: our CNC machining center hollows out this component. This machining from solid thus gives unparalleled structural strength. The roof attaches to the poles by fitting the profile into this joint, which will "embrace" it, holding it steady and stable in its various positions.
DESIGN AND PRECISION: DEDICATION TO PERFECTIONISM
Our dedication to perfectionism sometimes slows down and lengthens design timelines, but Rome wasn't built in six months either! We want to put not only beautiful products into the market, but also functional and useful ones.
In Maistra, every element is designed and perfected to be performant, without forgetting that Maanta touch of design. Smoothness of joints, carriages and precision in adjustments are prorogative elements of Maistra.
FLUIDITY
Roof opening and closing maneuvers are very smooth thanks to the innovative aluminum rail and optimal load distribution. It will not feel like handling 15-20 square meters of roofing at all!
PURISHADE® ECO-FRIENDLINESS
The great abrasion resistance of our Purishade® will allow endless openings/closures without fabric wear problems. The low environmental impact will allow us to be environmentally friendly, and the great breathability of the fabric will give us cool shade while avoiding heat hoods!
BENEFITS
COVER CAN BE OPENED/CLOSED IN SECONDS
Thanks to the internal rail, moving the roof will be very easy in seconds!
DESIGN
The modern, essential and minimalist design fits all situations. It furnishes, tastefully, any outdoor space.
ROBUST MATERIALS AND MAINTENANCE-FREE
The choice of combining aluminum elements and polypropylene fabric was made to avoid rust and wear problems that would be very troublesome.
ENVIRONMENTAL RESPECT
Both aluminum and polypropylene are easily recyclable and environmentally friendly materials.
EASE OF UNLOADING AND ASSEMBLY
Upon receipt of the goods, there will be no need for forklifts. Assembly will take two hours in two people!

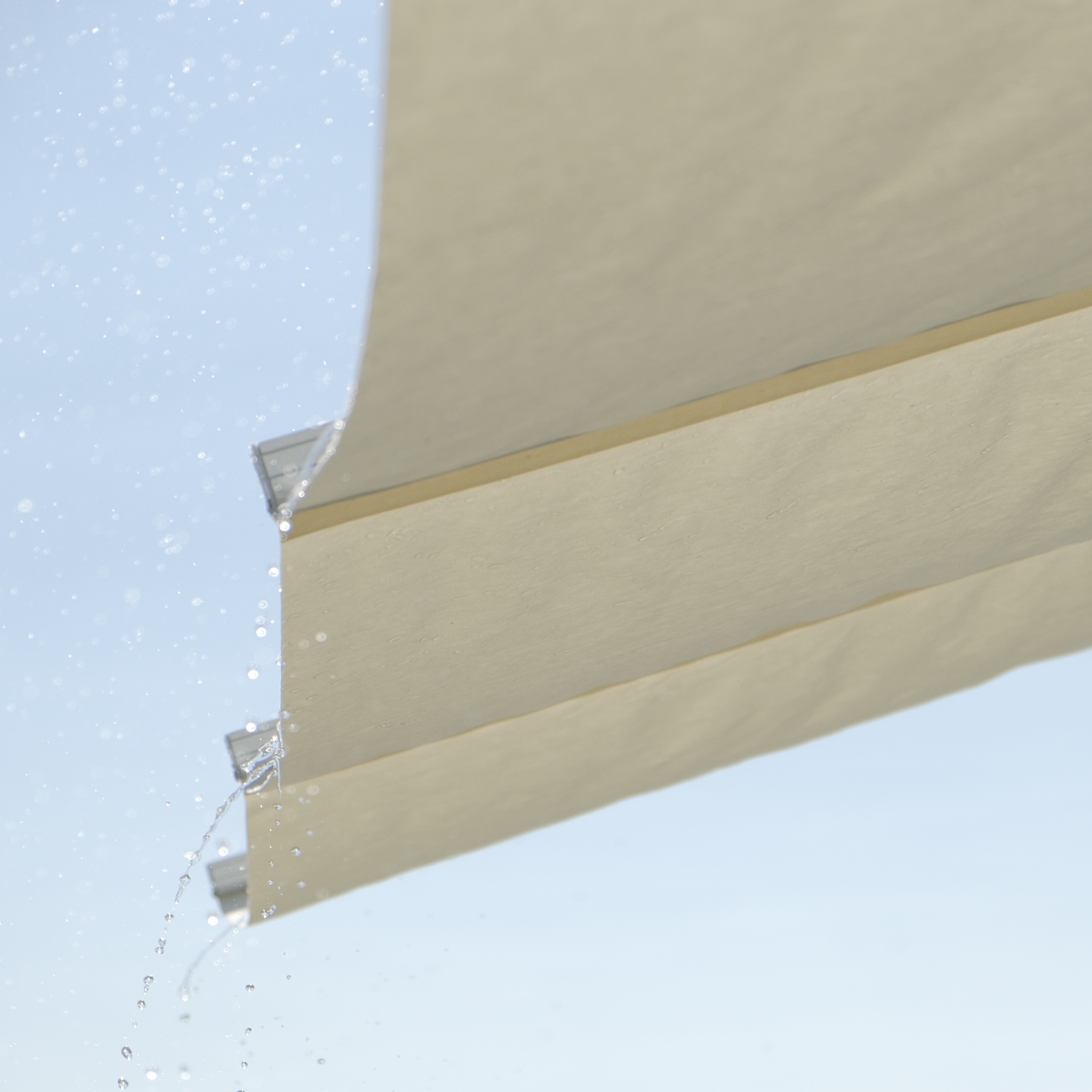

SHELTER FROM DEW, NO-CONDENSATION
Maistra will offer shelter from evening dew while eliminating the annoying problem of rising condensation, thanks to the breathability of the fabric!
ABRASION-RESISTANT AND ANTI-MILDEW
Purishade® fabric is extremely abrasion resistant and will not have problems with wear and tear due to the many openings and closures. It is also resistant to mildew!
NO CENTRAL POLE
Maistra is designed to have no central pole, thanks to the side support poles, the space in the shade area is free and totally usable.
MaistraCanopyPergolaBioclimatic
RetractableYesNoNoYes
Adjustable roof heightYesNoNoNo
Adjustable roof tiltYesNoNoNo
Anchorable to the groundYes, base plate included 10 mm thicknessYes, base plate 5 mm thickOptional base plateYes
Optional ballasted baseYes, with stainless steel lidNoNoNo
Additional moduleOptional, lower cost than whole structureNoNoNo
Wind resistance
Fabric typePurishade®Polyester dope dyedNDAluminum slats
Fabric weight270 gsm250 gsmNDND
Moisture evaporationNDND
Eco-friendly fabricNDND
Color persistenceNDND
Perceived freshnessNDND
Mold resistanceNDND
Abrasion resistance
ND
ND

Data sheet

Maistra: the first freestanding height-adjustable canopy!
Designed and made entirely in Italy, Maistra features the innovative Rotary Lock-Pin system, which allows tilting for optimal shade cone adjustment.
The smoothness of rotation achieved by machining the billet joints to tenth-of-a-millimeter precision is unmatched by any other product on the market.

Maanta's research and development team has been well attentive to customer needs and demands, integrating technology with an eye to the environment.
The fabric used in Maistra is Purishade®, an environmentally friendly fabric created from a yarn made of polypropylene, a synthetic thermoplastic polymer derived from oil and natural gas production. Giulio Natta, polymerized propylene gas and made a plastic polypropylene at commercial cost.

Water-repellent, stain-resistant, resistant to mold, moths and bacteria. Learn more about Purishade®
Data sheet
Model:Maistra
Available sizes:3x3m, 3x4m, 4x3m, 4x4m, 5x3m, 5x4m
Overall weight3x3m: circa 60 Kg
3x4m: circa 70 Kg
4x3m: circa 70 Kg
4x4m: circa 80 Kg
5x3m: circa 80 Kg
5x4m: circa 85 Kg
Wind resistance
Wind load with mobile installation(30 - 39 km/h)
Wind load with fixed installation(51 - 62 km/h)
STRUCTURE
Color of polesSilver powder coated
Profile colorAluminum
Color of jointsBlue anodized aluminum
Transverse profile thickness1.5mm
FABRIC
MaterialPurishade 270gsm
Water column375 mm
Lightfastness7 - 8 "Excellent lightfastness"
Protection factor50+ UPF
Fabric warranty5 years against fading
UVUV-resistant
Waterproof100% waterproof
Warranty:3 years
PACKAGING
Box sizes6 Boxes, maximum size 156x25x17 cm

Package contents and giveaways

PACKAGE CONTENTS
Maistra is a canopy with many included accessories. This sales policy will allow you to have a complete product without any strange surprises.
Despite this there are components that may not be needed; Maanta wants to minimize the impact of its products on the environment for this reason no accessories are included that would later be thrown away.
On this page you will find the included items, optionals, and accessories.
INCLUDED ELEMENTS
POLE AND MOUNTING PLATE
The Maistra freestanding awning is supported by two Silver-colored poles.
These allow the height of the awning to be adjusted and support the swivel joints equipped with the Rotary Lock pin system.
The pole consists of a supplied galvanised base plate and aluminium body. Aluminium is naturally salt water resistant and rust free!
ROTARY LOCK-PIN
Tilting, opening and closing Maistra is super easy with the innovative Rotary Lock-Pin system.
Two swivel joints are machined from a solid aluminium block with tenths of a millimetre precision so that the tensioned structure can rotate to change the shade cone or to let the rain run off on the desired side.
UNIVERSAL CLEAT
Having tidy ropes is every sailor's mantra, we at Maanta dedicated to the sea after bringing nautical conception into sun sails, we also bring in the values of seamanship.
Included are two rope cleats, made entirely of 316 stainless steel. This simple accessory allows you to keep the two ropes for turning and tilting Maistra in order.
MANOEUVRING ROD
The maneuvering rod allows the tilting of Maistra in order to change the cone of shade. Depending on the time of day and the position of the sun, you can thus vary the shade.

Made entirely of stainless steel and easy to use, it is an indispensable accessory.
OPTIONAL ANCHOR ACCESSORIES

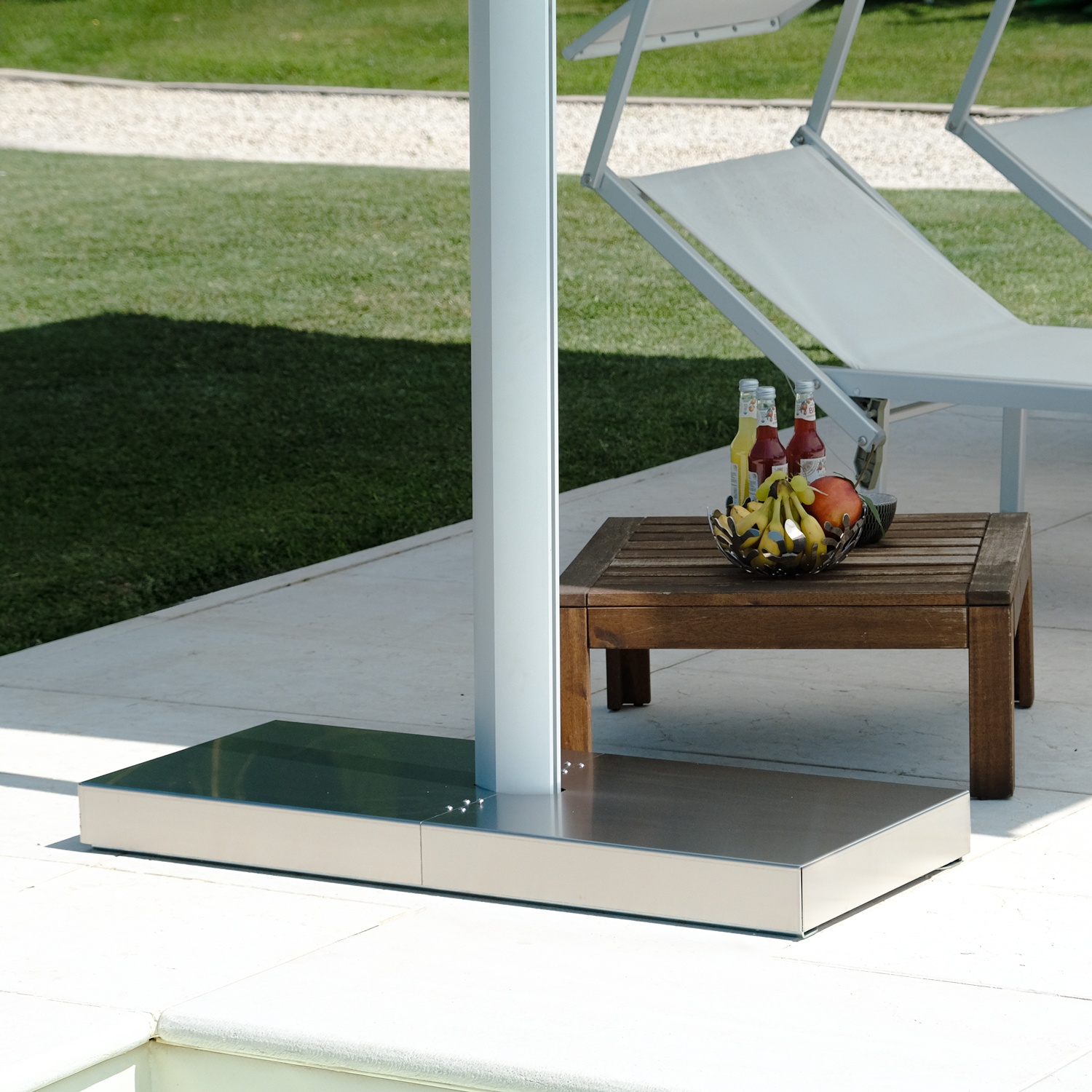

KIT BASES MAISTRA
Maistra's two poles can be fixed firmly to the ground by plinth or concrete surface. Alternatively, to avoid drilling or permanent fastening, the kit consisting of two supports and base covers can be used.
The basic kit does not include the ballast slabs, which we recommend to be made of concrete with size 40x40 cm, thickness 40 mm weighing about 14 kg each.
SLABS FOR MAISTRA BASE KIT
The weighting plates are not included. They are available at any hardware store.
We recommend a ballast of about 50 to 60 kg per base.
Maistra base kits do not support slabs thicker than 40 mm, they may not make the satin plate cover close.
Four plates are sufficient for each support, thus making a total of 8.
THREADED RODS KIT
M12x13 cm threaded rods and a chemical anchor are required to securely fasten the base of Alu-Simple poles, on plinth or a concrete surface.

Threaded rod and chemical anchoring kits are available on our site, with accompanying instruction guides.
Go to product page of the Chemical anchoringGo to the product page of the Threaded Rods
OPTIONAL ACCESSORIES
EASY LAMP LAMP
The Easy Lamp spotlight is specially designed to be compatible with Maistra's poles. In fact, it is possible to position it at an adjustable height along the two present lanes.
Useful accessory with a unique and modern design, made of sturdy aluminum, will accompany you on any summer evening.
UNIVERSAL CLEAT
Although already present in the Maistra kit, it may come in handy to add an additional cleat to keep the two ropes in order. One for rotating Maistra's tilt, the second for opening and closing.
Go to the product page of the Universal cleat
CONNECTING PLATE FOR EXTRA MODULE
To cover more space, multiple Maistra modules can be placed side by side, saving up to 20% on the cost of additional modules.
To connect the modules you will only need to purchase the plate in objects.
Additional modules are currently sold by request, you can contact us by phone or email.
Go to the product page of the connection plate

Instructions & Info

PRODUCT ASSEMBLY VIDEO
Assembling Maistra is simple and requires no skilled labor or special equipment.
It is also installable by yourself, but for some operations we recommend getting help from a second person.

We have made a step-by-step video tutorial that will walk you through each step during the assembly.
The video is available here or on our YouTube channel.

Maistra still comes with printed assembly instruction guides.
icon-download

ASSEMBLY INSTRUCTIONS

Data sheet, package contents, assembly guide and warranty.

Download the complete guide
in PDF format
ASSEMBLY INSTRUCTIONS IN PDF FORMAT
The Maistra canopy is easy to install, even for the less experienced do-it-yourselfer.
Our research and development team is always keen to make functional components that are easy to assemble while maintaining a distinctive design.
Components of complex assembly are supplied pre-assembled.

Paper instructions are provided inside the package.
PDF instructions are also available and downloadable from the following links.
These versions are constantly updated based on feedback from clients and partners.
MAIN ASSEMBLY STEPS OF MAISTRA: THE DESIGN CANOPY!
1 - BASE KIT
The first step is to mount the optional Maistra Base Kit, alternatively you can fix the base-plates of the poles directly to the ground for fixed installation.
(Read more in the chapter "mounting the pole with base-plate")
2 - SUPPORT POLES
Continue with the assembly of the pole.
If you opt to fix the pole to the ground, remember to wait the time specified by the chemical anchor before stressing the base.
3 - ROTARY PIN-LOCK
Compose the pre-assembled joints following the given directions.
Remember: the side with two pulleys will be the maneuvering side to open/close/tilt Maistra.
4 - HORIZONTAL BAR
Assemble the horizontal bar and attach it to the two poles.
You can do this on your own by first fixing one side and then switching to the opposite side, but we recommend asking another person for help.
5 - CROSSBARS
Assemble the crossbars and attach them to the horizontal bar, then you can fix the fabrics.
6 - FABRIC STRIPS
Lastly, proceed to assemble the fabric strips.
Simply insert the fabric strips into the lanes of the crossbars and complete the installation.

FAQ

Yes, Maistra like all freestanding awnings is not snow load certified.
The materials used in Maistra have no problem with the weather, they can be installed in the mountains as well as at the sea. They are not subject to saltiness.
Therefore, closure is recommended in case of snowfall.

Maanta by Bega manufactures and distributes directly through the e-commerce channel; at the moment Maistra is not available custom-made.
The processing cycle is very long and delicate, every cut and hole must be made with precision to the tenth of a millimeter.
For a custom product we will not be able at the moment to offer short lead times as we do by policy on other products.

Yes installation without the optional bases is possible, you will need to anchor the two poles to the ground with the appropriate threaded rods, click here.
If placed on the ground, it will be necessary to make 60x60x60cm concrete supports.

Maistra can also be installed on a terrace with the optional bases kit.
It is recommended to check the load bearing capacity of the floor slab, the bases alone should be covered with concrete plates weighing a total of 60Kg (132lb) / each.

As with all our catalog products, shipping fees are standard.
We take on a portion of the shipping costs so as not to burden the buyer.
More information on shipping can be found at the following link.
